Digitus DS-55505 HDBaseT Extender (receiver) via RJ45 network cable 100 m
EAN:
Part number:
Item no:

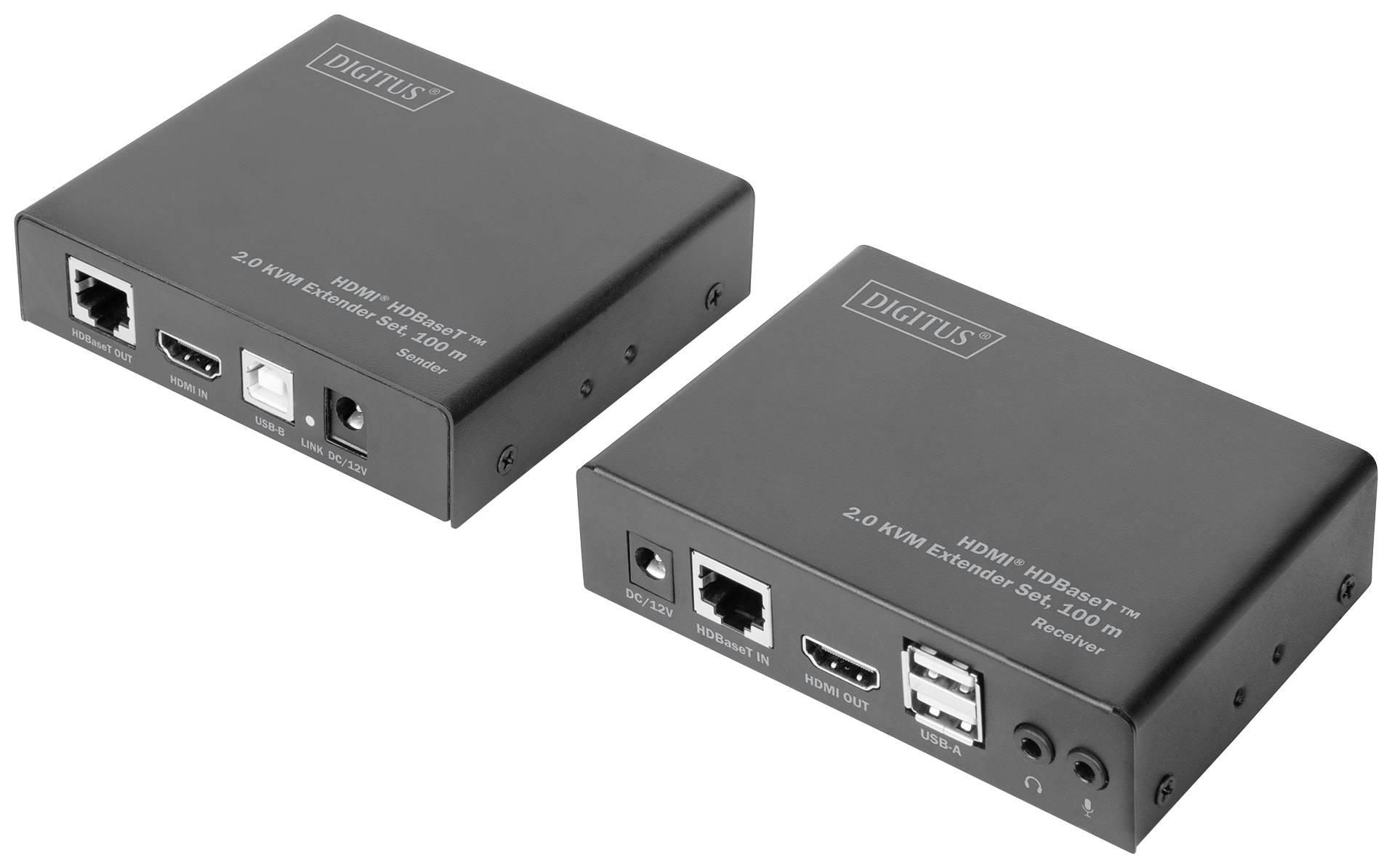

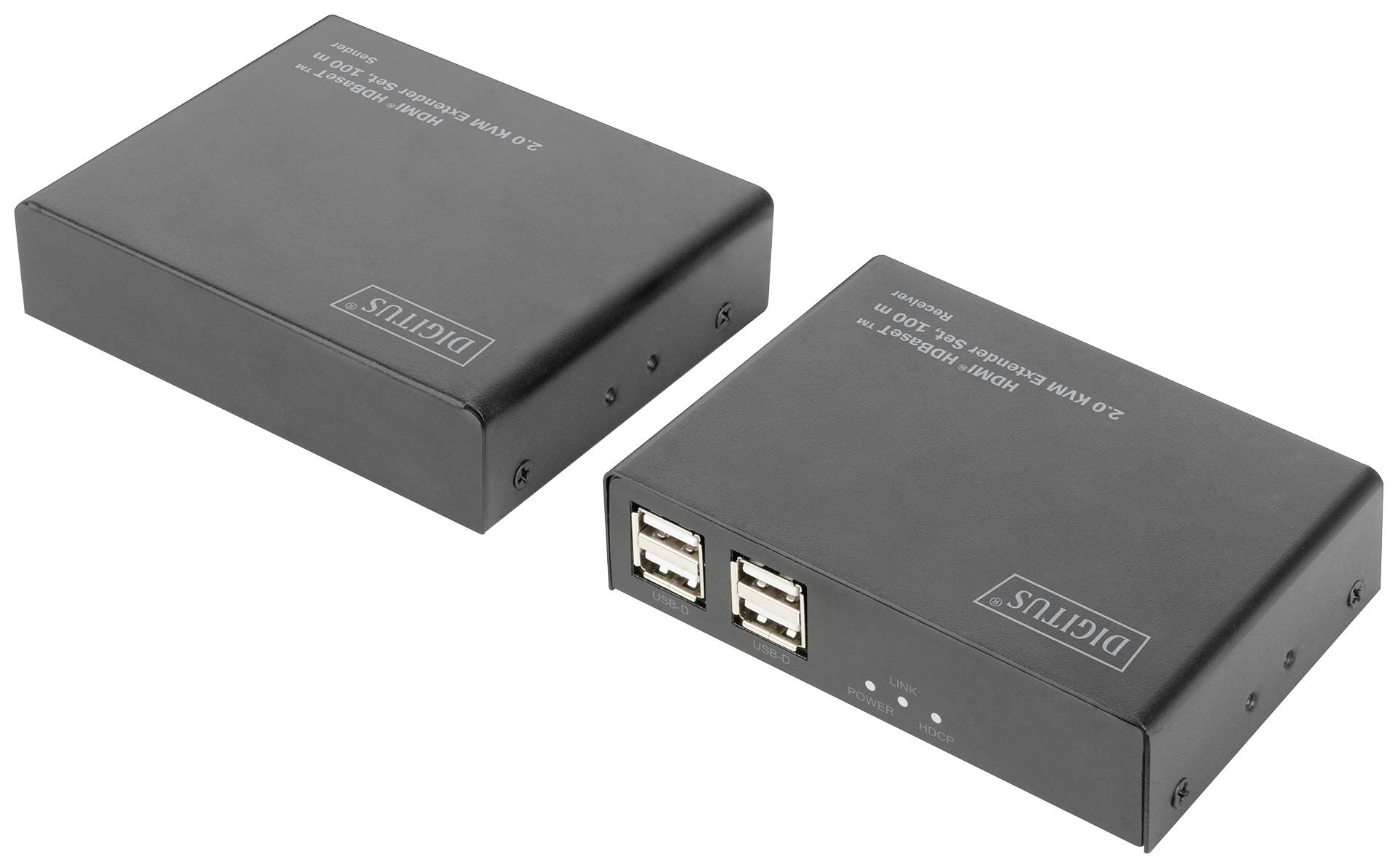

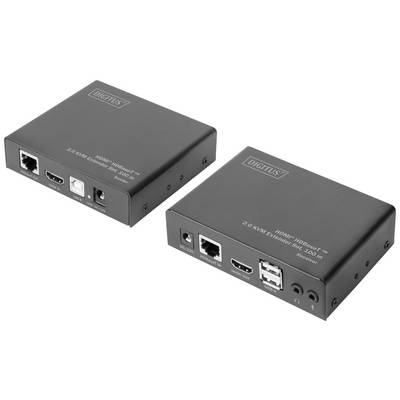

Digitus HDBaseT 2.0 HDMI KVM Extender Set 4K/60Hz (4:2:0), 6x USB
Highlights & Details
- Transfer high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m.
- Saves unnecessary cabling and bundles multimedia and many more signals in one network cable
- Transmission without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT5e/6/7/8 cable up to 100 m.
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)

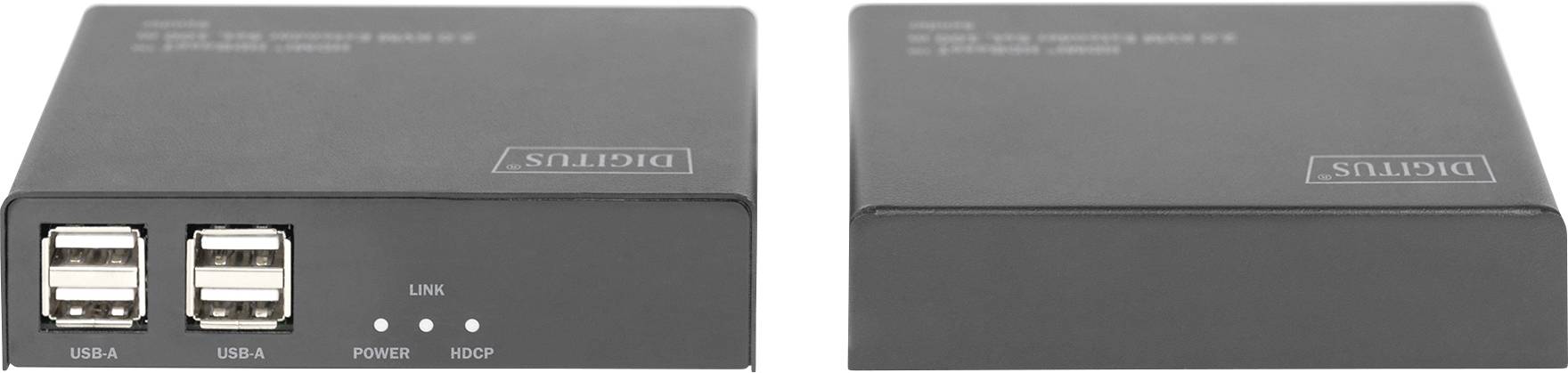

- Supports USB 2.0 features (high-speed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD master audio™ and Dolby TrueHD)
Technical specifications

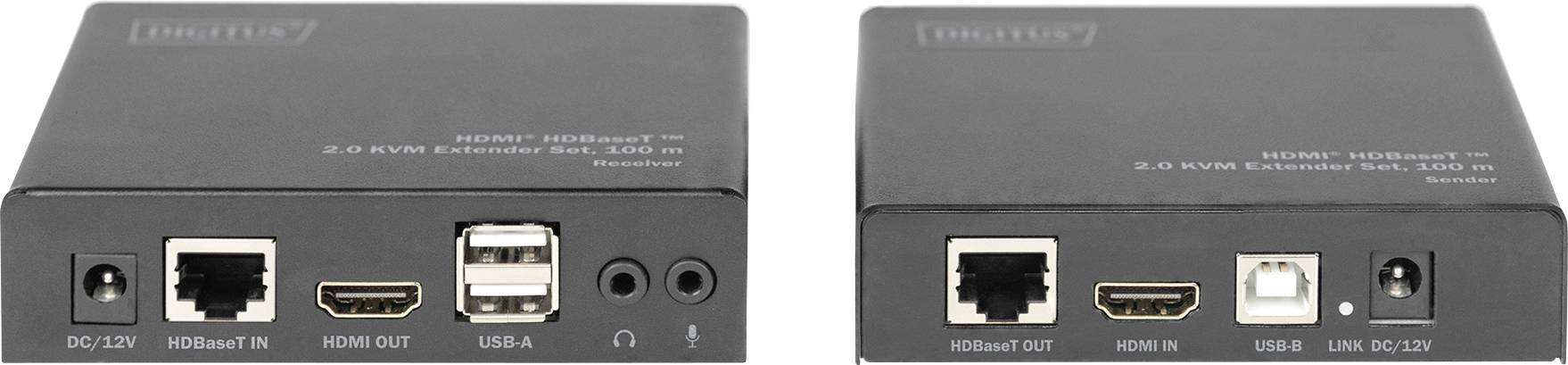

- Inputs: 1 x HDMI™, 1 x USB B.
- Outputs: 1 x HDMI™, 6 x USB A.
- HDMI® bandwidth: 10.2 Gbps
- HDCP version: 2.2
- HDMI version: 1.4
- HDTV resolution max.: 3840 x 2160 pixels, 60Hz
- Color depth: 36Bit total (12Bit per channel)
- Uses HDBaseT™ 2.0 technology (VS2310)
- Supports Full 3D, 1080p, 4K@30/60Hz
- Supports sub-sampling: 4:2:0
- Supports HDBaseT™ 2.0 via CAT5e/6/7/8 cable up to 100 m.
- Supports USB 2.0 features (hi-speed)
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD master audio™ and Dolby TrueHD)
- Supported resolutions (interlaced): 480i, 576i, 1080i
- Supported resolutions (progressive): 480p, 576p, 720p, 1080p, 4K (4096x2160@24Hz, 3840x2160@60/30Hz)
- cat 5e
- Transmission technology: cat
- KVM: Yes
- power over Ethernet (PoE): no.
- Operating temperature 0°C to 40°C.
- Operating humidity: 5% to 90% RH (non-condensing)
- Power consumption transmitter: 3 W
- Power consumption receiver: 7 W
- Power supply: Input: 100 - 240 V AC / 0.65 A - Output: 12 V / 2 A.
- Cable length power supply 1.2 m
- Dimensions transmitter: W 13 x D 10 x H 2.5 cm
- Dimensions receiver: W 11 x D 8 x H 2.8 cm
- Weight 212 g (transmitter), 240 g (receiver)
- Housing: metal
- Product type
HDBaseT Extender (receiver)
- Transfer type
via RJ45 network cable
- Range (max.)
100 m
- Factory colour
Black (RAL 9005)
Black
- Weight
475 g
- Length
104 mm
- Width
89 mm
- Height
26 mm
- Dim
(L x W x H) 104 x 89 x 26 mm
- No. of outputs
7 x
- No. of inputs
2 x
- Power supply (LOV)
mains-powered
via mains outlet
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2377893 Digitus DS-55505 HDBaseT Extender (receiver) via RJ45 network cable 100 m
Description
Use a RJ45 network cable to transfer high-resolution, uncompressed audio/video content, USB signals, and data
With the DIGITUS® HDMI® HDBaseT™ 2.0 KVM Extender Set, you can control your source device from a distance of up to 100 meters via a single CAT5e/6/7/8 cable connection, with uncompressed 4K Digitus HDMI™ video content and access to up to 6 connected USB devices. This extender was developed especially for a smooth and uncomplicated setup. The HDBaseT™ 2.0 technology enables the installation via a single cable, whereby the laborious laying of several cables can be avoided. For example, the typical application would be a room-wide solution where the source device and display can be up to 100 m away from each other. You can use up to 6 USB devices connected to the transmitter module from the receiver and naturally enjoy video and audio content. A very simple KVM functionality in terms of installation and application. Instead of laying several cables, only one RJ45 network cable or using the existing network connections (point-to-point) with the HDMI® HDBaseT™ 2.0 Extender by Digitus DIGITAL®.
This text is machine translated.
With the DIGITUS® HDMI® HDBaseT™ 2.0 KVM Extender Set, you can control your source device from a distance of up to 100 meters via a single CAT5e/6/7/8 cable connection, with uncompressed 4K Digitus HDMI™ video content and access to up to 6 connected USB devices. This extender was developed especially for a smooth and uncomplicated setup. The HDBaseT™ 2.0 technology enables the installation via a single cable, whereby the laborious laying of several cables can be avoided. For example, the typical application would be a room-wide solution where the source device and display can be up to 100 m away from each other. You can use up to 6 USB devices connected to the transmitter module from the receiver and naturally enjoy video and audio content. A very simple KVM functionality in terms of installation and application. Instead of laying several cables, only one RJ45 network cable or using the existing network connections (point-to-point) with the HDMI® HDBaseT™ 2.0 Extender by Digitus DIGITAL®.
This text is machine translated.

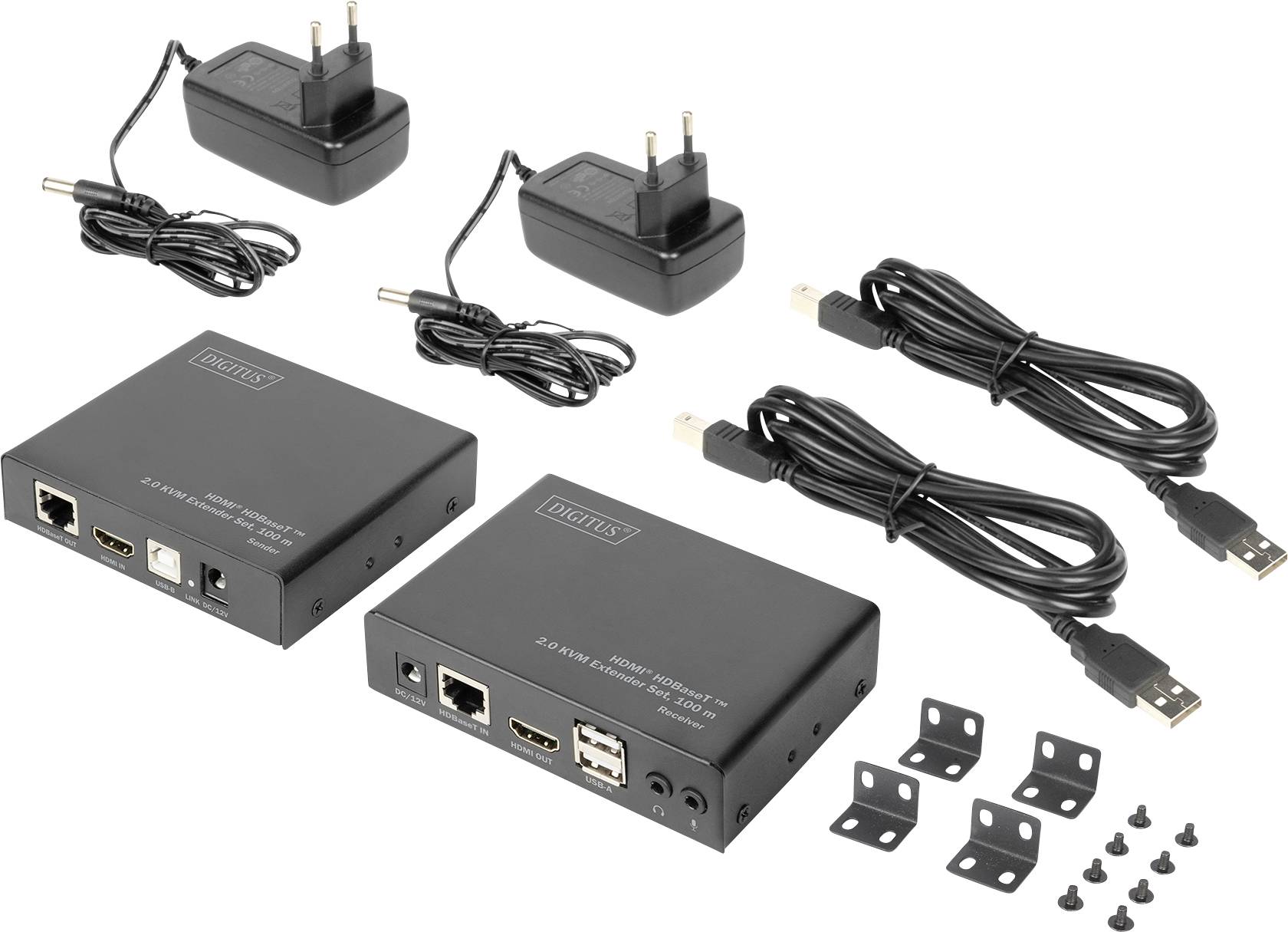

Scope of delivery
- 1 x HDMI® HDBaseT™ 2.0 KVM Extender Set
- 2 x power supply 12 V / 2 A
- 1 x USB connection cable 1.5 m
- 4 x mounting brackets for wall mounting
