Digitus DS-55513 HDMI Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD 70 m
EAN:
Part number:
Item no:
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
14-day return policy included
Highlights & Details
Digitus DS-55513 HDMI Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD 70 m
- Supports 4K2K/60Hz (HDR, 4:4:4)
- Video bandwidth 18 Gbps
- Maximum transfer distance (UHD 4K2K): 70 m.
Technical specifications
- Supports CAT 6/7/8 cable
- HDCP 2.2 / 1.4
- HDMI 2.0
- Connections in the transmitter unit:
- 1x HDMI input (4K/60Hz) - signal source connector
- 1x RJ45 output - connection CAT transfer cable
- 1x HDMI Loop-Out / output - connection of local monitor (source device)
- 1x USB-A port - connection at source device
- 1x power supply input (DC 5V/2A)
- 1 x reset button
- 3x LED status display
- Connections receiver unit:
- 1x HDMI output (4K/60Hz) - output device connection
- 1x RJ45 input - connection CAT transfer cable
- 2x USB-A port – connection of mouse, keyboard, touch-screen
- 1x audio output (Digital) - S/PDIF - connection of external loudspeakers
- 1x power supply input (DC 5V/2A)
- 1 x reset button
- 3x LED status display
- Overvoltage & ESD protection
- Suitable for wall mounting
- Operating temperature -20-60°
- Power consumption: Transmitter/receiver approx. 4W
- Housing: metal
- Dimensions (1 unit): L 10.7 x W 15 x H 2.8 cm
- Weight (1 unit): 260 g
- Colour, black
- KVM: No.
- Power over Ethernet (PoE): No.
- Product type
TV/monitor Adapter
- Connection type
HDMI
- No. of A connectors
1 x
- Type A
HDMI socket
- No. of B connections
1 x
- Type B
HDMI socket
- Cable length
70 m
- Factory colour
Black
- Video resolution
1920 x 1080 Pixel
2040 x 1080 Pixel
2560 x 1440 Pixel
3840 x 2160 Pixel
- Cable features
4K UHD
- Cable use
TV/monitor
- Version
Adapter
- Range of use
Monitors/TV adapters
- HDMI version
HDMI 2.0
- Cable version
HDMI Premium High Speed
- Cable specs
HDMI 2.0
- Height
200 mm
- Length
400 cm
- Width
300 mm
- Weight
1000 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2860272 Digitus DS-55513 HDMI Adapter [1x HDMI socket - 1x HDMI socket] Black 4K UHD 70 m
Description
Extends an HDMI signal at a distance of up to 70 m in UHD resolution (4K/60Hz) and offers KVM/USB functionality for connecting mouse, keyboard and touch-screen
This text is machine translated.
This text is machine translated.
Features
- KVM/USB functionality – connection of mouse, keyboard, touch-screen
- HDMI Loop Out at the transmitter unit
- Supports CAT 6/7/8 cable
- Audio extractor on the receiver unit (S/PDIF)
- EDID pass back
- HDCP 2.2 / 1.4
- HDMI 2.0

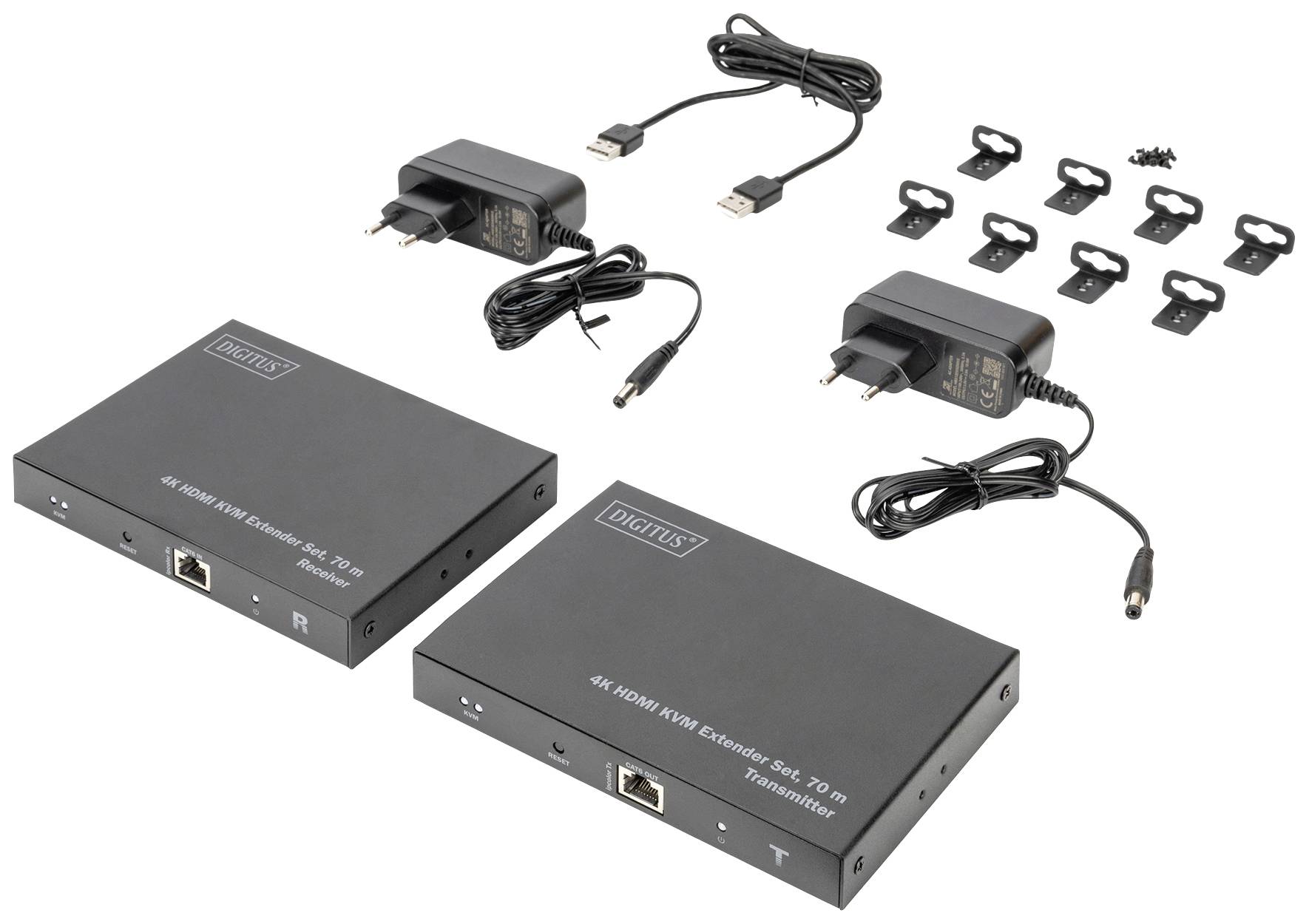

Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 2x power supply (DC 5V/2A, 1.45 m)
- 1x USB cable
- 1x wall mounting hardware
- 1x user manual
