Digitus DS-55517 HDMI™ HDMI extender via RJ45 network cable 120 m
EAN:
Part number:
Item no:
Digitus DS-55517 HDMI™ HDMI extender via RJ45 network cable 120 m
Highlights & Details
- Extends full HD AV signals via CAT-6 cable to unlimited distance over your existing network infrastructure or using commercially available network switches
- Extends full HD AV signals via CAT-6 cable to up to 120 m (point-to-point connection)
- Supports resolutions of up to 1080p/60Hz, Full HD
Technical specifications
- Use additional receiver units (DS-55518) and your existing network infrastructure to display video content on up to 253 screens (IP connection)
- Extends full HD AV signals via CAT-6 cable to unlimited distance over your existing network infrastructure or using commercially available network switches
- Extends full HD AV signals via CAT-6 cable to up to 120 m (point-to-point connection)
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable
- IR interface allows remote control of the input source from the output screen
- HDCP 1.3

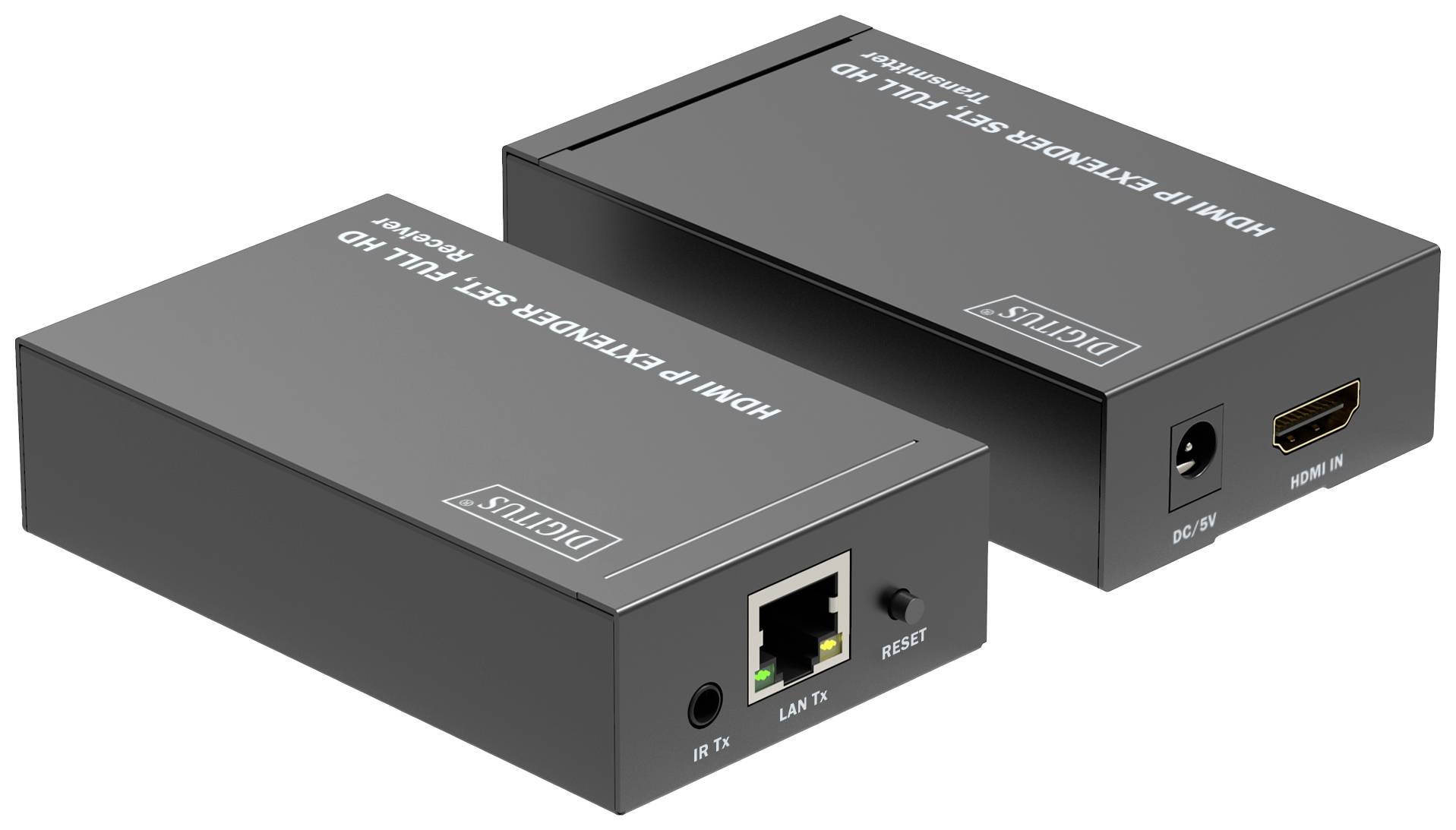

- Connections in the transmitter unit:
- 1x HDMI input (1080p/60Hz) - signal source connection
- 1x RJ45 output - connection CAT transfer cable
- 1x IR output - connection of IR transmitter
- 1x power supply input (DC 5V/2A) - external power supply connection
- 1 x reset button

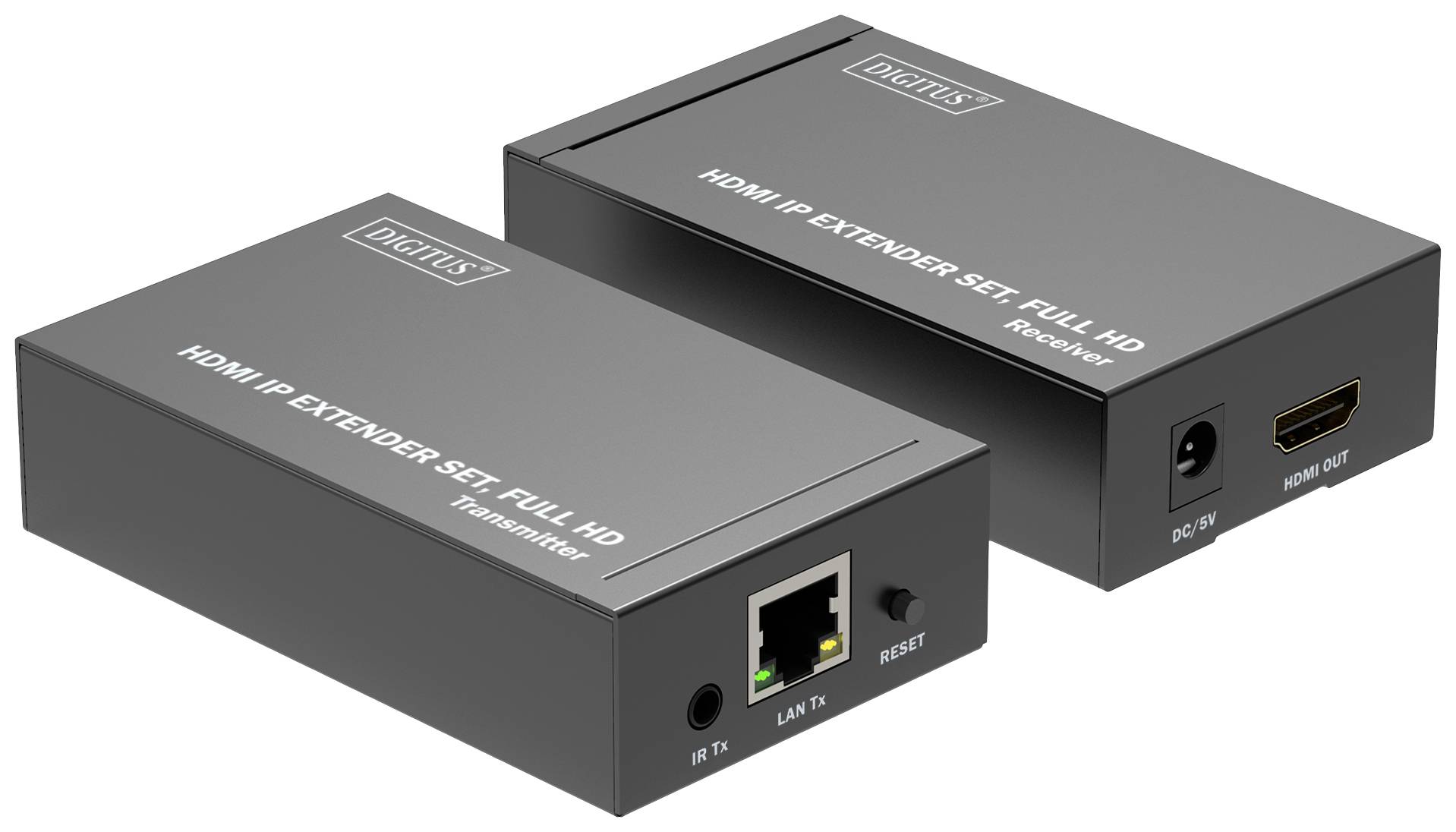

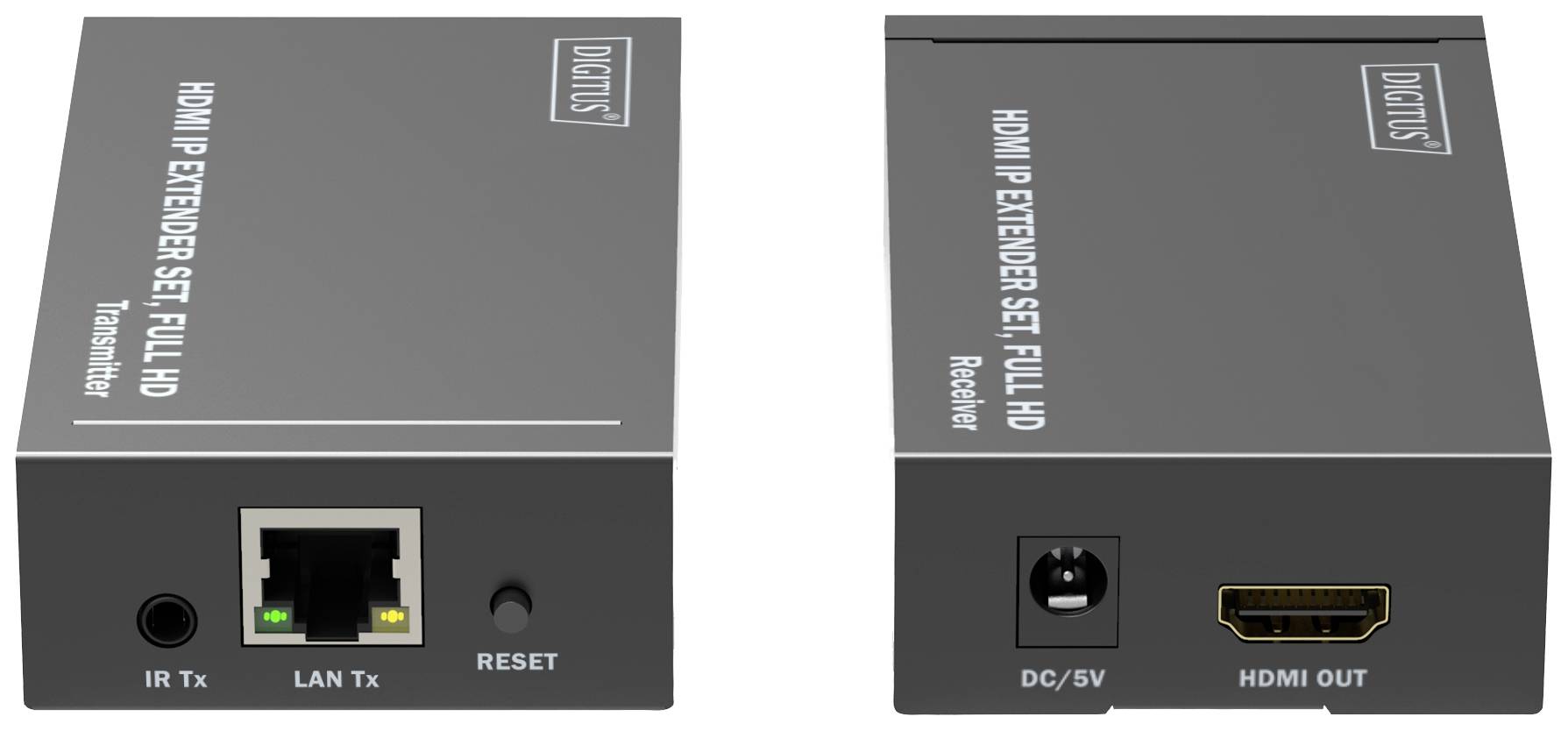

- Connections receiver unit:
- 1x HDMI output (1080p/60Hz) - output device connection
- 1x RJ45 input - connection CAT transfer cable
- 1x IR input - IR receiver connection
- 1x power supply input (DC 5V/2A) - external power supply connection
- Suitable for wall mounting
- Operating temperature 0 -50°
- Power consumption: 8W.
- Housing: metal
- Dimensions (1 unit): L 10 x W 5.9 x H 2.5 cm
- Weight (1 unit): 165 g
- Colour, black
- KVM: No.
- Power over Ethernet (PoE): No.
- Product type
HDMI extender
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Range (max.)
120 m
- Factory colour
Black
- Weight
165 g
- Length
100 mm
- Width
59 mm
- Height
25 mm
- Dim
(L x W x H) 100 x 59 x 25 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997728 Digitus DS-55517 HDMI™ HDMI extender via RJ45 network cable 120 m
Description
The HDMI Extender Set is a high-performance video distribution system which consists of a transmission/receiving unit. It extends full HD AV signals over a CAT6 network cable (point-to-point connection) up to 120 m. In addition, you can distribute your video content with network switches and the individual receiver units (DS-55518) over the existing network (IP-connection) to up to 253 displays and extend it to unlimited distance. The additional integrated one-way IR-interface enables a remote control of the input source from the output screen (receiver side).
This text is machine translated.
This text is machine translated.
Features
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- IR interface allows remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps per channel
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 1x IR transmitter cable (1.2 m)
- 1x IR receiver cable (1.2 m)
- 2x power supply (DC 5V/2A, 1.15 m)
- 1x installation material
- 1x user manual
