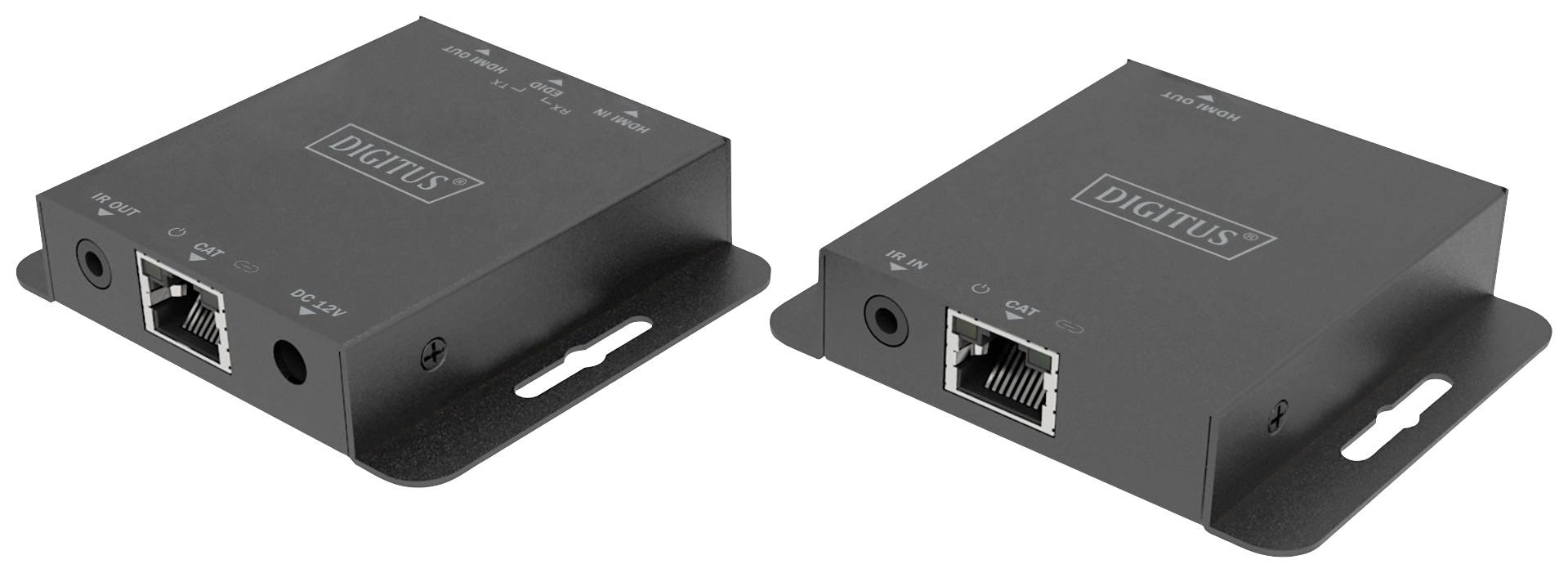

Digitus DS-55519 1 port HDMI extender set Black
EAN:
Part number:
Item no:
Highlights & Details
Digitus 4K HDMI Extender Set, 70 m
- Extends HDMI AV signals at a distance of up to 70 m.
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 5e, 6, 6A, 7, 8 network cables
Technical specifications
- Extends HDMI AV signals at a distance of up to 70 m.
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cable
- PoC (Power over Cable) - only the transmitter requires an external power supply
- HDMI loop-out / output – connection of a local monitor at the source device
- EDID copy function of the output screen at the receiver or at the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR transmission (unidirectional)
- Video bandwidth 10.2 Gbps

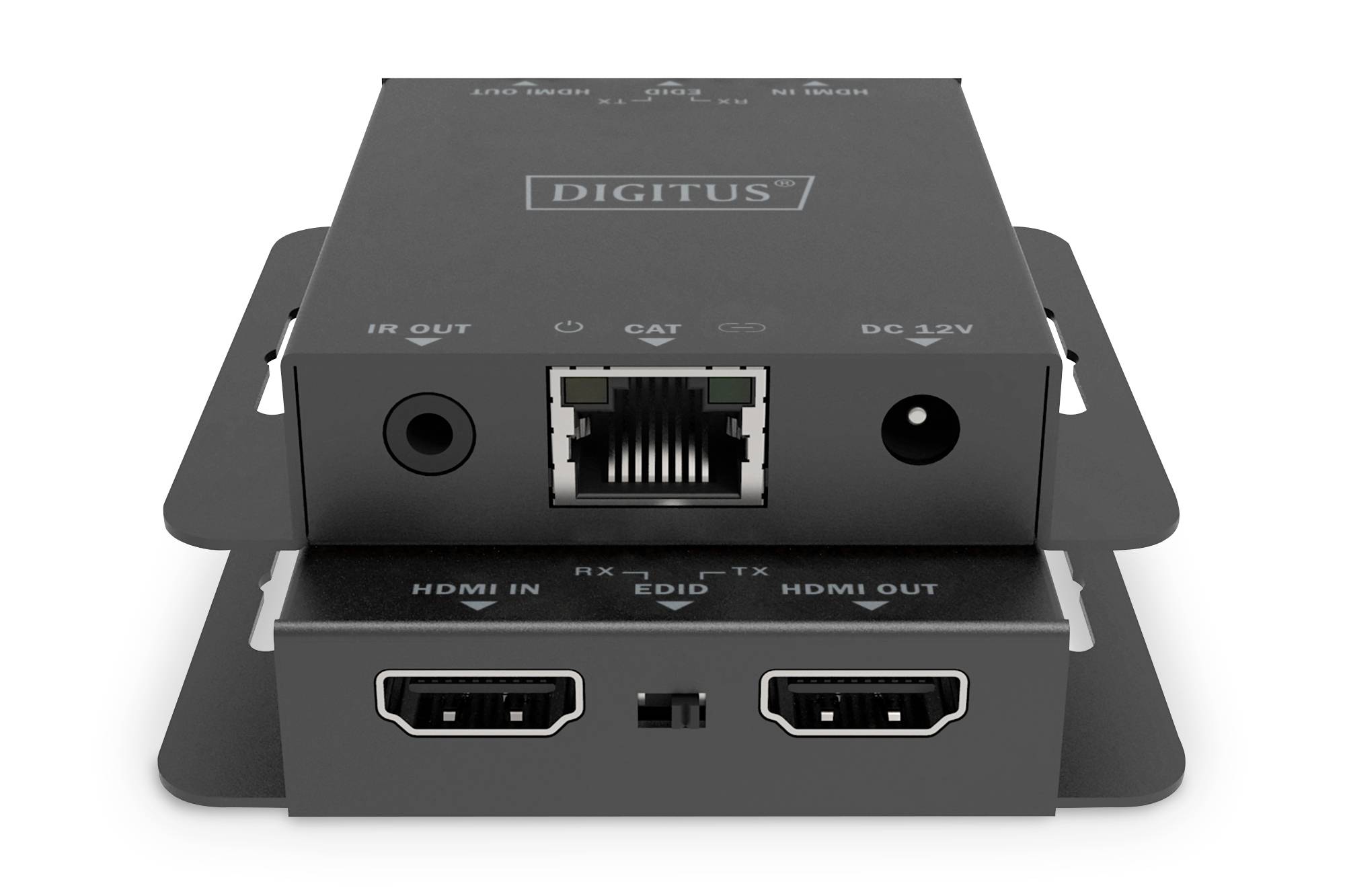

- Connections in the transmitter unit:
- 1x HDMI input (4K/30Hz) - signal source connector
- 1x HDMI Loop-Out / output - connection of local monitor (source device)
- 1x RJ45 output - connection CAT transfer cable
- 1x IR output - connection of IR transmitter
- 1x power supply input (DC 12V/1A) - connection of external power supply
- 1x EDID switch

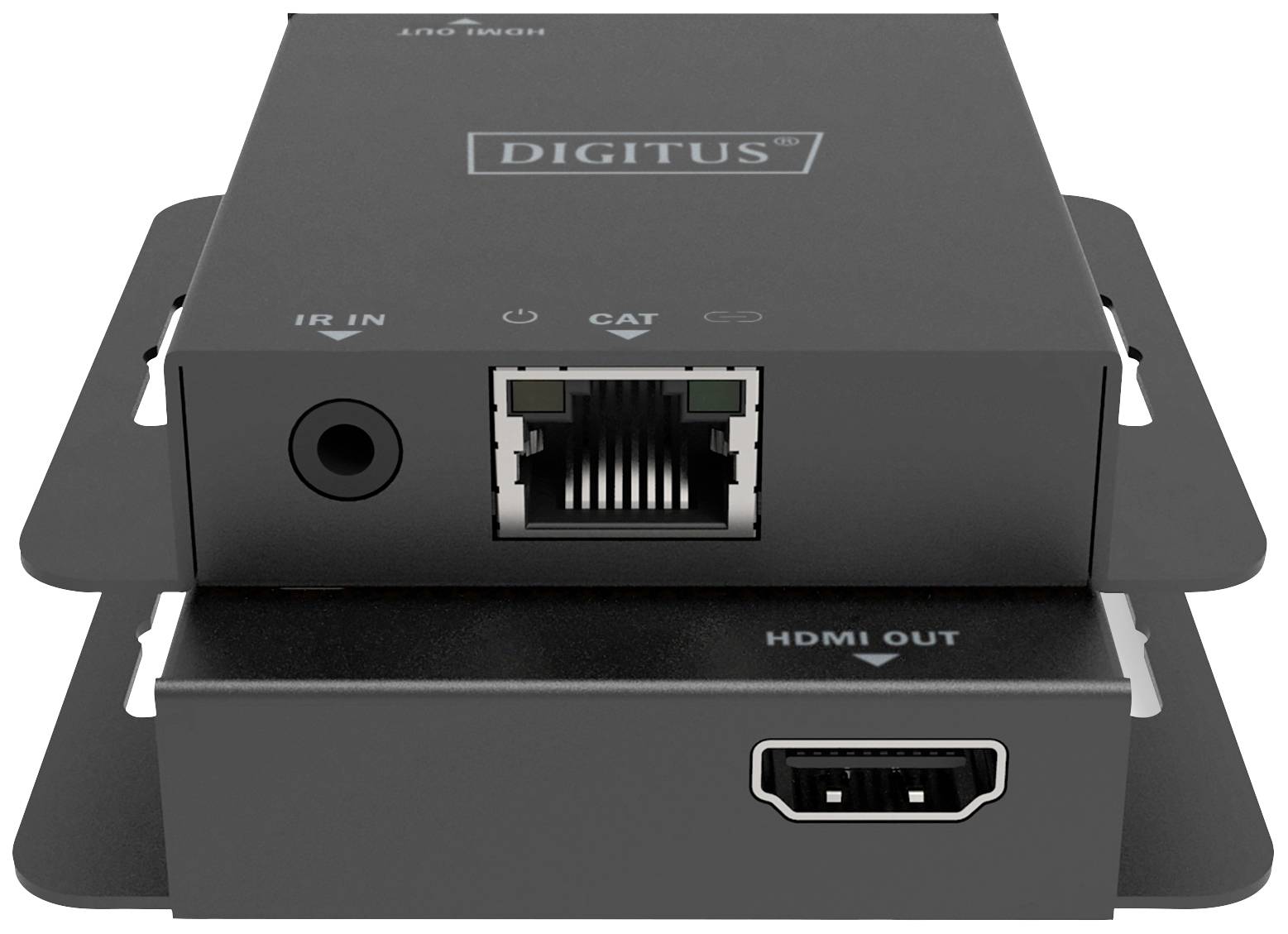

- Connections receiver unit:
- 1x HDMI output (4K/30Hz) - output device connection
- 1x RJ45 input - connection CAT transfer cable
- 1x IR input - IR receiver connection
- Suitable for wall mounting
- ESD Protection
- Operating temperature 0 -40°
- Power consumption: Transmitter approx. 1.86 W, receiver approx. 0.87W
- Housing: metal
- Dimensions (1 unit): L 7.9 x W 6.9 x H 1.65 cm
- Weight (1 unit): 130 g
- Colour, black
- KVM: No.
- PoE (Power over Ethernet): Yes
- Product type
HDMI extender set
- Supported monitors
1
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
1 x
- Interfaces (output)
HDMI™
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
130 g
- Width
79 mm
- Height
69 mm
- Depth
16.5 mm
- Dim
(W x H x D) 79 x 69 x 16.5 mm
- Port
1 port
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997771 Digitus DS-55519 1 port HDMI extender set Black
Description
The HDMI Extender Set extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable. The transmitter has an HDMI Loop Out for connection of a local monitor Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. The IR transmission allows you to control the signal source comfortably via remote control from the receiver (output screen). The scope of supply also includes an EDID copy function of the output screen at the receiver or at the HDMI Loop Out, which can be selected by means of switch.
This text is machine translated.
This text is machine translated.
Features
- PoC (Power over Cable) - only the transmitter requires an external power supply
- HDMI loop-out / output – connection of a local monitor at the source device
- EDID copy function of the output screen at the receiver or at the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR interface allows remote control of the input source from the output screen
- Video bandwidth 10.2 Gbps
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 1x IR transmitter cable (1.5 m)
- 1x IR receiver cable (1.5 m)
- 1x power supply (DC 12V/1A, 1.15 m)
- 1x user manual
