Digitus DS-55526 HDMI® input, RJ45, Infrared, USB A (USB 2.0) via RJ45 network cable 150 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
Only 3 Piece(s) available

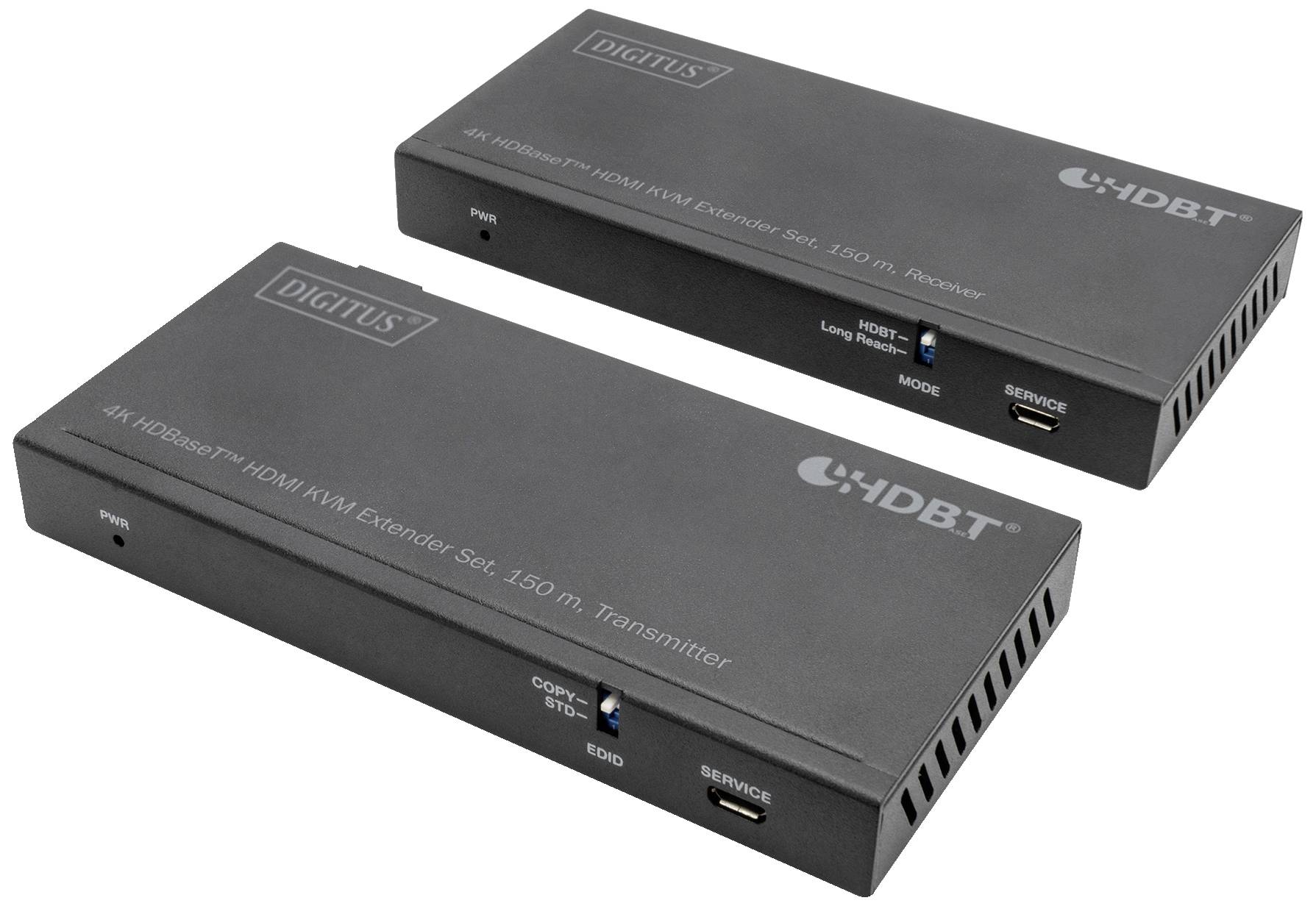

Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m
Highlights & Details
- Supports HDBaseT™ 1.0 via CAT6A/7/8 cables up to 100m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
Technical specifications

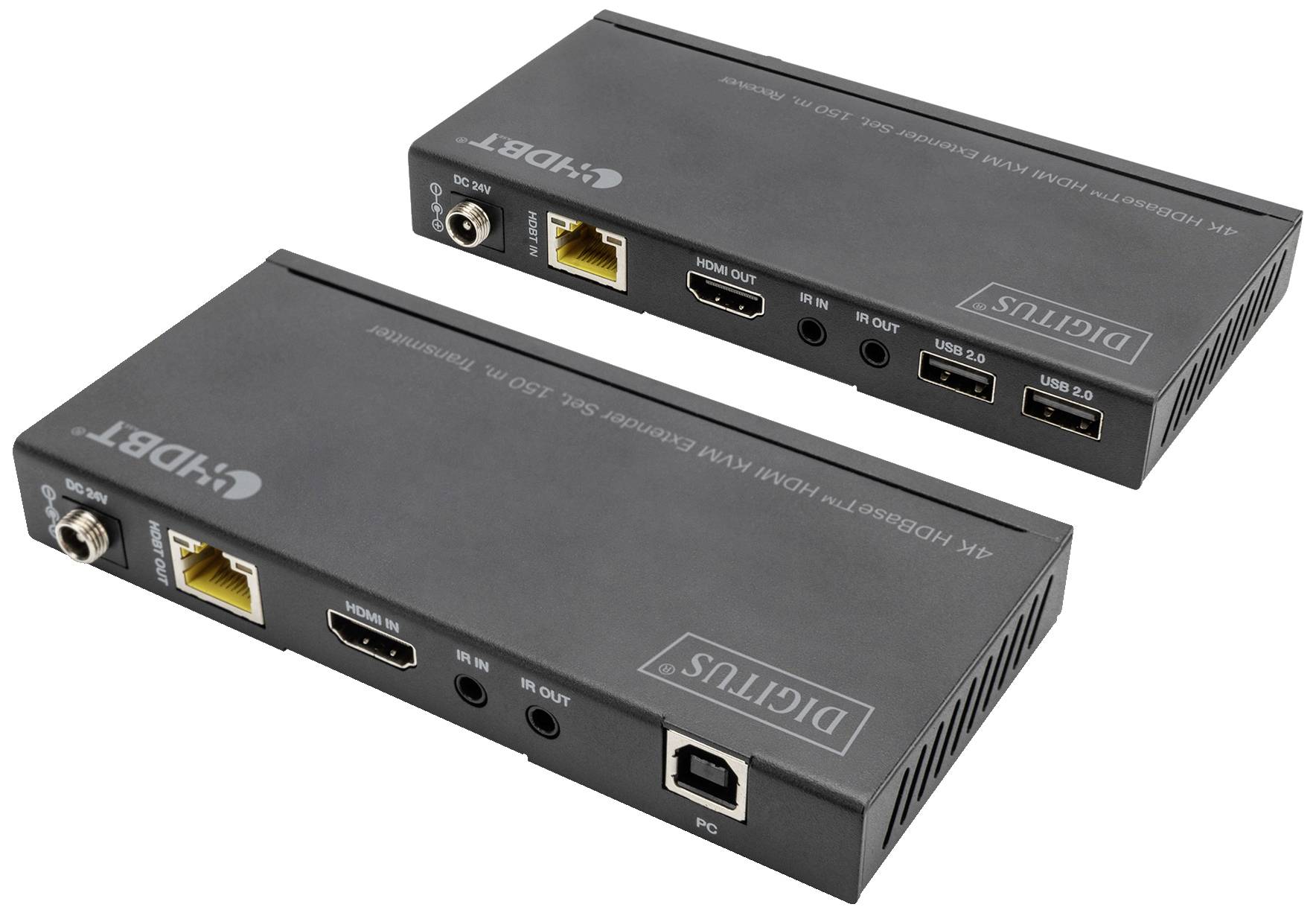

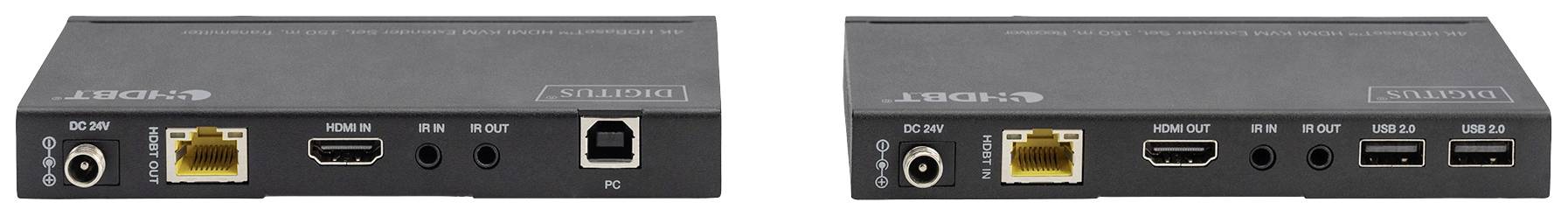

- 1x HDMI input (4K/60Hz) - signal source connector
- 1x RJ45 (HDBaseT) output - connection CAT transfer cable
- 1x IR input for receiving remote control signals
- 1x IR output for controlling the source device
- 1x USB-B (2.0) - Connection PC (signal source) for using KVM function
- 1x power supply input (DC 24V/1A), screw connector - connection for external power supply
- 1x micro USB input - service/FW update

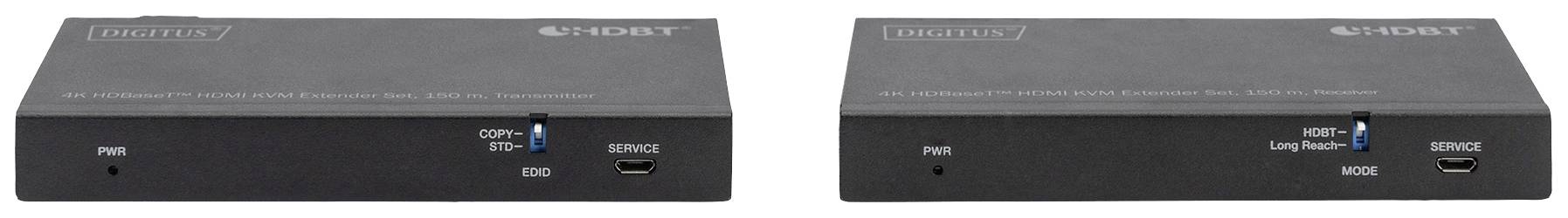

- 1x EDID switch
- Connections receiver unit:
- 1x HDMI output (4K/60Hz) - output device connection
- 1x RJ45 input - connection CAT transfer cable
- 1x IR input for receiving remote control signals
- 1x IR output for controlling the source device
- 2x USB A (2.0) - connection of, e.g. Webcam, data carrier, touch panel as well as mouse & keyboard
- 1x power supply input (DC 24V/1A), screw connector - connection for external power supply
- 1x micro USB input - service/FW update
- Suitable for wall mounting
- ESD Protection
- Operating temperature 0 -40°
- Power consumption: Approx. 13.2 W
- Housing: metal
- Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
- Weight transmitter 245 g / receiver 249 g.
- Colour, black
- KVM: No.
- Power over Ethernet (PoE): No.
- Transfer type
via RJ45 network cable
- Interfaces (input)
HDMI® input
RJ45
Infrared
USB A (USB 2.0)
- Interfaces (output)
HDMI® output
RJ45
Infrared
USB A (USB 2.0)
- Features
KVM function
- Resolution (max.)
3840 x 2160 p
- Range (max.)
150 m
- Factory colour
Black
- Length
140 mm
- Width
65 mm
- Height
18 mm
- Dim
(L x W x H) 140 x 65 x 18 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via PSU
Documents & Downloads
Datasheet
Datasheet 2860280 Digitus DS-55526 HDMI® input, RJ45, Infrared, USB A (USB 2.0) via RJ45 network cable 150 m
User & Safety Instructions
User & Safety Instructions 2860280 Digitus DS-55526 HDMI® input, RJ45, Infrared, USB A (USB 2.0) via RJ45 network cable 150 m
Description
The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over long distances over a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit with an external power supply unit needs to be supplied with power. The receiver unit has two USB 2.0 ports for the connection of, for example Webcam, data carrier as well as mouse & keyboard. Touch displays are also supported, thanks to the back control of the touch panel, the signal source can also be controlled by finger gestures. Bi-directional IR transmission is also included.
This text is machine translated.
This text is machine translated.
Features
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth 18 Gbps
- 2x USB 2.0 connections at the receiver for connection of for example Webcam, data carrier, touch panel as well as mouse & keyboard.
- Touchpanel support/touch panel back control
- PoC (Power over Cable) - only one unit requires an external power supply
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission

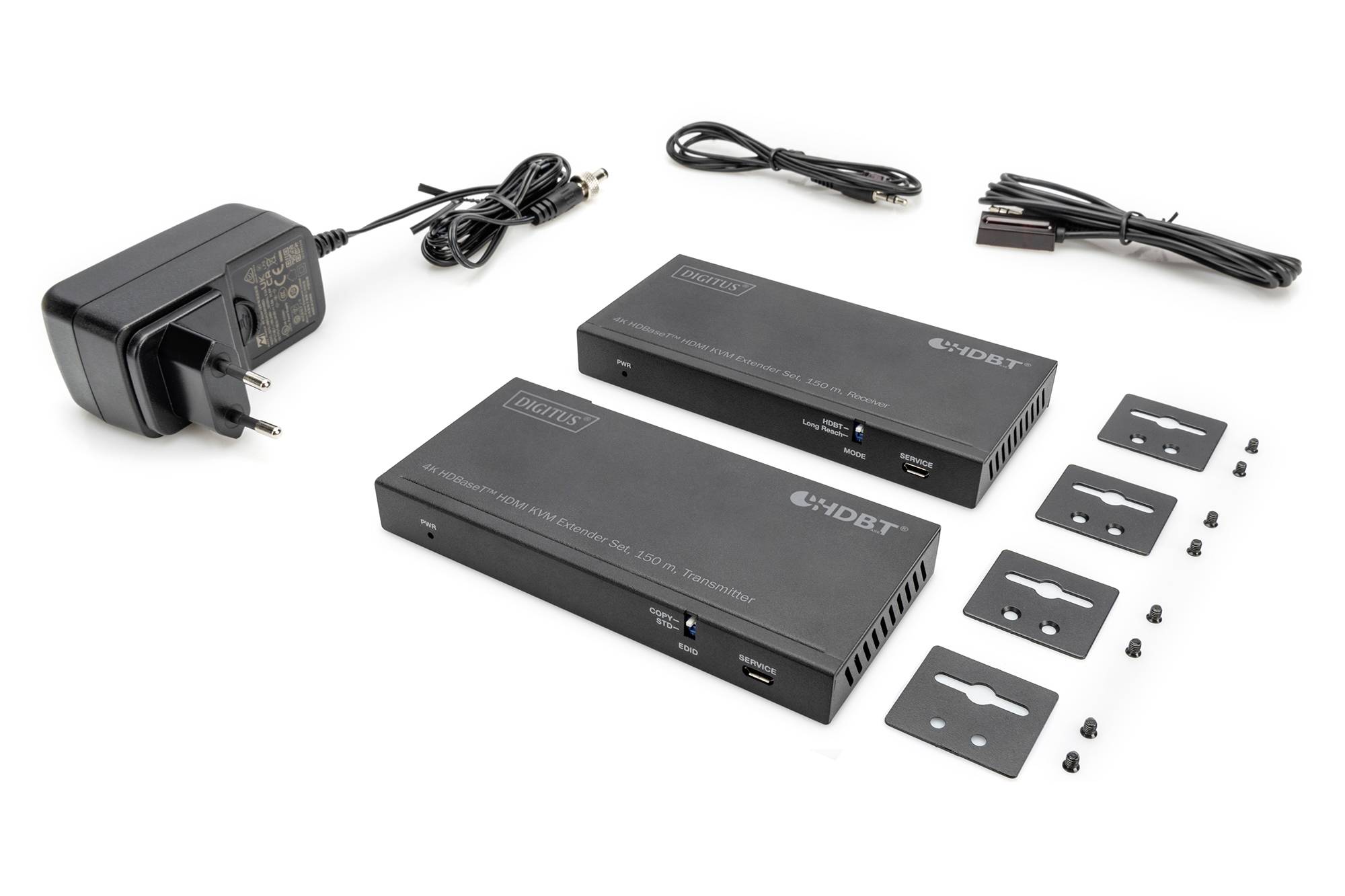

Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 1x IR transmitter cable (1.5 m)
- 1x IR receiver cable (1.5 m)
- 1x power supply (DC 24V/1A, 1.15 m)
- 1x USB connection cable (1.5 m)
- 1x installation material
- 1x user manual
