Digitus DS-55529 1 port HDMI extender set Black
EAN:
Part number:
Item no:

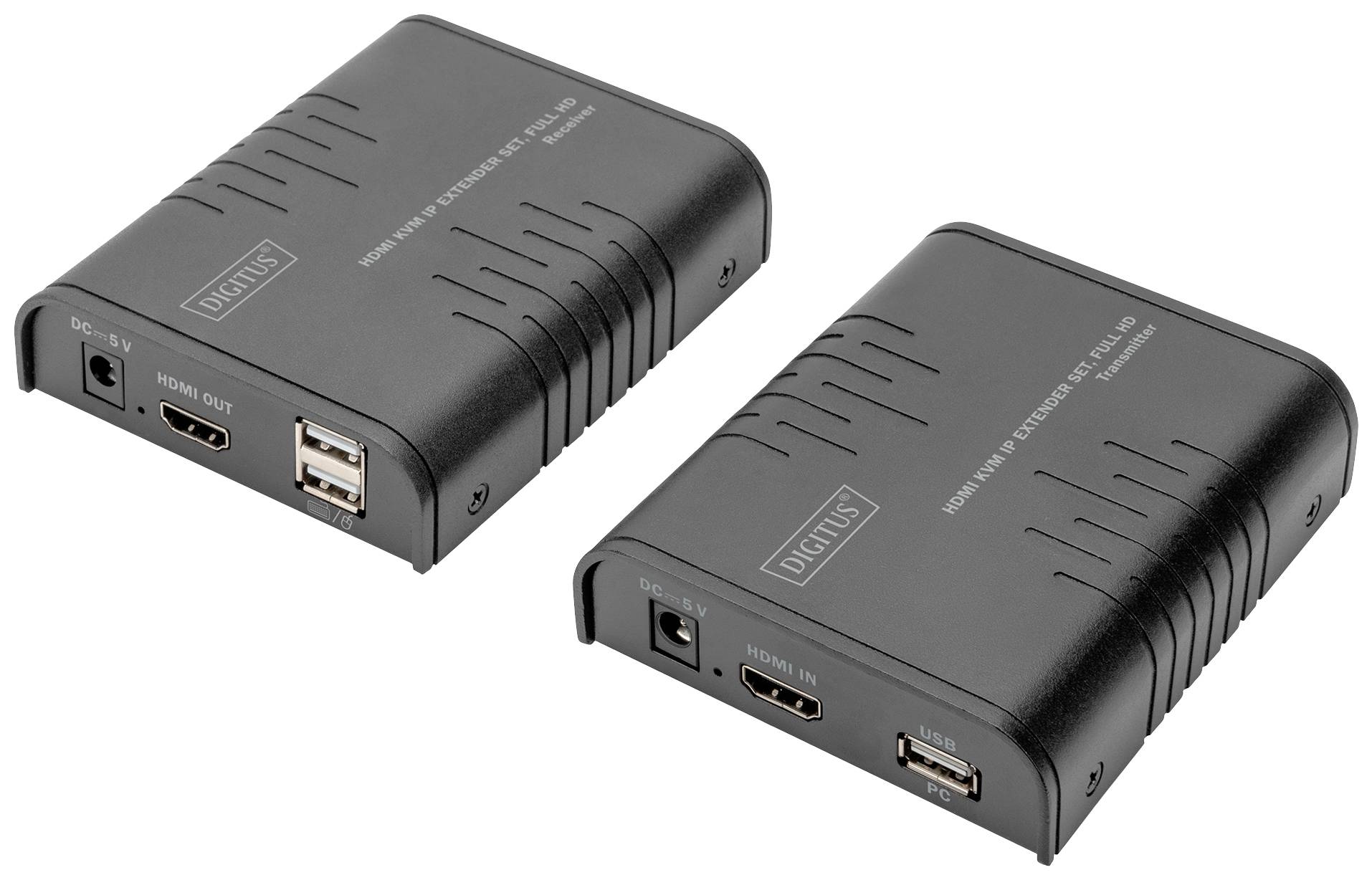

Digitus HDMI KVM IP extender set, full HD
Highlights & Details
- Extends full HD AV signals over CAT 5e (or higher) cables to unlimited distances over your existing network infrastructure or using commercially available network switches
- Extends Full HD AV signals over CAT-5e (or higher) to up to 120 m (point-to-point connection)
- KVM function on the receiver side for connection of mouse/keyboard for controlling the signal source at the output screen
Technical specifications
- Extends full HD AV signals over CAT 5e (or higher) cables to unlimited distances over your existing network infrastructure or using commercially available network switches
- Extends Full HD AV signals over CAT-5e (or higher) to up to 120 m (point-to-point connection)
- KVM function on the receiver side for connection of mouse/keyboard for controlling the signal source at the output screen
- Can be extended to up to 253 screens (receiver) - additional receiver DS-55530
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e (or higher) network cable
- Easy installation thanks to Plug & Play - no additional software/driver required
- Supports Full HD resolutions up to 1920x1080 / 60 Hz
- HDMI 1.3
- HDCP 1.4

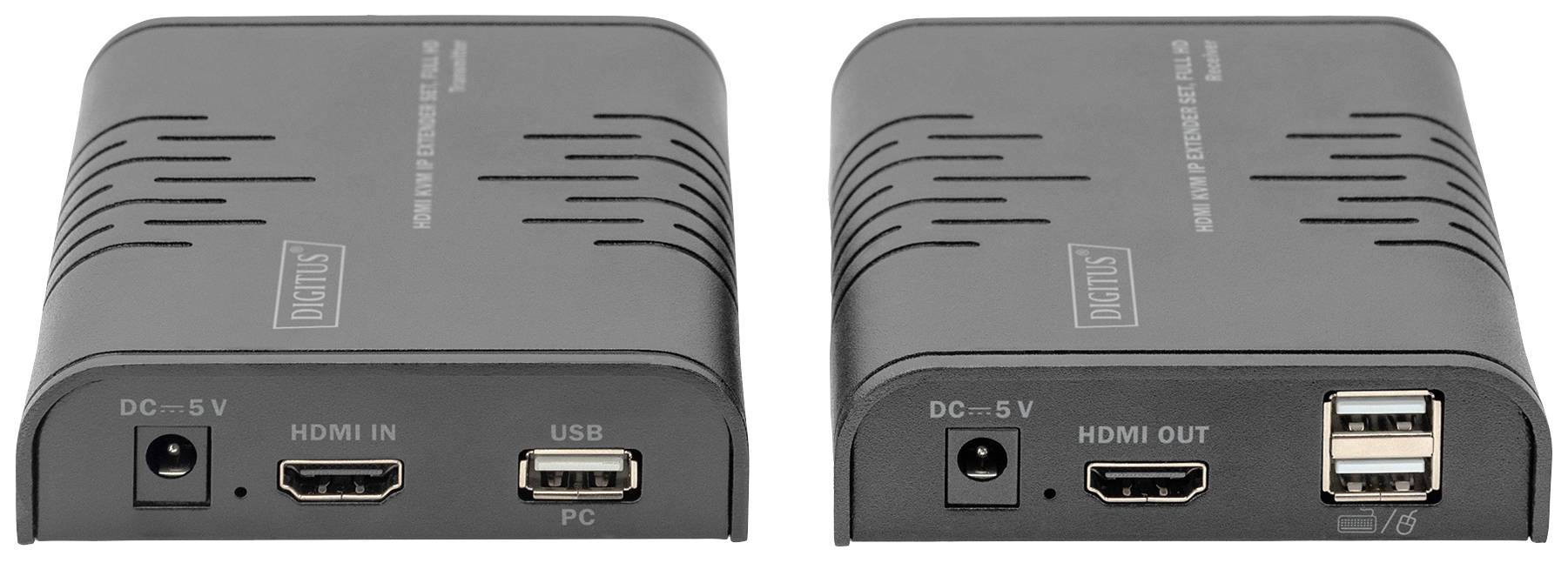

- Connections transmitter unit:
- 1x HDMI input (1080p/60Hz) - signal source connection

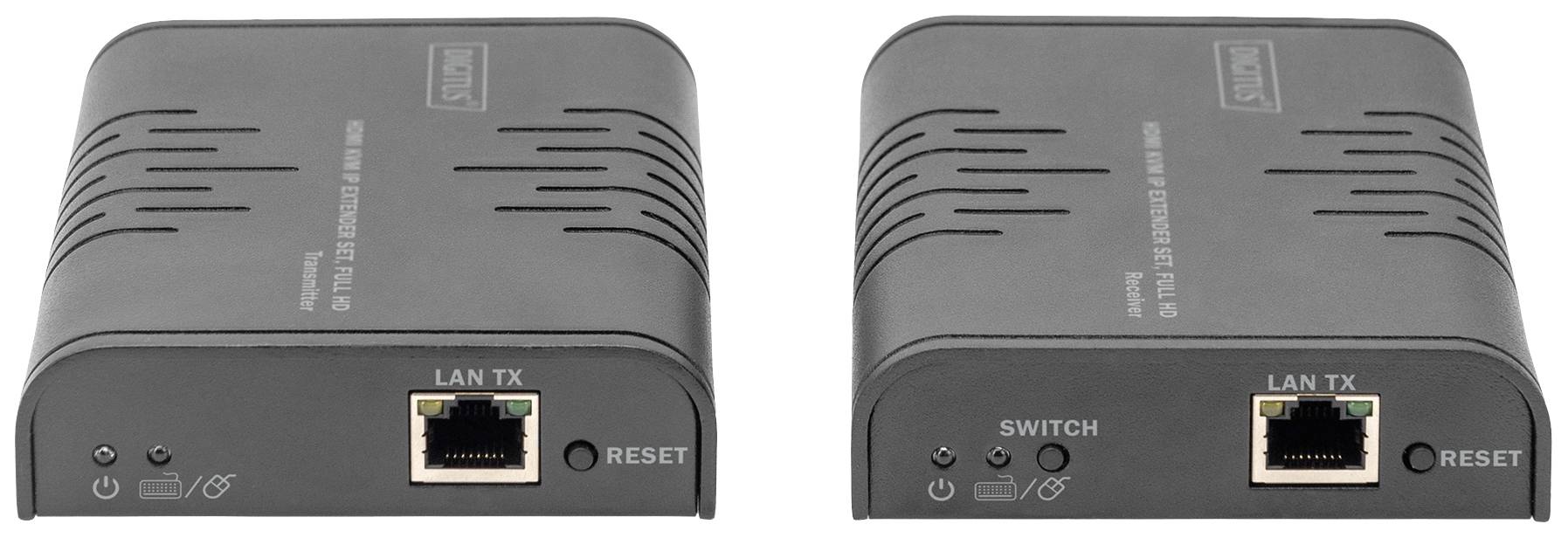

- 1x RJ45 output - connection CAT transfer cable
- 1x USB-A (2.0) input - connection signal source for use of KVM functionality
- 1x power supply input (DC 5V/1A) - connection of external power supply
- 1 x reset button
- 4x LED activity light
- Connections receiver unit:
- 1x HDMI output (1080p/60Hz) - output device connection
- 1x RJ45 input - connection CAT transfer cable
- 2x USB-A (2.0) input - mouse/keyboard connection
- 1x power supply input (DC 5V/1A) - connection of external power supply
- 1x KVM button – switches to the desired receiver (output device) for using KVM functionality
- 1 x reset button
- Operating temperature: -10 to + 60°
- Power consumption (1 unit): Approx. 3.5W
- Housing: metal
- Dimensions (1 unit): L 11 x W 9 x H 2.7 cm
- Weight (1 unit): 244 g
- Colour, black
- KVM: Yes
- Power over Ethernet (PoE): No.
- Range: 120 m
- Transmission technology IP
- Product type
HDMI extender set
- Supported monitors
1
- No. of inputs
1 x
- Interfaces (input)
HDMI™
- No. of outputs
1 x
- Interfaces (output)
HDMI™
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
244 g
- Width
110 mm
- Height
90 mm
- Depth
27 mm
- Dim
(W x H x D) 110 x 90 x 27 mm
- Port
1 port
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997772 Digitus DS-55529 1 port HDMI extender set Black
Description
Our Full HD AV signal extension system enables you to transmit Full HD AV signals over existing CAT 5e (or higher) cables at an unlimited distance over your existing network infrastructure. Thanks to the compatibility with standard network switches, the installation and extension of your AV network is child's play. With a point-to-point connection you can extend your full HD AV-signals via CAT-5e (or higher) cable to 120 meters. This ensures a reliable transmission even over long distances. The system also offers a practical KVM-function on the receiver side. Simply connect a mouse and keyboard and control your signal source directly from the output screen. This allows you to operate comfortably and efficiently. Want to expand your AV network? No problem! Our system supports the extension to up to 253 screens by adding additional receivers. Simply use the DS-55530 (receiver), in order to transfer your AV-signals to other screens and adjust your system according to your requirements. It supports resolutions of up to 1080p/60Hz and provides Full HD quality for your AV content. Our system is compatible with CAT-5e (or higher) network cables. This allows you to use your existing infrastructure at low cost, without additional cabling or costly upgrades. With HDMI 1.3 and HDCP 1.4 support, the system offers a broad compatibility with different AV-devices and ensures the secure transmission of protected contents. Expand your AV capabilities with our Full HD AV signal extension system. Enjoy easy installation, reliable signal transmission and impressive image quality, while seamlessly integrating your AV devices into your network.
This text is machine translated.
This text is machine translated.
Features
- Can be extended to up to 253 screens (receiver) - additional receiver DS-55530
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e (or higher) network cable
- Easy installation thanks to Plug & Play - no additional software/driver required
- HDMI 1.3
- HDCP 1.4
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 2x power supply (DC 5V/1A, 1.5 m)
- 1x USB-A (2.0) connection cable (1.15 m)
- 1x user manual
