Digitus DS-55901 HDMI™ Extension via data cable 35 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 23.52 / piece)
€ 23.52
plus VAT.
14-day return policy included

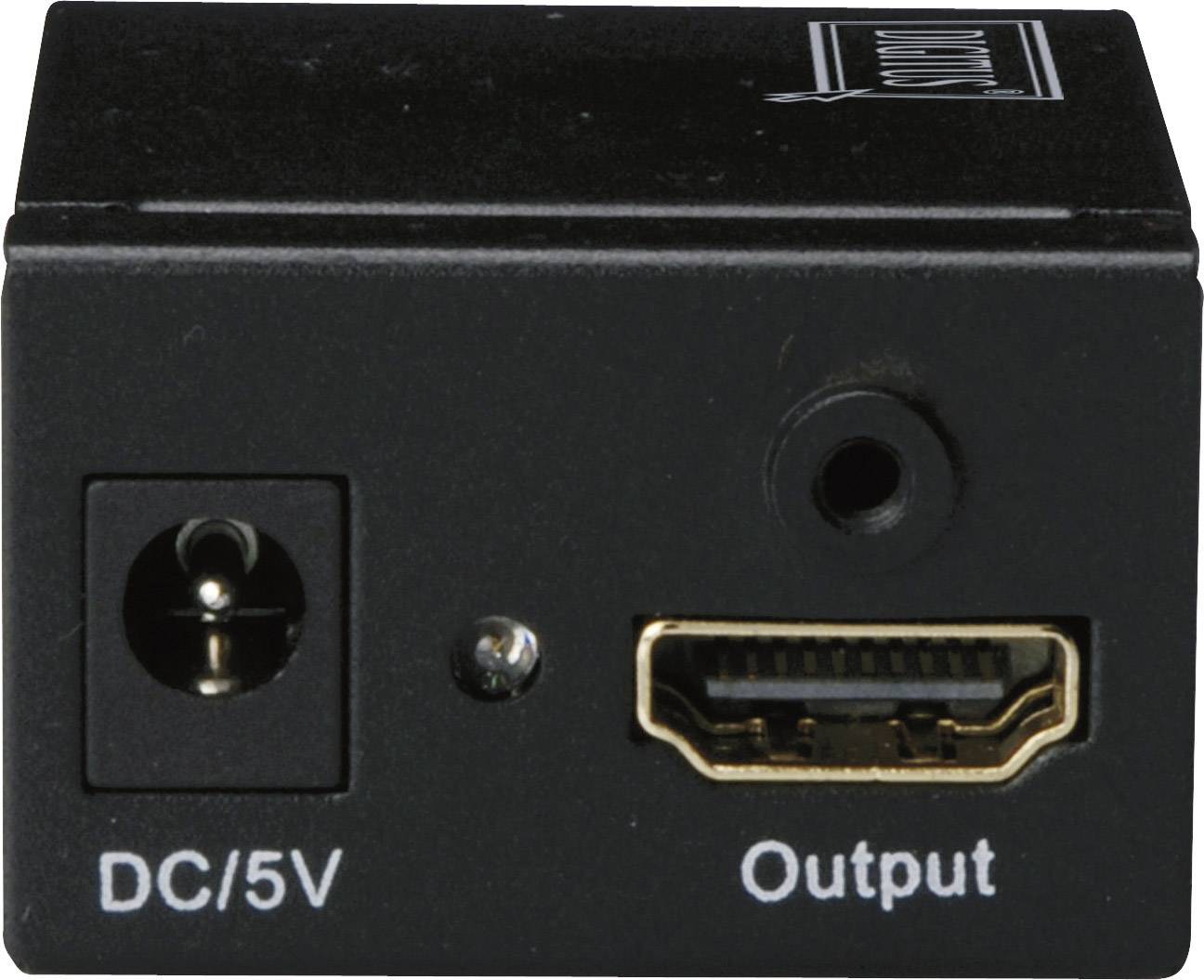

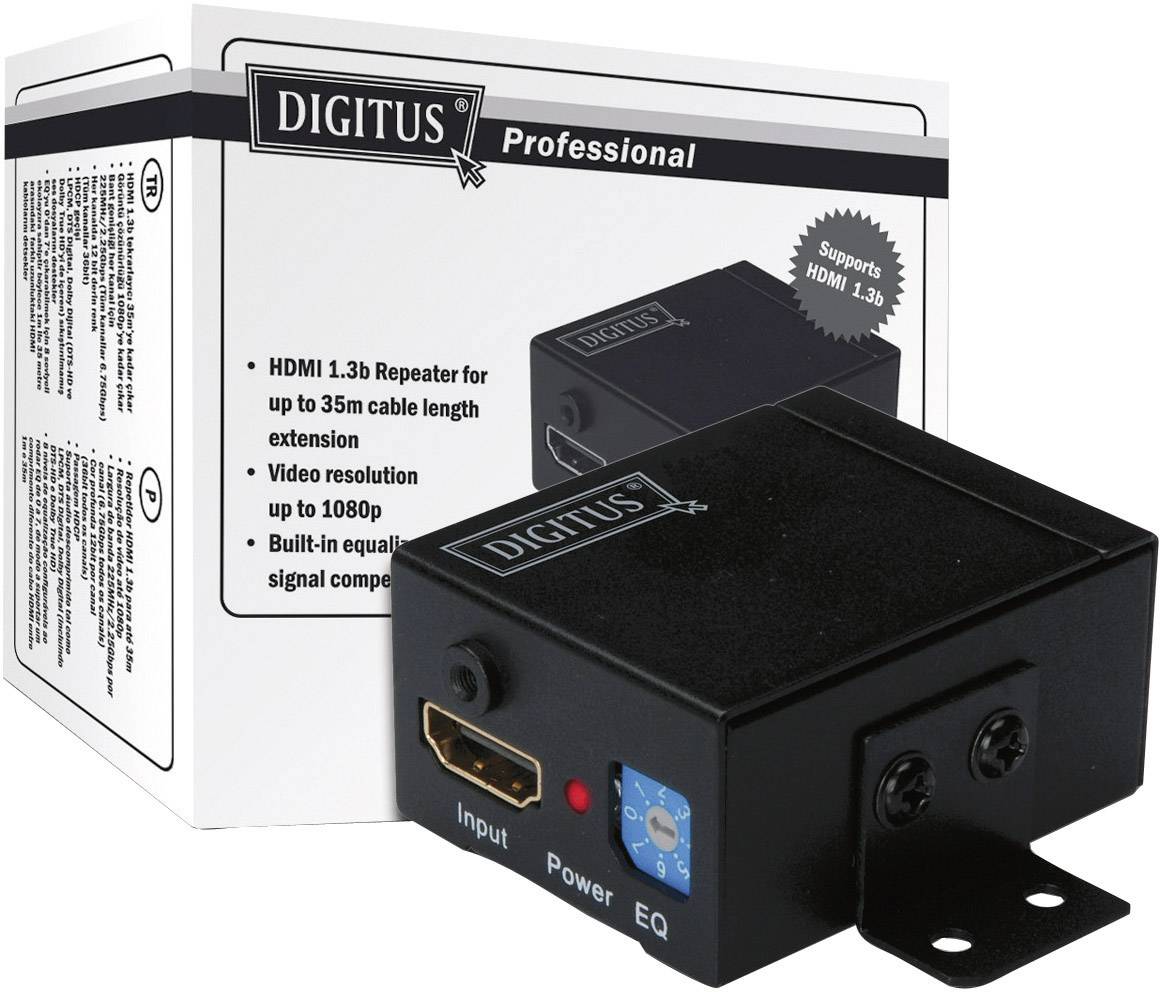

DIGITUS HDMI High Speed Repeater
Highlights & Details
- High Speed HDMI Repeater for up to 35 m
- Video resolution up to 1080p
- 8 compensation levels
- bandwidth MHz 225 2.25 Gbps per channel (6.75Gbps all channels)
Technical specifications
- Product type
Extension
- Transfer type
via data cable
- Interfaces (input)
HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
35 m
- Factory colour
Black
- Weight
0.15
- Type
Amplifier
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 943257 Digitus DS-55901 HDMI™ Extension via data cable 35 m
User & Safety Instructions
User & Safety Instructions 943257 Digitus DS-55901 HDMI™ Extension via data cable 35 m
Description
Extended the maximum length for HDMI cables up to 35 m by the HDMI signal is renewed before it is output to an HDMI monitor or projector. Furthermore, according to the HDMI cable length with the aid of a specially designed EQ image transmission can be adjusted.
Features
- Video resolution up to 1080p Supports the 3D feature in all formats, 1080p@23.98 / 24 Hz, 720p@59.94 / 60 Hz/50 Hz
- bandwidth MHz 225 2.25 Gbps per channel (6.75Gbps all channels)
- color Depth 12 bit per channel (36 bit all channel)
- HDCP pass through.
Scope of delivery
- Repeater
- Manual.
Hints
An additional power supply is required to operate the repeater (not included in the delivery).
