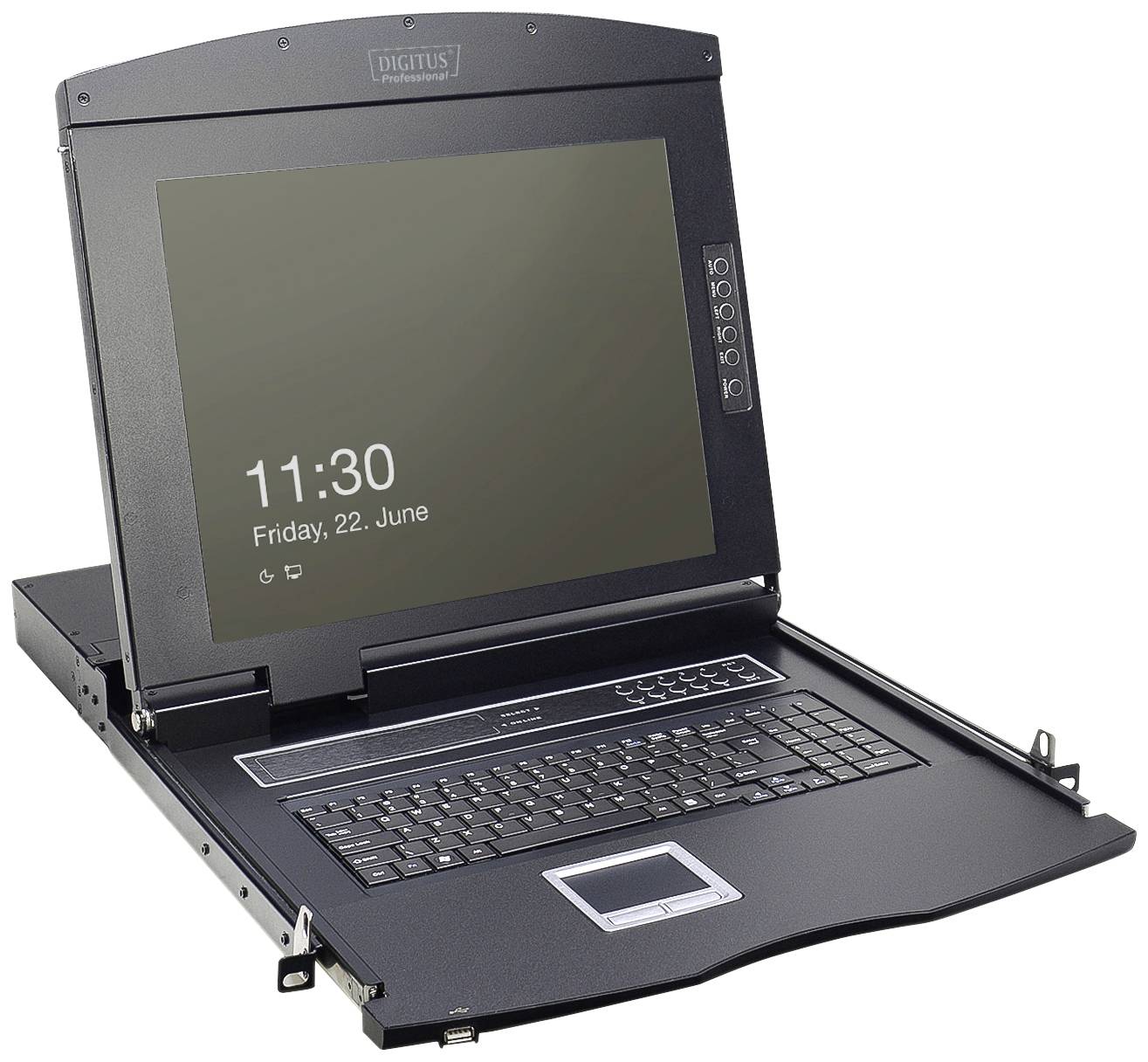

A rack console with an integrated monitor displays the time 11:30 and the date Friday, 22 June. Below it is a keyboard with a touchpad.

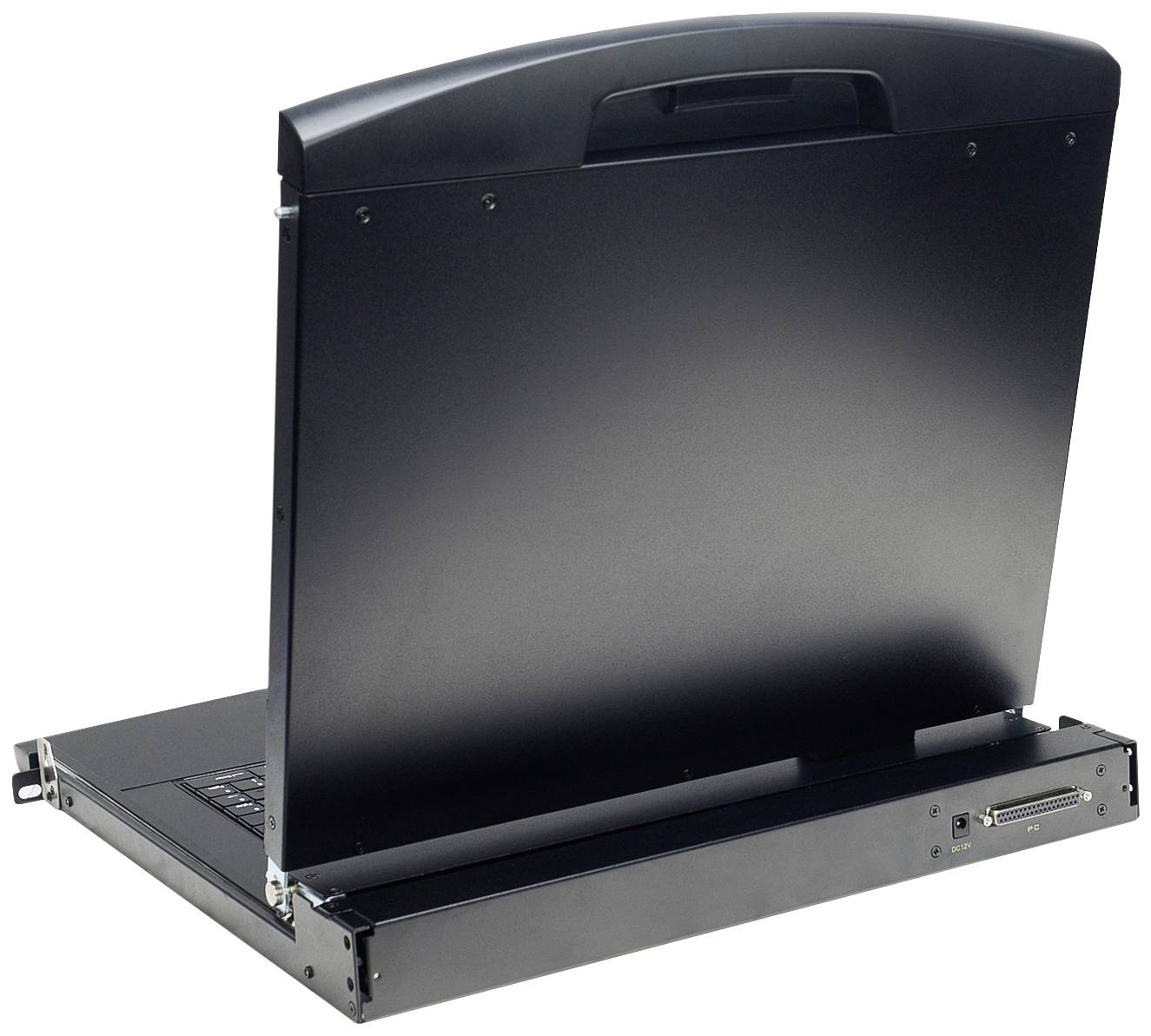

A black laptop with an open screen, viewed from the rear. The main interfaces are visible on the left side of the device.

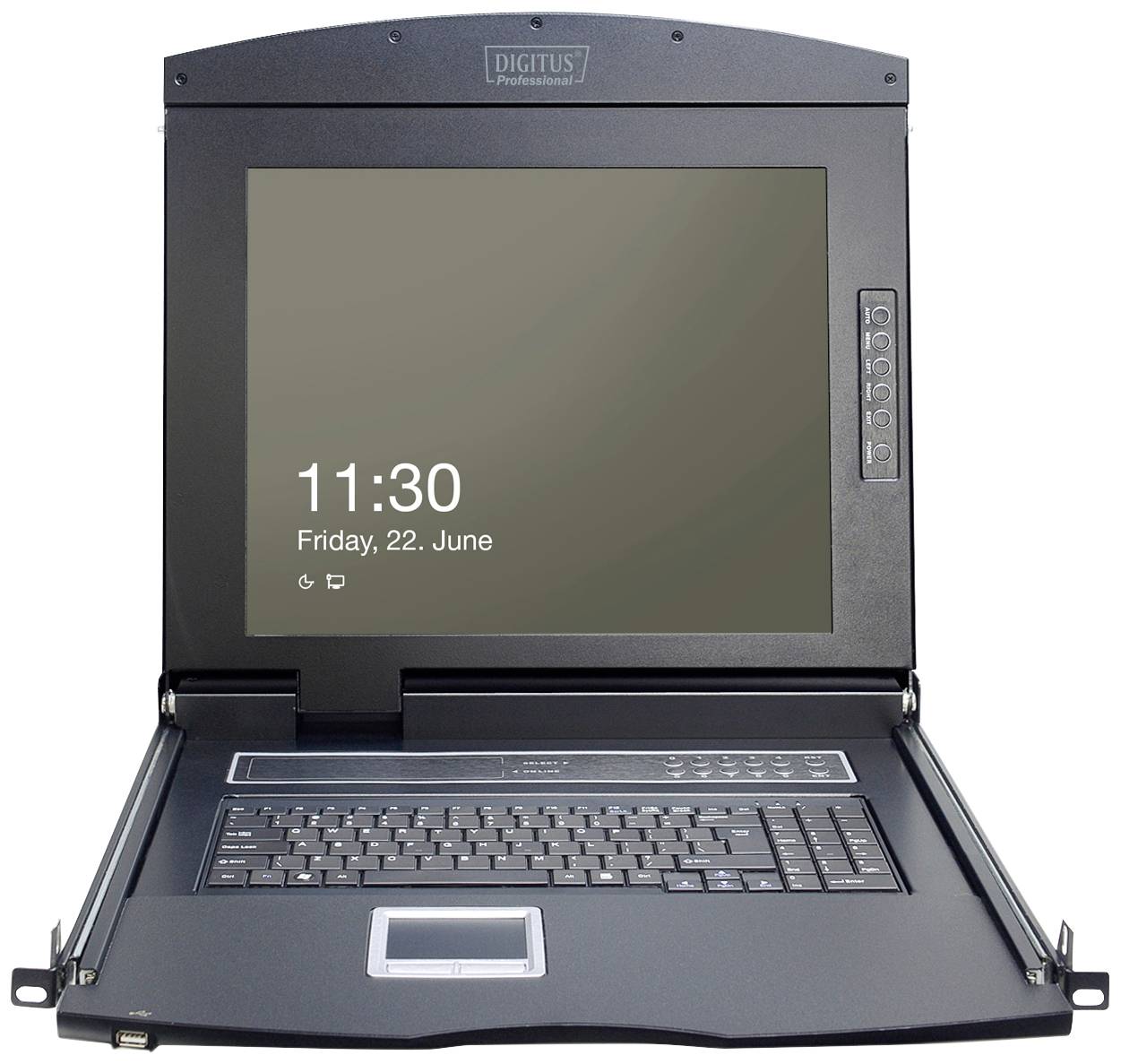

A black screen with keyboard and touchpad, showing the time 11:30 and the date Friday, 22nd June.

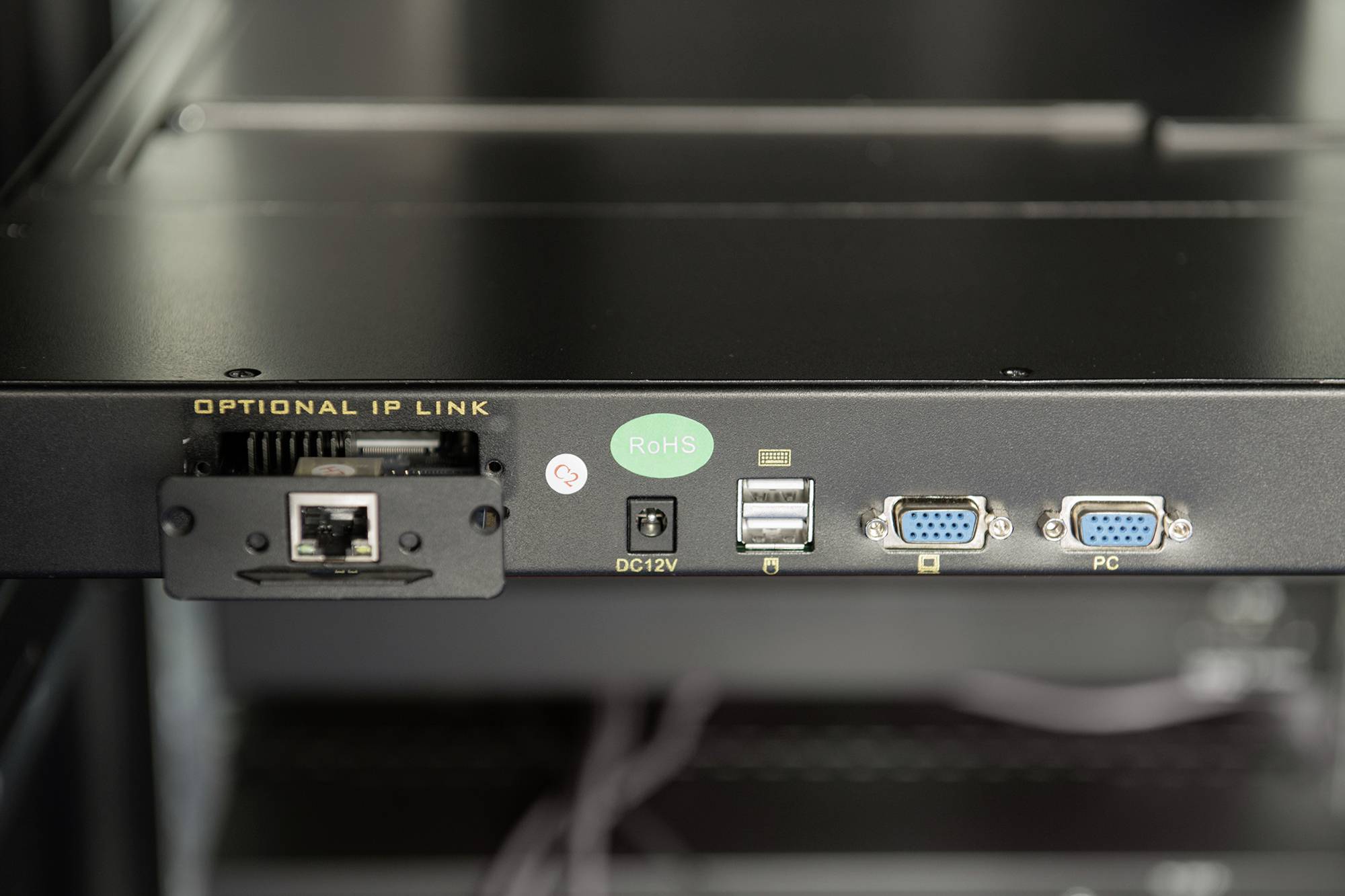

Close-up of a rack-mount socket with various connections, including Ethernet, USB, VGA. A RoHS label is visible.

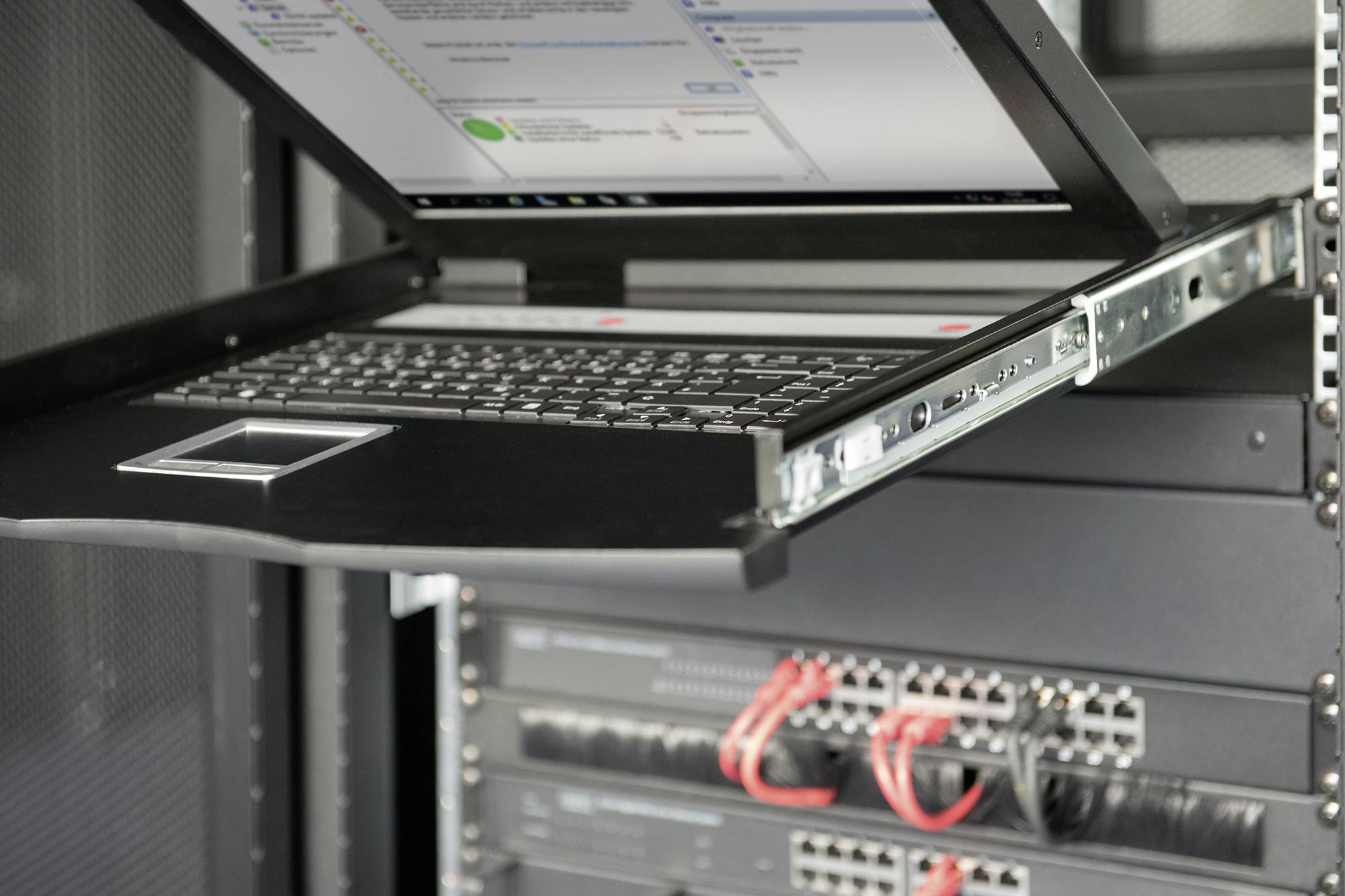

A laptop is mounted on a pull-out shelf in the server room. It is switched on and displaying software on the screen. Network switches are located underneath.

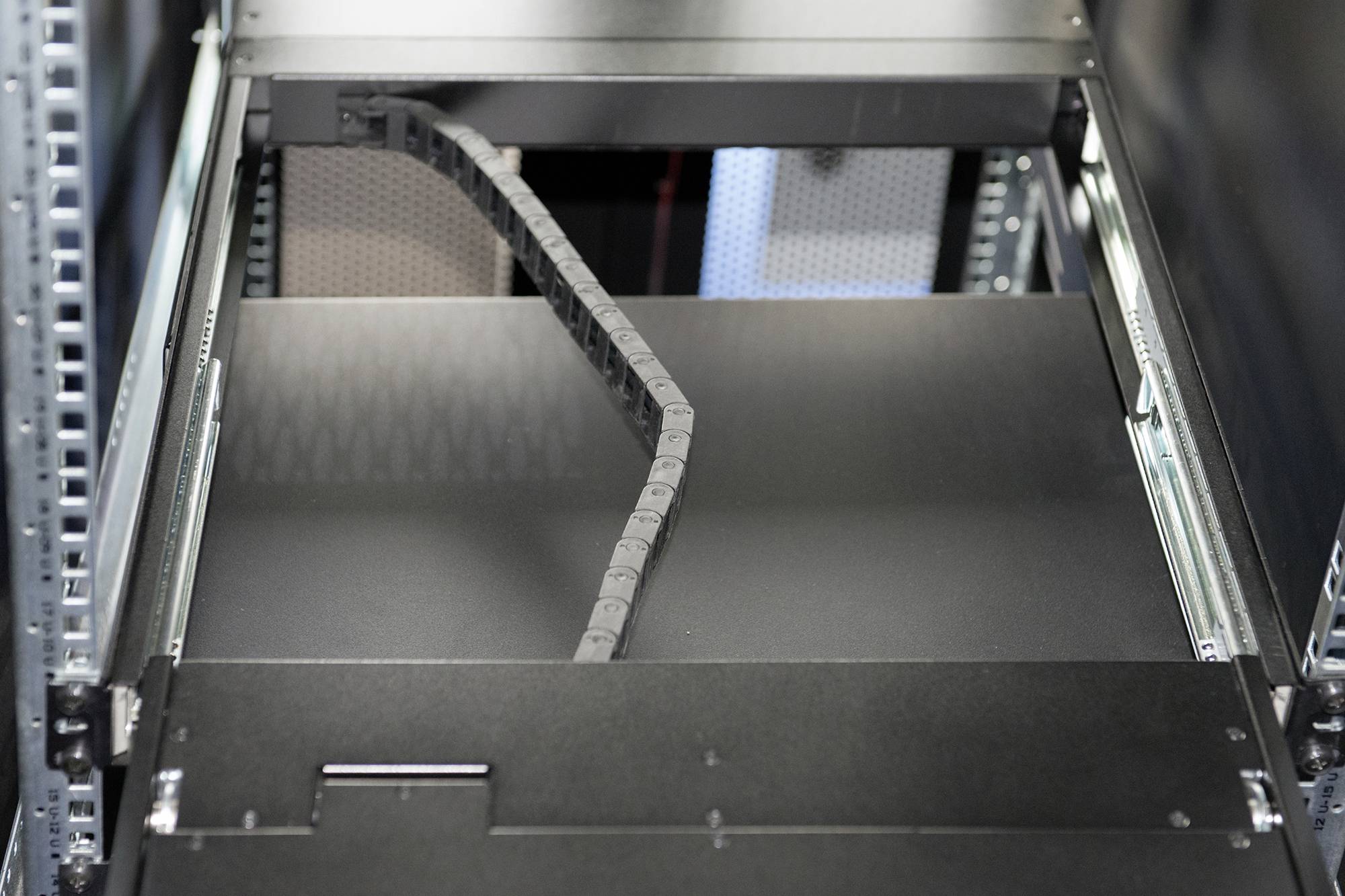

An open server rack with a visible cable in a data centre.

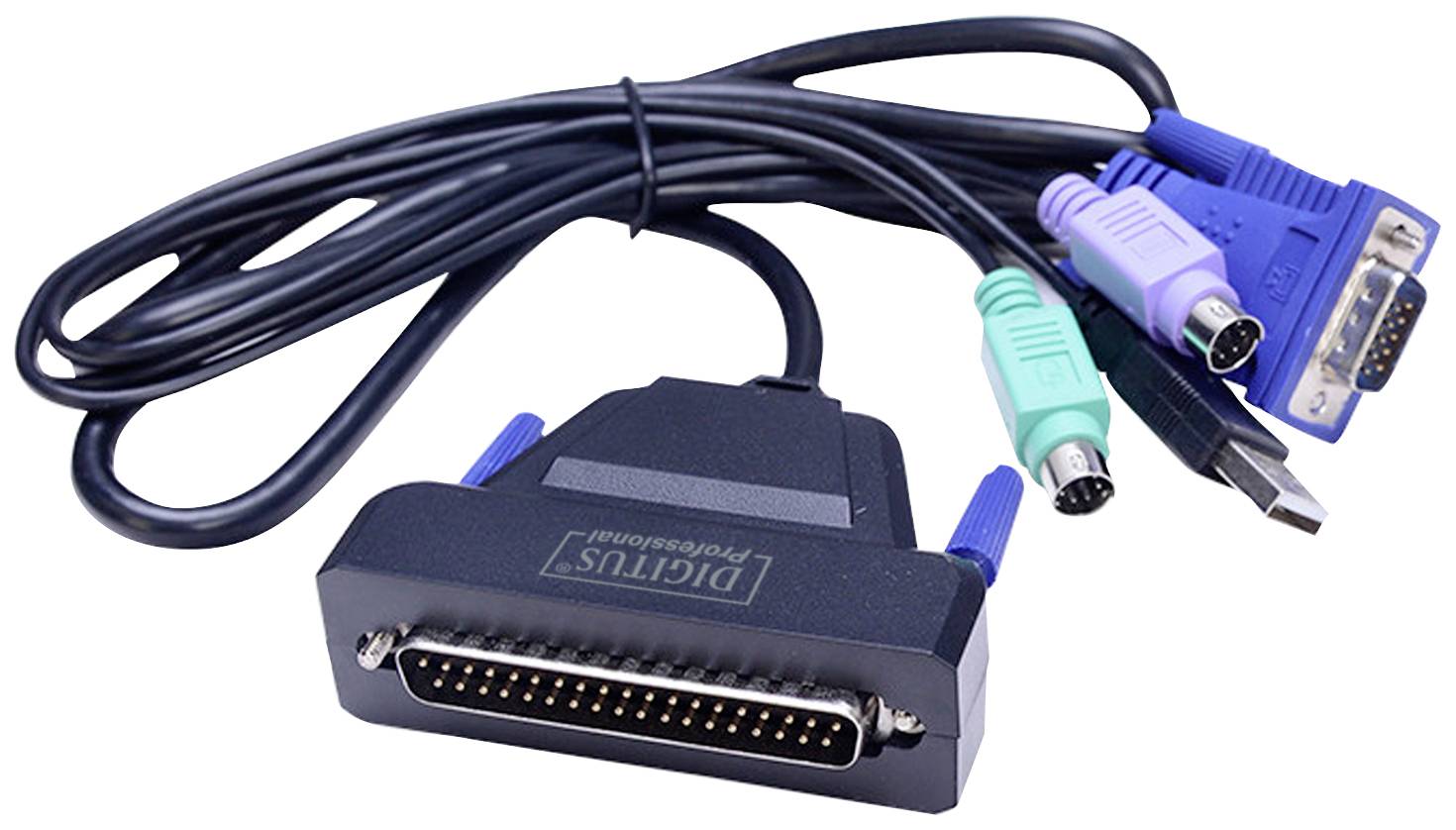

A cable with multiple connectors, including a parallel port, a USB plug and PS/2 plug, suitable for computer devices.

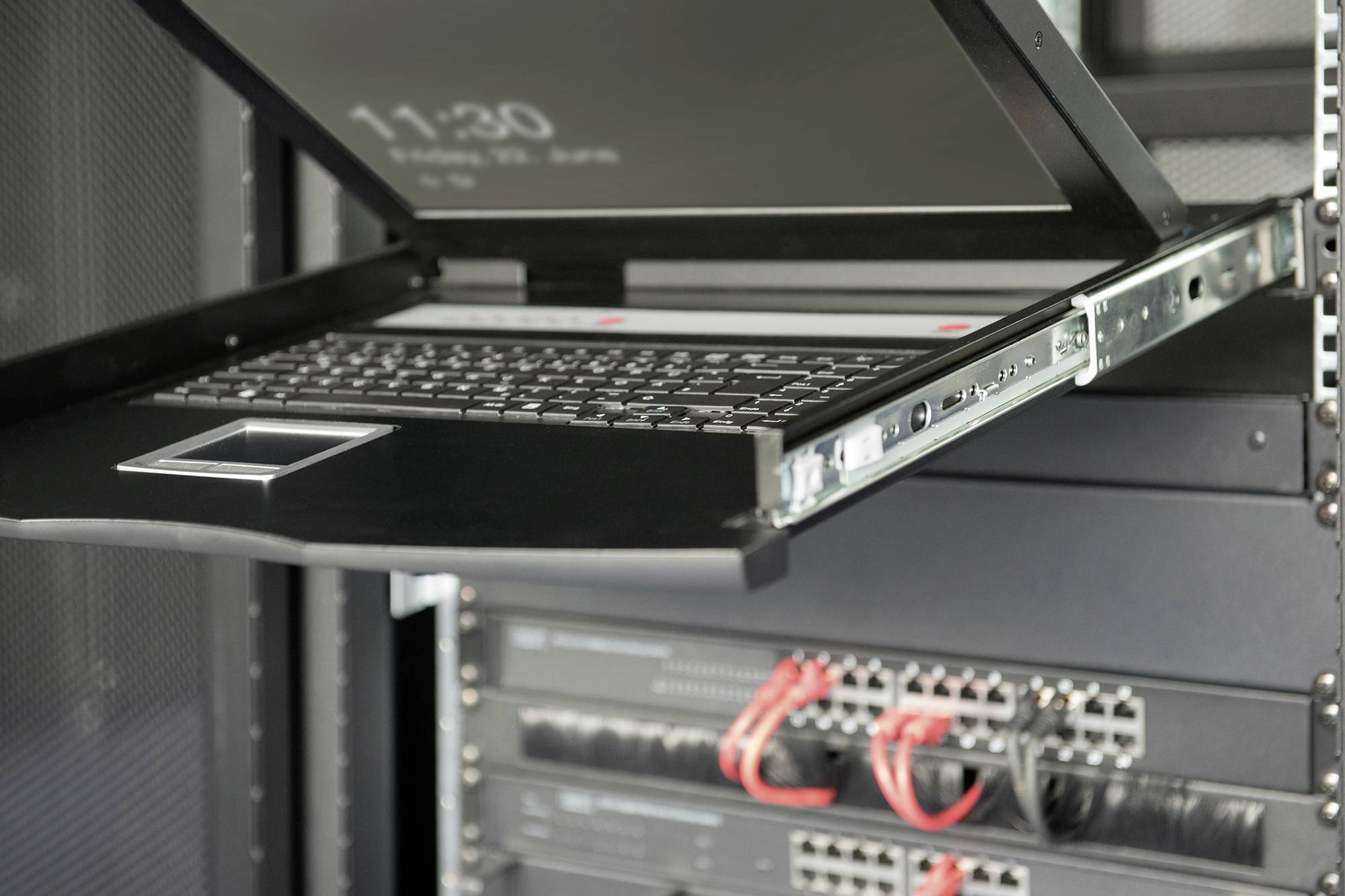

Rack cabinet with lifted KVM switch monitor and keyboard, connected to network devices. Screen displays time as 11:30.

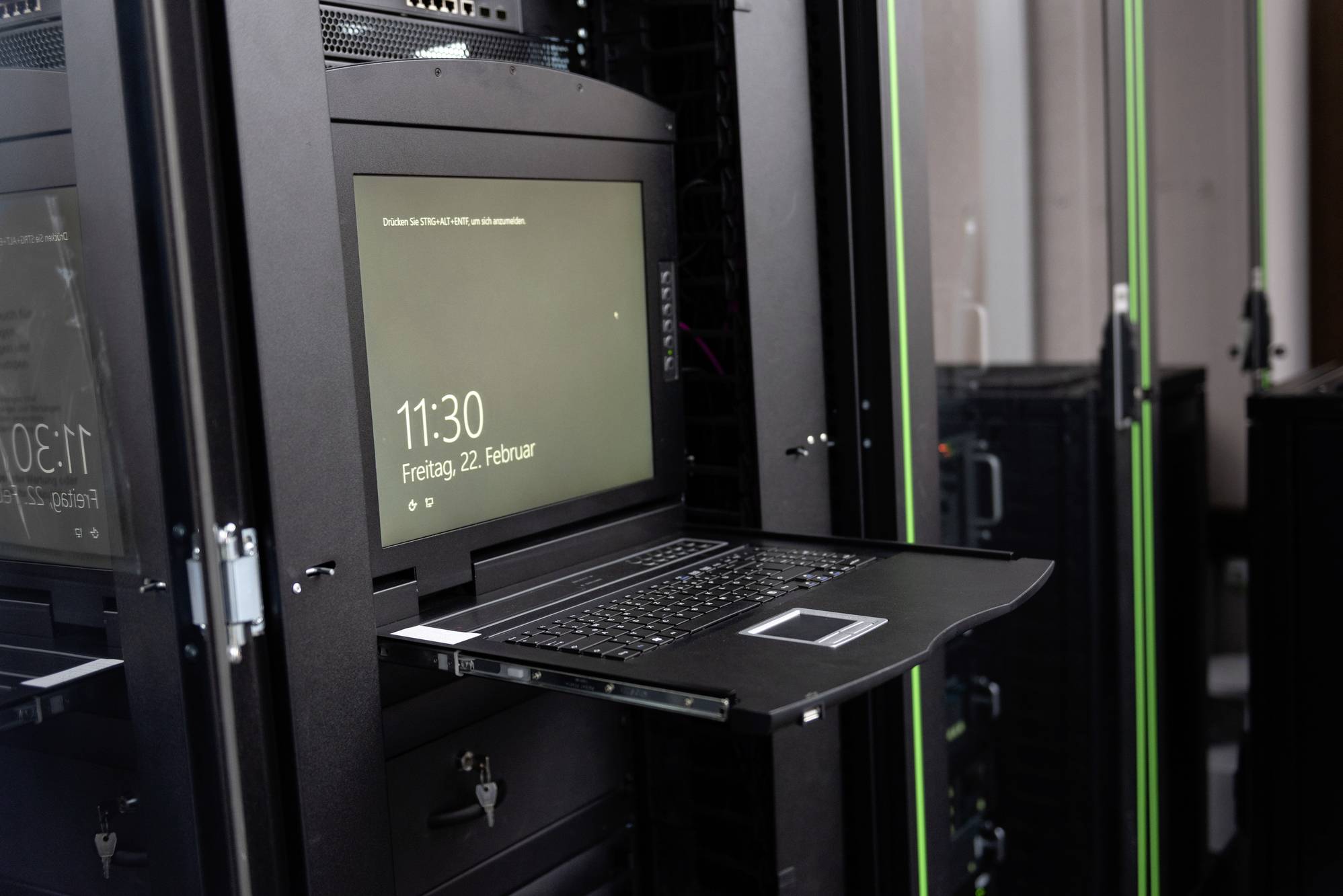

A server room with an open laptop, displaying the time '11:30' and the date 'Friday, 22 February' on its screen.

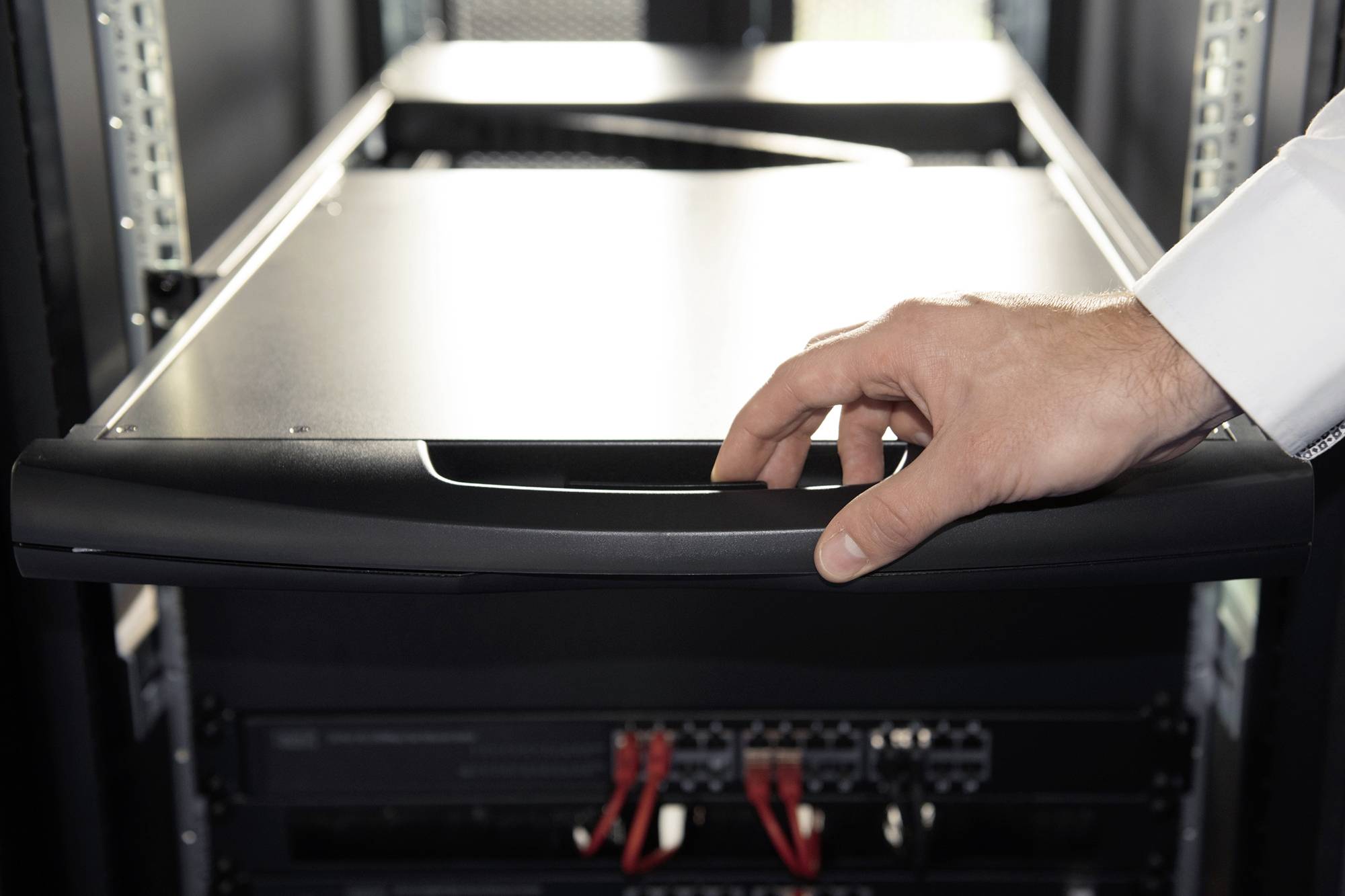

A hand pulls a server drawer from a server cabinet in a data centre, indicating IT maintenance.

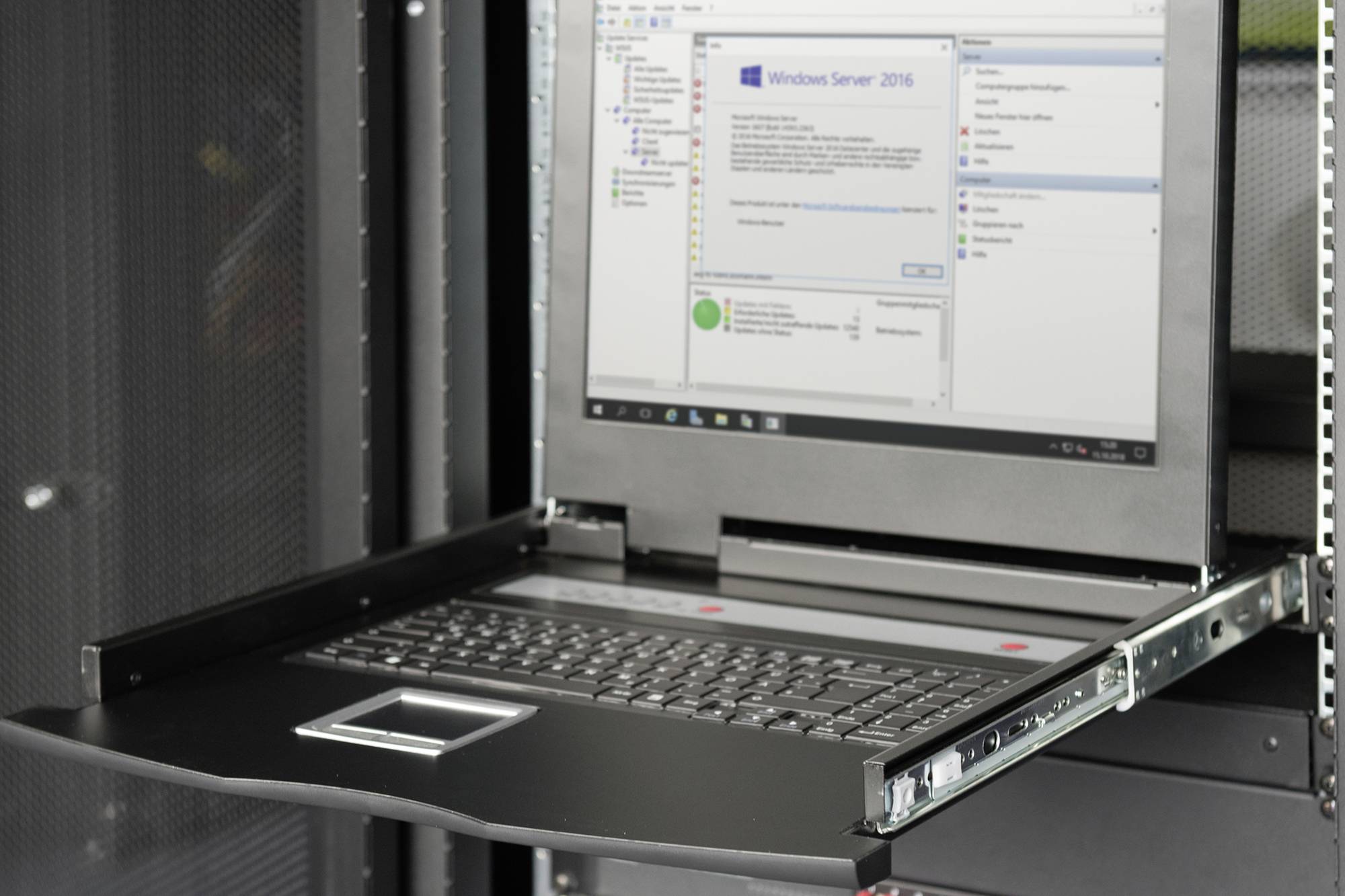

Rack-mounted pull-out console monitor in a server cabinet displaying the Windows Server 2016 user interface with system information.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-72210-1GE KVM console

Highlights & Details

German keyboard layout, 17" TFT monitor (4:3), anti-glare, unbreakable, resolution: 1280x1024 at 60 Hz
The console can be pulled out completely and the screen can be swiveled 120 degrees
Ports: 1-port VGA, PS/2, 2x USB (for mouse/keyboard)
Cascading: Not possible
Switch modular KVM switches and keyboard layouts (sold separately)
Long connection cable, 1.8 m

Technical specifications

Product type: KVM console

No. of switchable PCs: 1

Video via: VGA

Video resolution: 1280 x 1024 Pixel

No. of USB 2.0 ports: 3 x

Stackable: No

Rack mount option: Yes

Switch function: Hot key
Manual
Mouse click
Key

Distributor/switch features: meets industrial requirements

Power supply (LOV): via PSU

Factory colour: Black

Weight: 12.54 kg

Length: 695 mm

Width: 480 mm

Height: 45 mm

Port: 1 port

Dim: (L x W x H) 695 x 480 x 45 mm

Product type description: KVM-Konsole

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881658 Digitus DS-72210-1GE 1 port KVM console VGA 1280 x 1024 Pixel

Description

The DIGITUS 17" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 17" monitor, a 1-port KVM switch, a keyboard and the touchpad.

This text is machine translated.

Features

Flexible configuration depending on application area
Space-saving housing (1HE), black (RAL 9005)
TFT monitor 43.2 cm (17"), with anti-glare, shatterproof protective glass pane
The console provides up to 85% more space in the server or network cabinet
Mouse touch board with two function keys
The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
The consoles have a safety lock to prevent damage
Number of KVM ports: 1
Connector type: VGA port, PS/2, 2x USB (for mouse/keyboard)
Long connection cable, 1.8 m
Cascading: Not possible
Screen size 17"
Screen format: 4:3
Resolution: 1280x1024 at 60 Hz
Display type: LCD liquid crystal displays
Contrast ratio: 1 000:1
Color support: 16.7 million colors
Angle of rotation: 120 degrees
Gross weight: 18.6 kg
Dimensions without KVM module: 462.6 x 445 x 45 mm
Dimensions with KVM module: 611 x 445 x 45 mm
Mounting: 19" rack / 1HE
Mounting rail: 390 to 560 mm adjustable depth
Installation depth: 800 to 1100 mm deep cabinets
Color: Black (RAL 9005)
