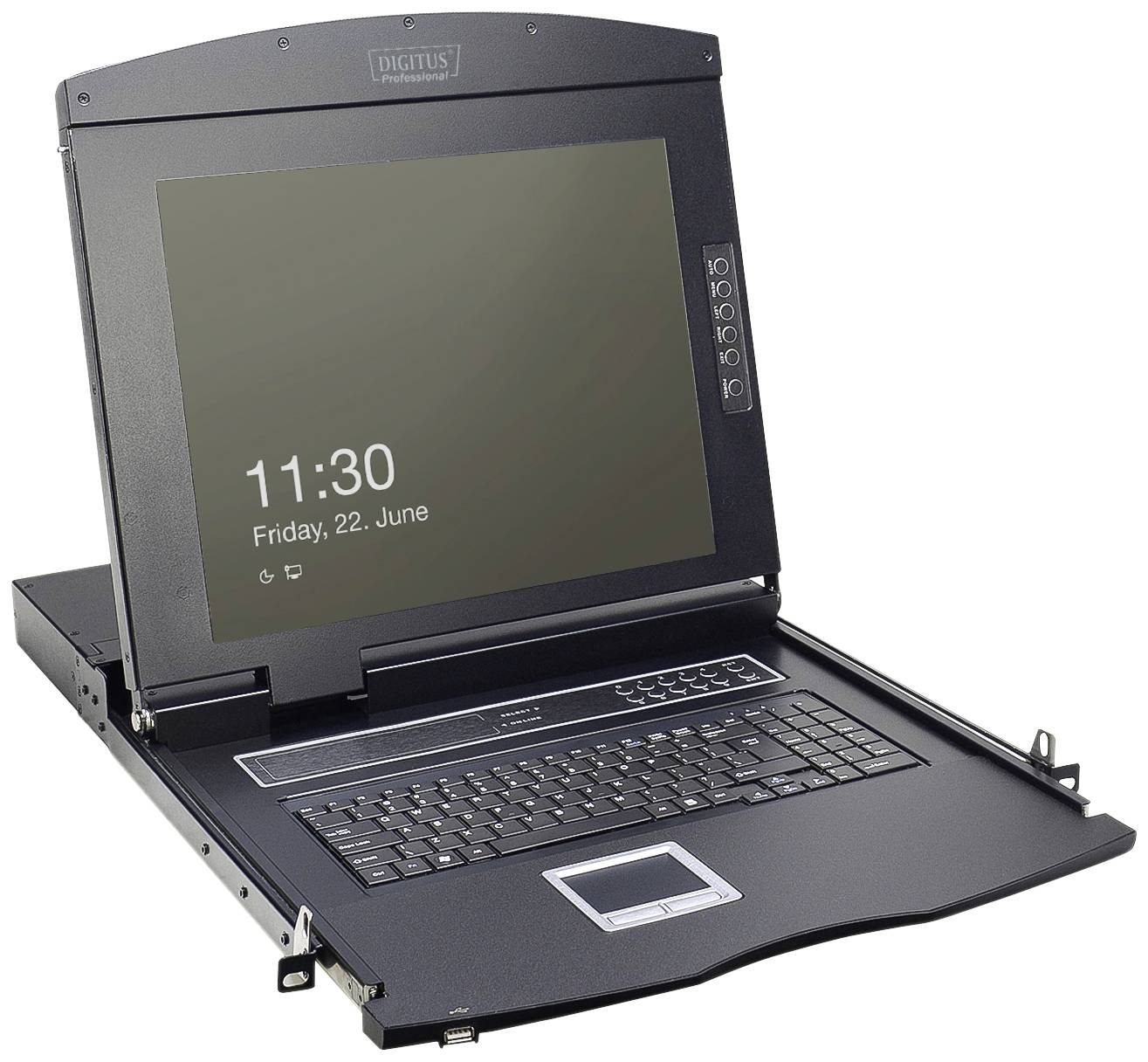

A KVM switch with a folding-out screen and keyboard, showing the time 11:30 and date Friday, 22 June.

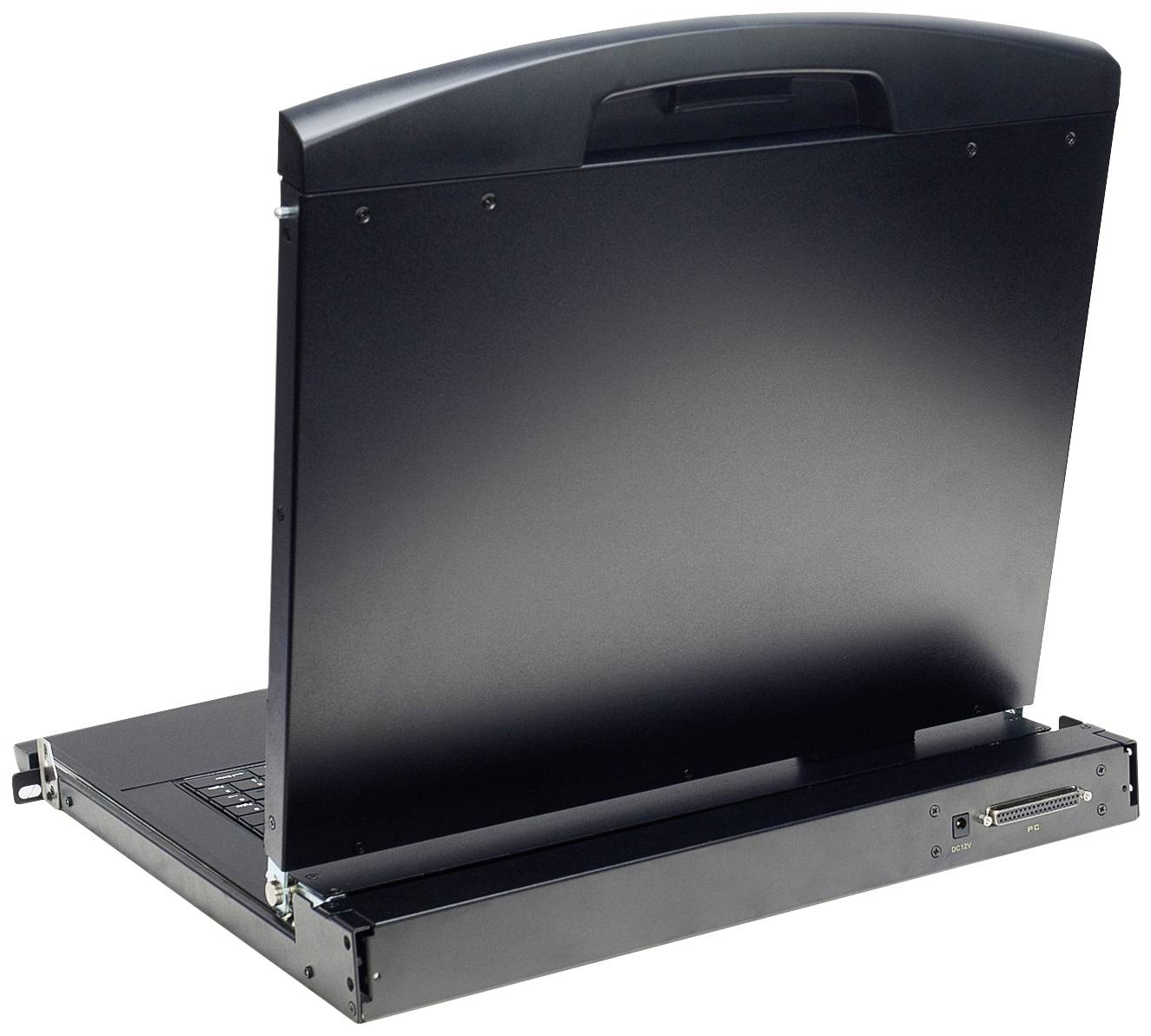

A foldable black monitor in a carry case, partially unfolded, with visible connection options on the side.

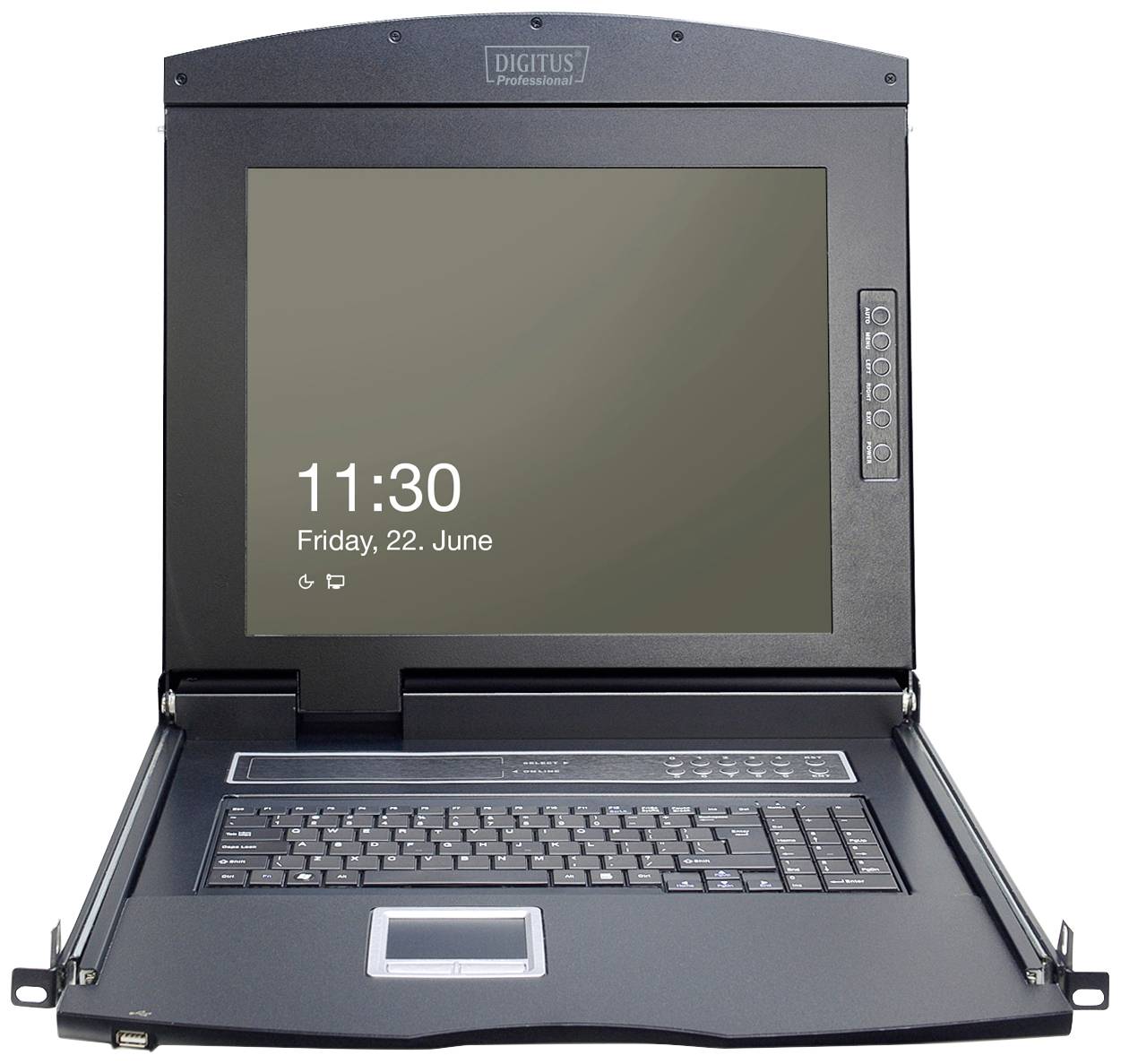

A black folding monitor with an integrated keyboard displays the time as 11:30 and the date as 'Friday, 22 June'.

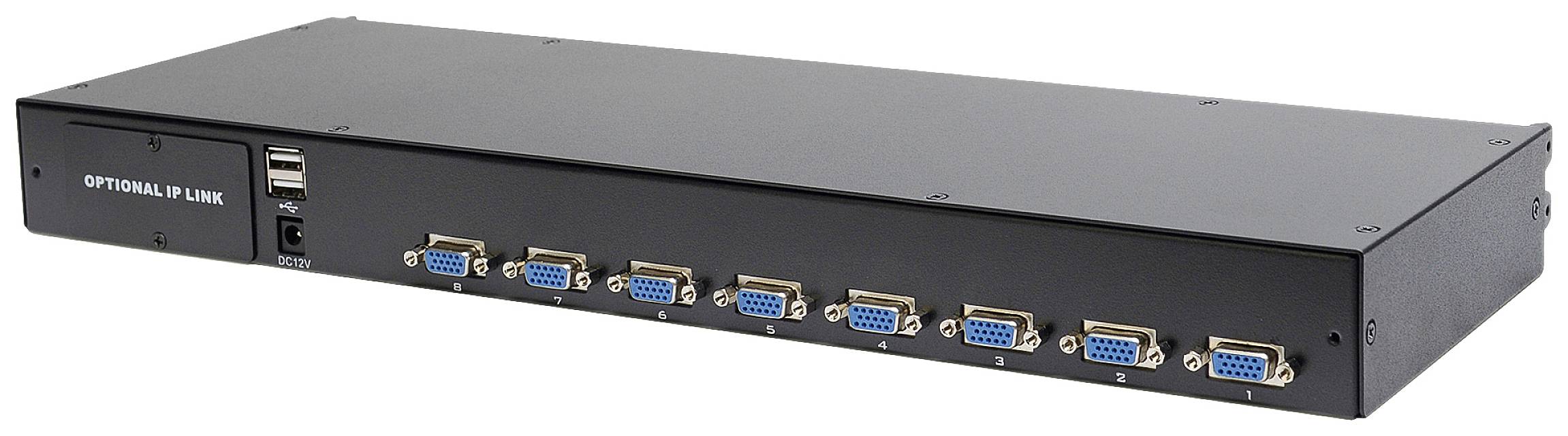

A KVM switch with eight VGA ports in a row. A USB port and a network port are also visible.

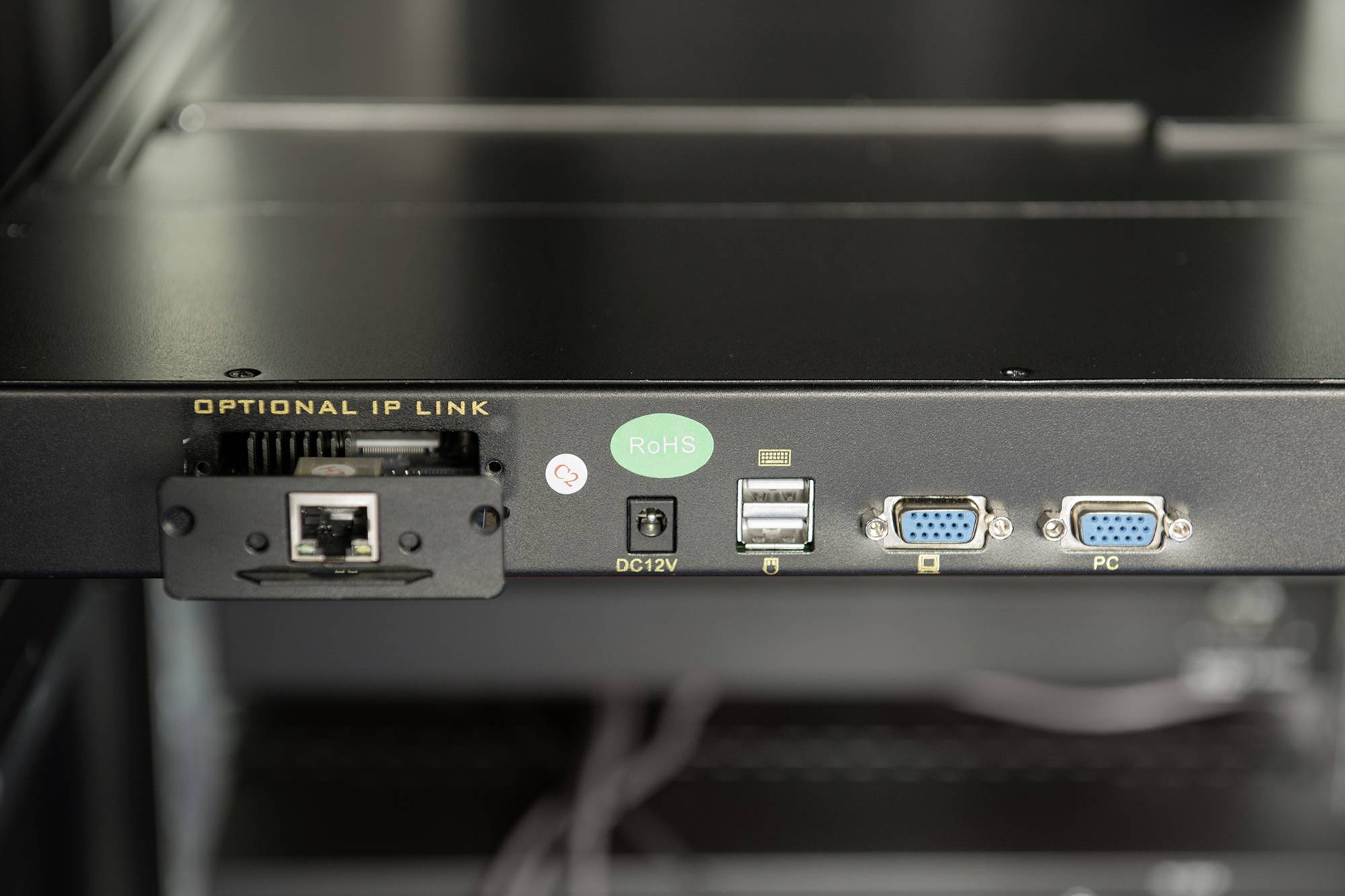

Back of an electronic device with multiple ports, including an Ethernet port, a USB port, and VGA ports.

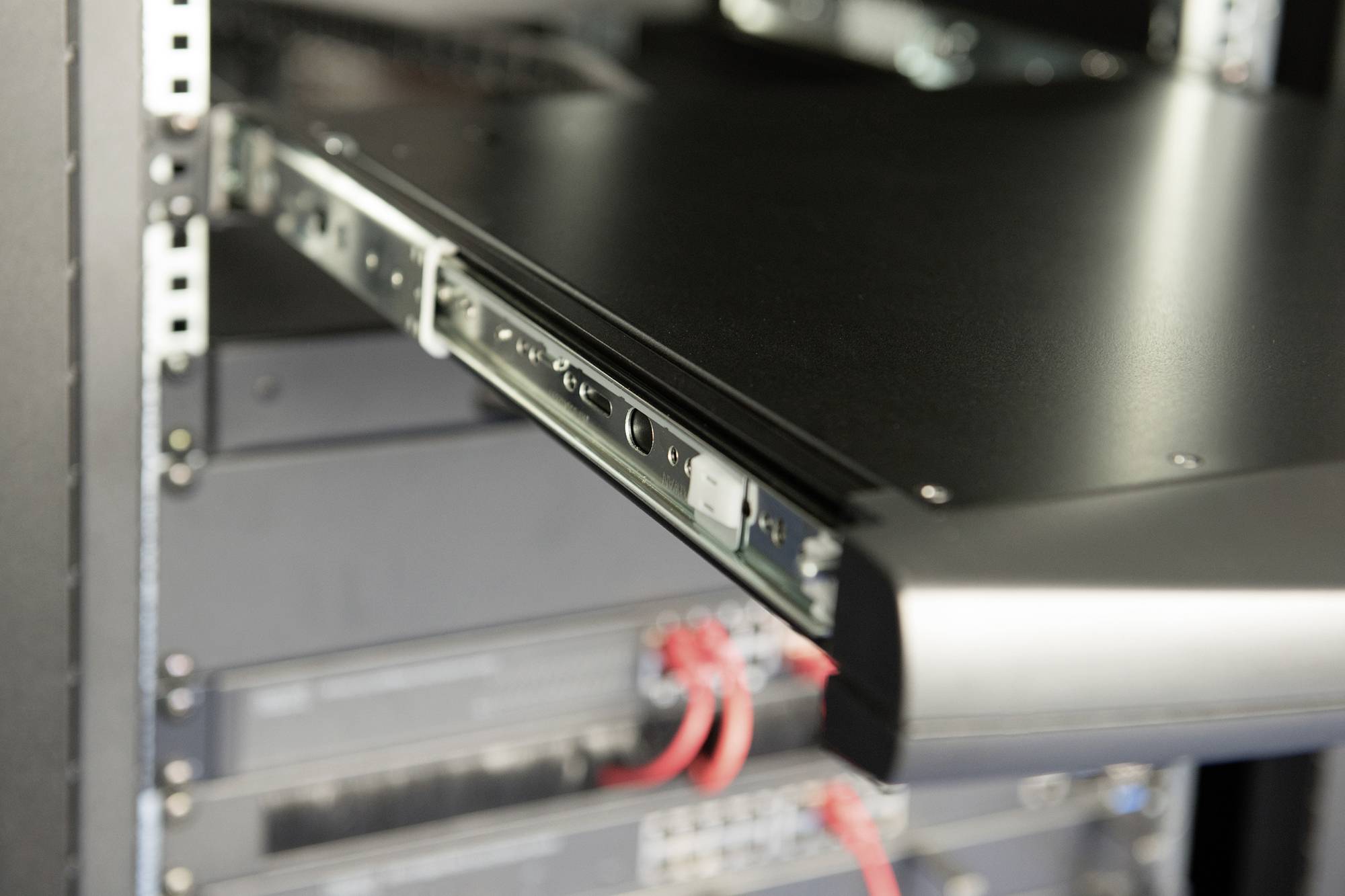

An open server rack in a data centre. A drawer compartment is pulled out, with cables and device components visible underneath.

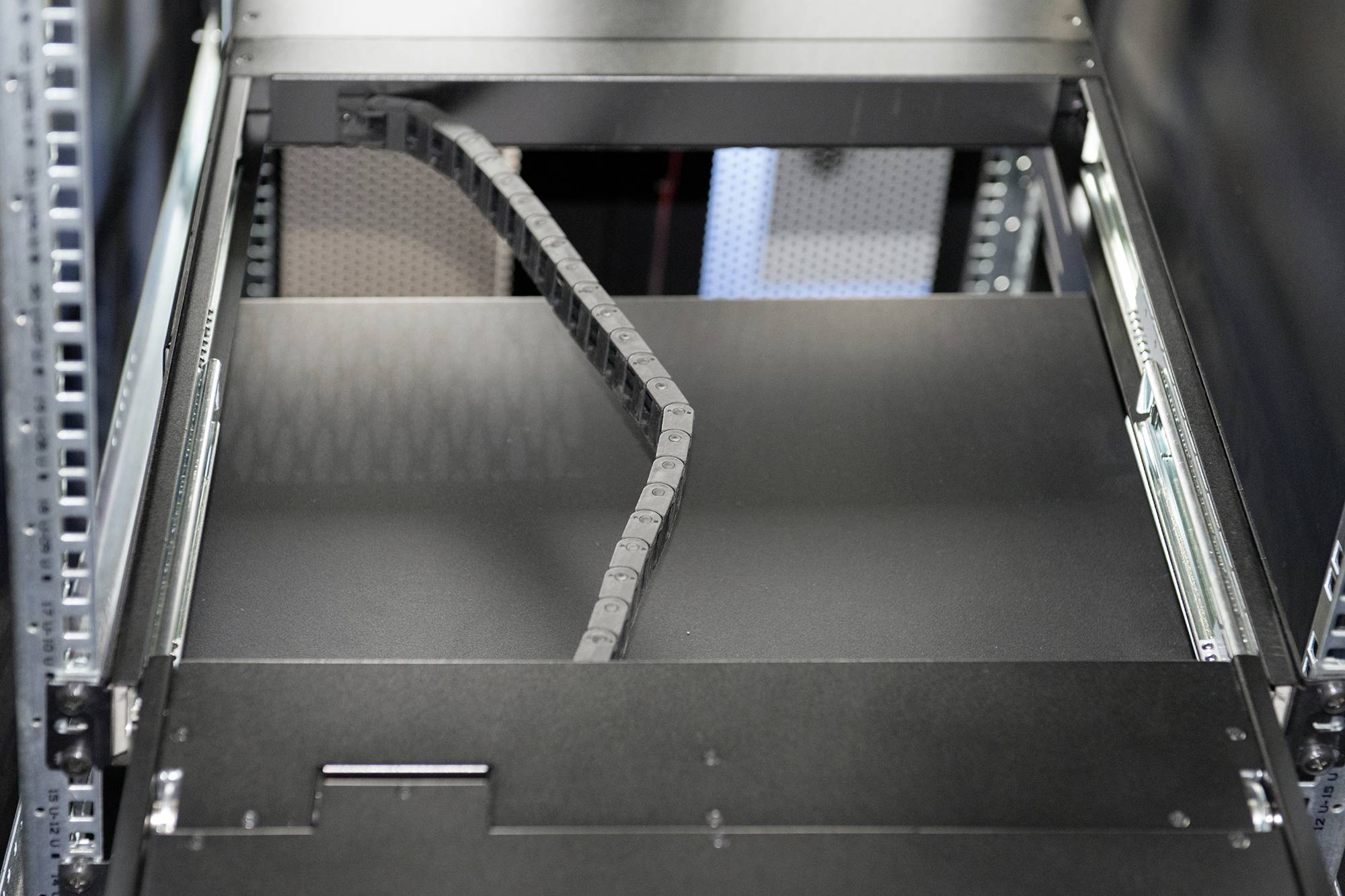

An empty server rack with open rails and a cable hanging loosely from the top.

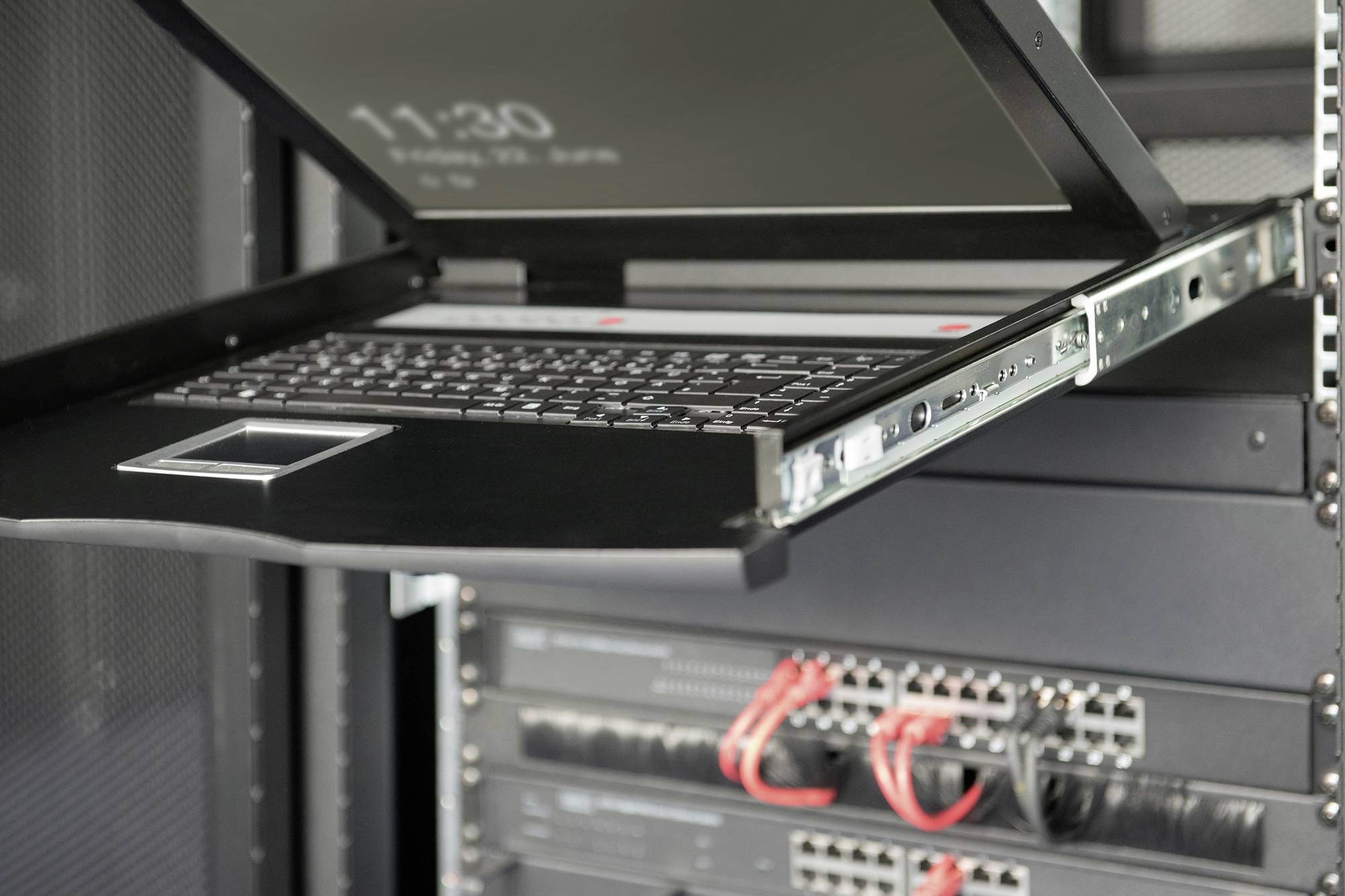

A fold-out laptop in a server rack, surrounded by network cables and devices. Time on the screen: 11:30.

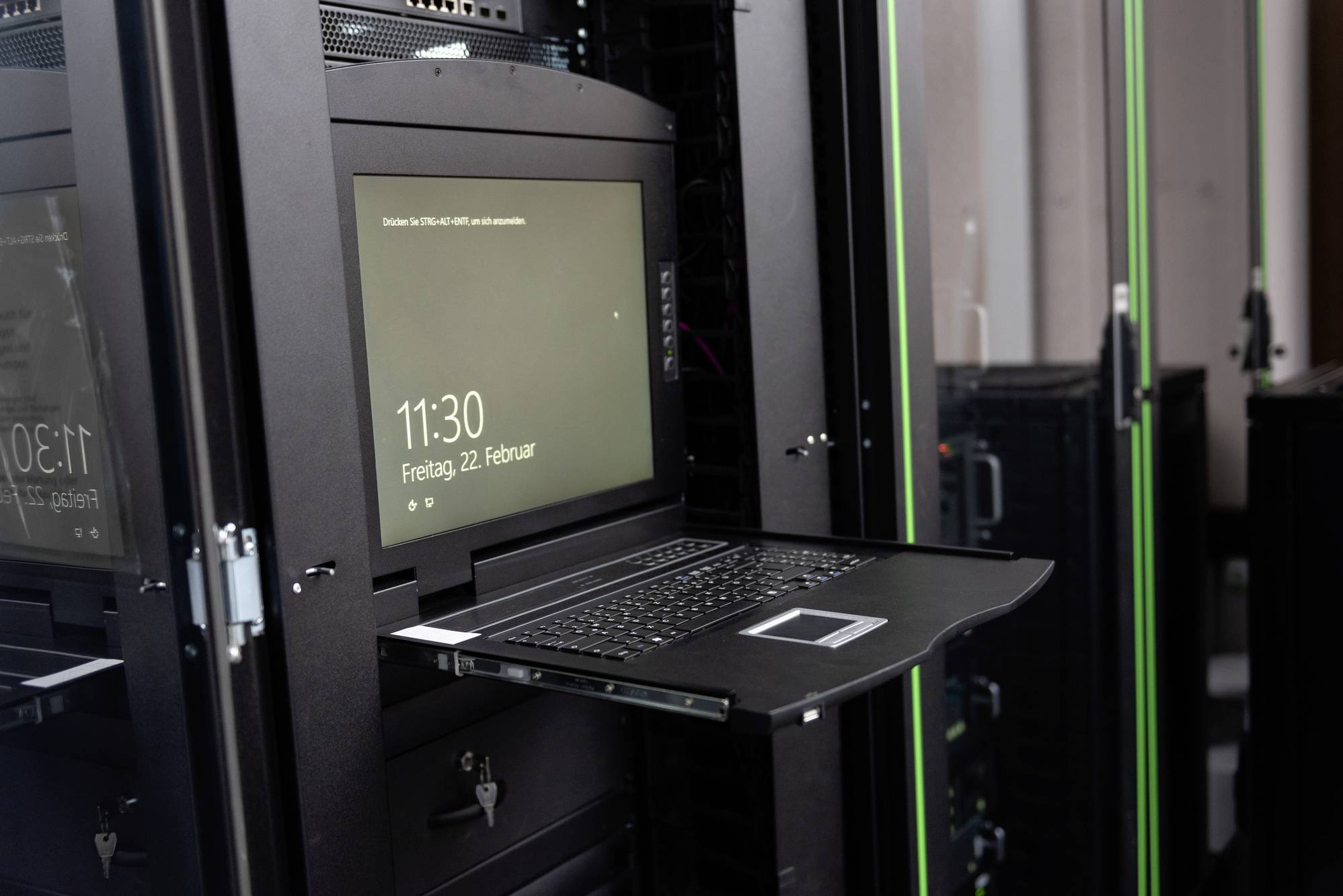

A laptop in a server room displays the time 11:30 and the date Friday, 22 February on the screen.

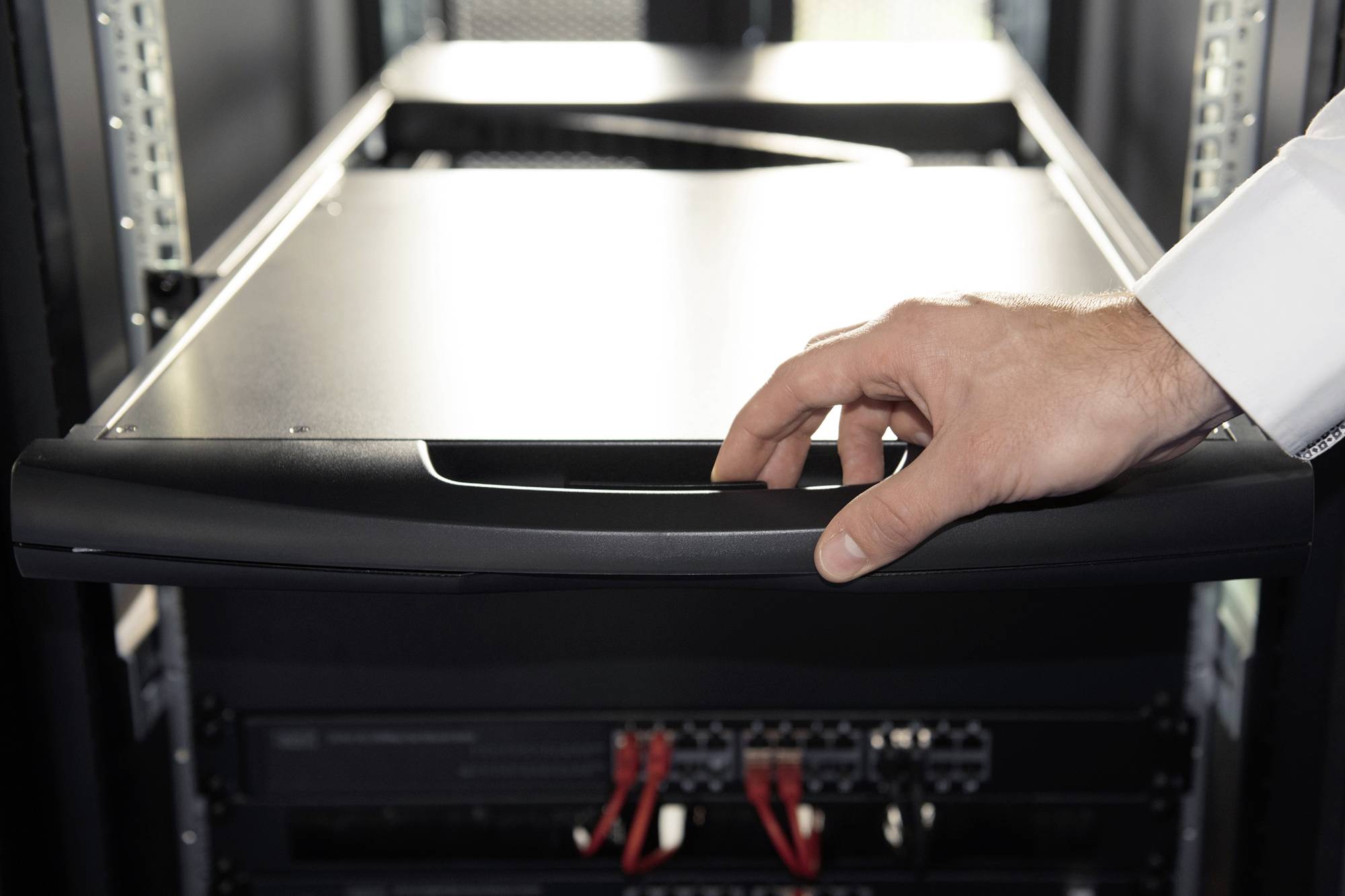

A hand pulls a server out of a rack in a data centre. Cables are visible on the front of the server.

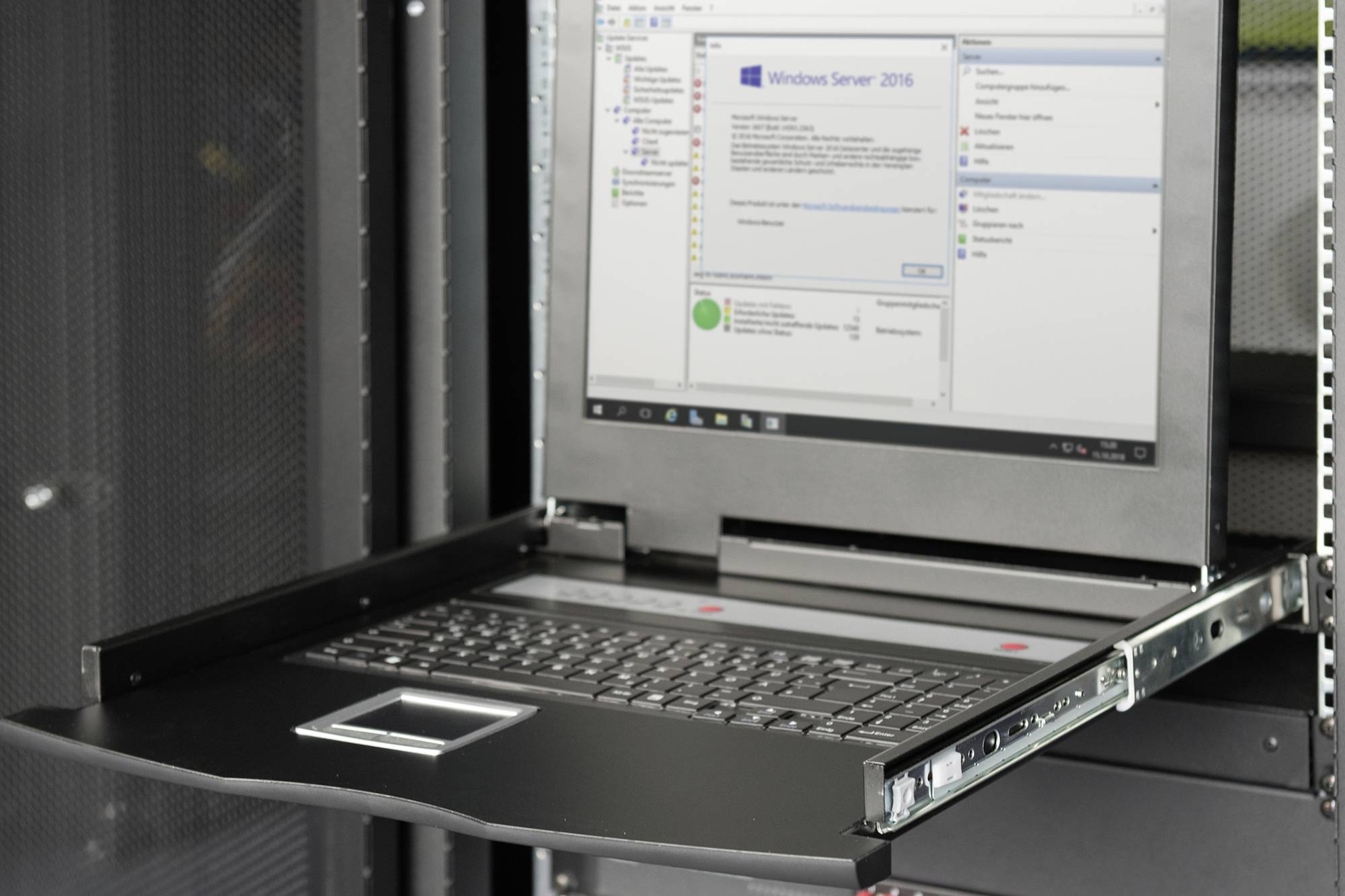

An open server rack with an integrated laptop displays the Windows Server 2016 user interface.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-72210-2GE KVM console

Highlights & Details

German keyboard layout, 17" TFT monitor (4:3), anti-glare, unbreakable, resolution: 1280x1024 at 60 Hz
The console can be pulled out completely and the screen can be swiveled 120 degrees
Connections: 8-port VGA, PS/2, 2x USB (for mouse/keyboard)
Cascading: Max. 128 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Switch modular KVM switches and keyboard layouts (sold separately)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)

Technical specifications

Product type: KVM console

No. of switchable PCs: 8

Video via: VGA

Video resolution: 1280 x 1024 Pixel

No. of USB 2.0 ports: 3 x

Stackable: Yes

Rack mount option: Yes

Switch function: Hot key
Manual
Mouse click
Key

Distributor/switch features: meets industrial requirements

Power supply (LOV): via PSU

Factory colour: Black

Weight: 12.54 kg

Length: 695 mm

Width: 480 mm

Height: 45 mm

Port: 8 ports

Dim: (L x W x H) 695 x 480 x 45 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881667 Digitus DS-72210-2GE 8 ports KVM console VGA 1280 x 1024 Pixel

Description

The DIGITUS 17" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 17" monitor, an 8-port KVM switch, a keyboard and the touchpad.

This text is machine translated.

Features

Flexible configuration depending on application area
Space-saving housing (1HE), black (RAL 9005)
TFT monitor 43.2 cm (17"), with anti-glare, shatterproof protective glass pane
The console provides up to 85% more space in the server or network cabinet
Mouse touch board with two function keys
The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
The consoles have a safety lock to prevent damage
Number of KVM ports: 8
Connector type: VGA ports, PS/2, 2x USB (for mouse/keyboard)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)
Cascading: Max. 128 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Screen size 17"
Screen format: 4:3
Resolution: 1280x1024 at 60 Hz
Display type: LCD liquid crystal displays
Contrast ratio: 1 000:1
Color support: 16.7 million colors
Angle of rotation: 120 degrees
Gross weight: 18.6 kg
Dimensions without KVM module: 462.6 x 445 x 45 mm
Dimensions with KVM module: 611 x 445 x 45 mm
Mounting: 19" rack / 1HE
Mounting rail: 390 to 560 mm adjustable depth
Installation depth: 800 to 1100 mm deep cabinets
Color: Black (RAL 9005)
