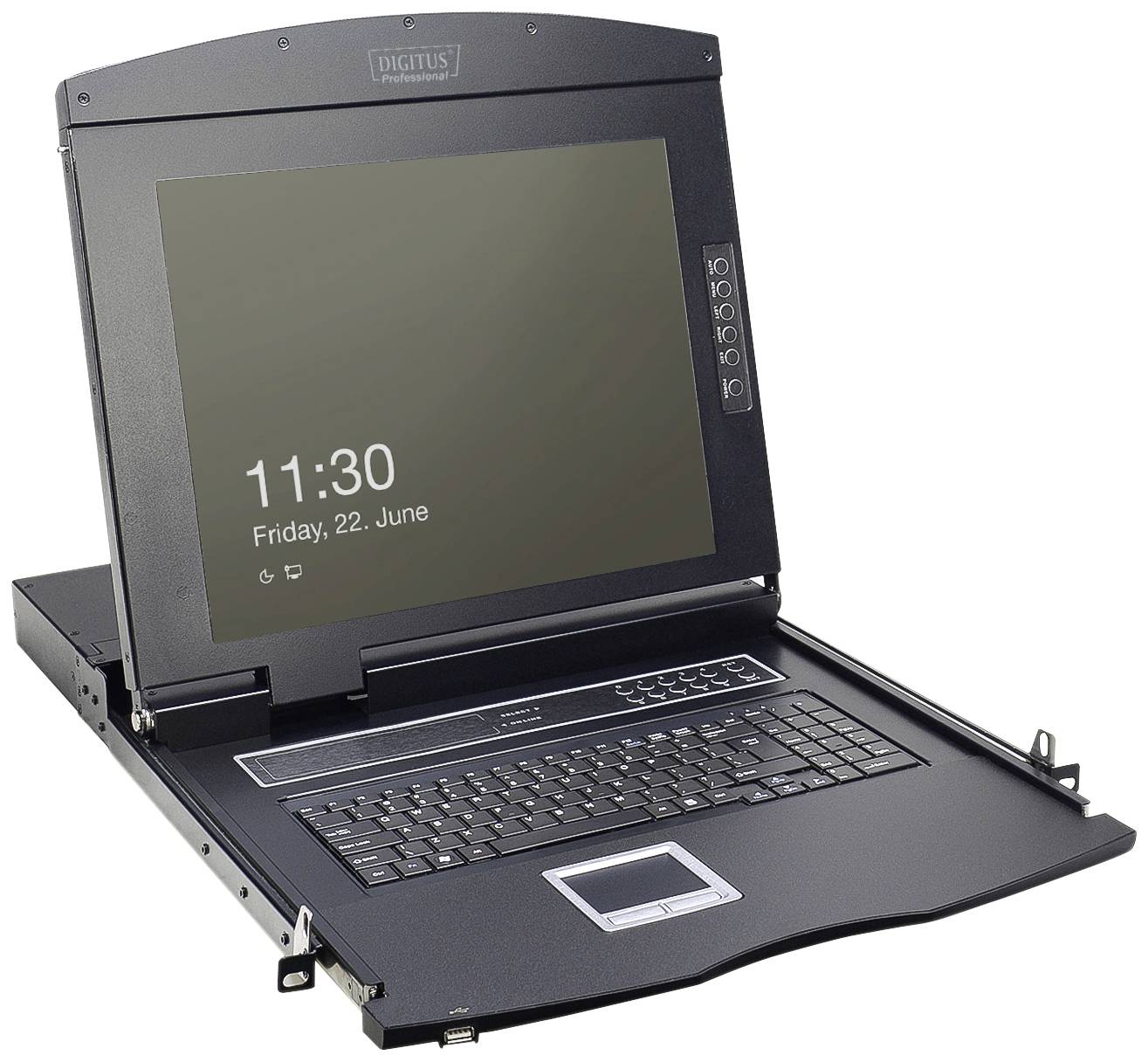

A black KVM switch with a pull-out keyboard and touchpad, displaying the time and date on the screen: '11:30, Friday, 22 June'.

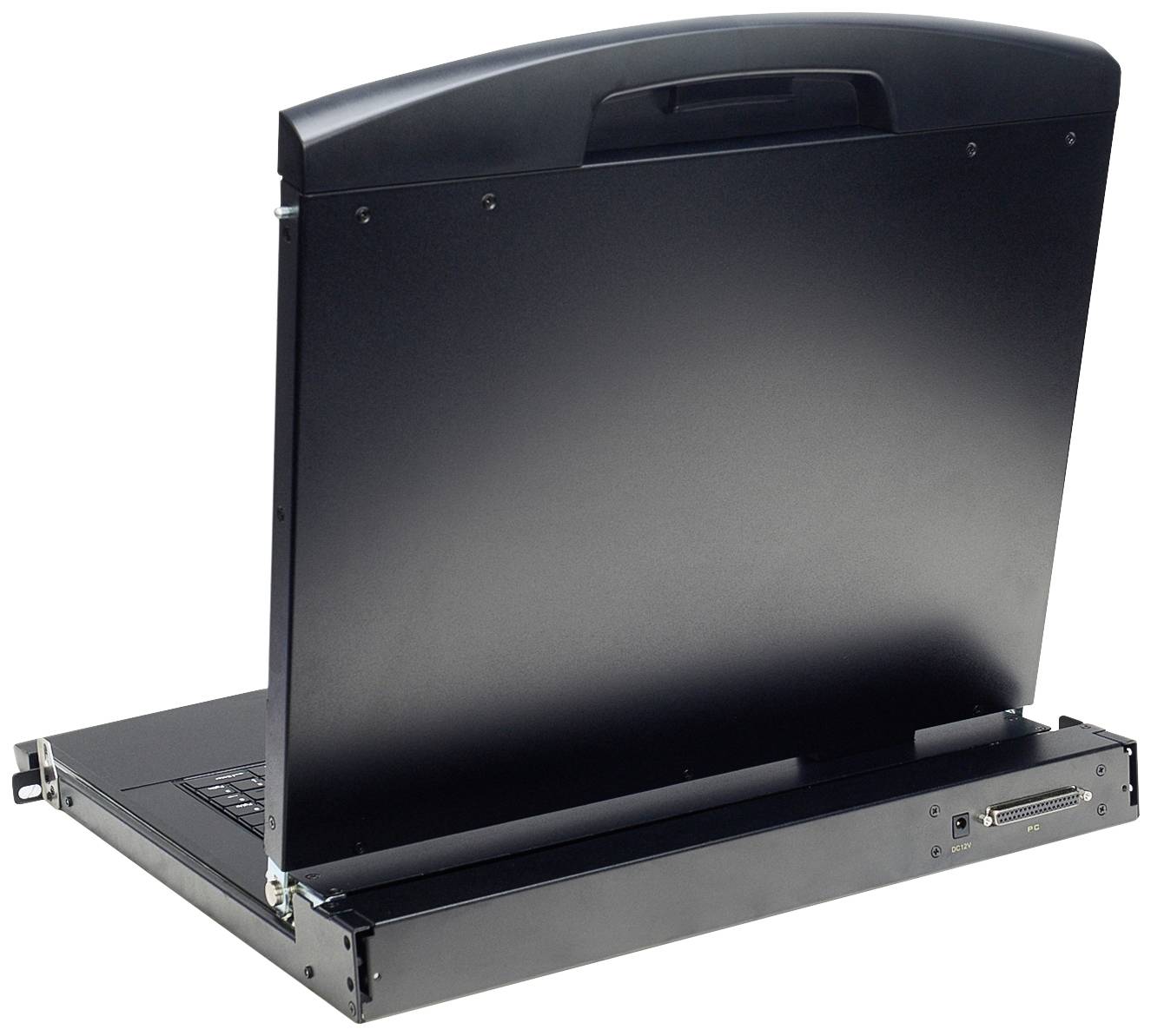

Black laptop with an open display tilted backwards. The device has a robust, angular design with no visible details on the screen.

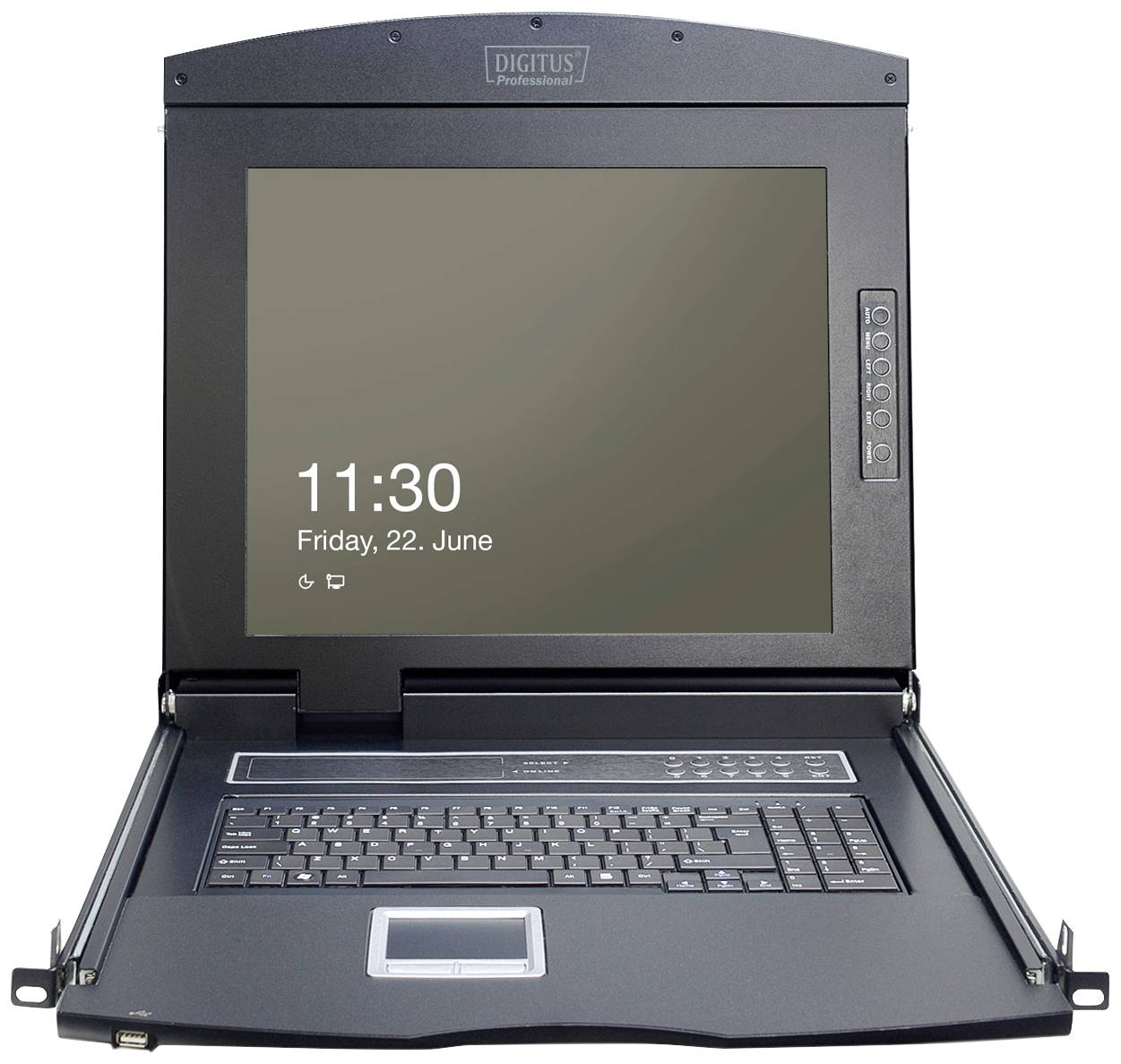

A KVM switch with a built-in monitor and keyboard displays the screen showing the time '11:30' and the date 'Friday, 22 June'.

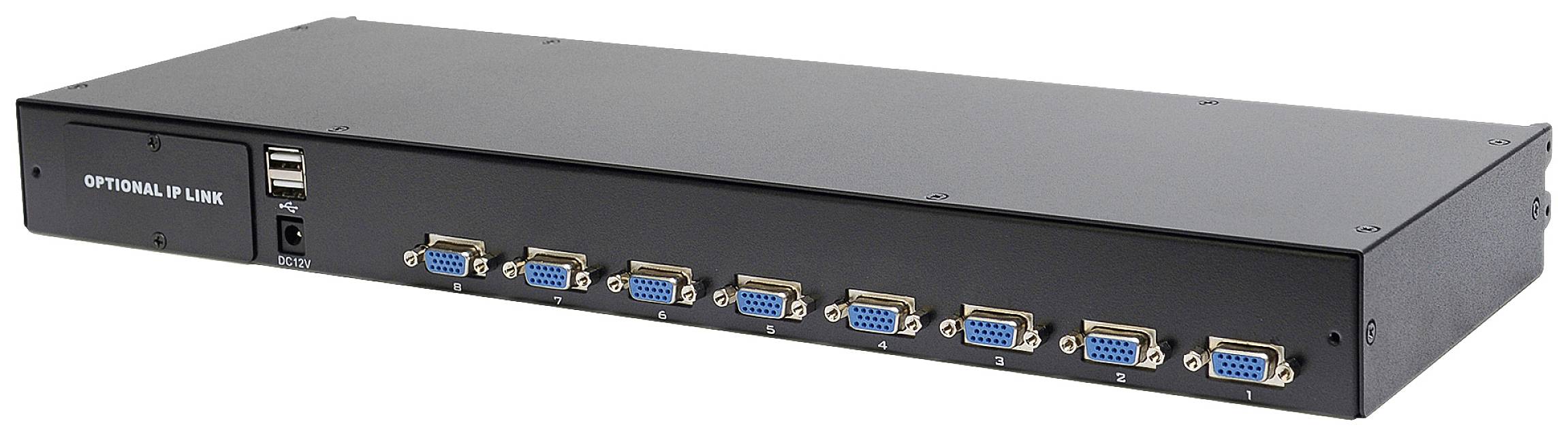

A KVM switch with eight VGA ports, USB ports and a network switch, used for managing multiple computers via a single monitor.

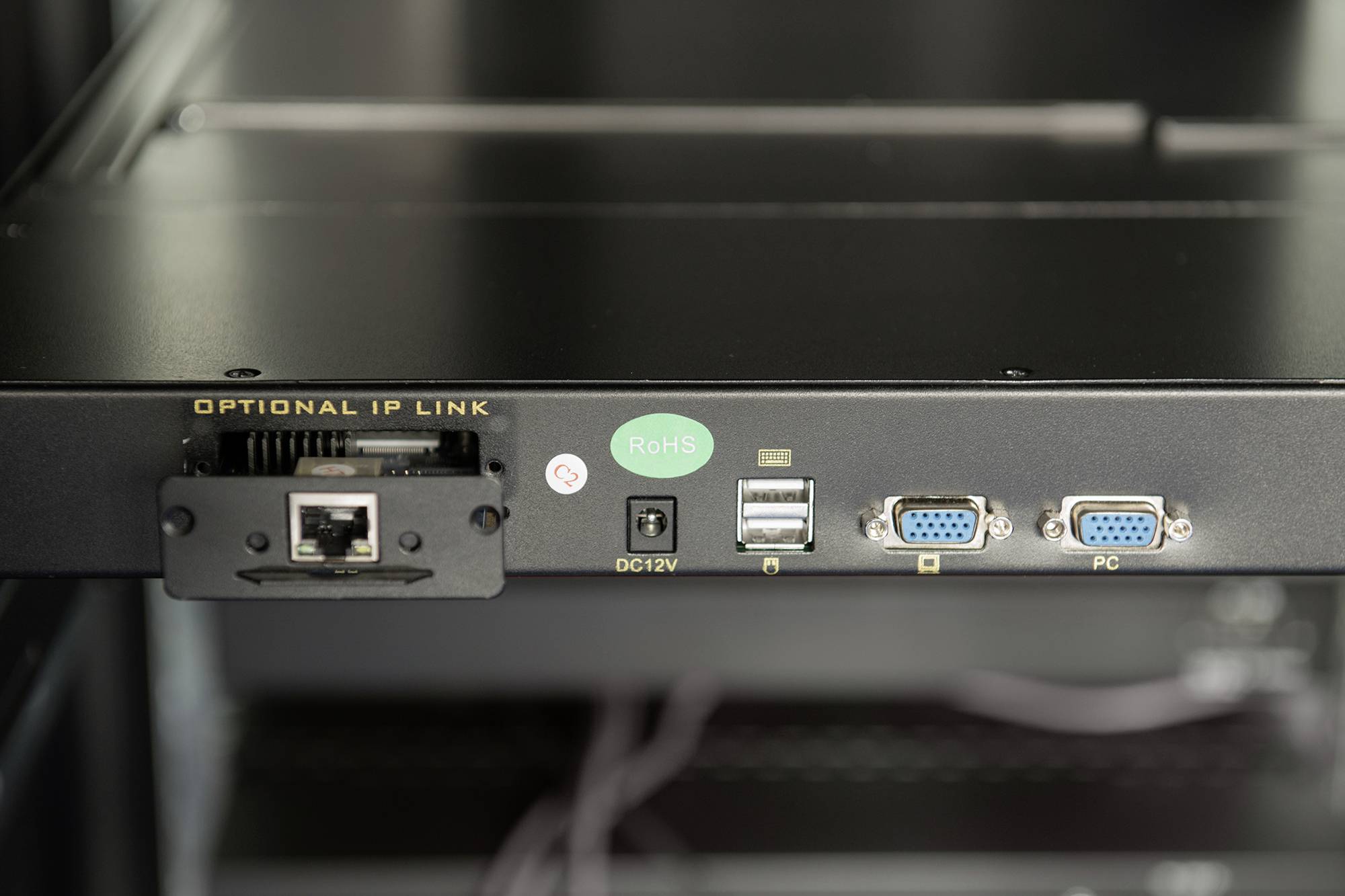

A server rack with connections: network, DC12V, two USB and two VGA ports. A 'RoHS' sticker is visible.

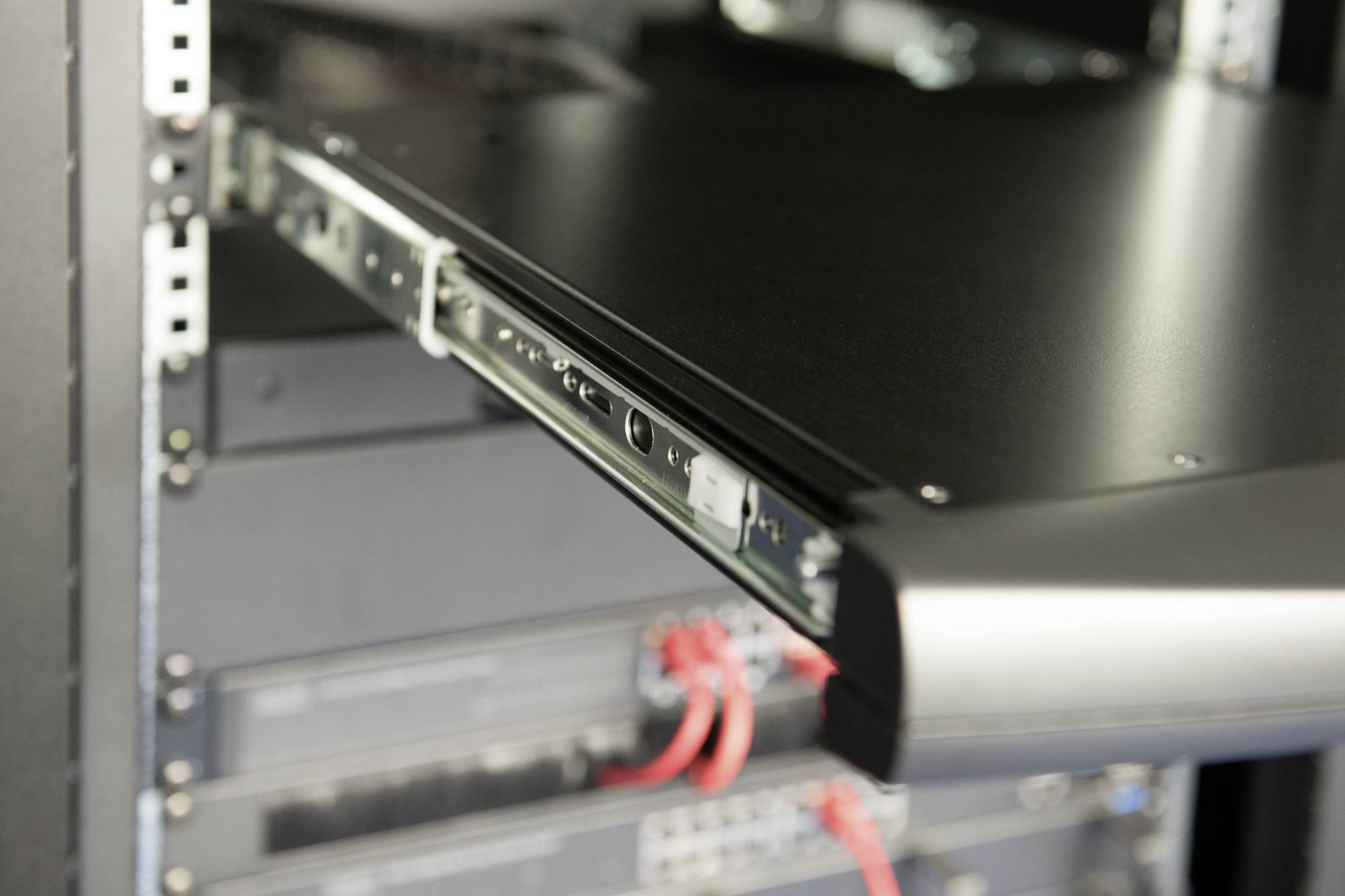

An open server rack displaying a pulled-out server. Cables are visible in the background.

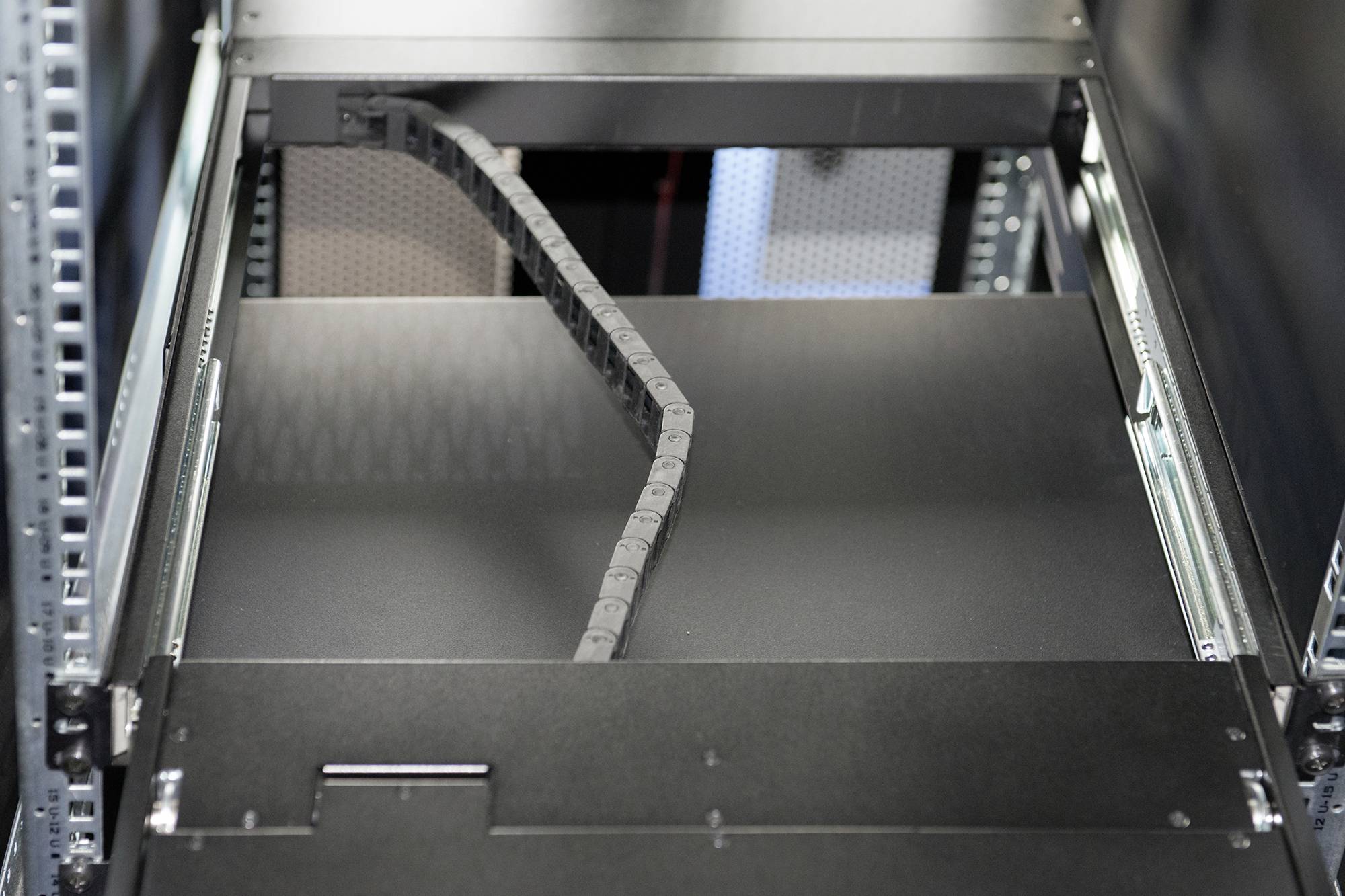

An open server chassis reveals an empty drawer and internal cabling, captured in a data centre.

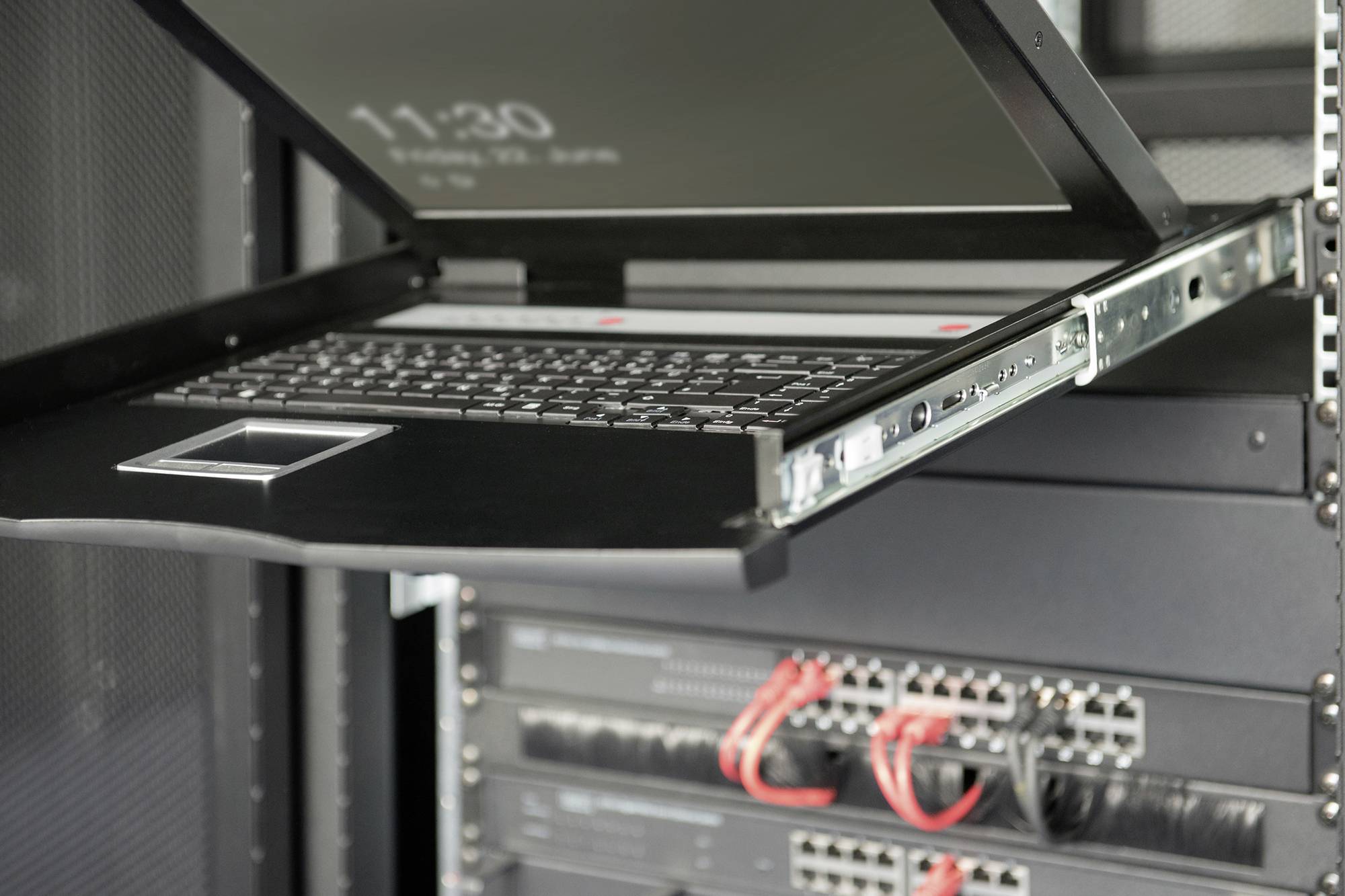

A pulled-out rack server with an extendable keyboard and monitor displays the time. Network cables are connected.

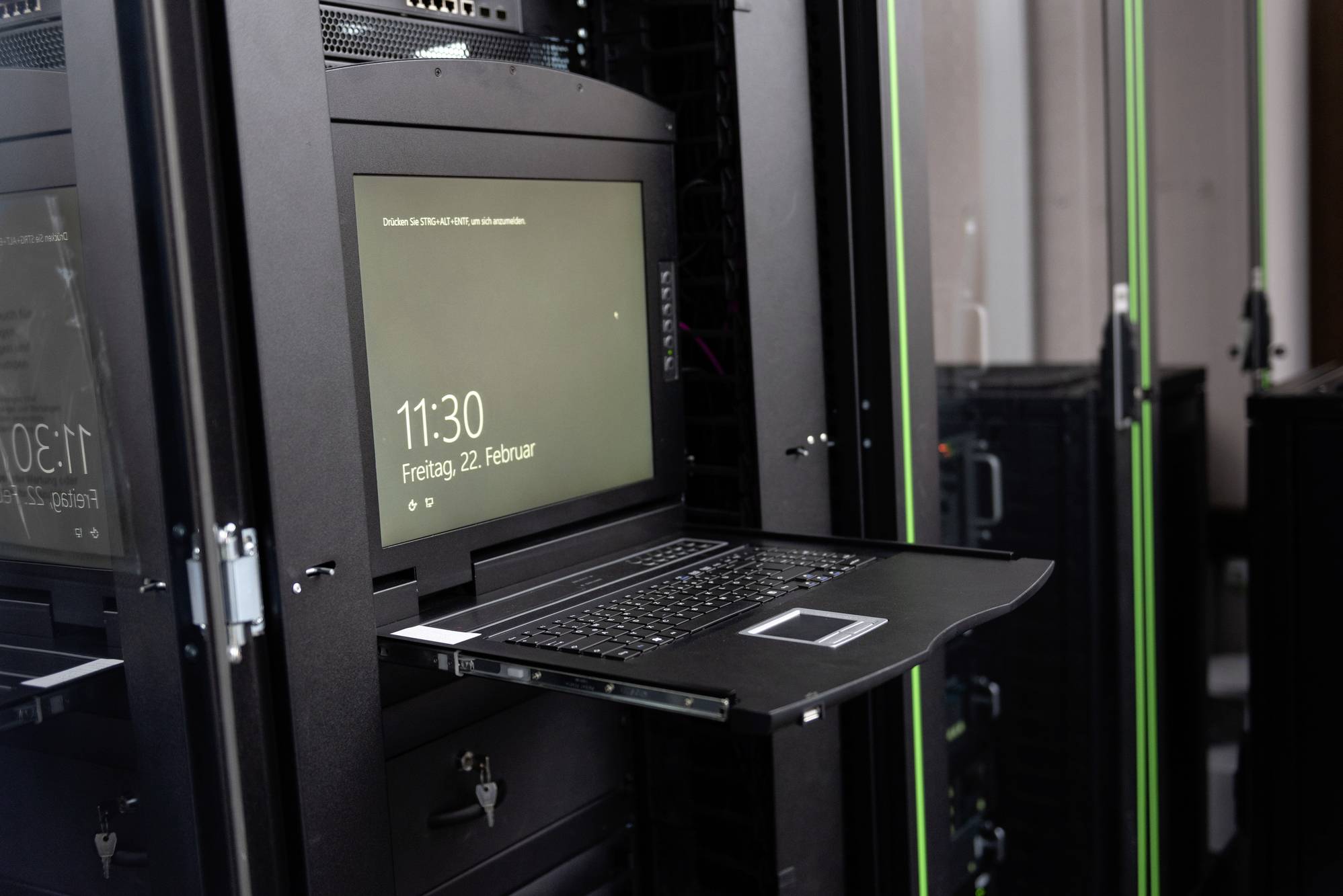

A server room with an open laptop in a rack. On the screen it reads 'Friday, 22 February' and the time '11:30'.

Digitus DS-72211-2CH KVM console VGA 1366 x 768 Pixel-9

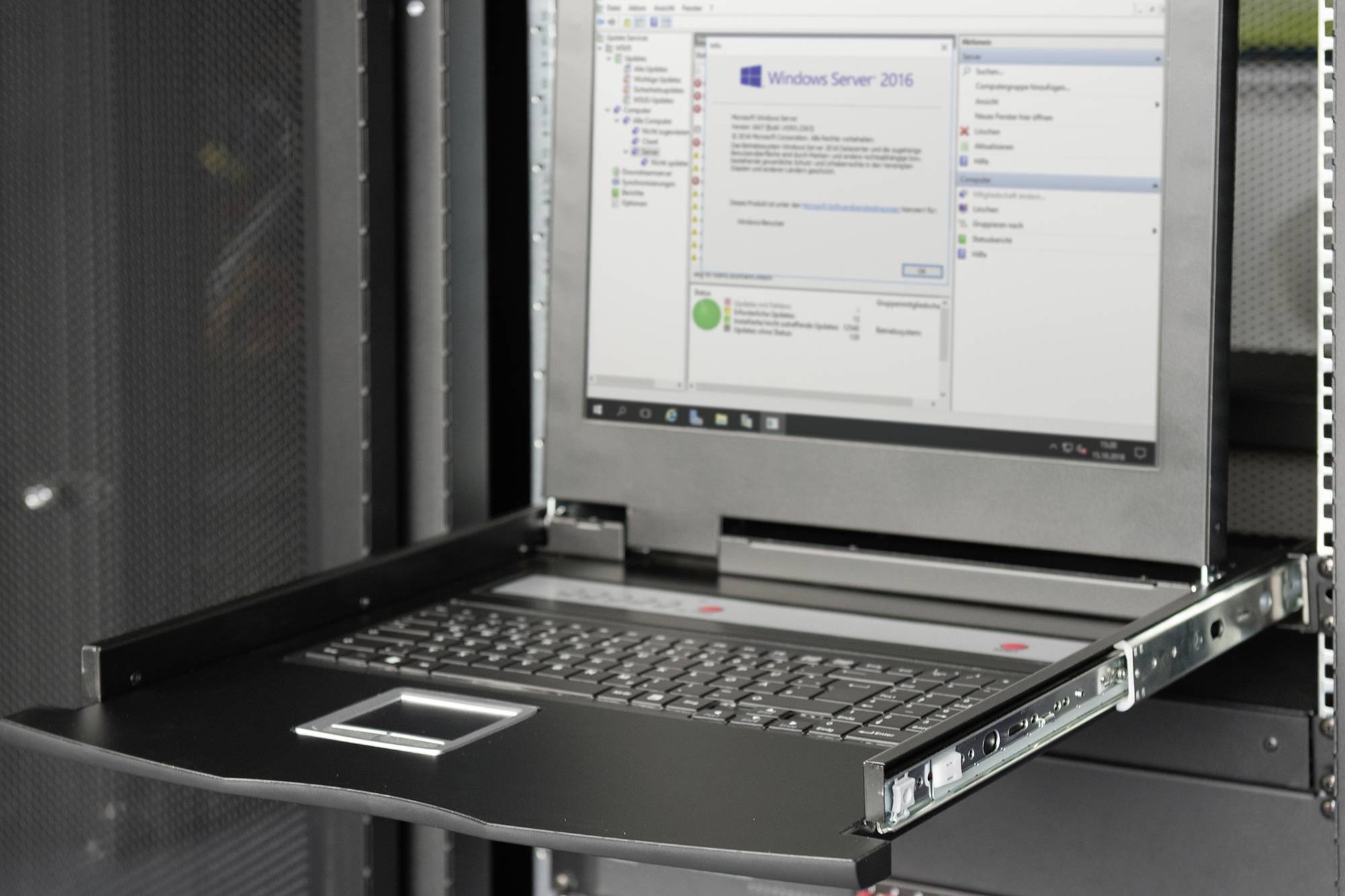

A server rack with a pull-out screen displays the Windows Server 2016 setup. A keyboard is integrated beneath it.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-72211-2CH KVM console

Highlights & Details

Schweitzer keyboard layout, 19" TFT-monitor (16:9), anti-glare, break-proof, resolution: 1366x768 at 60 Hz
The console can be pulled out completely and the screen can be swiveled 120 degrees
Connections: 8-port VGA, PS/2, 2x USB (for mouse/keyboard)
Cascading: Max. 128 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Switch modular KVM switches and keyboard layouts (sold separately)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: VGA

Video resolution: 1366 x 768 Pixel

No. of USB 2.0 ports: 3 x

Stackable: No

Rack mount option: Yes

Switch function: Hot key
Manual
Mouse click
Key

Distributor/switch features: meets industrial requirements

Power supply (LOV): via PSU

Factory colour: Black

Weight: 12.54 kg

Length: 695 mm

Width: 480 mm

Height: 45 mm

Dim: (L x W x H) 695 x 480 x 45 mm

Product type description: Zubehör Server

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881710 Digitus DS-72211-2CH KVM console VGA 1366 x 768 Pixel

Description

The DIGITUS 19" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 19" monitor, 8 port KVM switch, a keyboard and the touchpad.

This text is machine translated.

Features

Flexible configuration depending on application area
Space-saving housing (1HE), black (RAL 9005)
TFT monitor 48.3 cm (19"), with anti-glare, shatterproof protective glass pane
The console provides up to 85% more space in the server or network cabinet
Mouse touch board with two function keys
The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
The consoles have a safety lock to prevent damage
Number of KVM ports: 8
Connector type: VGA ports, PS/2, 2x USB (for mouse/keyboard)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)
Cascading: Max. 128 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Screen size 19"
Screen format: 16:09
Resolution: 1366x768 at 60 Hz
Display type: LCD liquid crystal displays
Contrast ratio: 1 000:1
Color support: 16.7 million colors
Angle of rotation: 120 degrees
Gross weight: 18.6 kg
Dimensions without KVM module: 462.6 x 445 x 45 mm
Dimensions with KVM module: 611 x 445 x 45 mm
Mounting: 19" rack / 1HE
Mounting rail: 390 to 560 mm adjustable depth
Installation depth: 800 to 1100 mm deep cabinets
Color: Black (RAL 9005)
