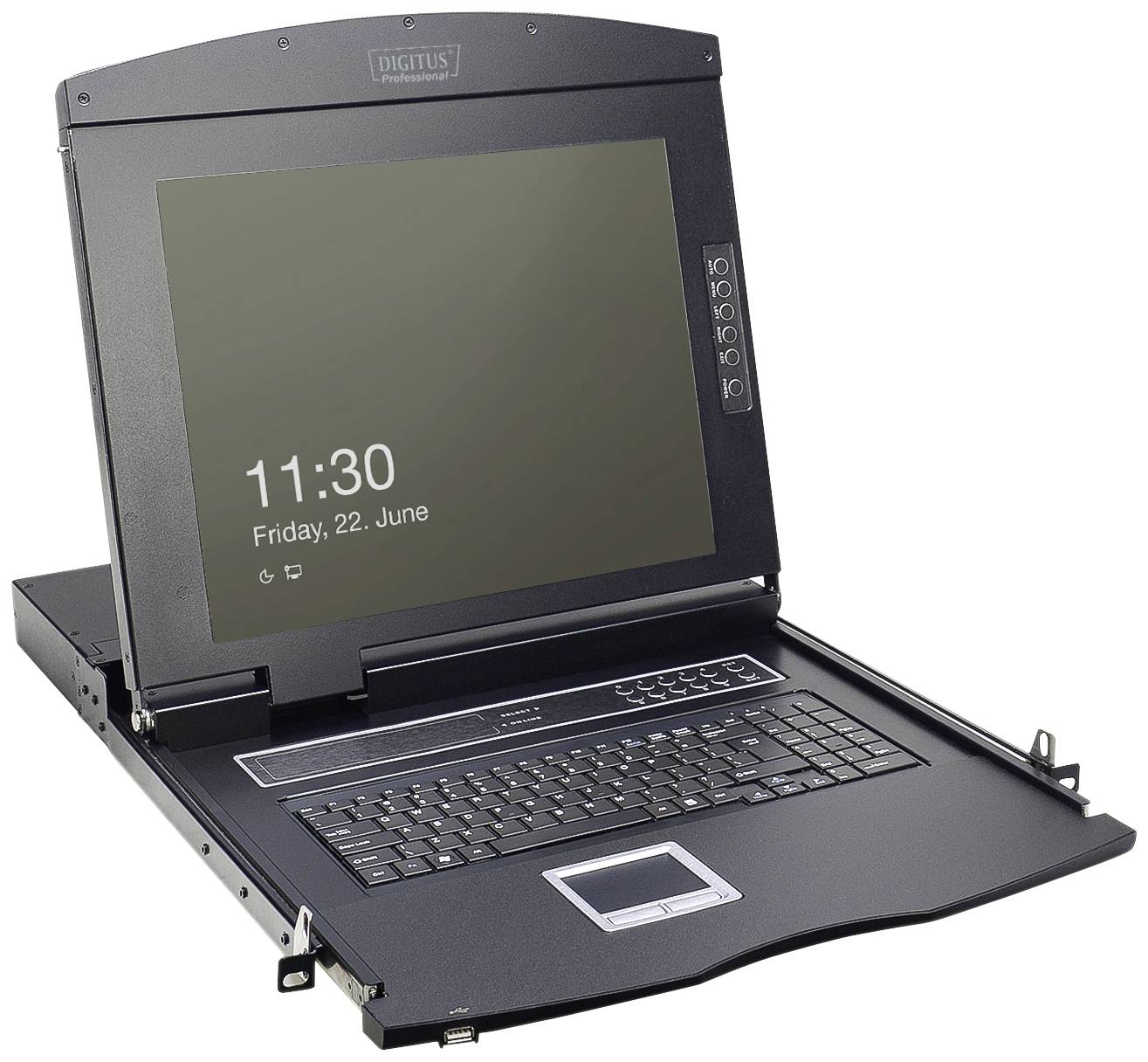

A foldable KVM switch with an integrated screen displaying '11:30 Friday, 22nd June'. Includes a keyboard.

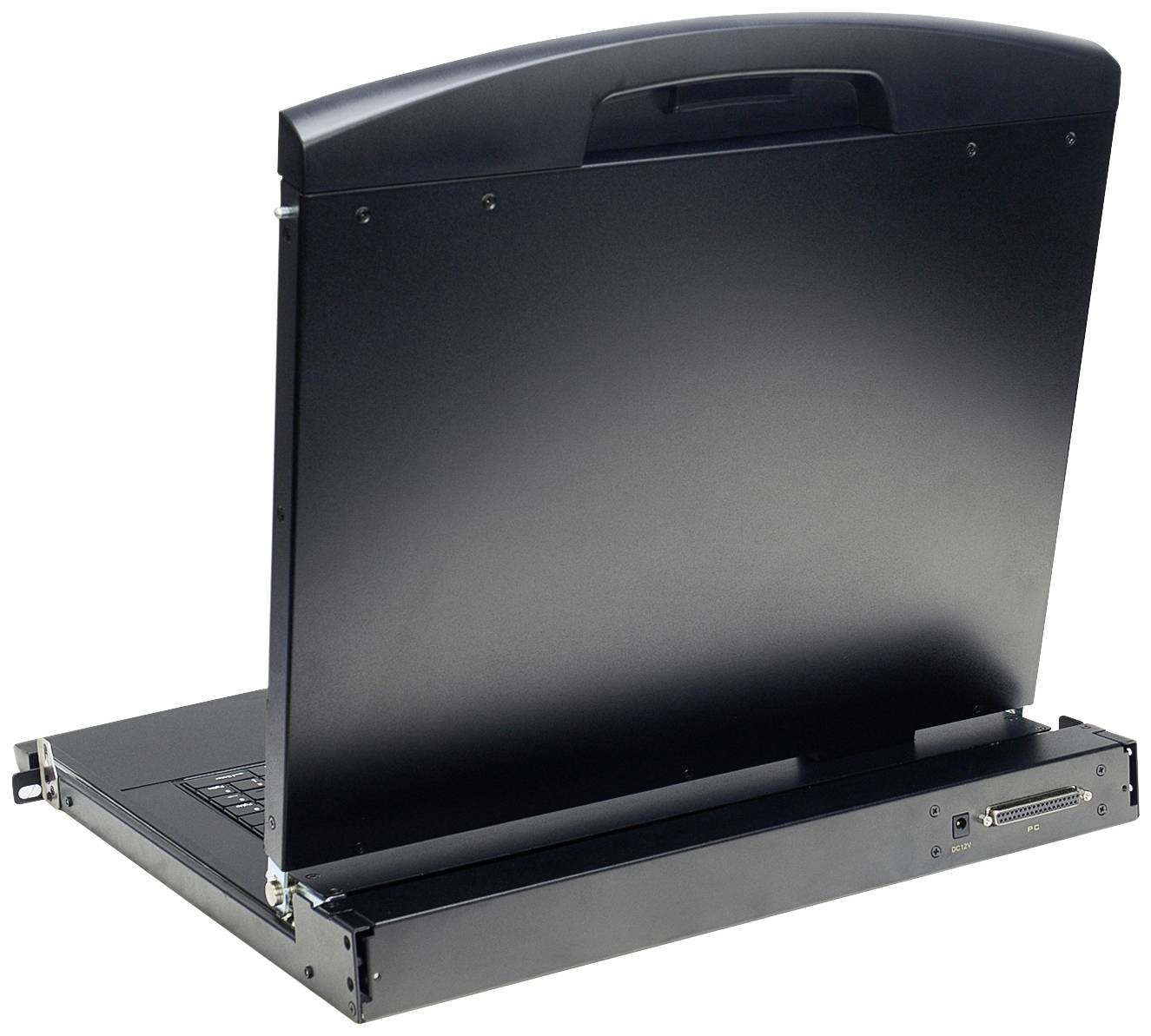

A black, foldable laptop viewed from the side, showing the back of the screen and the connection ports at the base.

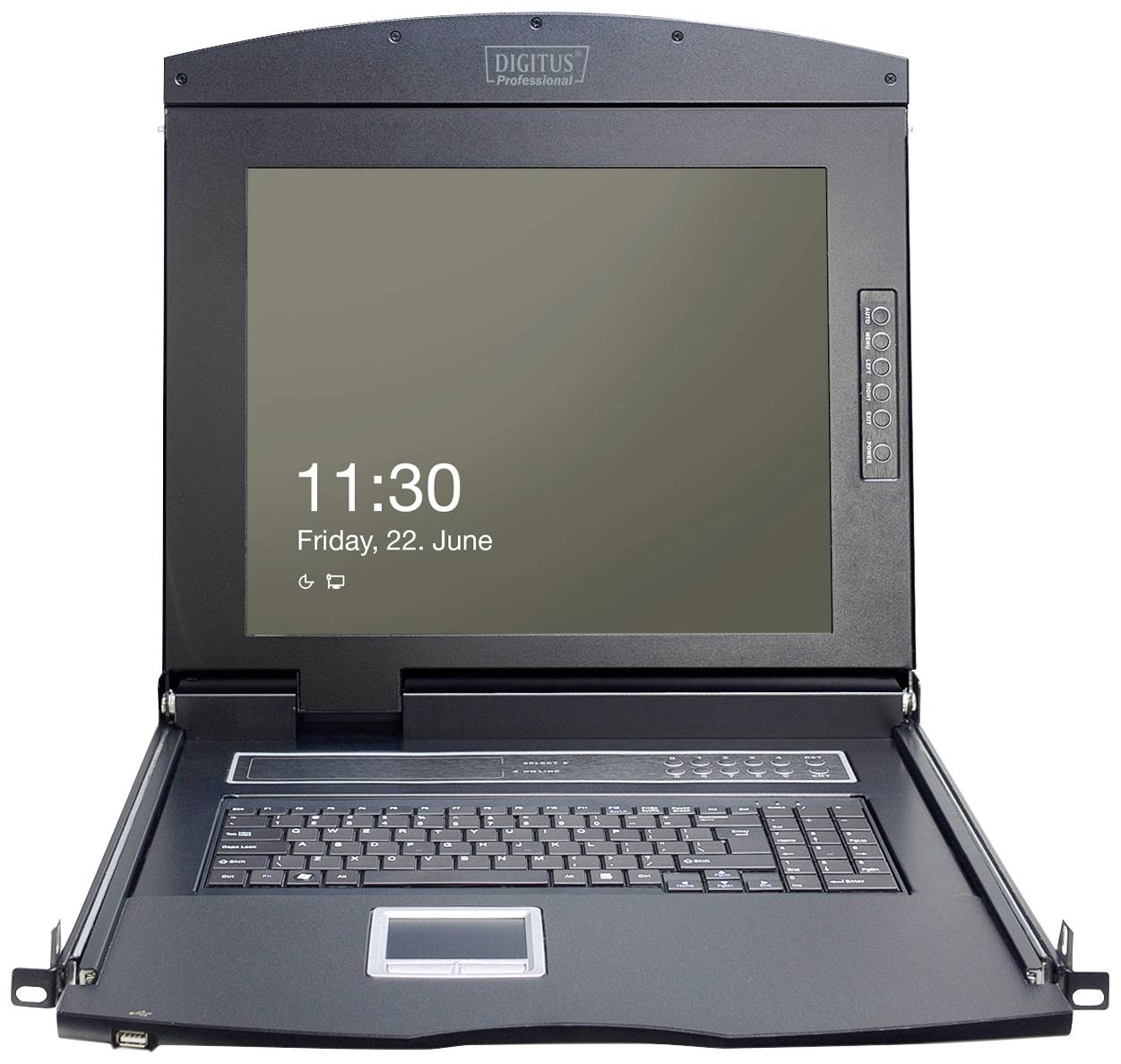

A black monitor with an integrated keyboard and touchpad, displaying the time as 11:30 and the date as 'Friday, 22 June'.

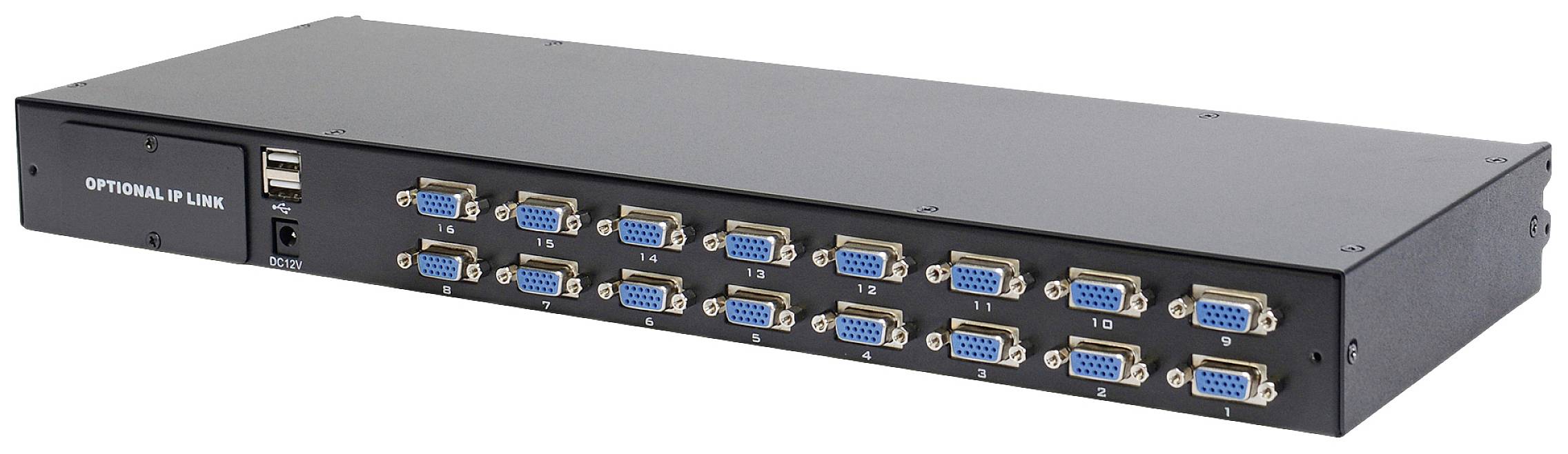

A black distributor with 16 VGA ports, numbered from 1 to 16, and two USB ports on the left-hand side.

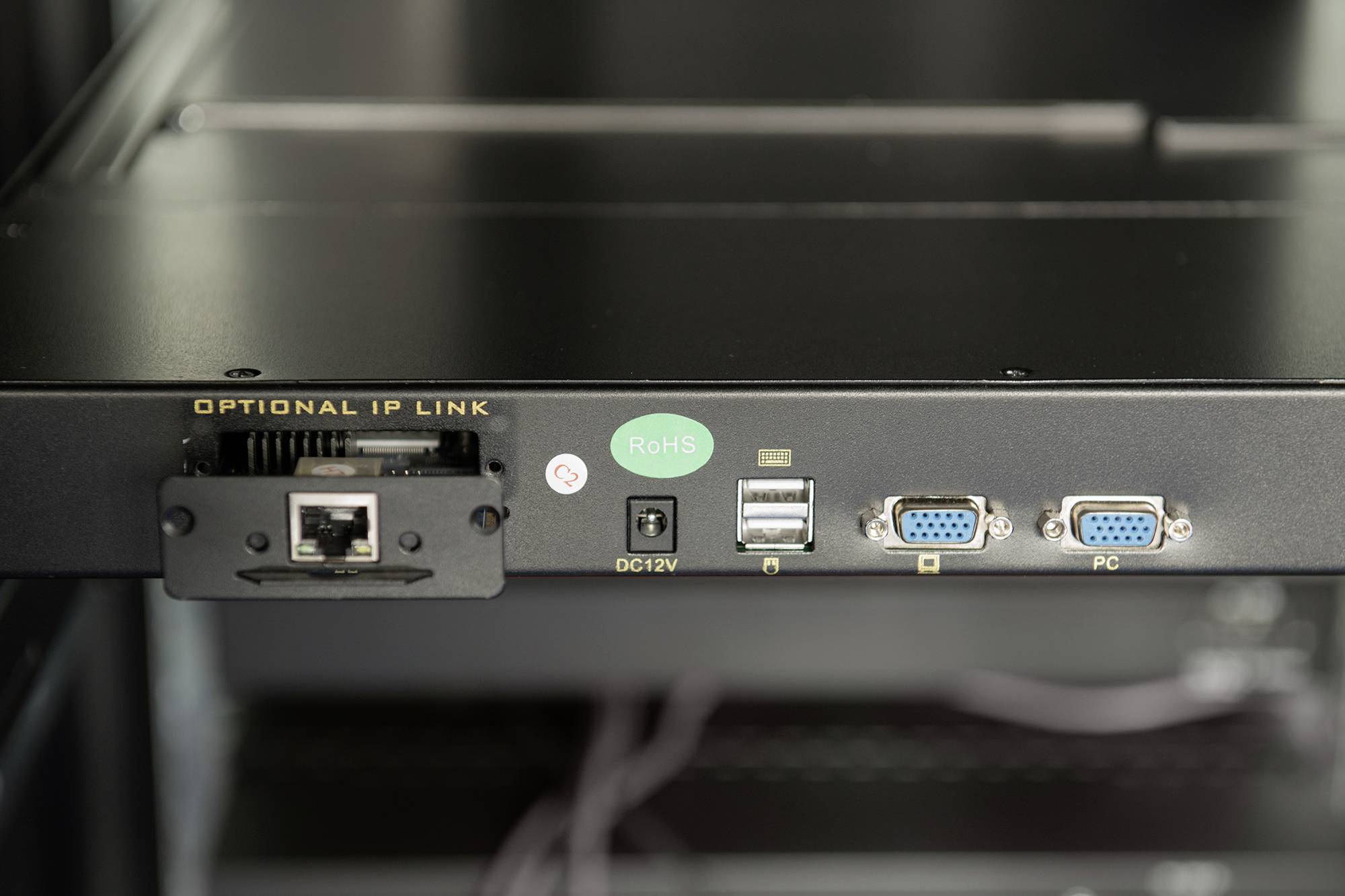

Back of a technical device with various ports: Ethernet, DC12V, USB and VGA. Label 'OPTIONAL IP LINK'.

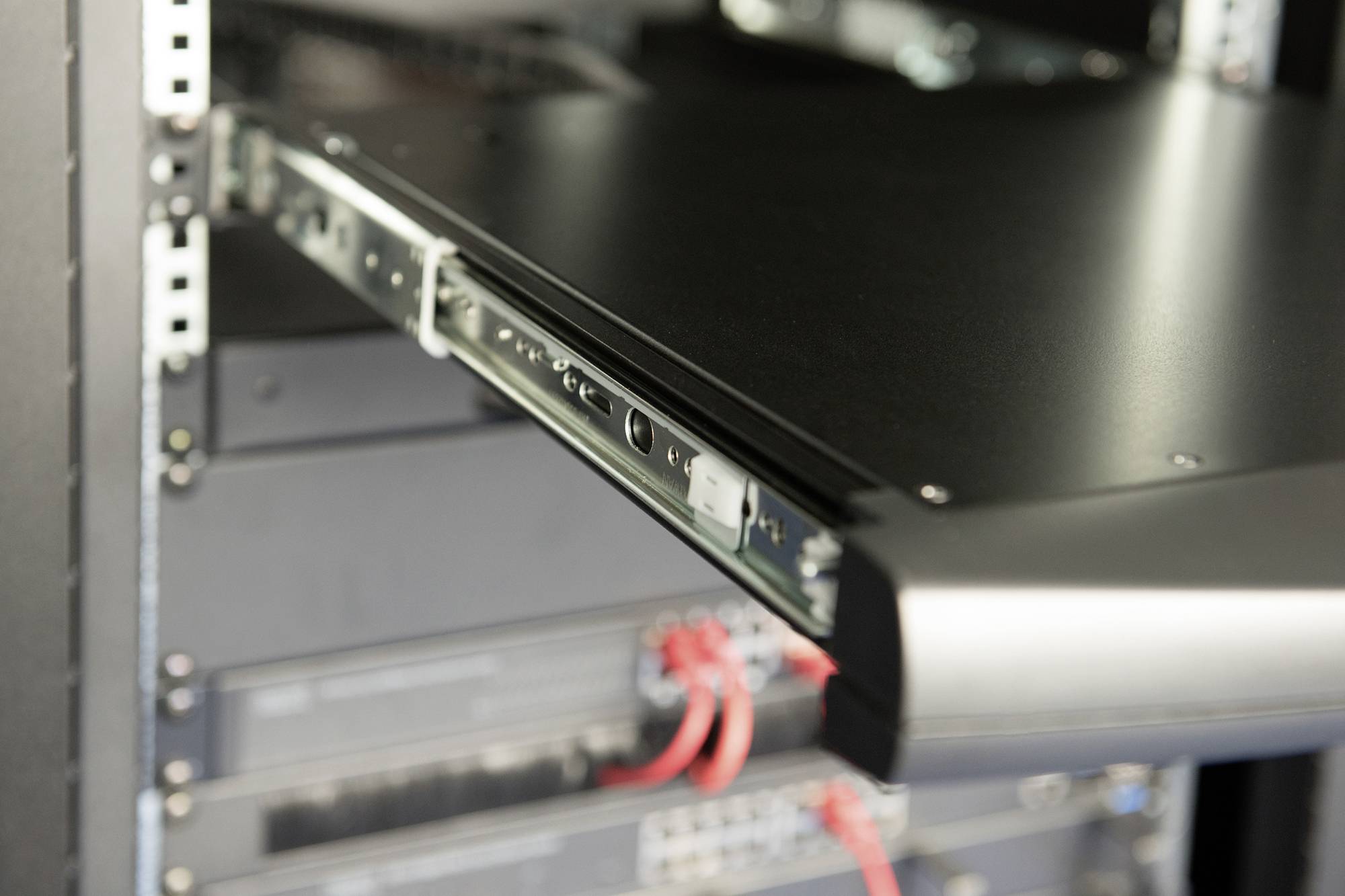

An open server rack with a pulled-out server, surrounded by other servers and visible cable connections.

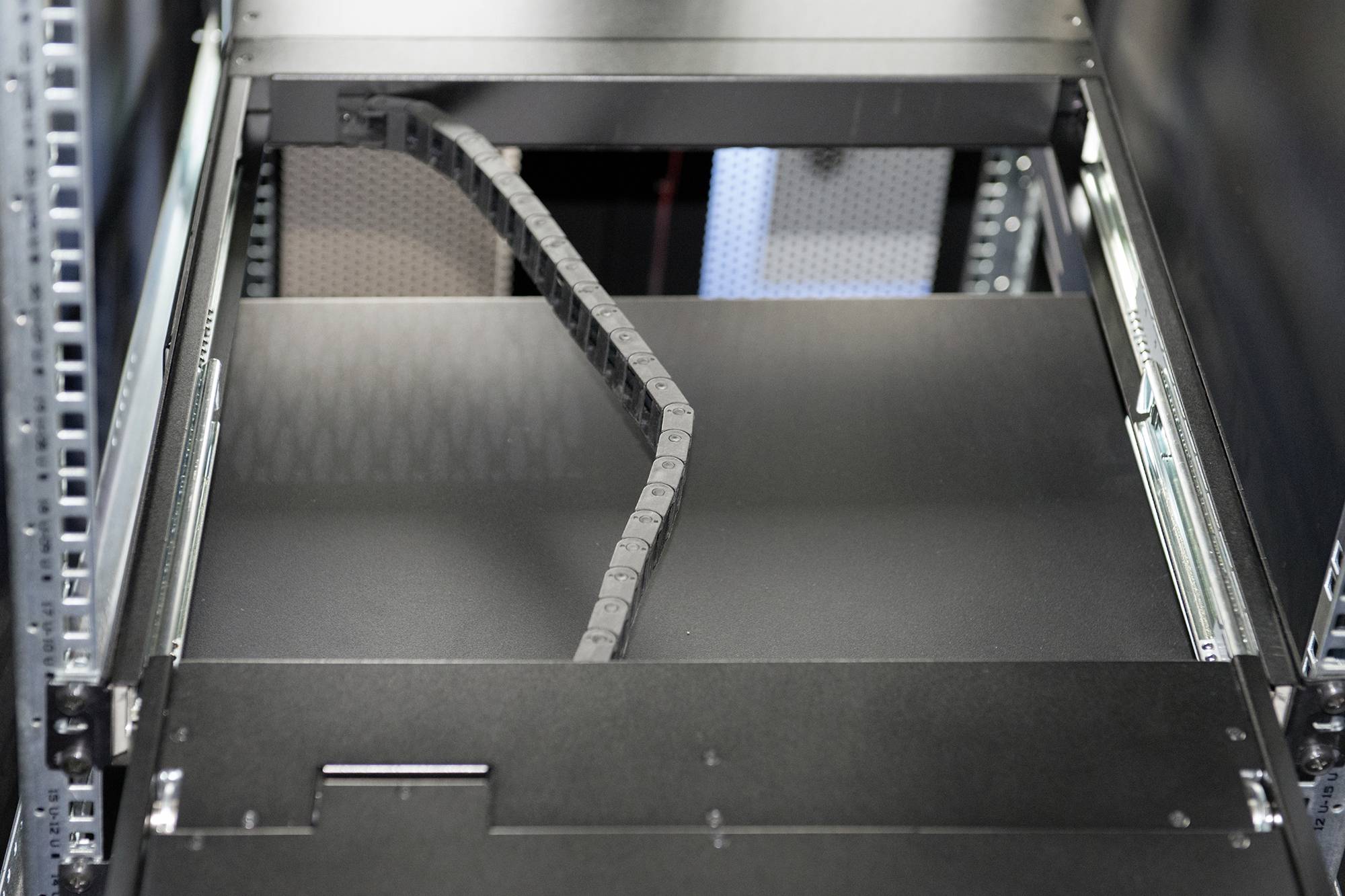

An empty server rack drawer in a data centre, with a flexible cable protruding into the drawer.

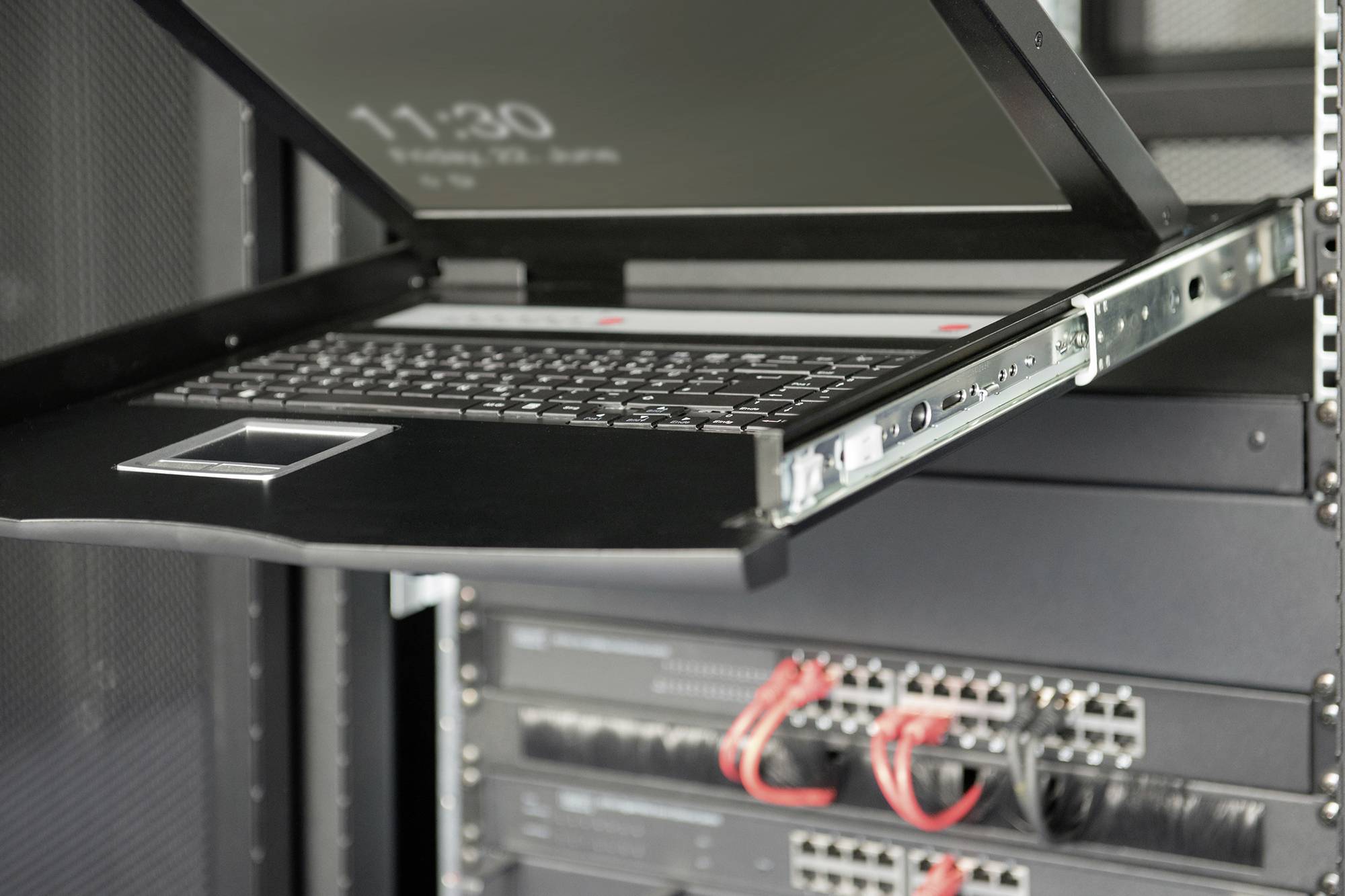

Server room with an open KVM switch; screen displays '11:30'. Visible network devices and cable connections underneath.

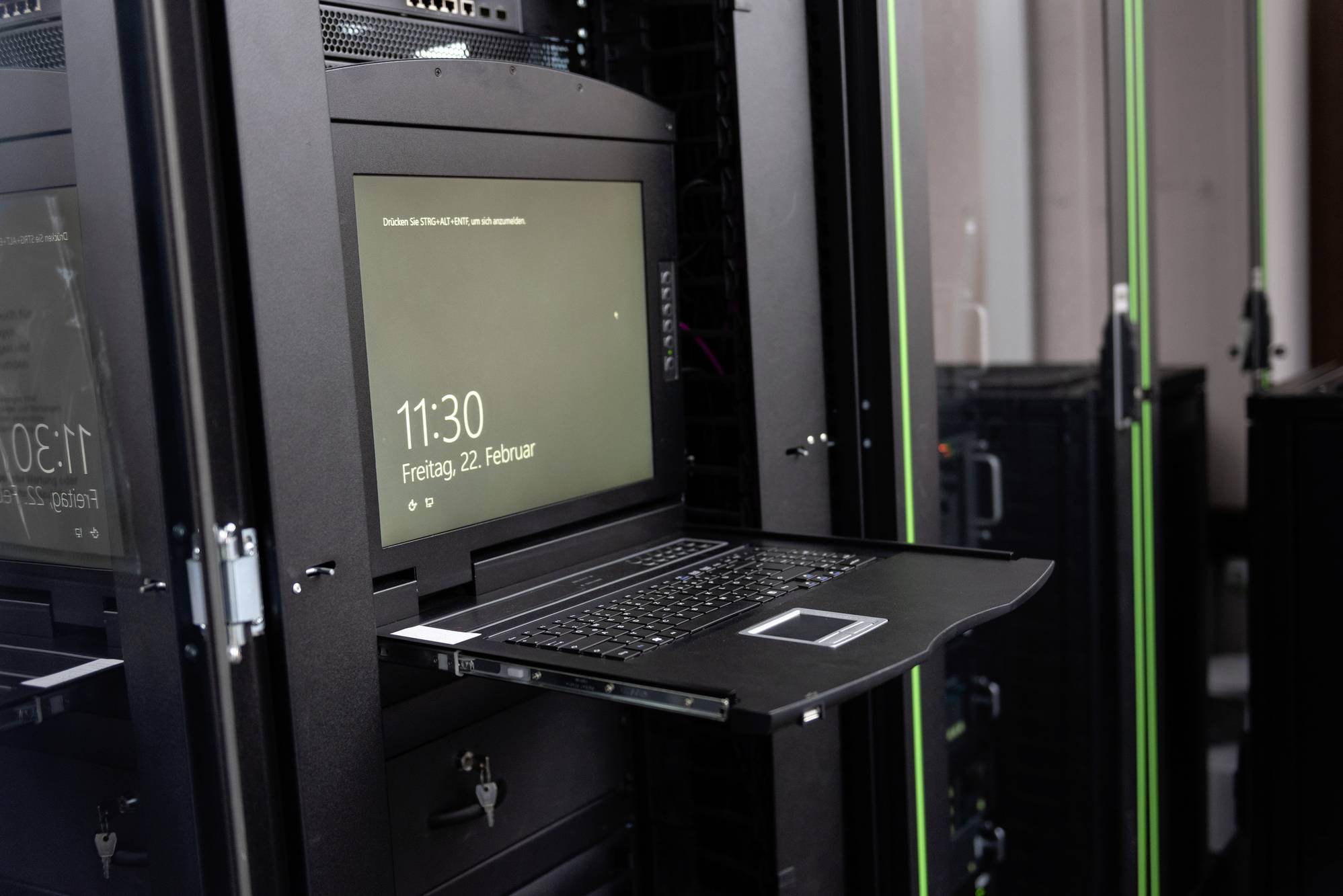

An open laptop in a server room displays '11:30 Friday, 22 February' on the screen, surrounded by server racks.

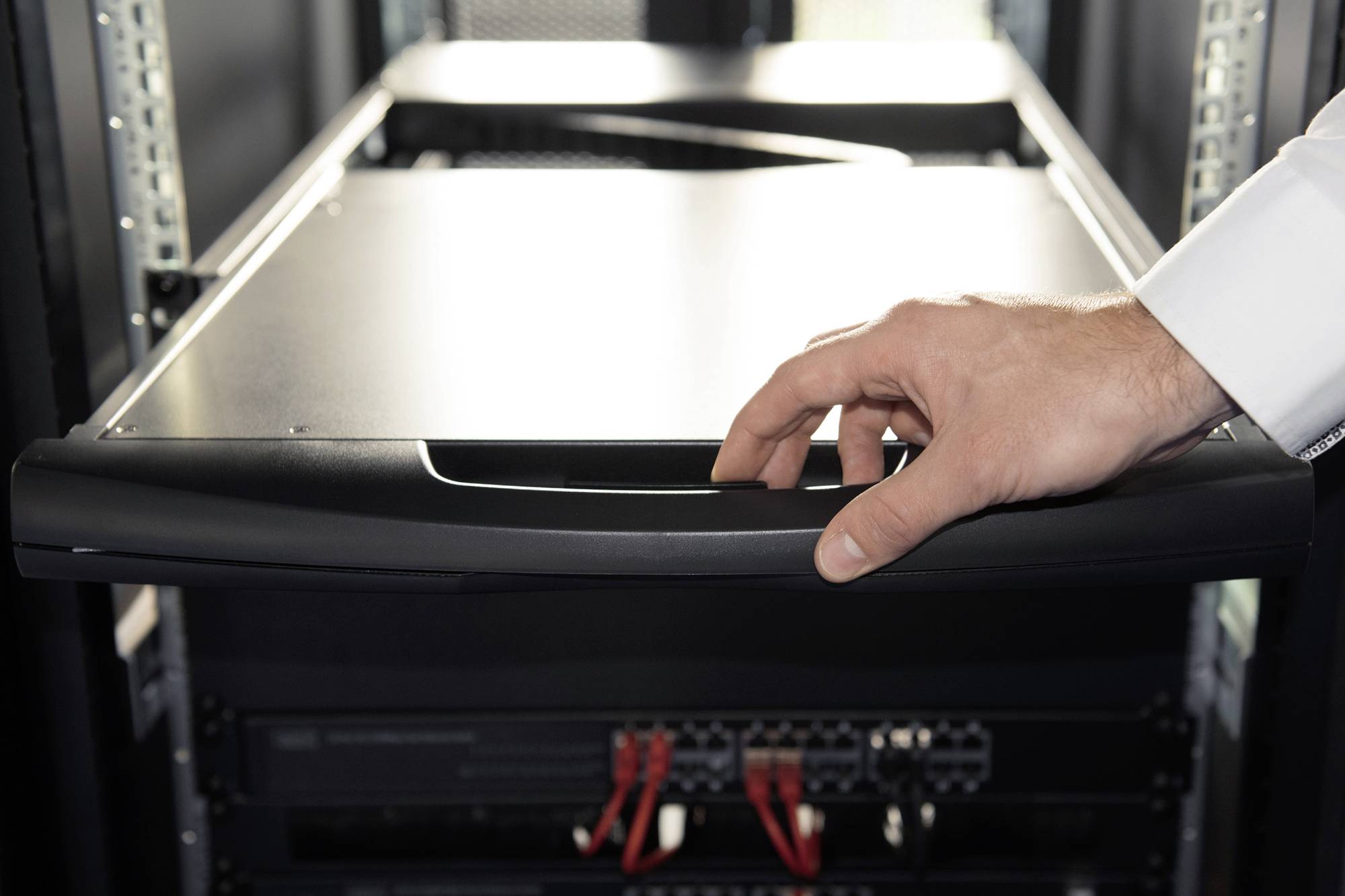

A hand pulls out a server rack in a data centre.

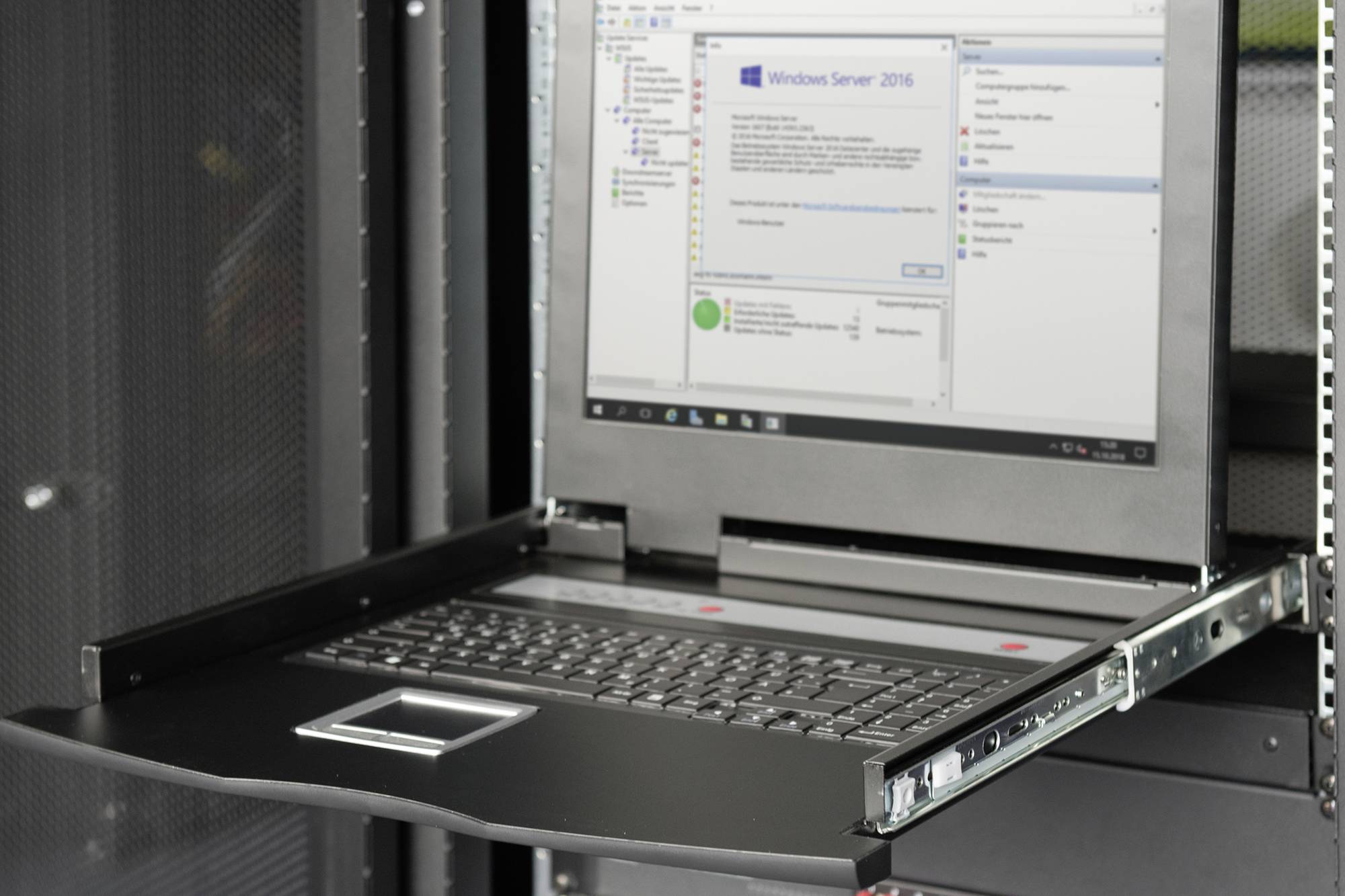

In the server cabinet, there is a pull-out rack with a keyboard and monitor, displaying Windows Server 2016.

1/11

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-72211-3GE - 19" KVM console with 19" TFT display (16:9), DE keyboard layout, KVM switch with 16 VGA ports, black

Highlights & Details

German keyboard layout, 19" TFT monitor (16:9), anti-glare, unbreakable, resolution: 1366x768 at 60 Hz
The console can be pulled out completely and the screen can be swiveled 120 degrees
Connections: 16-port VGA, PS/2, 2x USB (for mouse/keyboard)
Cascading: Up to 256 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Switch modular KVM switches and keyboard layouts (sold separately)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: VGA

Video resolution: 1366 x 768 Pixel

No. of USB 2.0 ports: 3 x

Stackable: Yes

Rack mount option: Yes

Switch function: Hot key
Manual
Mouse click
Key

Distributor/switch features: meets industrial requirements

Power supply (LOV): via PSU

Factory colour: Black

Weight: 12.54 kg

Length: 695 mm

Width: 480 mm

Height: 45 mm

Port: 16 ports

Dim: (L x W x H) 695 x 480 x 45 mm

Product type description: KVM-Konsole

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881722 Digitus DS-72211-3GE 16 ports KVM console VGA 1366 x 768 Pixel

Description

The DIGITUS 19" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 19" monitor, 16 port KVM switch, a keyboard and the touchpad.

This text is machine translated.

Features

Flexible configuration depending on application area
Space-saving housing (1HE), black (RAL 9005)
TFT monitor 48.3 cm (19"), with anti-glare, shatterproof protective glass pane
The console provides up to 85% more space in the server or network cabinet
Mouse touch board with two function keys
The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
The consoles have a safety lock to prevent damage
Number of KVM ports: 16
Connector type: VGA ports, PS/2, 2x USB (for mouse/keyboard)
Length of connection cable: 1.8 m (3m & 5m cable available separately: Digitus DS-19232 & DS-19233)
Cascading: Up to 256 devices with DIGITUS DS-23200-2 / DS-23300-2 (8-/16-port KVM switch)
Screen size 19"
Screen format: 16:09
Resolution: 1366x768 at 60 Hz
Display type: LCD liquid crystal displays
Contrast ratio: 1 000:1
Color support: 16.7 million colors
Angle of rotation: 120 degrees
Gross weight: 18.6 kg
Dimensions without KVM module: 462.6 x 445 x 45 mm
Dimensions with KVM module: 611 x 445 x 45 mm
Mounting: 19" rack / 1HE
Mounting rail: 390 to 560 mm adjustable depth
Installation depth: 800 to 1100 mm deep cabinets
Color: Black (RAL 9005)
