Digitus DS-72211-4US 8 ports KVM console CAT 5 (RJ45) 1366 x 768 Pixel
EAN:
Part number:
Item no:
Highlights & Details

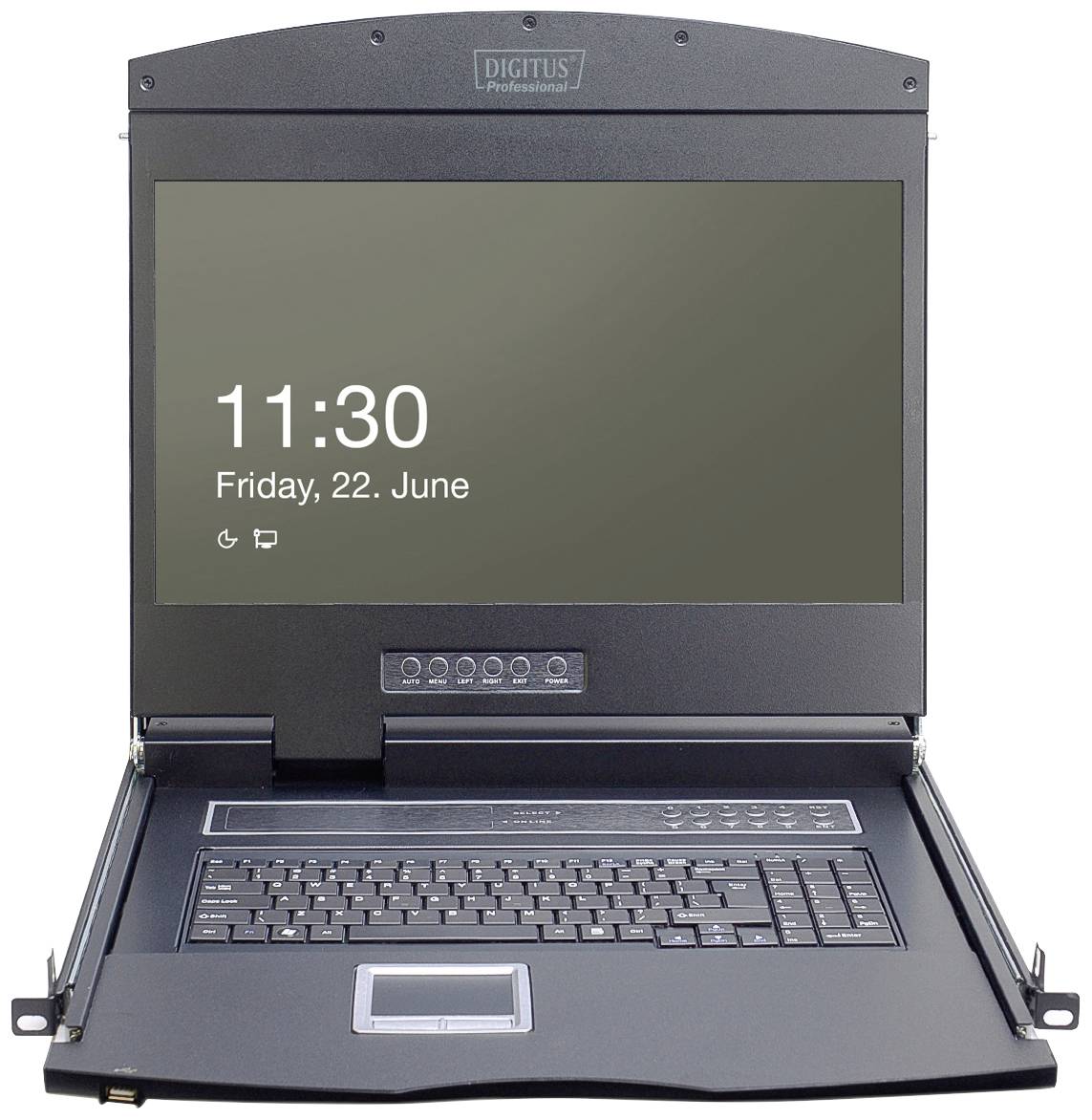

Digitus DS-72211-4US KVM console
- Us-American keyboard layout, 19" TFT-monitor (16:9), anti-glare, unbreakable, resolution: 1366x768 at 60 Hz
- The console can be pulled out completely and the screen can be swiveled 120 degrees
- Connections: 8-port Cat 5, PS/2, 2x USB (for mouse/keyboard), incl. Cat 5 dongle for server connection
- Cascading: Not possible
- Switch modular KVM switches and keyboard layouts (sold separately)
- Length of connection cable: CAT5 long cable can be used up to 60 m.
Technical specifications
- Product type
KVM console
- No. of switchable PCs
1
- Video via
CAT 5 (RJ45)
- Video resolution
1366 x 768 Pixel
- No. of USB 2.0 ports
3 x
- Stackable
Yes
- Rack mount option
Yes
- Switch function
Hot key
Manual
Mouse click
Key
- Distributor/switch features
meets industrial requirements
- Power supply (LOV)
via PSU
- Factory colour
Black
- Weight
12.54 kg
- Length
695 mm
- Width
480 mm
- Height
45 mm
- Port
8 ports
- Dim
(L x W x H) 695 x 480 x 45 mm
- Product type description
Zubehör Server
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1881736 Digitus DS-72211-4US 8 ports KVM console CAT 5 (RJ45) 1366 x 768 Pixel
Description

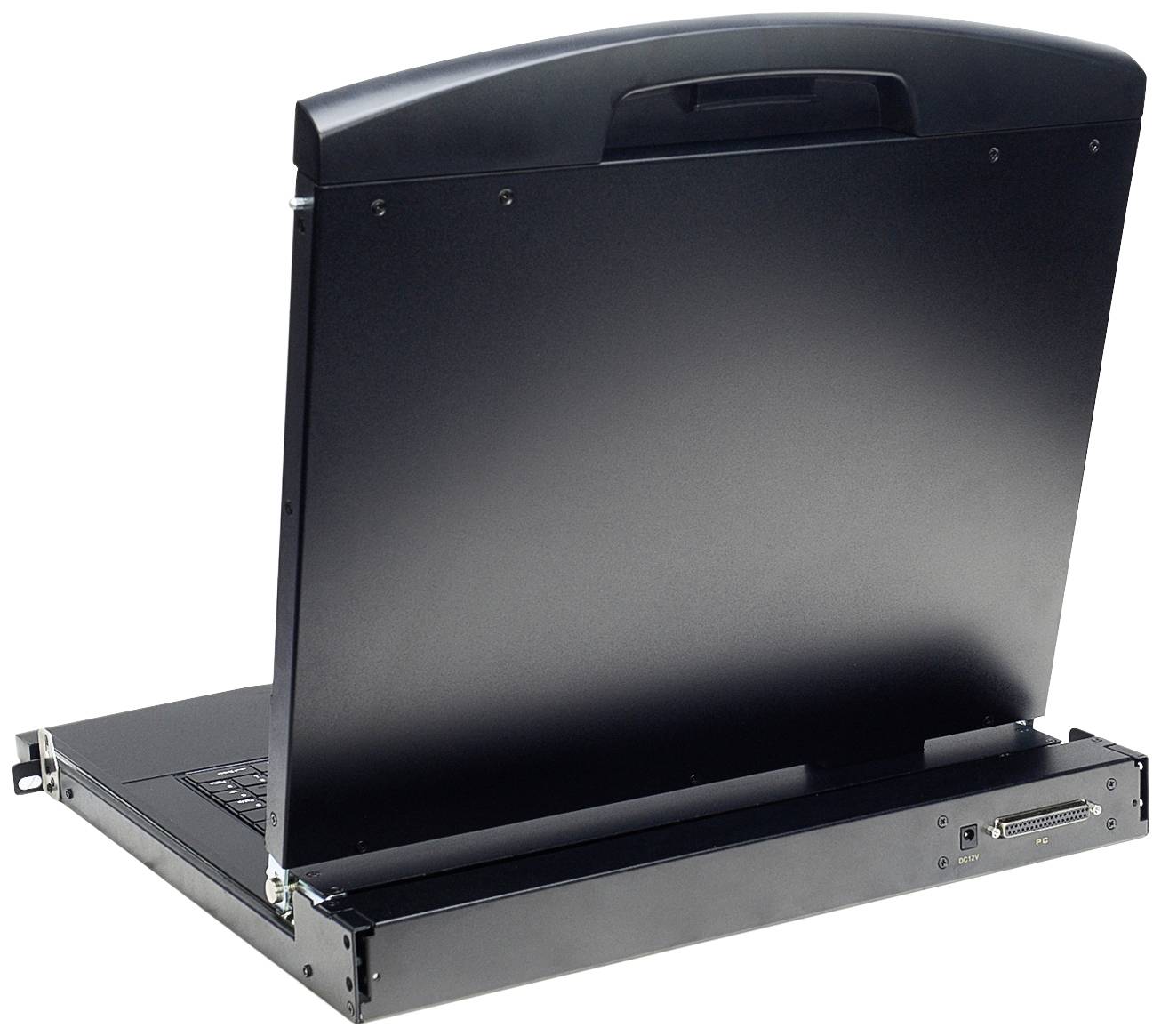

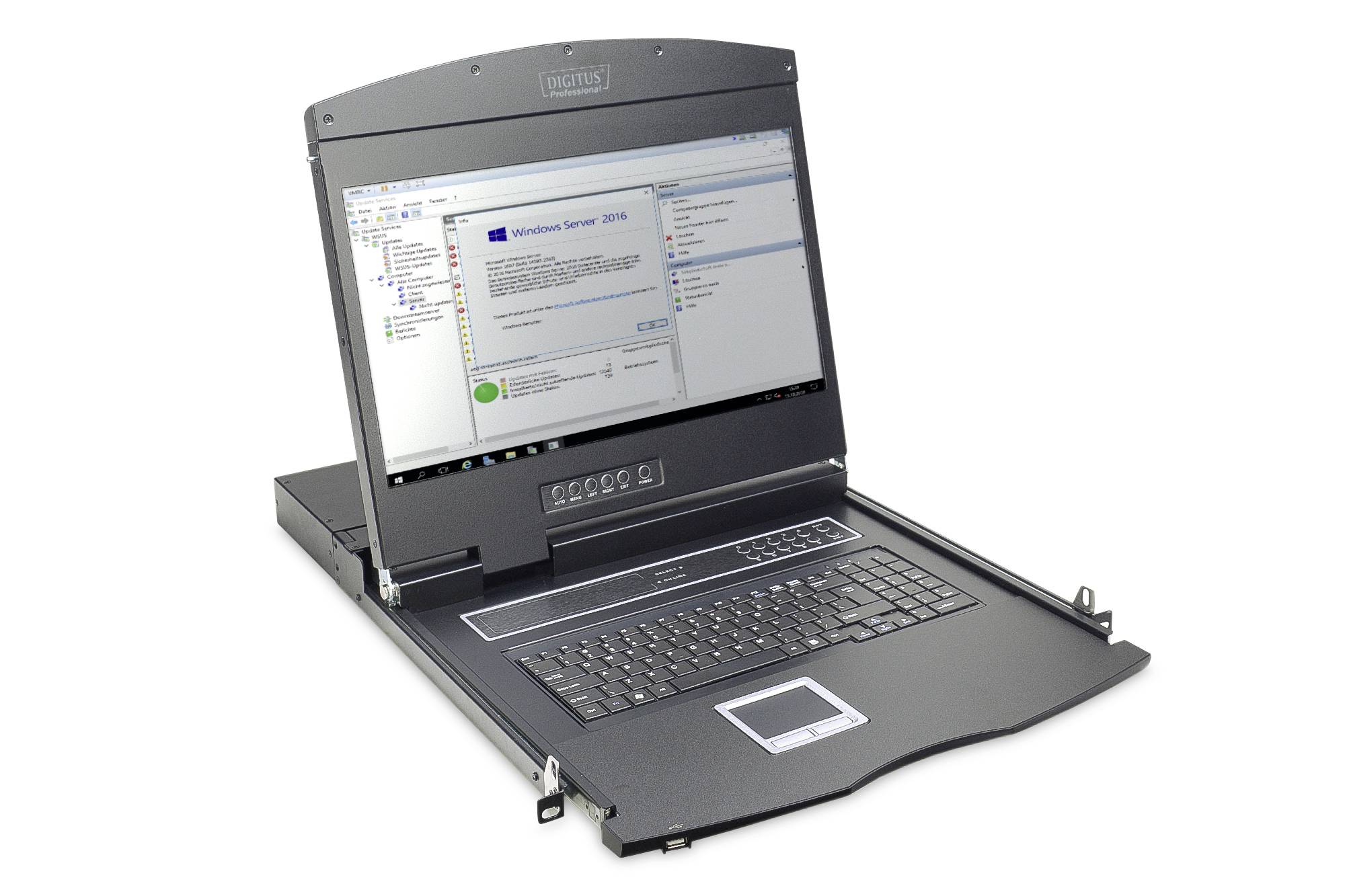

The DIGITUS 19" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 19" monitor, 8 port Cat.5 KVM switch, a keyboard and the touchpad.
This text is machine translated.
This text is machine translated.
Features
- Flexible configuration depending on application area
- Space-saving housing (1HE), black (RAL 9005)
- TFT monitor 48.3 cm (19"), with anti-glare, shatterproof protective glass pane
- The console provides up to 85% more space in the server or network cabinet
- Mouse touch board with two function keys

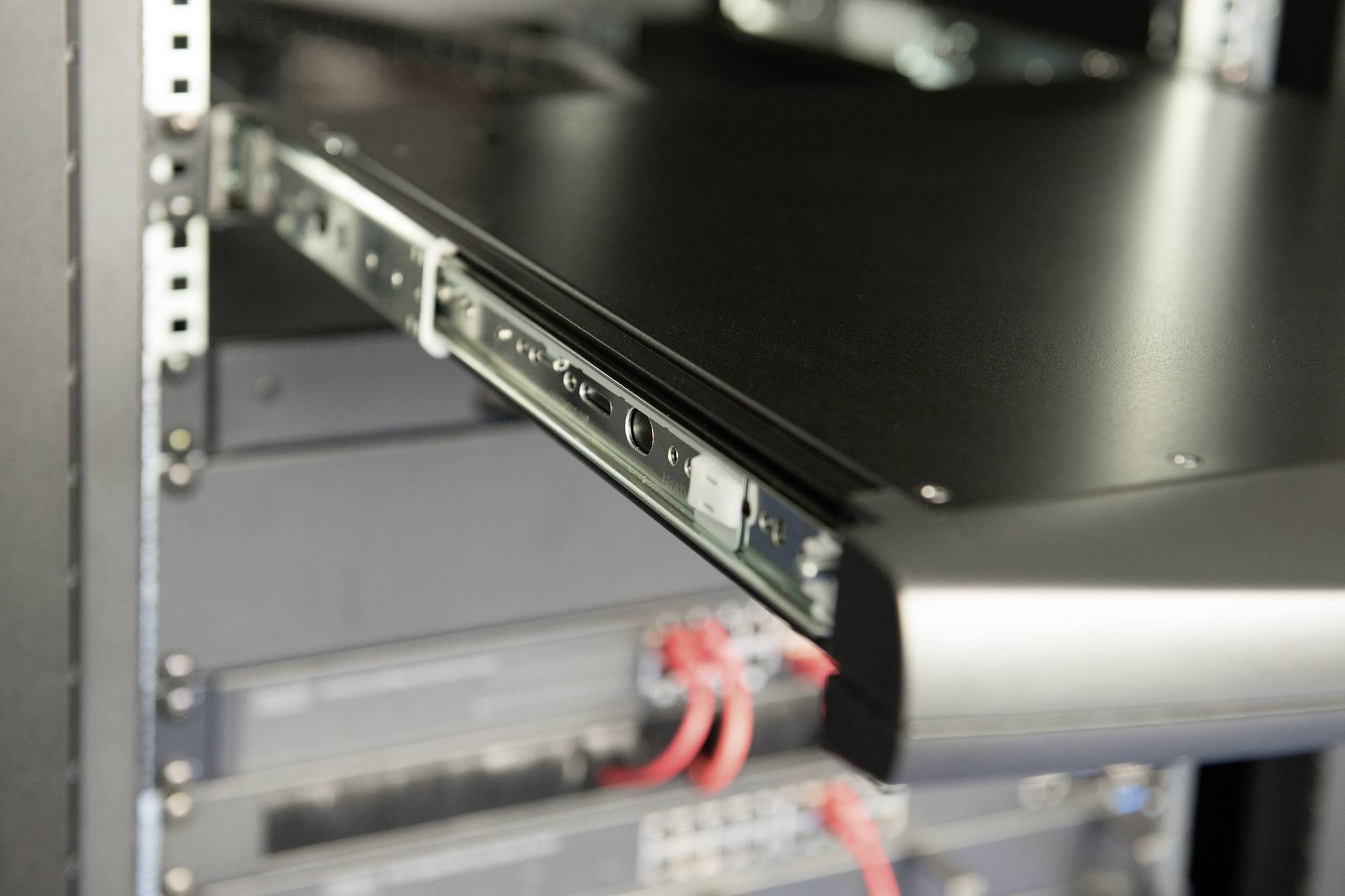

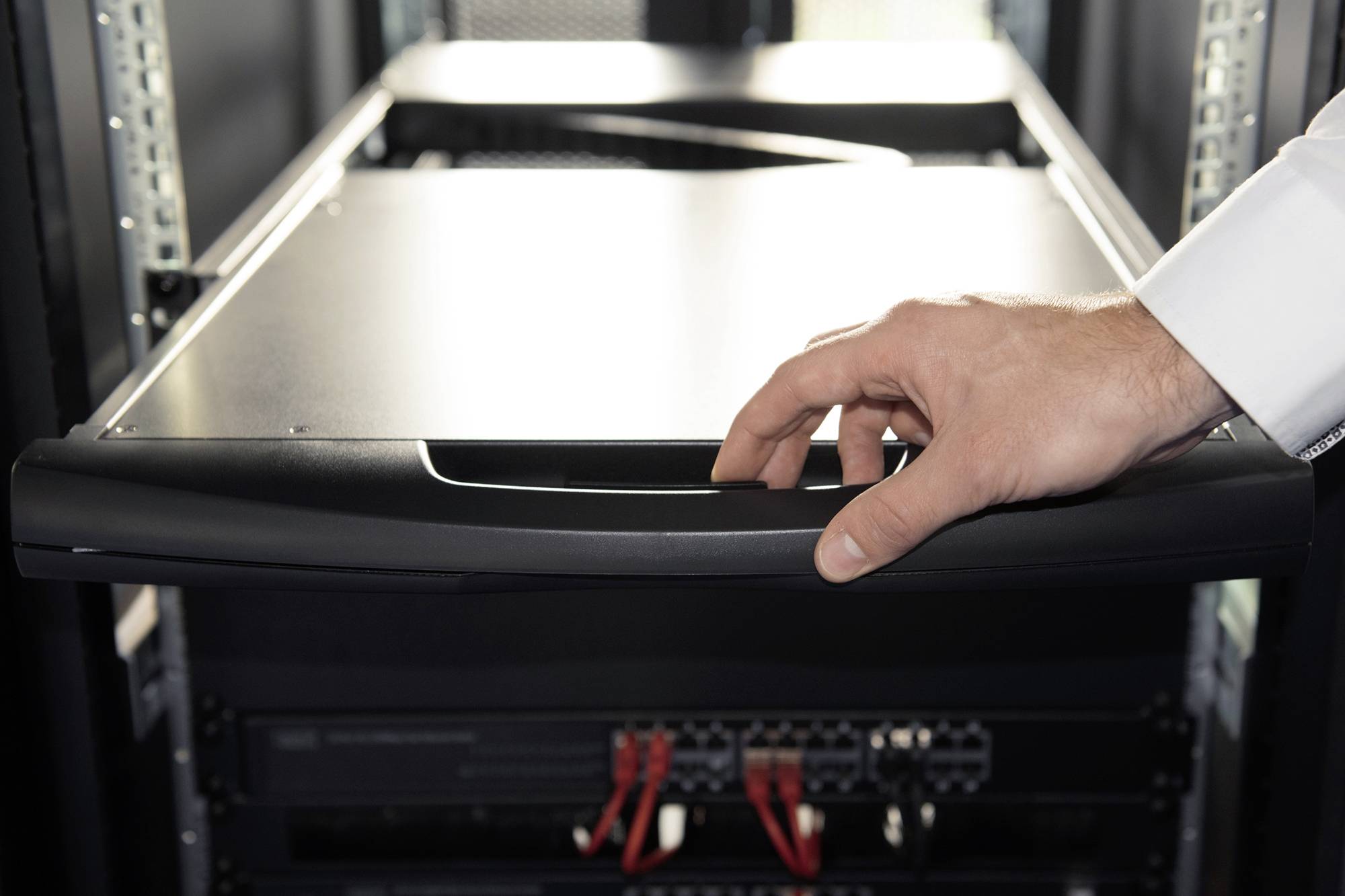

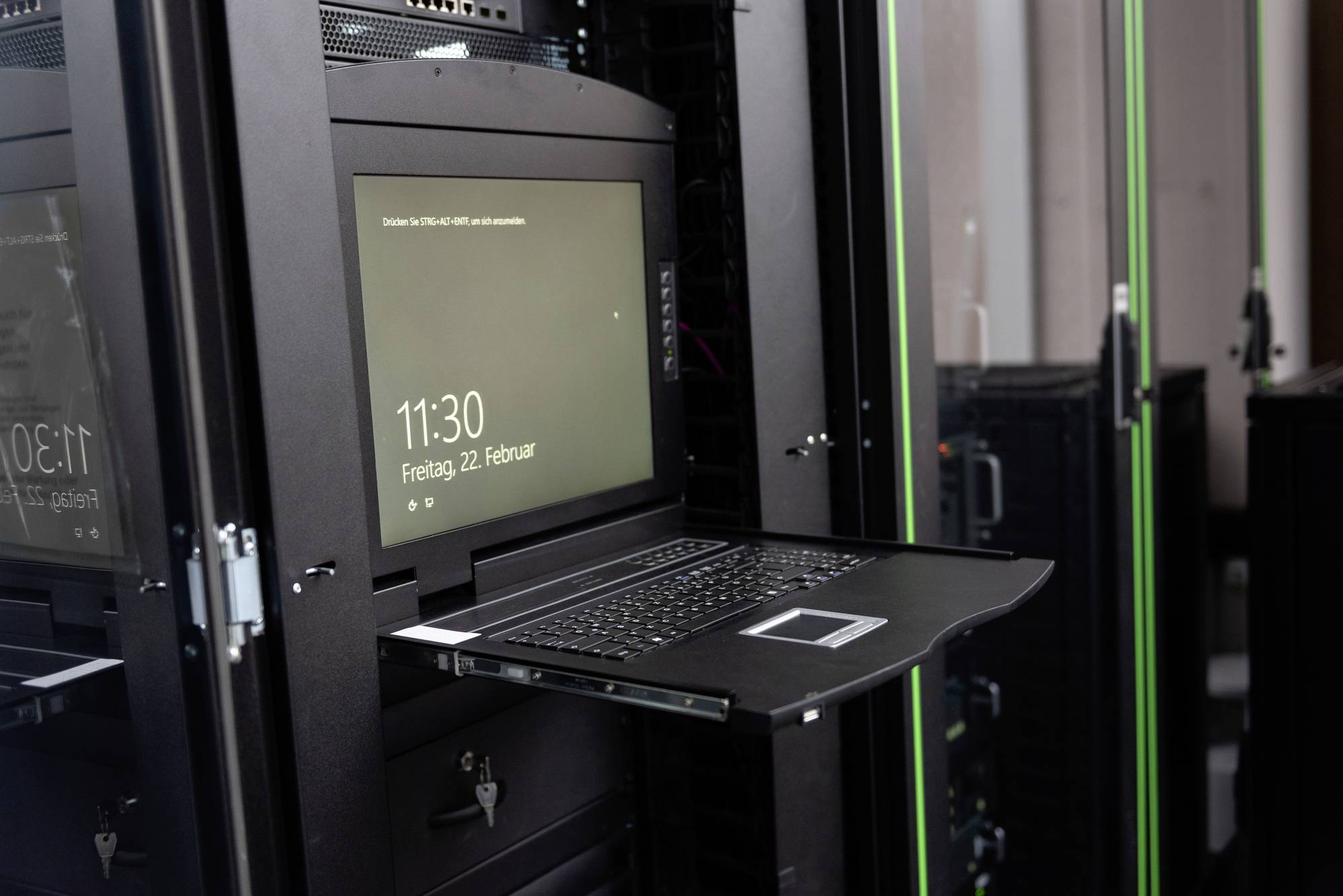

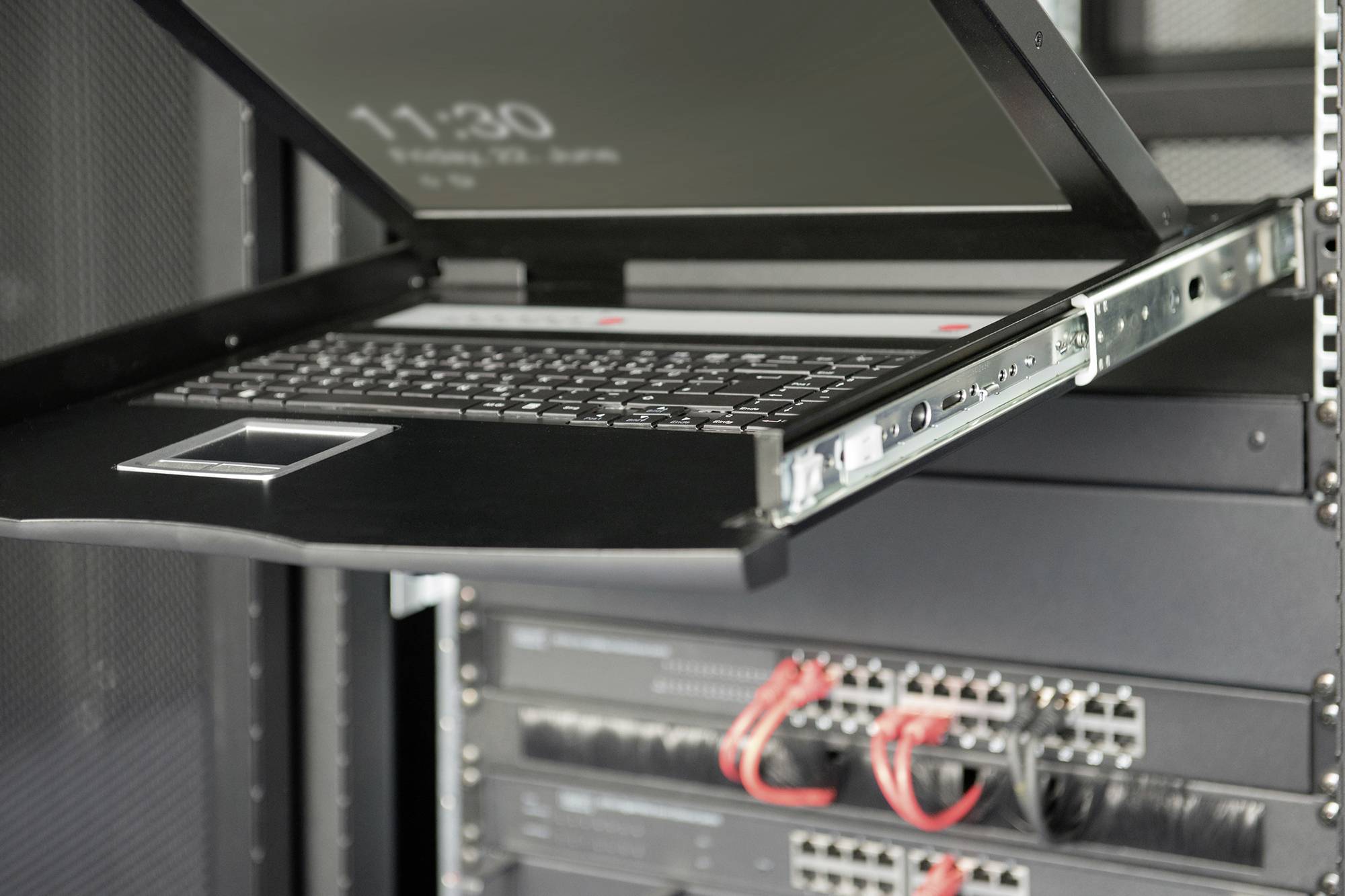

- The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
- The consoles have a safety lock to prevent damage
- Number of KVM ports: 8

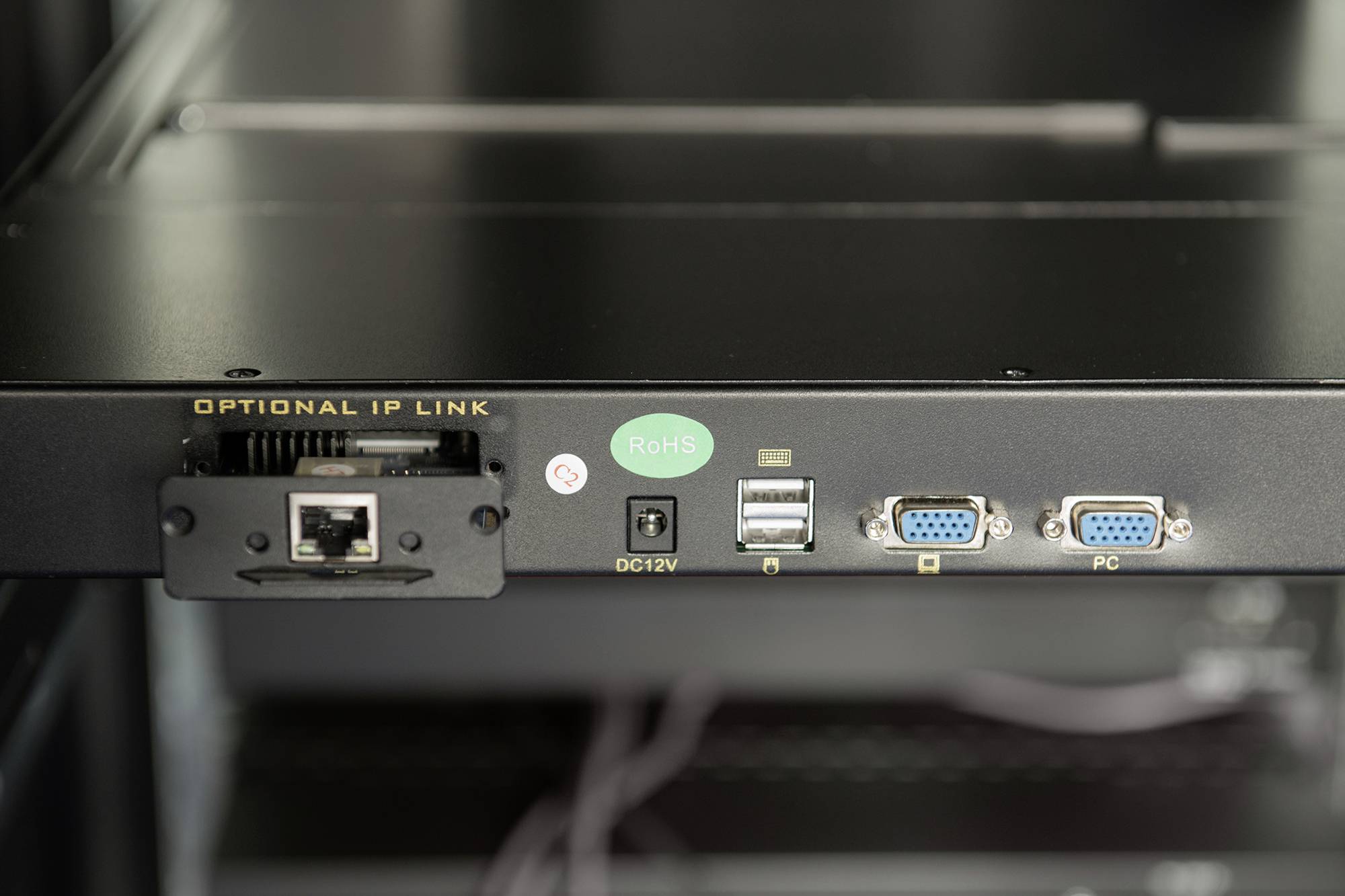

- Connection type: Cat 5 ports, PS/2, 2x USB (for mouse/keyboard), incl. Cat 5 dongle for server connection
- Length of connection cable: CAT5 long cable can be used up to 60 m.
- Cascading: Not possible
- Screen size 19"
- Screen format: 16:09
- Resolution: 1366x768 at 60 Hz
- Display type: LCD liquid crystal displays
- Contrast ratio: 1 000:1
- Color support: 16.7 million colors
- Angle of rotation: 120 degrees
- Gross weight: 18.6 kg
- Dimensions without KVM module: 462.6 x 445 x 45 mm
- Dimensions with KVM module: 611 x 445 x 45 mm
- Mounting: 19" rack / 1HE

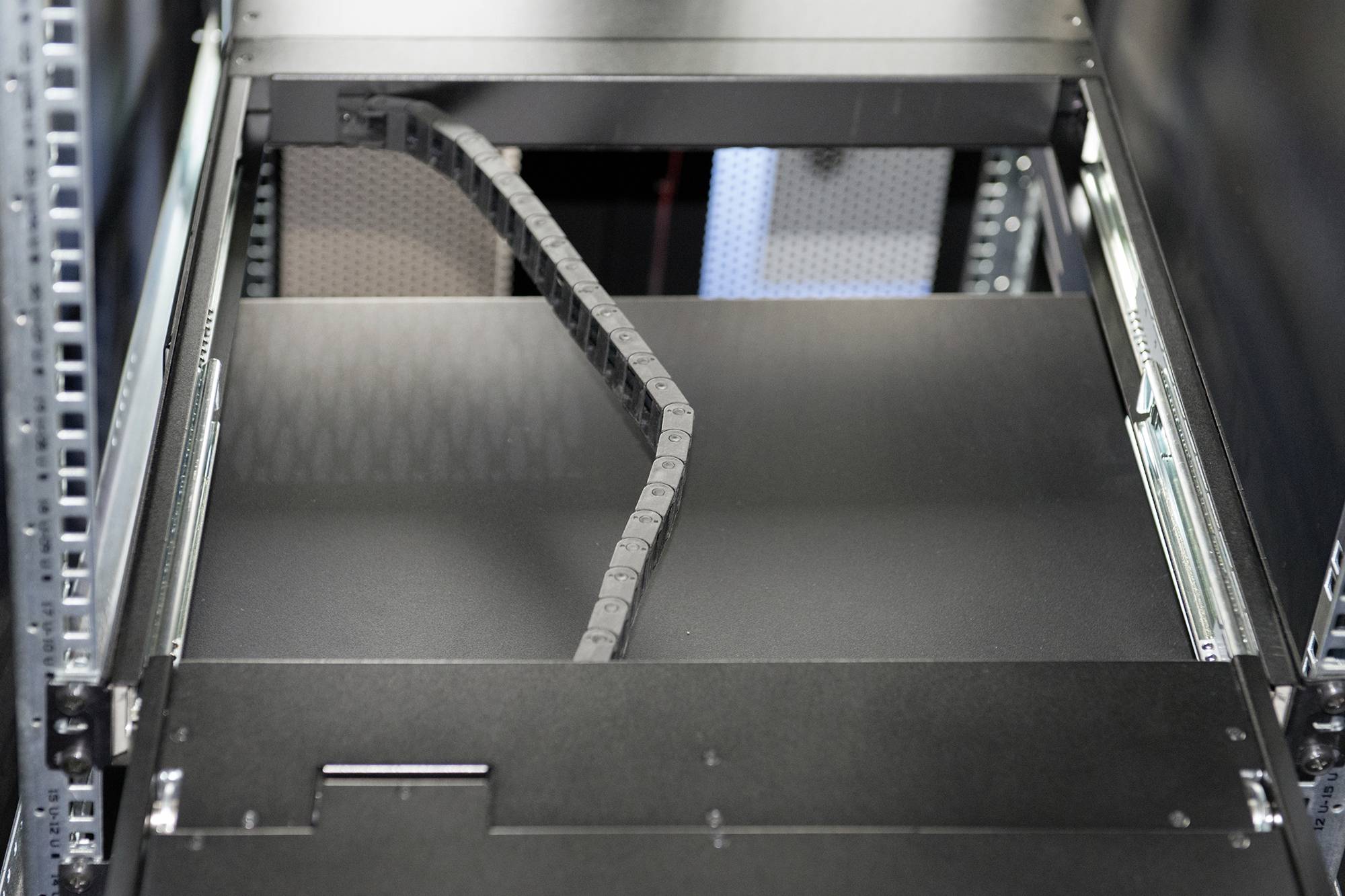

- Mounting rail: 390 to 560 mm adjustable depth
- Installation depth: 800 to 1100 mm deep cabinets
- Color: Black (RAL 9005)
Scope of delivery
- Modular 19" console

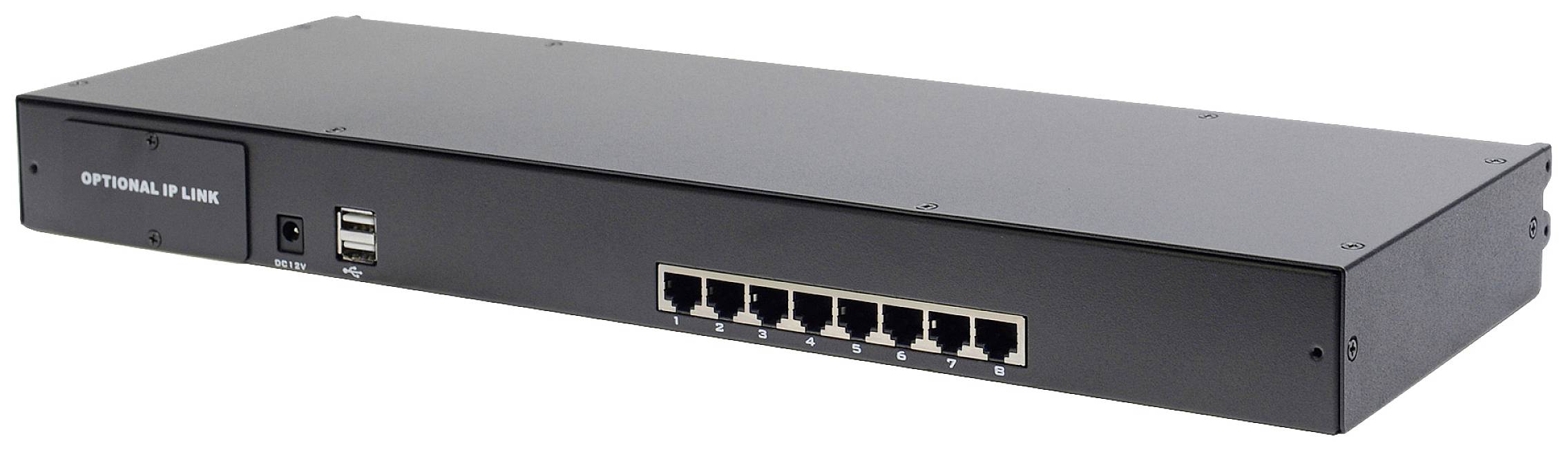

- 8-port Cat5. KVM switch
- Keyboard
- Quick start guide
- Power supply unit
- Fitting Material
- 8 x Cat.5 dongle
