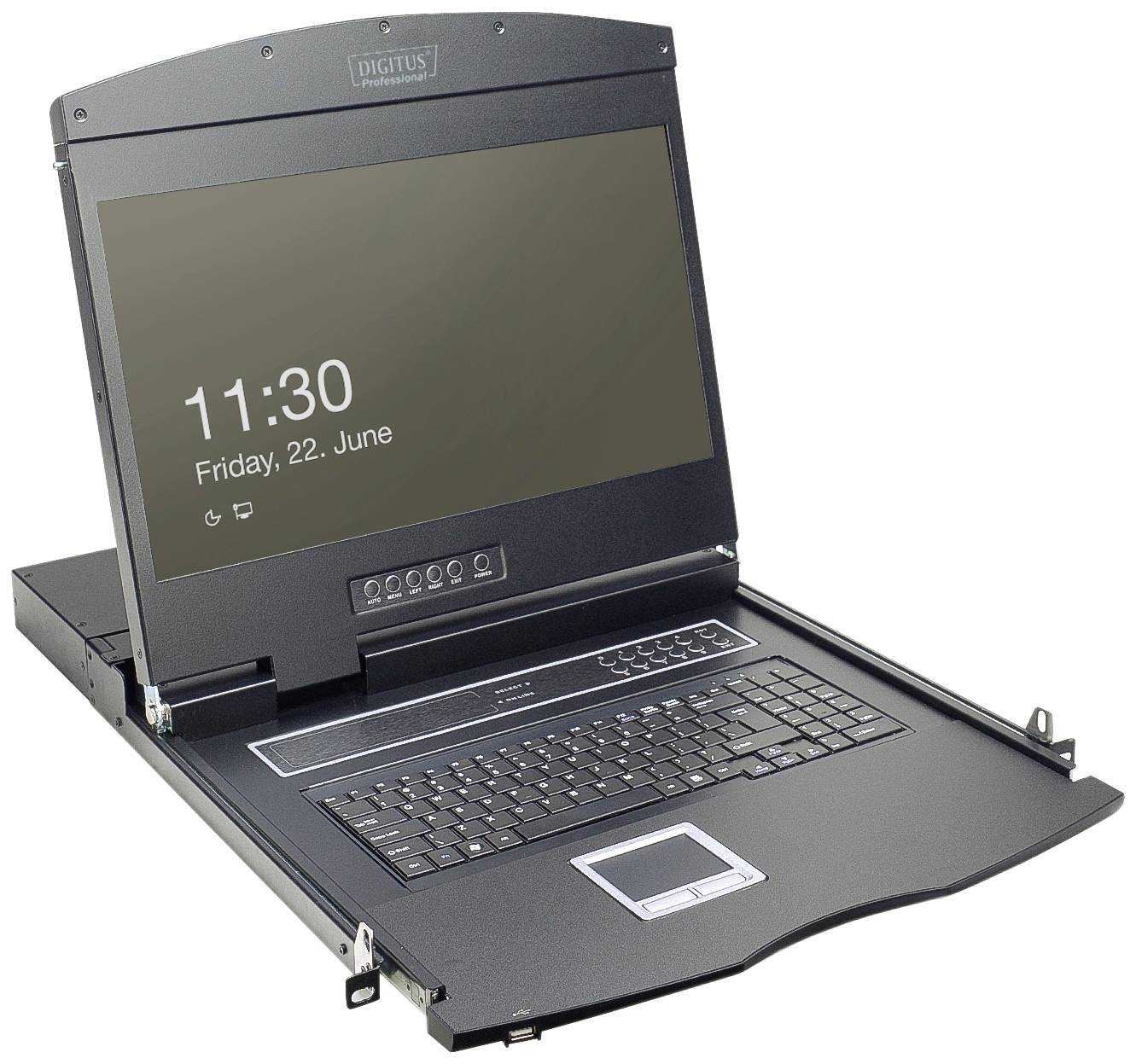

An opened laptop with screen, keyboard and touchpad. The screen displays '11:30, Friday, 22 June'.

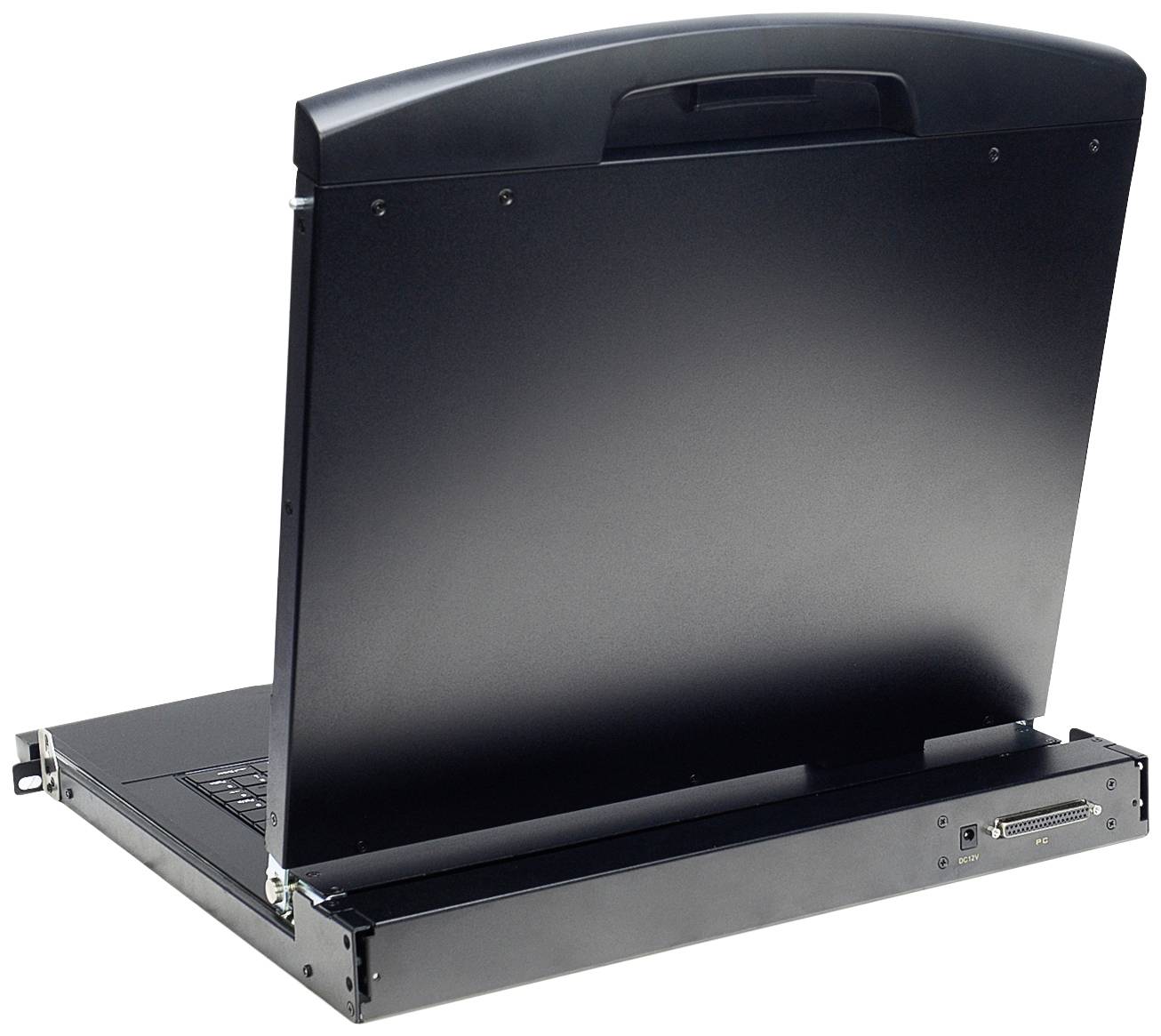

Portable, foldable monitor in a metal casing, rear connections visible.

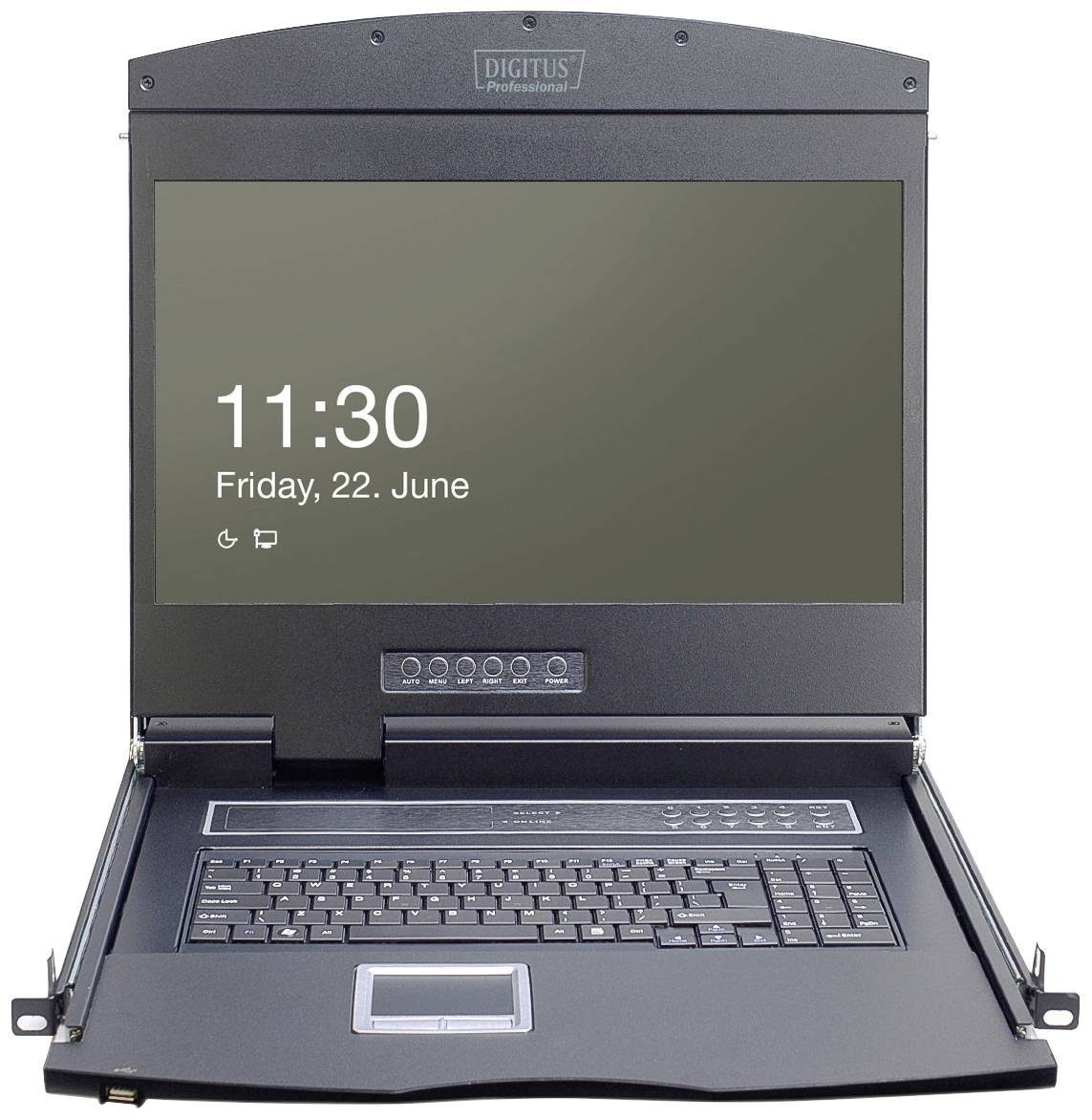

A laptop with an open screen displays the time '11:30' and the date 'Friday, 22 June'. Below this is a keyboard.

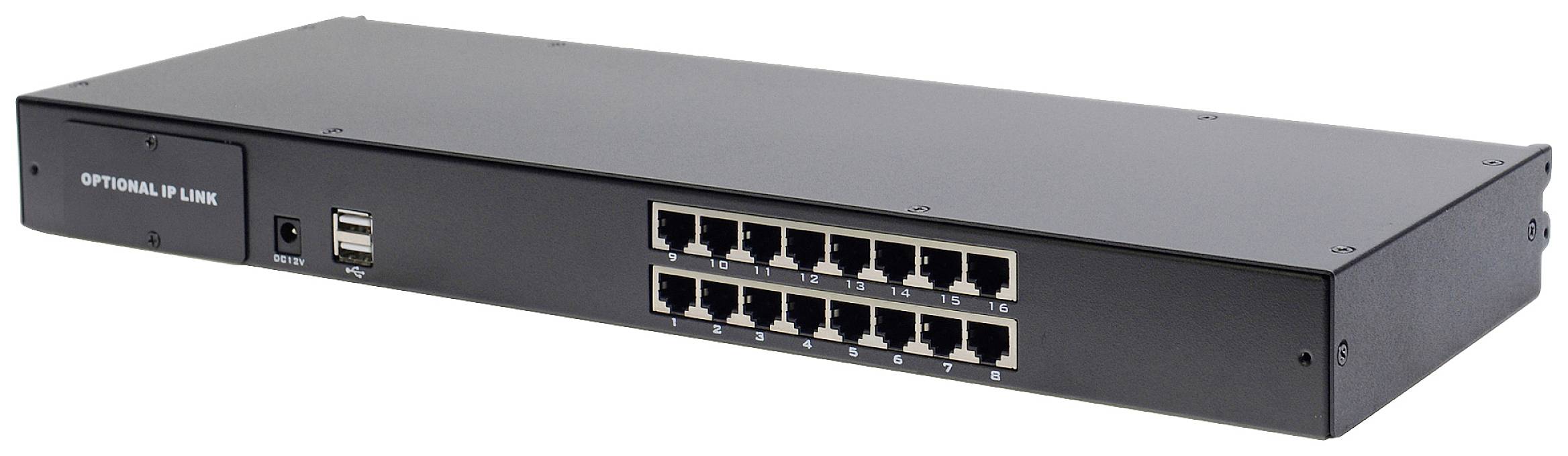

A black network switch with 16 Ethernet ports and two USB ports on one side. Suitable for server and network connections.

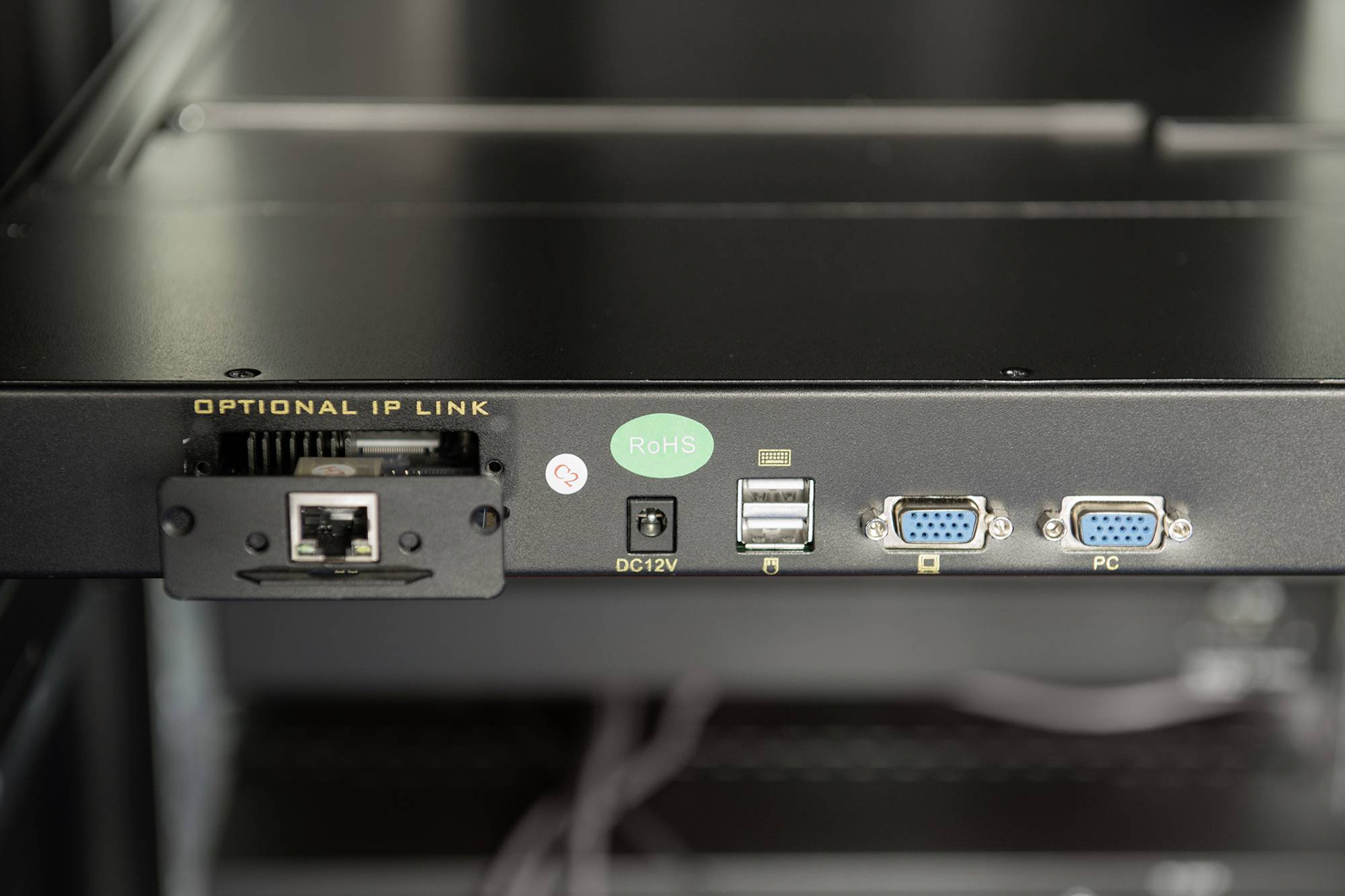

The image shows the rear panel of an electronic device with connections: network cable, 12V power connection, USB, VGA and PC ports.

An open server cabinet reveals rack servers with connected cables. Primarily black hardware is visible.

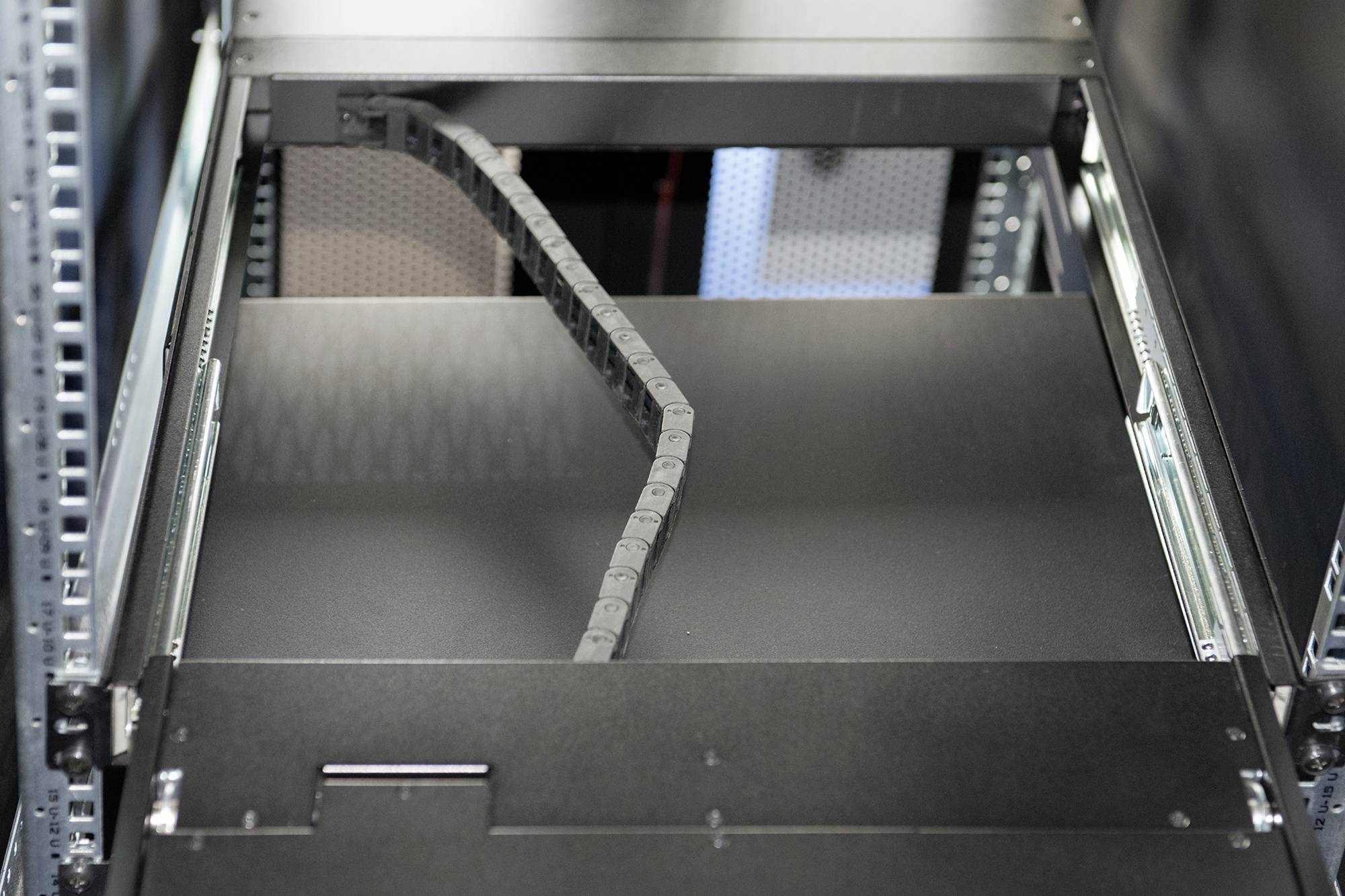

An empty server rack drawer in a network room with connected cables, ready for device installation.

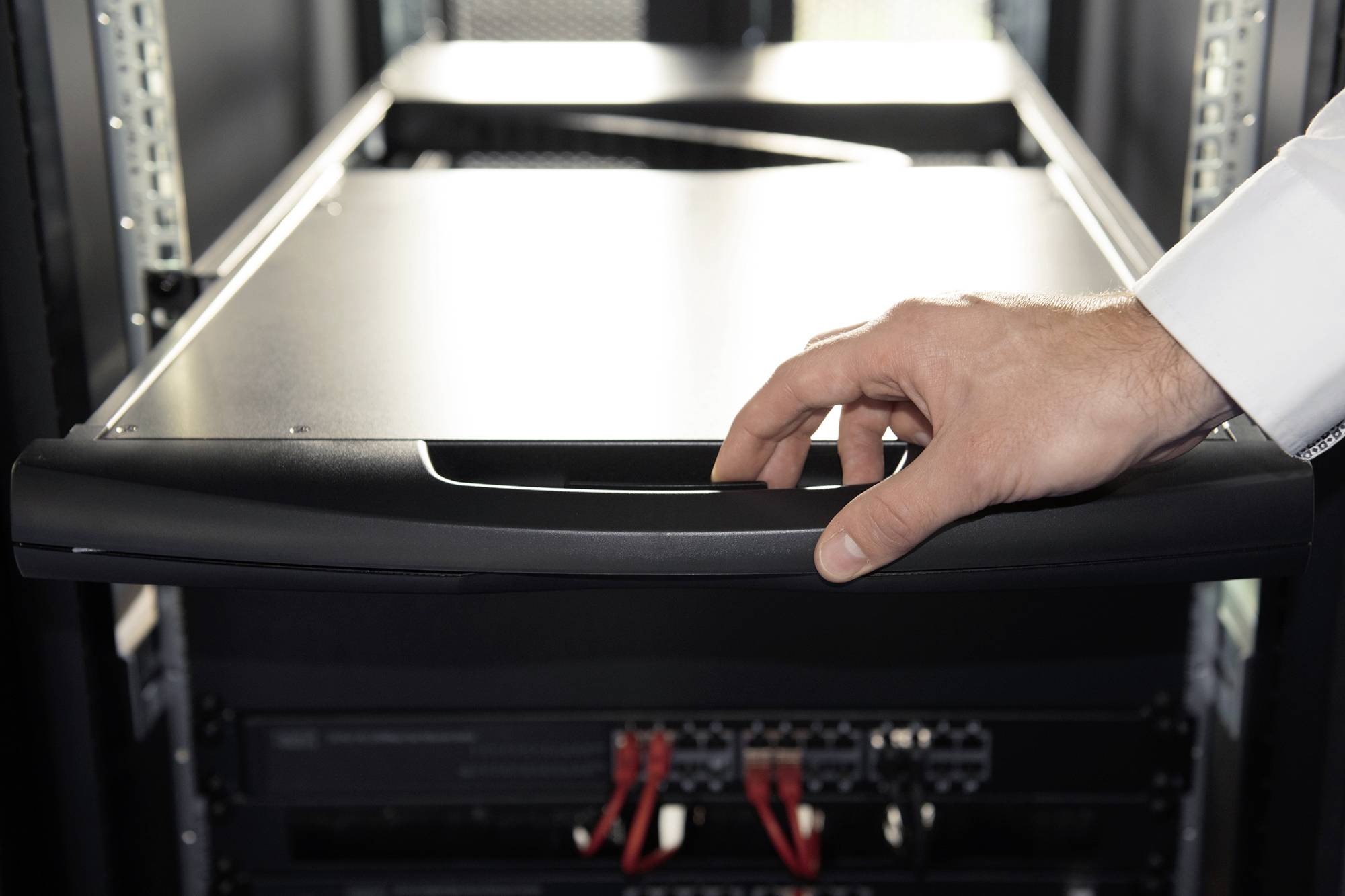

Digitus DS-72211-5IT KVM console VGA 1366 x 768 Pixel-7

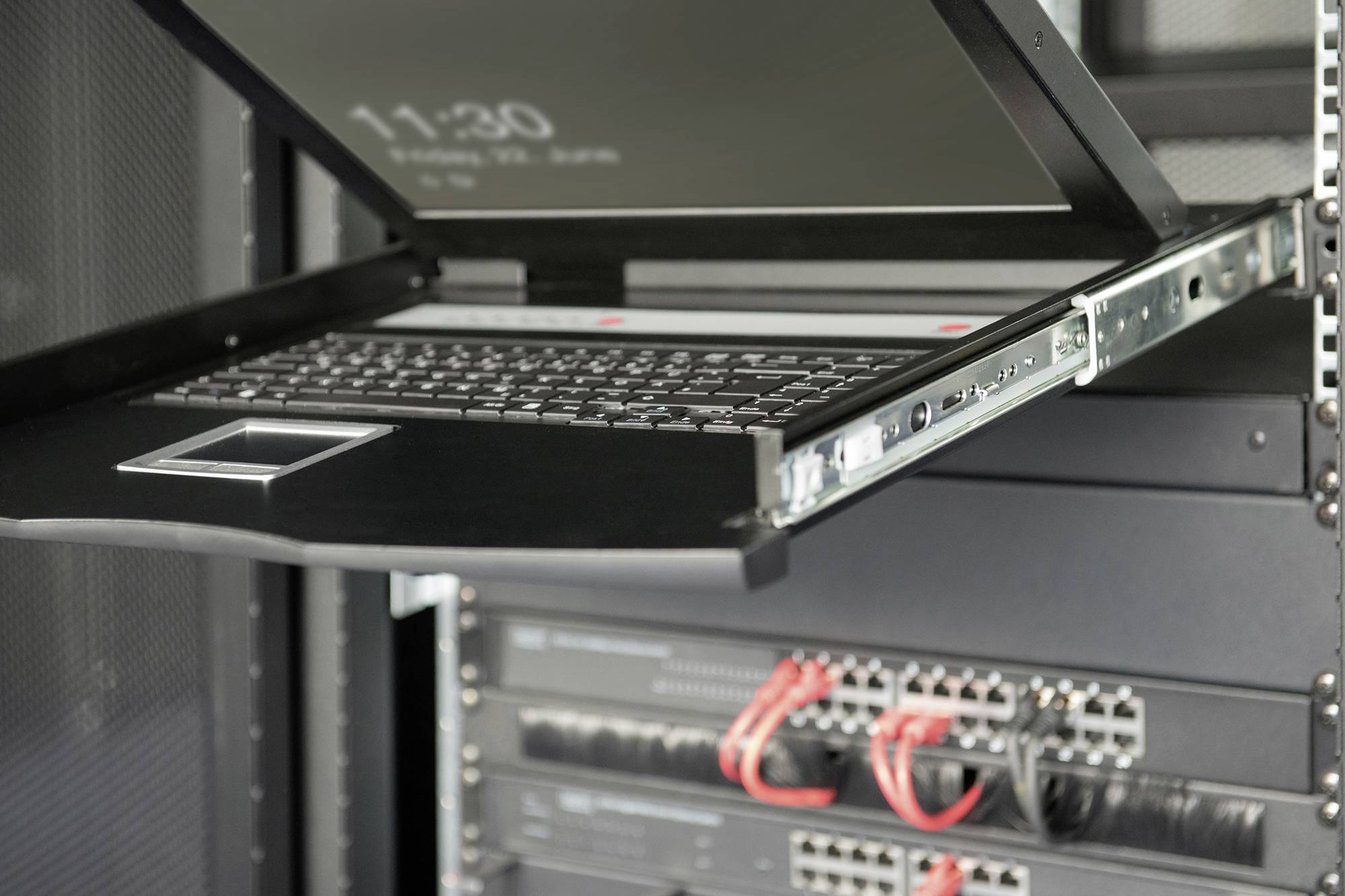

An open laptop in a server rack displays the time as 11:30. Underneath are network switches with red cable connections.

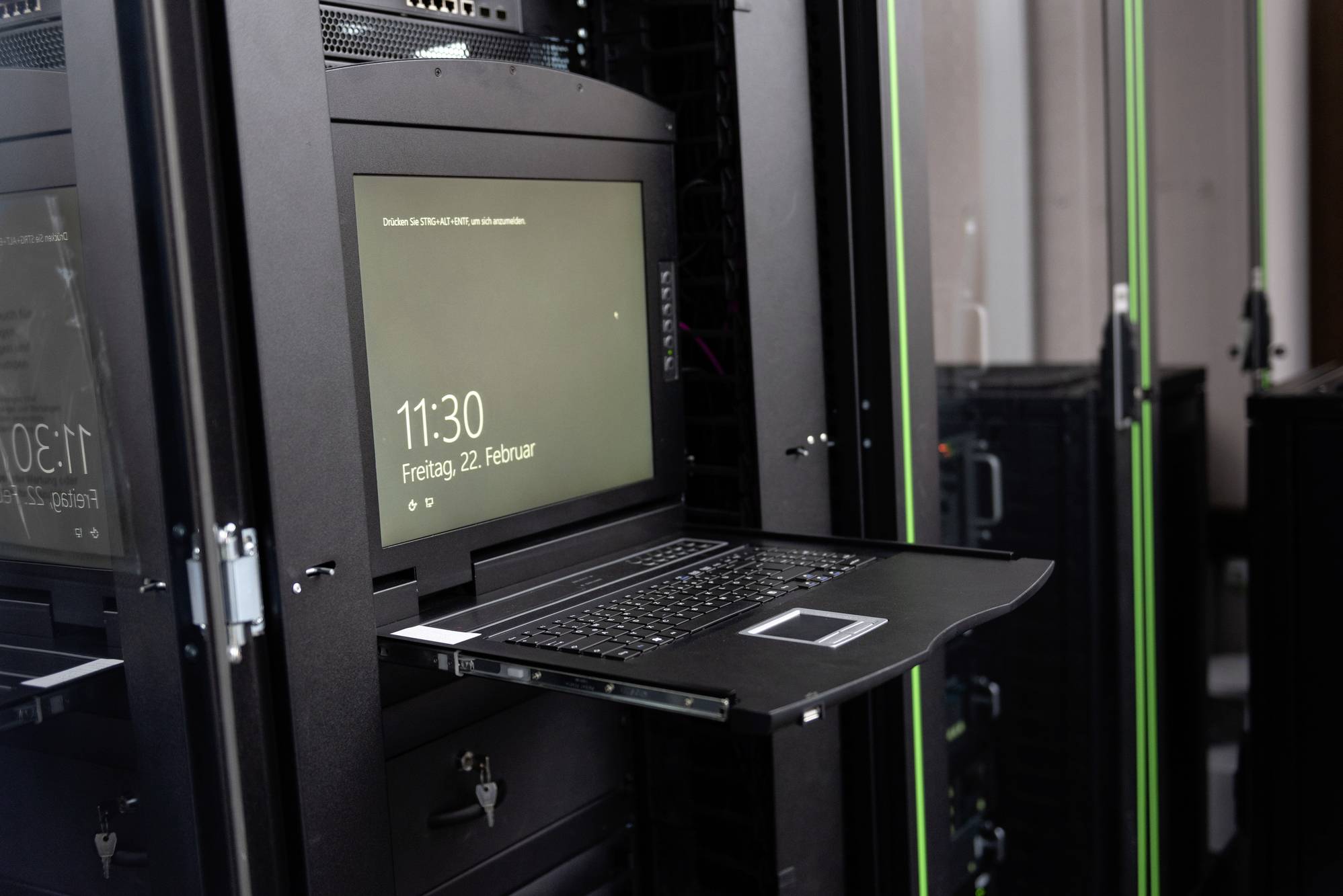

An open laptop is situated in a server room, positioned on a pull-out shelf within a server cabinet. The screen displays the date and time.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DS-72211-5IT KVM console

Highlights & Details

Italian keyboard layout, 19" TFT monitor (16:9), anti-glare, unbreakable, resolution: 1366x768 at 60 Hz
The console can be pulled out completely and the screen can be swiveled 120 degrees
Connections: 16-port Cat 5, PS/2, 2x USB (for mouse/keyboard), incl. Cat 5 dongle for server connection
Cascading: Not possible
Switch modular KVM switches and keyboard layouts (sold separately)
Length of connection cable: CAT5 long cable can be used up to 60 m.

Technical specifications

Product type: KVM console

No. of switchable PCs: 1

Video via: VGA

Video resolution: 1366 x 768 Pixel

No. of USB 2.0 ports: 3 x

Stackable: Yes

Rack mount option: Yes

Switch function: Hot key
Manual
Mouse click
Key

Distributor/switch features: meets industrial requirements

Power supply (LOV): via PSU

Factory colour: Black

Weight: 12.54 kg

Length: 695 mm

Width: 480 mm

Height: 45 mm

Dim: (L x W x H) 695 x 480 x 45 mm

Product type description: Zubehör Server

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1881741 Digitus DS-72211-5IT KVM console VGA 1366 x 768 Pixel

Description

The DIGITUS 19" TFT console offers a variety of individual configuration options thanks to its modular design, so that it can be adapted to the application area of the console. As a result, the console is cost-saving and can be upgraded or converted at any time with additional modules. Thanks to the flexible configuration, a high level of future-proofing of the console is thus guaranteed. The modular console consists of a 19" monitor, 16 port Cat.5 KVM switch, a keyboard and the touchpad.

This text is machine translated.

Features

Flexible configuration depending on application area
Space-saving housing (1HE), black (RAL 9005)
TFT monitor 48.3 cm (19"), with anti-glare, shatterproof protective glass pane
The console provides up to 85% more space in the server or network cabinet
Mouse touch board with two function keys
The console can be pulled out completely from the server cabinet and the TFT screen can be tilted by 120 degrees
The consoles have a safety lock to prevent damage
Number of KVM ports: 16
Connection type: Cat 5 ports, PS/2, 2x USB (for mouse/keyboard), incl. Cat 5 dongle for server connection
Length of connection cable: CAT5 long cable can be used up to 60 m.
Cascading: Not possible
Screen size 19"
Screen format: 16:09
Resolution: 1366x768 at 60 Hz
Display type: LCD liquid crystal displays
Contrast ratio: 1 000:1
Color support: 16.7 million colors
Angle of rotation: 120 degrees
Gross weight: 18.6 kg
Dimensions without KVM module: 462.6 x 445 x 45 mm
Dimensions with KVM module: 611 x 445 x 45 mm
Mounting: 19" rack / 1HE
Mounting rail: 390 to 560 mm adjustable depth
Installation depth: 800 to 1100 mm deep cabinets
Color: Black (RAL 9005)
