Digitus HDMI™, HDMI® input 150 m
EAN:
Part number:
Item no:
Digitus HDMI™, HDMI® input 150 m
Highlights & Details

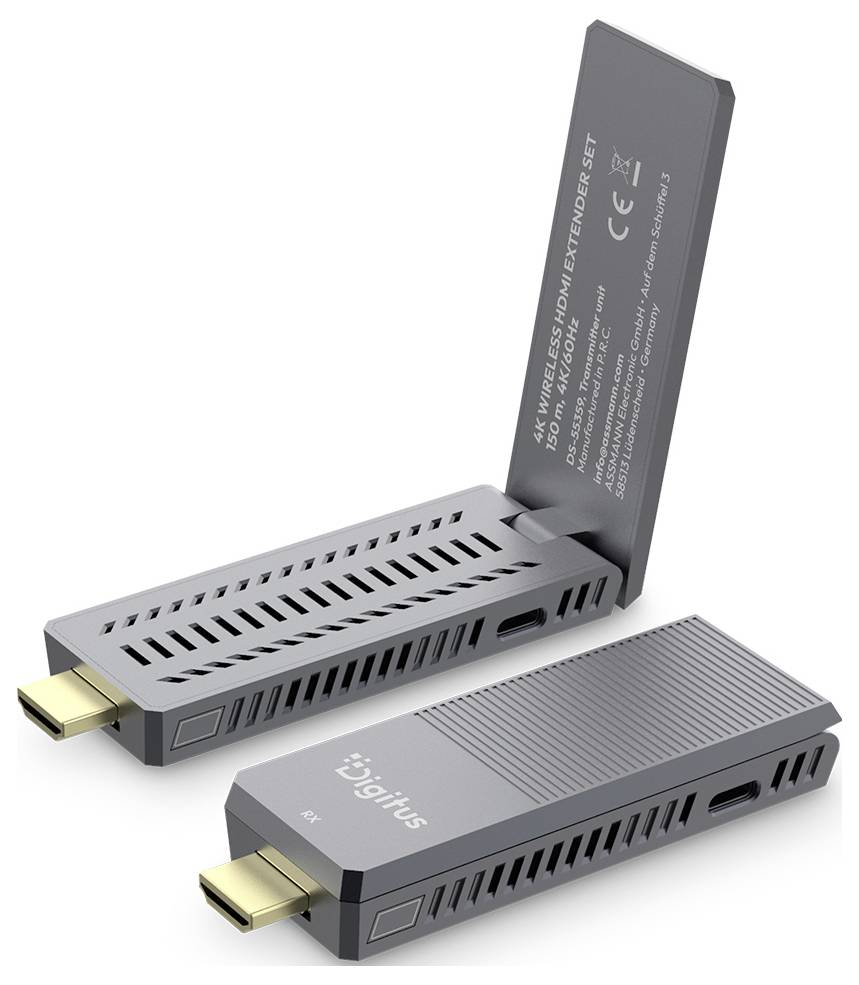

- Wireless HDMI signal transmission in 4K UHD (4K/60Hz) up to 150 m (folded out antenna, unrestricted view)
- Wireless HDMI signal transmission in 4K UHD (4K/60Hz) up to 100 m (folded in antenna, unrestricted view)
- Supports resolutions up to 4K UHD (4096 x 2160p, 60Hz)

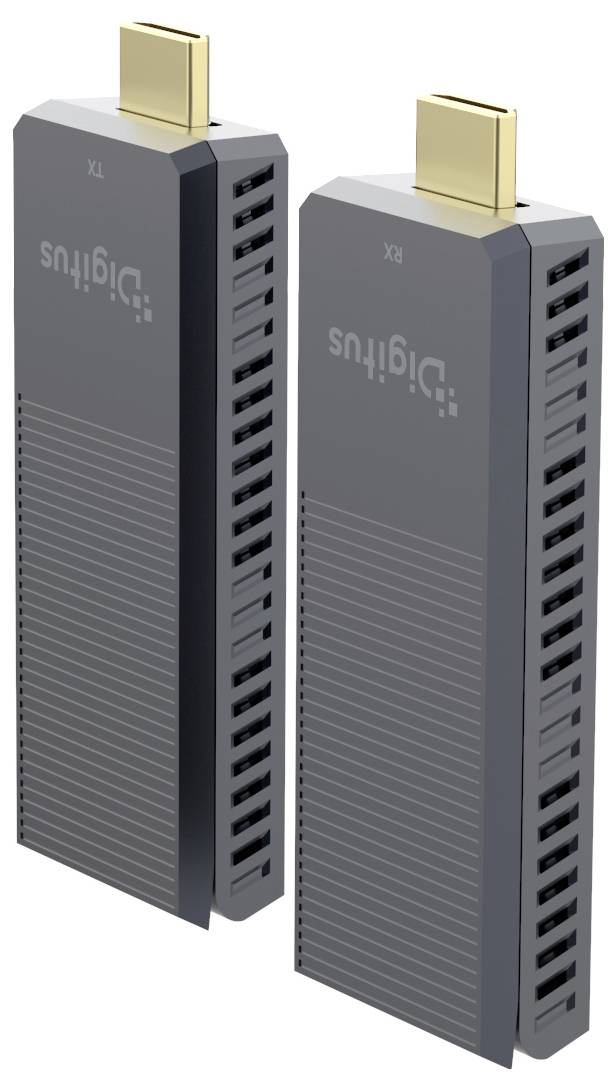

- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Thanks to Plug & Play, it is easy to use and use – plug in and start, no driver or software required
- Automatic pairing & connection: Automatically establishes a connection via the most favorable WiFi channel HER, in order to ensure the best possible WLAN performance

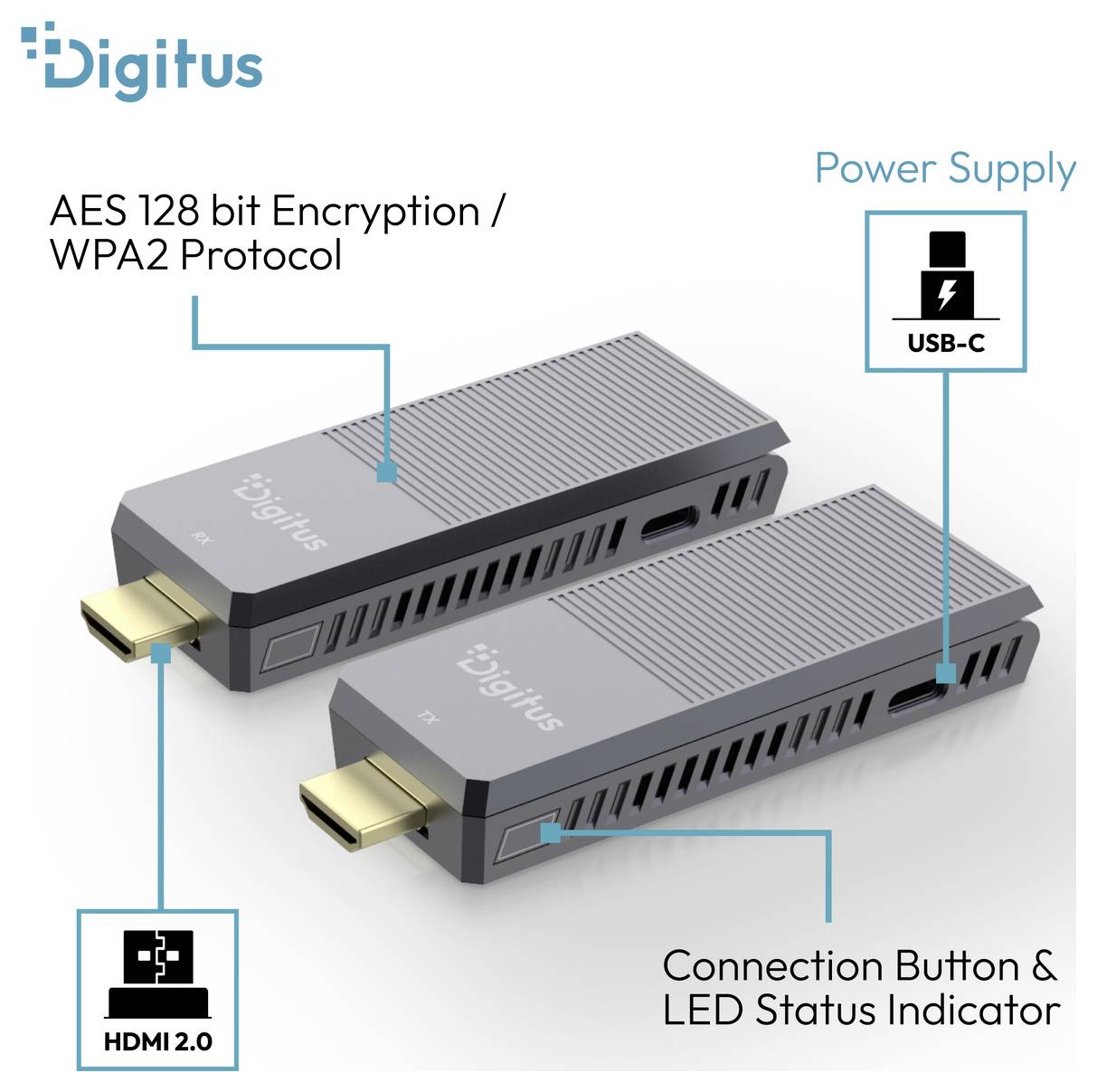

- Power supply via USB-C port
- Action button & LED status indicator
- AES 128 bit encryption / WPA2 protocol
- HDMI 2.0 / HDCP 2.2
Technical specifications
- Wireless HDMI signal transmission up to 150 m (folded-out antenna, unrestricted view)
- Wireless HDMI signal transmission up to 100 m (folded-in antenna, unrestricted view)
- Supports resolutions up to 4K UHD (4096 x 2160p, 60Hz)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Thanks to Plug & Play, it is easy to use and use – plug in and start, no driver or software required
- Automatic pairing & connection: Automatically establishes a connection via the most favorable WiFi channel HER, in order to ensure the best possible WLAN performance
- Supports signal sources (e.g. game consoles, Blu-Ray player, etc.) with HDMI output as well as PCs/notebooks with Windows, MacOS
- Power supply via USB-C port
- AES 128 bit encryption
- WPA2 (WPA2-PSK / WPA2-Enterprise) authentication protocol
- HDMI version HDMI 2.0
- HDCP Version 2.2
- Wireless-Standard IEEE 802.11.b/g/n/ac
- Frequency band 5G

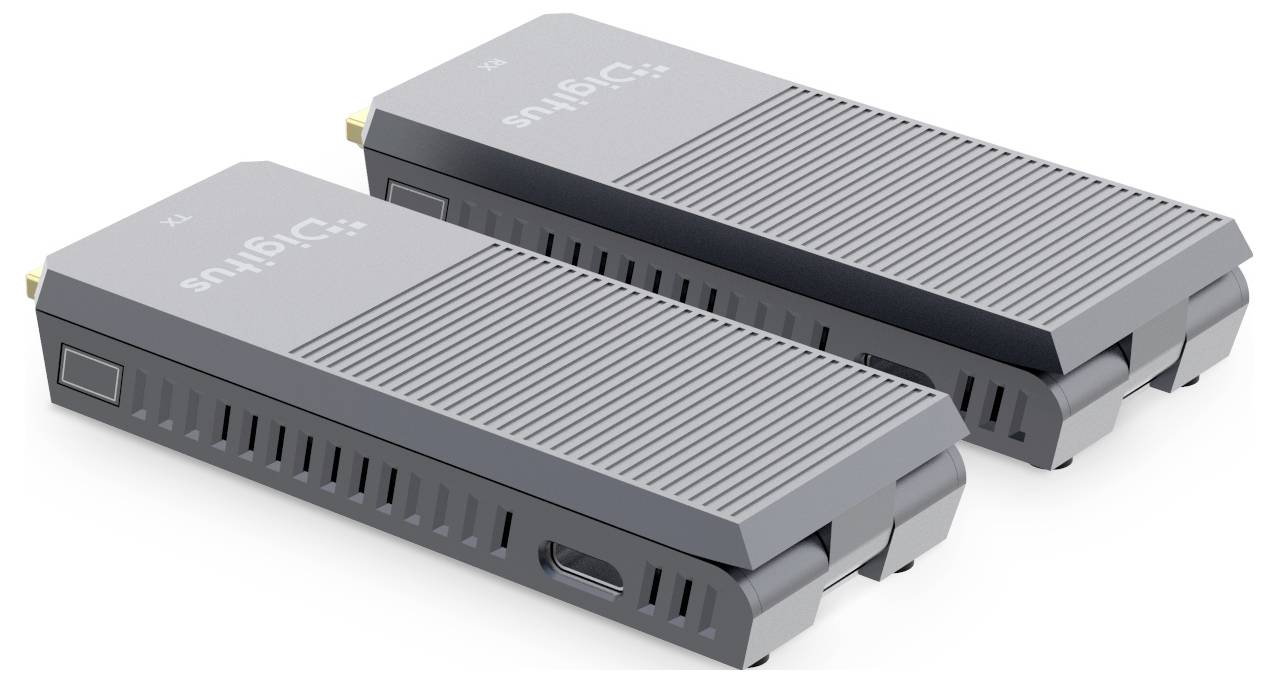

- Ports per unit: 1x HDMI plug, 1x USB-C socket
- Action button & LED status indicator
- Power supply per unit: 5V/2A
- Compression: H.265
- Latency: Approx. 100 ms (transmission from transmitter to receiver)
- PCM audio format
- Audio channel: 2 channels
- ABS-housing
- Power consumption per unit: Approx. 10W
- Operating temperature 0 °C - 40 °C
- Dimensions (1 unit): L 9.1 x W 3.4 x H 1.5 cm
- Weight: transmitter 65 g, receiver 50 g.
- Colour: Black/Grey.
- Manufacturer information:
- The transmission range for restricted visibility cannot be determined on a flat-rate basis and depends on the local conditions
- Walls, glass, etc. reduce the signal cover or cause signal loss
- Interfaces (input)
HDMI™
HDMI® input
- Interfaces (output)
HDMI™
HDMI® output
- Resolution (max.)
4096 x 2160 p
- Range (max.)
150 m
- Factory colour
Grey
Black
- No. of outputs
1 x
- No. of inputs
1 x
- Supported monitors
1
- Power supply (LOV)
via PSU (optional)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763166 Digitus HDMI™, HDMI® input 150 m
Description
Experience high-quality wireless image transmission with the 4K Wireless HDMI Extender (150 m, 4K/60 Hz). This powerful transmitter and receiver set enables wireless transmission of HDMI video and audio signals in pin-sharp UHD resolution up to 4K/60 Hz – without disturbing cable connections. Thanks to the latest wireless technology (IEEE 802.11 b/g/n/ac, 5 GHz) the extender reliably transmits signals over distances of up to 150 meters at free sight (100 meters with folded antenna). The point-to-point connection provides for a stable and low latency transmission with a delay of only around 100 ms, Ideal for presentations, video streaming or for use in the home theater. Set up is easy with Plug & Play – connect, switch on and get started right away. An automatic coupling function selects independently the best WLAN channel, in order to ensure an optimum connection. The power supply via USB-C makes the system very flexible and compatible. Maximum security is provided by AES 128-bit encryption in combination with the WPA2-authentication protocol (WPA2-PSK / WPA2-Enterprise). The current standards such as HDMI 2.0 and HDCP 2.2 are supported, which means that even protected content can be played back in the best quality. The H.265 compression ensures efficient transmission at the highest image quality. With its compact design, LED status indicator and simple operation, the 4K Wireless HDMI Extender is the perfect solution for anyone looking for a flexible, high-quality, secure wireless HDMI signal transmission.
This text is machine translated.
This text is machine translated.
Scope of delivery

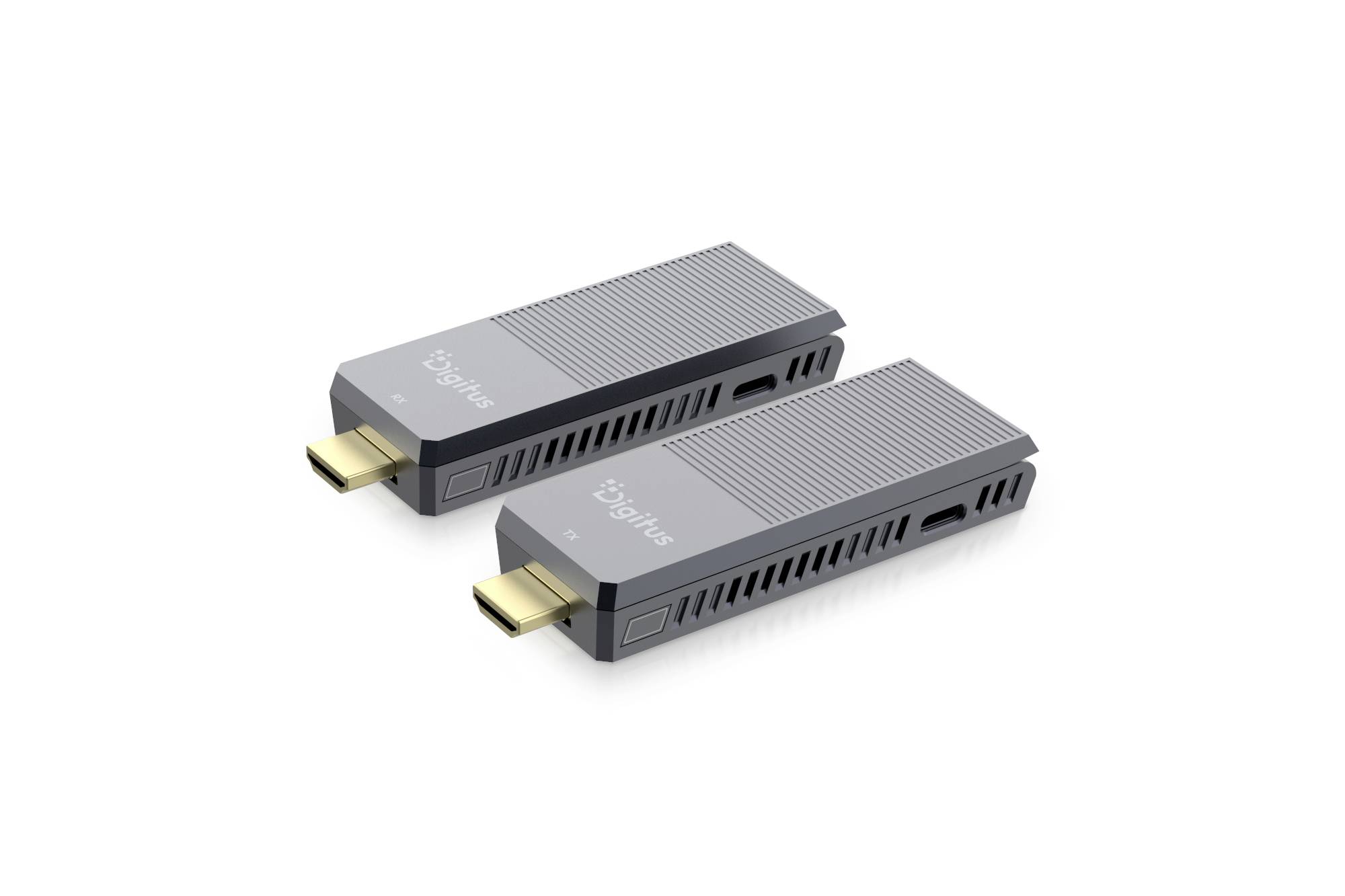

- 1x transmitter unit
- 1x receiver unit
- 2x USB A to USB C cable (100 cm)
- 2x HDMI extension cable (12.5 cm)
- 1x QIG
