Digitus KVM matrix switcher HDMI Remote control, Touchscreen 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Digitus KVM matrix switcher
Highlights & Details
- Control two devices with only one monitor, one mouse and a keyboard - simply and space-saving
- 4K@60Hz resolution for razor-sharp image during work, presentation or gaming
- Switch seamlessly between two devices by pressing a button or remote control
- USB 3.0 connections for fast data transfer of up to 5 Gbps – Ideal for SSDs and sticks
- Integrated 3.5-mm audio output for clear stereo sound
- Perfect for HomeOffice, office or Gaming-Setups with several devices
- Compact aluminum casing – robust and space-saving on every desk
- Easy installation - ready to use immediately without driver or complicated setup
Technical specifications

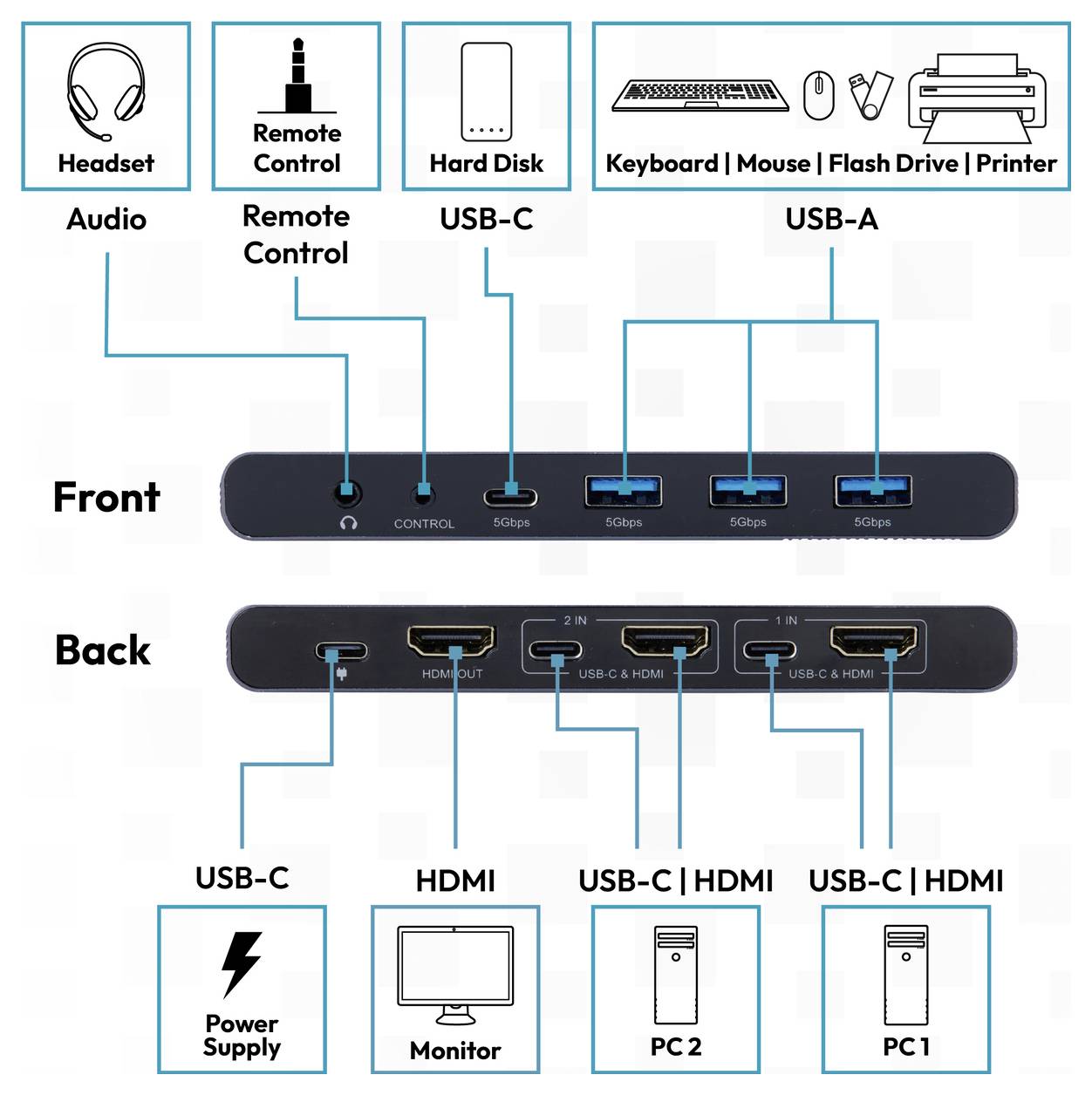

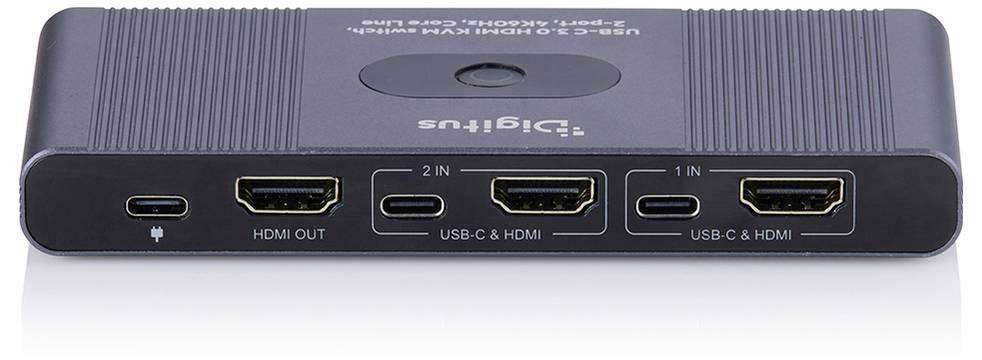

- Connections – Inputs: 2× HDMI™ input (for two devices) 2× USB-C 3.0 input (for data/control)

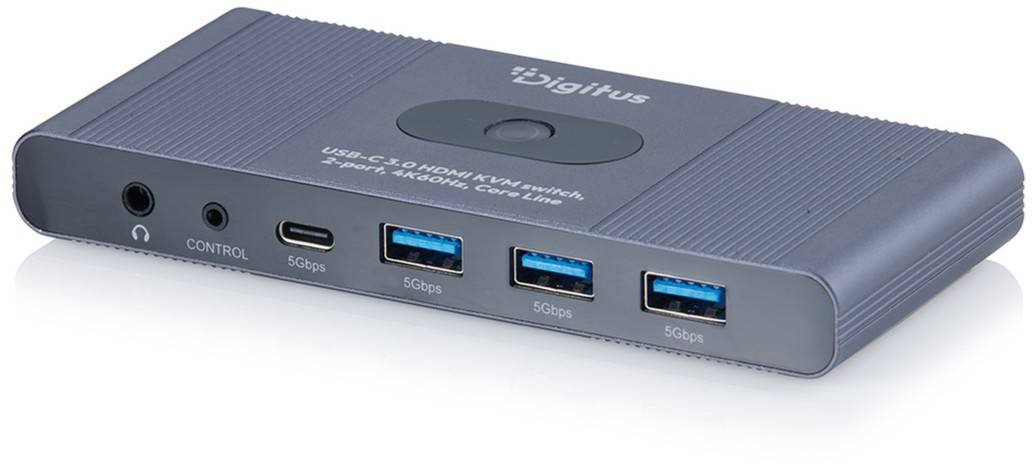

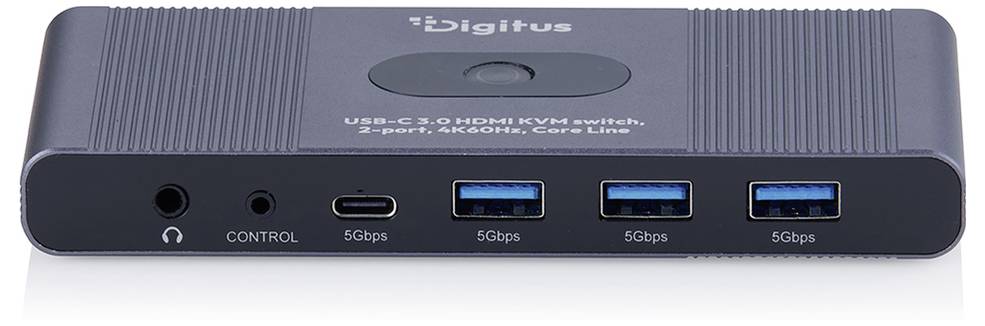

- Connections – Outputs: 1× HDMI™ output (single display) 3× USB-A 3.0 (up to 5 Gbps) 1× USB-C 3.0 (up to 5 Gbps) 1× 3.5 mm audio output (stereo)
- Resolution: Up to 4K@60Hz (YUV 4:4:4)
- HDR-support for lively colors
- 3D support for compatible content
- HDCP 1.4 / 2.2 for protected content
- Video bandwidth: Up to 6.0 Gbps per channel / 18 Gbps total
- Stereo output via 3.5 mm jack, supports LPCM, DTS, Dolby Digital, TrueHD
- Switching per key on the device
- Switch over via cable-bound remote control (1.5 m) with magnetic base
- Power supply: Via USB-C (DC 5V), optional: 5V/2A power supply for power-hungry USB devices
- Housing & dimensions: Material: Aluminium housing for stability and cooling, dimensions: 135 × 60 × 30 mm, weight: 227 g
- Product type
KVM matrix switcher
- No. of switchable PCs
2
- Video via
HDMI
- Video resolution
3840 x 2160 Pixel
- Controller
Remote control
Touchscreen
- Switch function
Key
Remote control
- Distributor/switch features
+ remote control
- Power supply (LOV)
via PSU
via PSU (optional)
- Factory colour
Black
- Weight
0.50
- Keyboard layout
German, QWERTZ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763168 Digitus KVM matrix switcher HDMI Remote control, Touchscreen 3840 x 2160 Pixel
Description
The Digitus® USB-C 3.0 HDMI KVM switch from the core line allows you to conveniently control two HDMI™-enabled devices with just one mouse, keyboard and single monitor. With support for resolutions up to 4K@60Hz (YUV 4:4:4), HDCP and HDR, the switch delivers brilliant picture quality for demanding applications. You can easily connect desktop PCs, laptops, or even game consoles via HDMI™ and USB-C-3.0 inputs. In addition, three USB A-3.0 ports and a USB C-3.0 port are available for using peripheral devices like external hard disks or USB sticks together - with transfer rates of up to 5 Gbps. It is recommended to use an external 5V-2A power supply unit (not included) for operation with high performance USB drives or SSDs. The switching between the connected devices is done either directly via the button on the device or via the cabled remote control with magnetic base included in the delivery for flexible positioning. An integrated 3.5-mm audio output rounds off the equipment. Power is supplied via USB-C 3.0 - an optional 5V/2A power supply (not included) is recommended for high-performance peripherals.
This text is machine translated.
This text is machine translated.

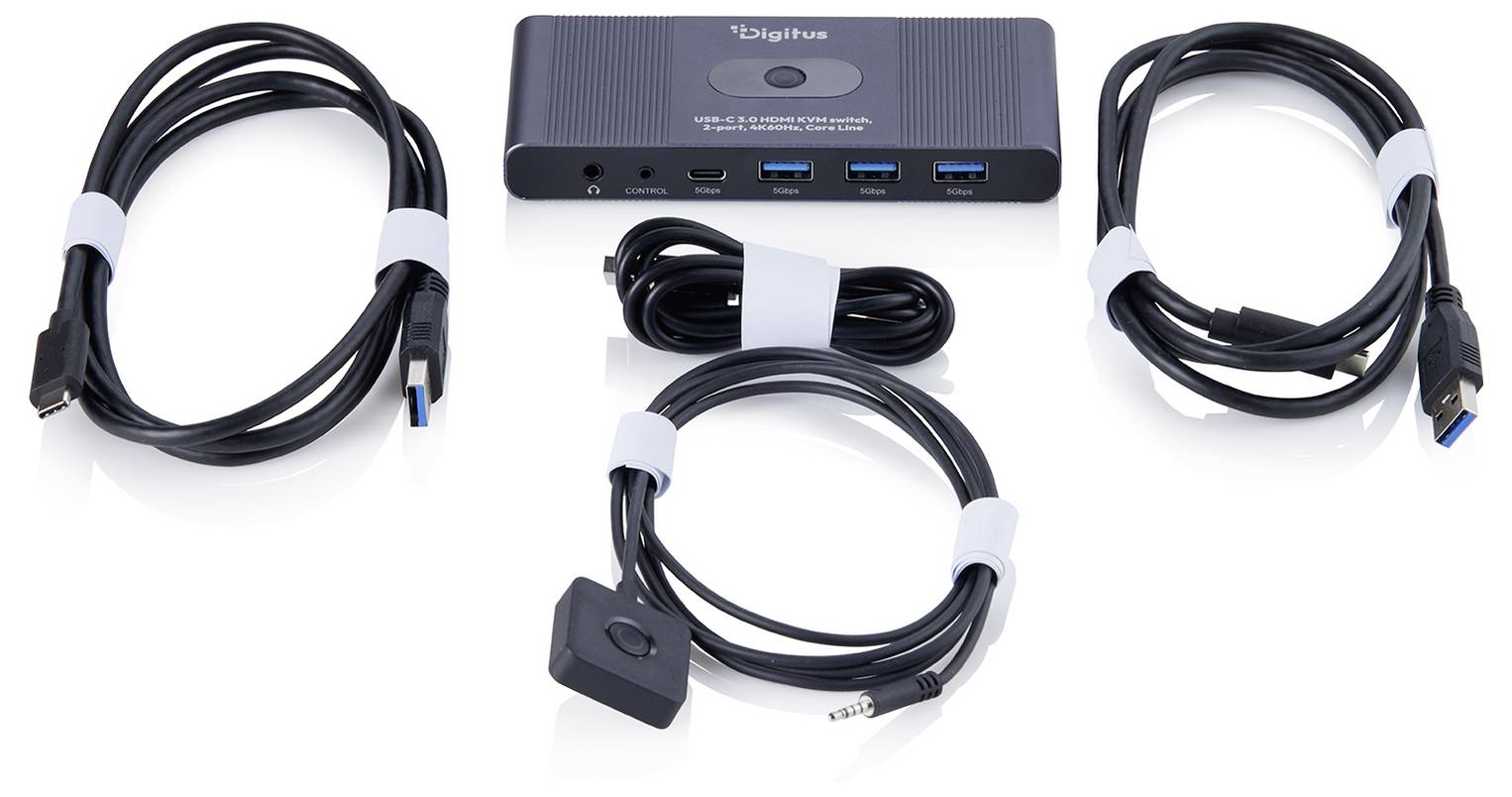

Scope of delivery
- 1 x USB-C 3.0 Dual HDMI™ KVM switch, 2-port
- 2x USB A-to-USB-C 3.0 data cable (1.5 m)
- 1x USB A-to-USB C power cable (1 m)
- 1x remote control with magnetic base (1.5 m)
- 1x quick start guide
