1/7

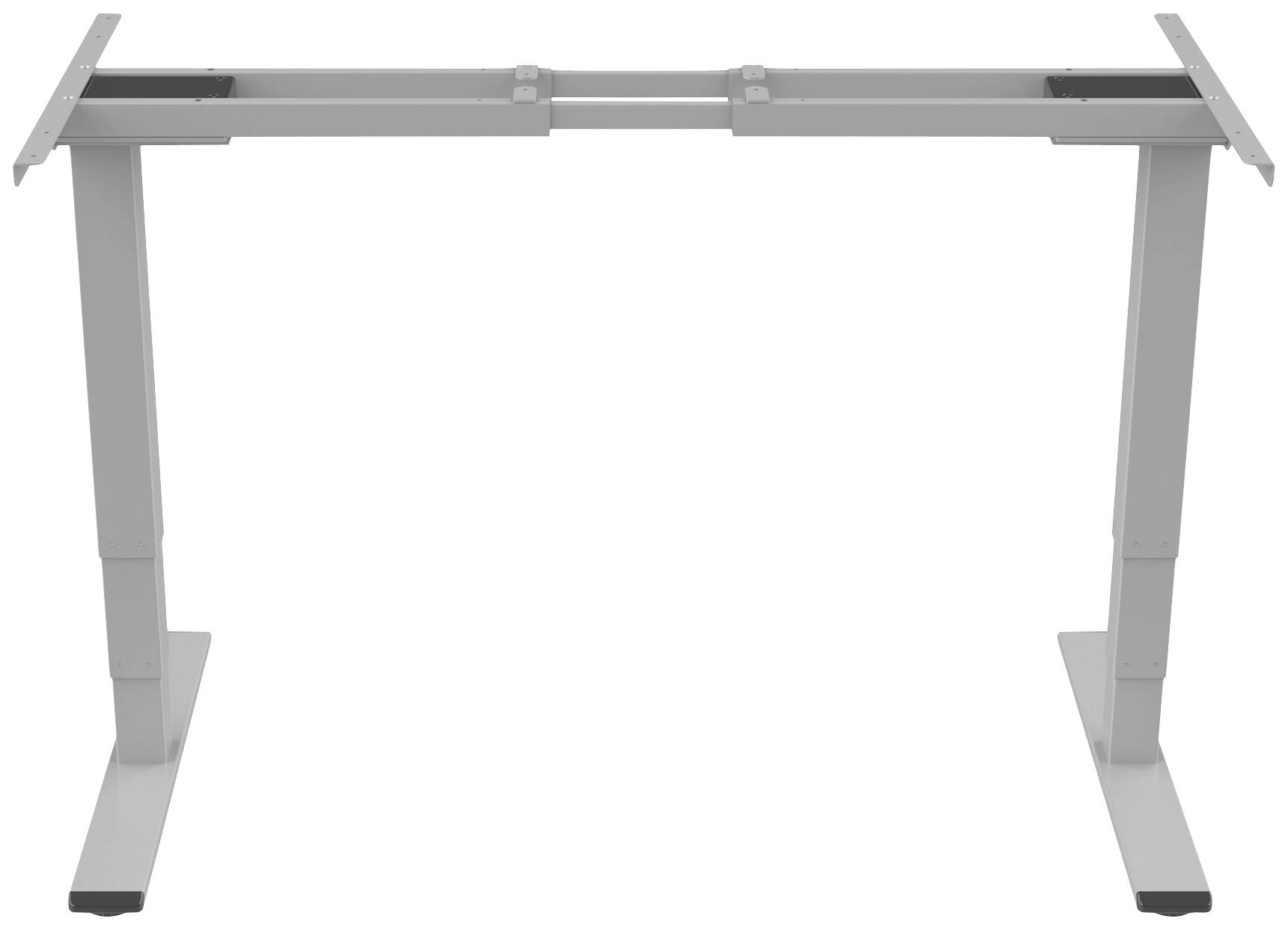

Digitus Office desk frame (sitting/standing) Electric height adjustment Height range: 62 up to 1.27 m (W x D) 170 cm x 6
EAN:
Part number:
Item no:

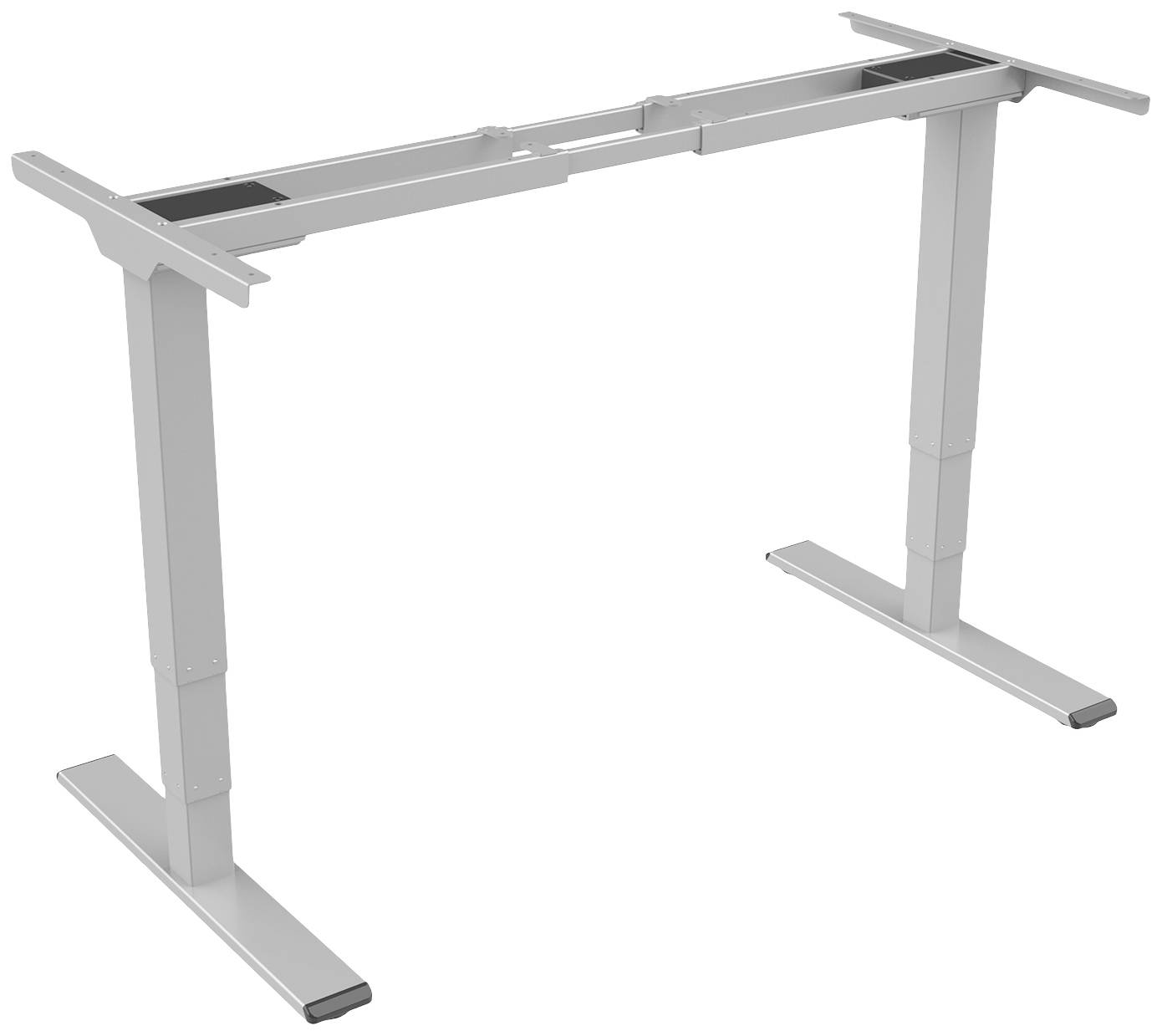

Electric height-adjustable table frame, two-way motor, 3-step, gray
Highlights & Details

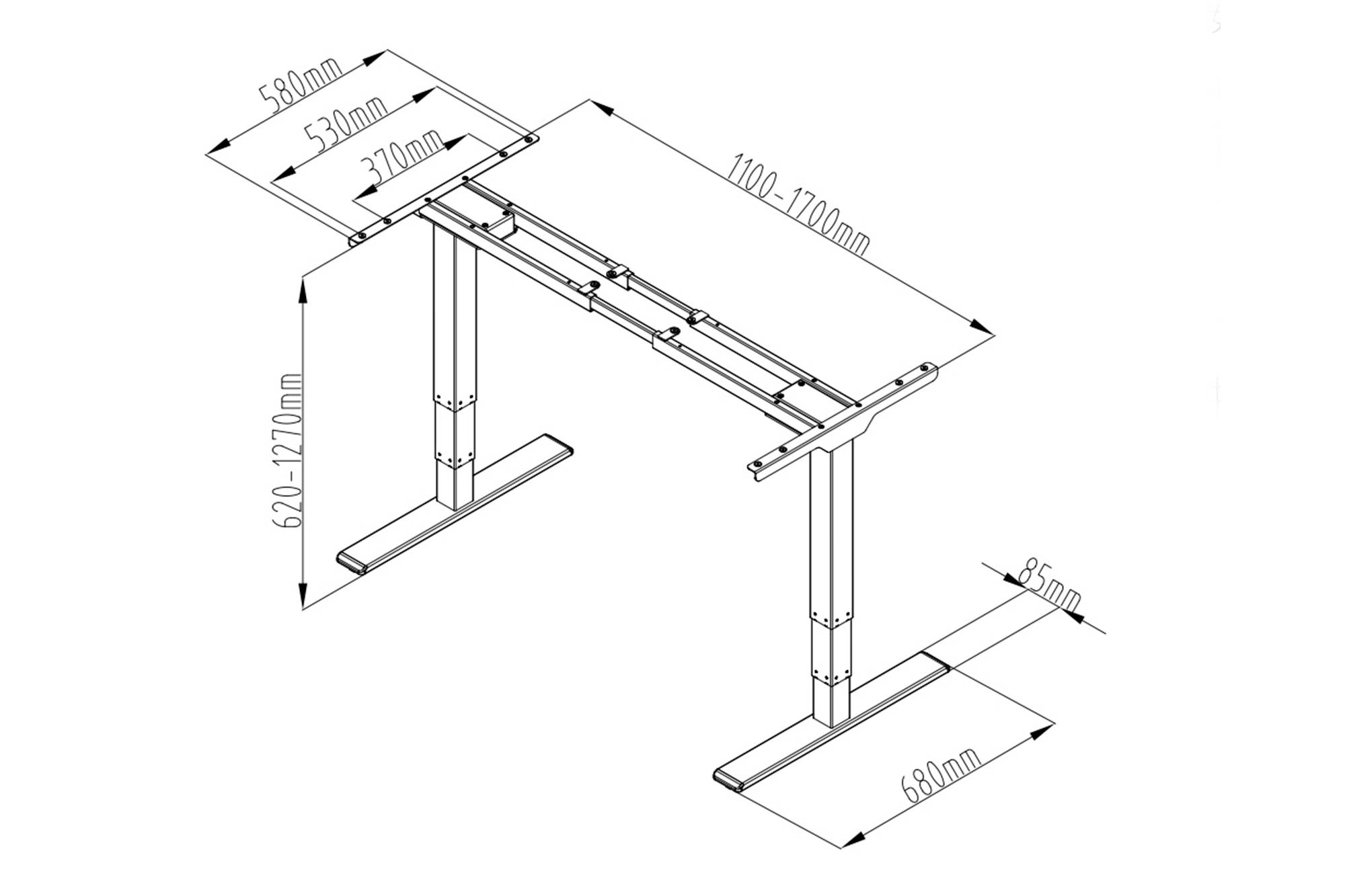

- Individually adjustable: Desk case for height adjustment range from 62 - 127 cm – Suitable for usual table tops (width: 110 - 200 cm / depth: 60 - 100 cm)Storage function: Touch-screen enables up to 4 table positions to be stored in order to change quickly between your preset height settings – lock function prevents unintended adjustmentsSecurity: Safe use thanks to collision protection (G-sensor) with 3 sensitivity levels - thus also suitable as co-growing children's desk
Technical specifications
- Noise level: Less than 50 dBDimensions maximum: W 170 x D 68 x H 127 cmDimensions minimum: W 110 x D 68 x H 62 cmWeight 28.3 kg.Power connection cable: Euro, plug (type C, CEE 7/16) - C7, device socket, length 3 mShape: RectangularShape: Rectangular
- Product type
Office desk frame (sitting/standing)
- Height-adjustable
Yes
- Height (min.)
62 cm
- Max. height
1.27 m
- Load capacity (max.)
100 kg
- Factory colour
Grey
- Features
Electric height adjustment
- Dim
(W x D) 170 cm x 68 cm
- Width
170 cm
- Depth
68 cm
- Weight
28.3 kg
- Material
Metal
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751414 Digitus Office desk frame (sitting/standing) Electric height adjustment Height range: 62 up to 1.27 m (W x D) 170 cm x 6
Description

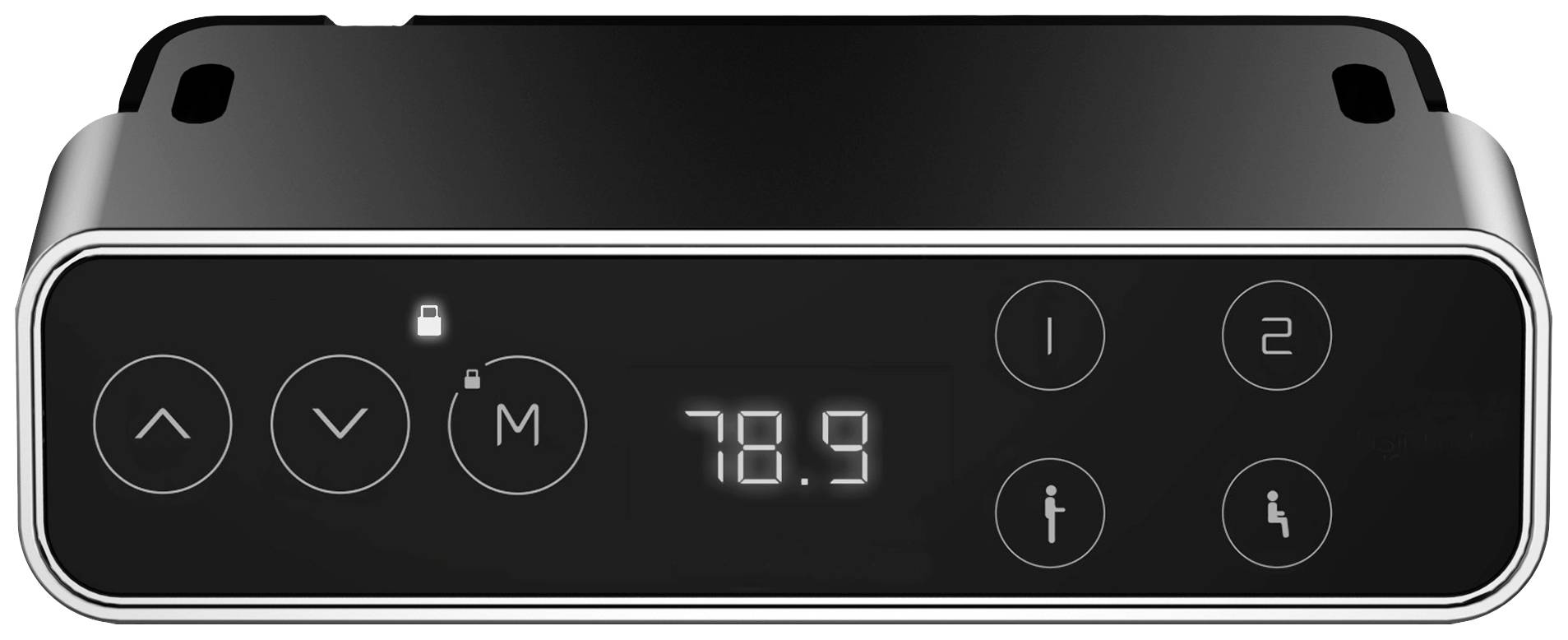

With this height-adjustable table frame you can easily transform your desk into an ergonomic standing and seating area. Save yourself a lot of time and money by finding a height-adjustable desk and instead sit on the electric height-adjustable table frame from Digitus®. This set is suitable for all table tops between 110 and 200 cm in width and 60 to 100 cm in depth. Via the Touch-Display, you can program and store up to 4 different heights. The frame allows height adjustment of 62-127 cm. The lifting speed is 35mm/sec. With the anti-collision function, the table stops automatically when meeting obstacles during the run-up and the run down. The anti-collision function can be set at 3 different sensitivity levels. The rack can lift a maximum load of 100 kg and is equipped with a display lock/child lock for the control panel. Promote your health and prevent damage to posture and restrictions of the musculoskeletal system.
This text is machine translated.
This text is machine translated.
Features
- Powerful motor mechanism: Precise and quiet (less than 50 dB) height adjustment with fast stroke speed (35 mm/s) – stability and high loading capacity of up to 100 kgHealthy: Avoid posture damage in the back and neck area as well as tension through a varied workplace when standing and sitting – for office & home office
Scope of delivery
- Assembly instructions (frame)
- Operating instructions (display)
- Fitting Material
