Digitus Office desk frame (sitting/standing) Electric height adjustment Height range: 720 up to 1200 mm White DA-90453 D
EAN:
Part number:
Item no:
Highlights & Details

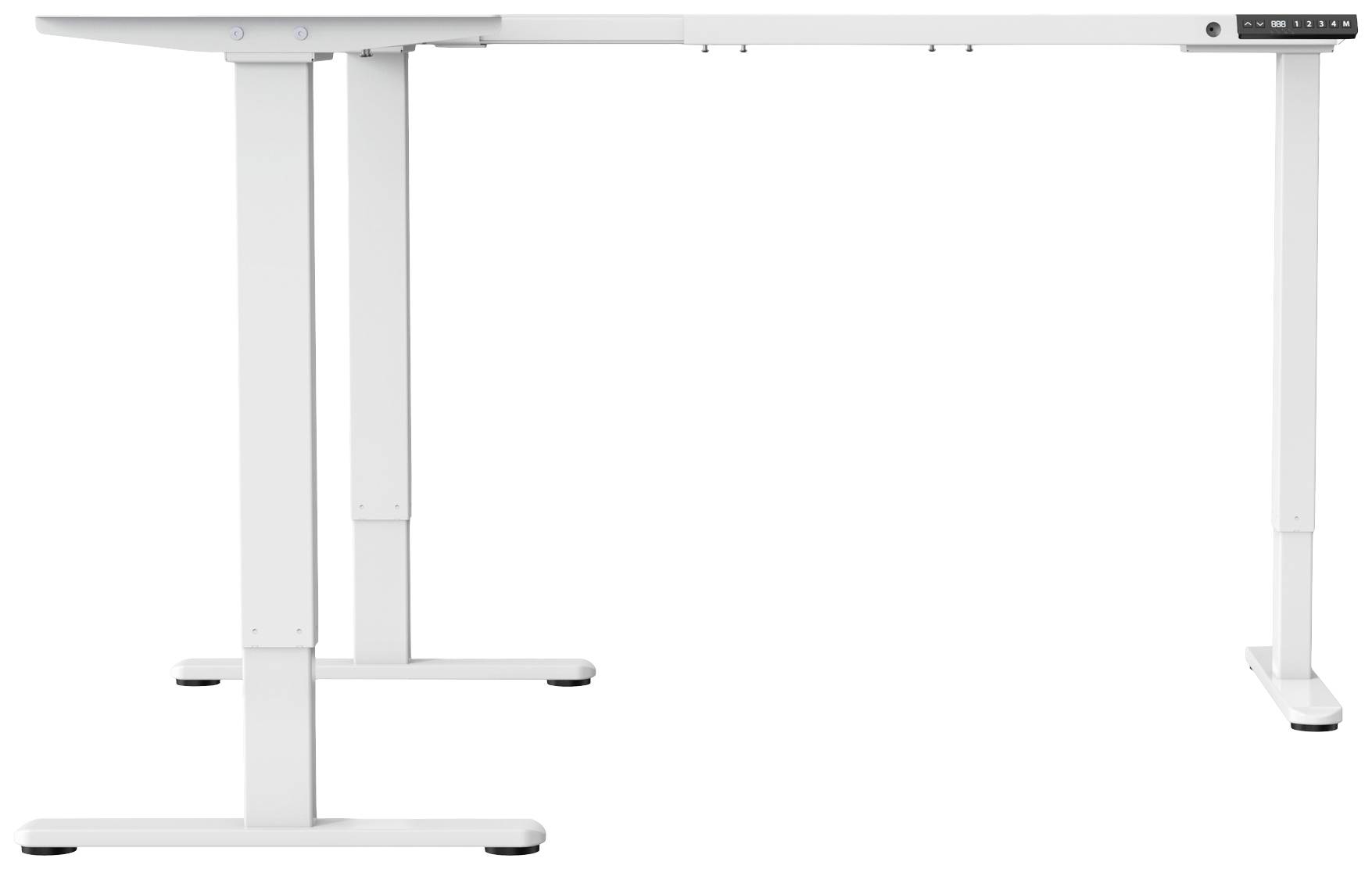

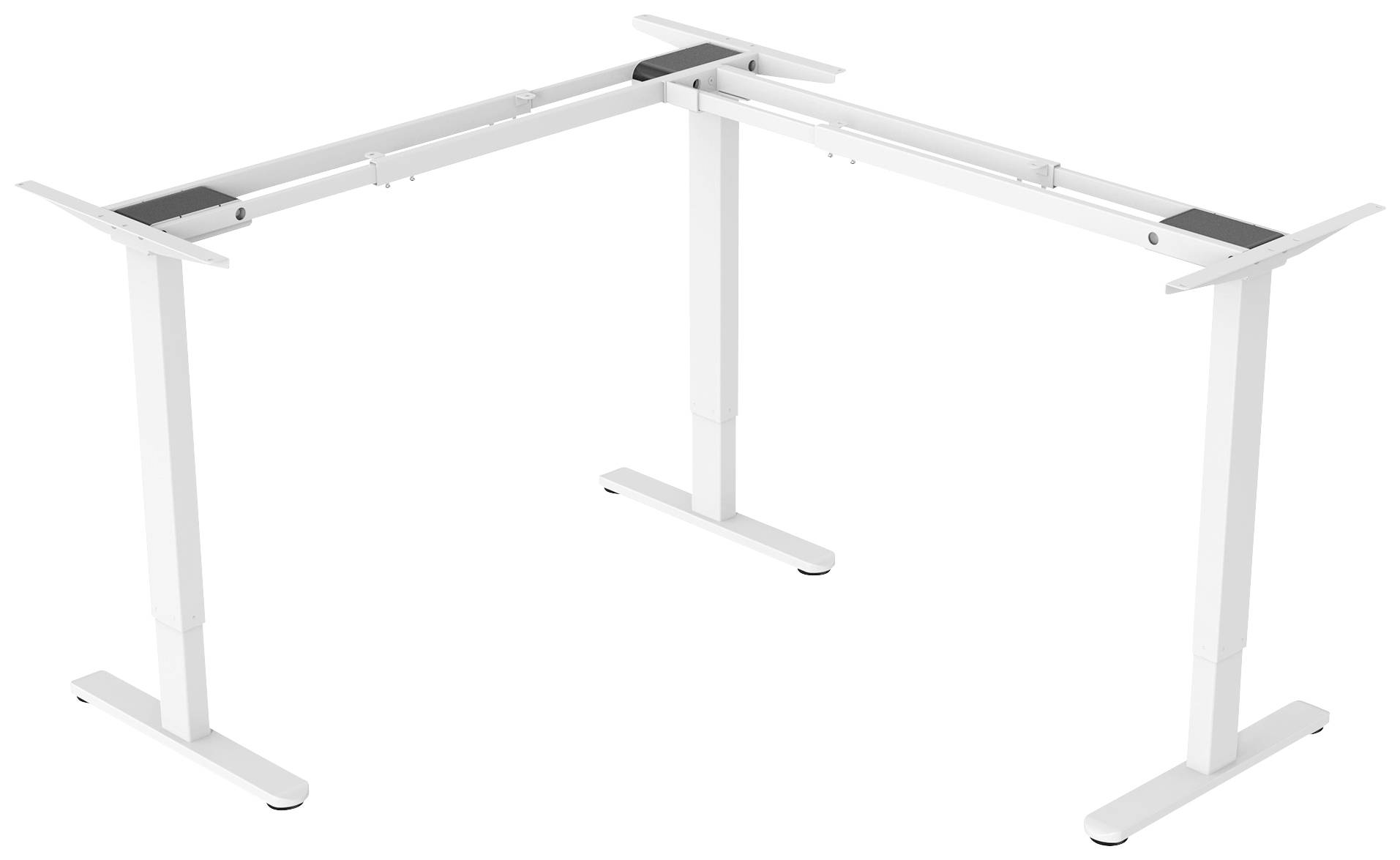

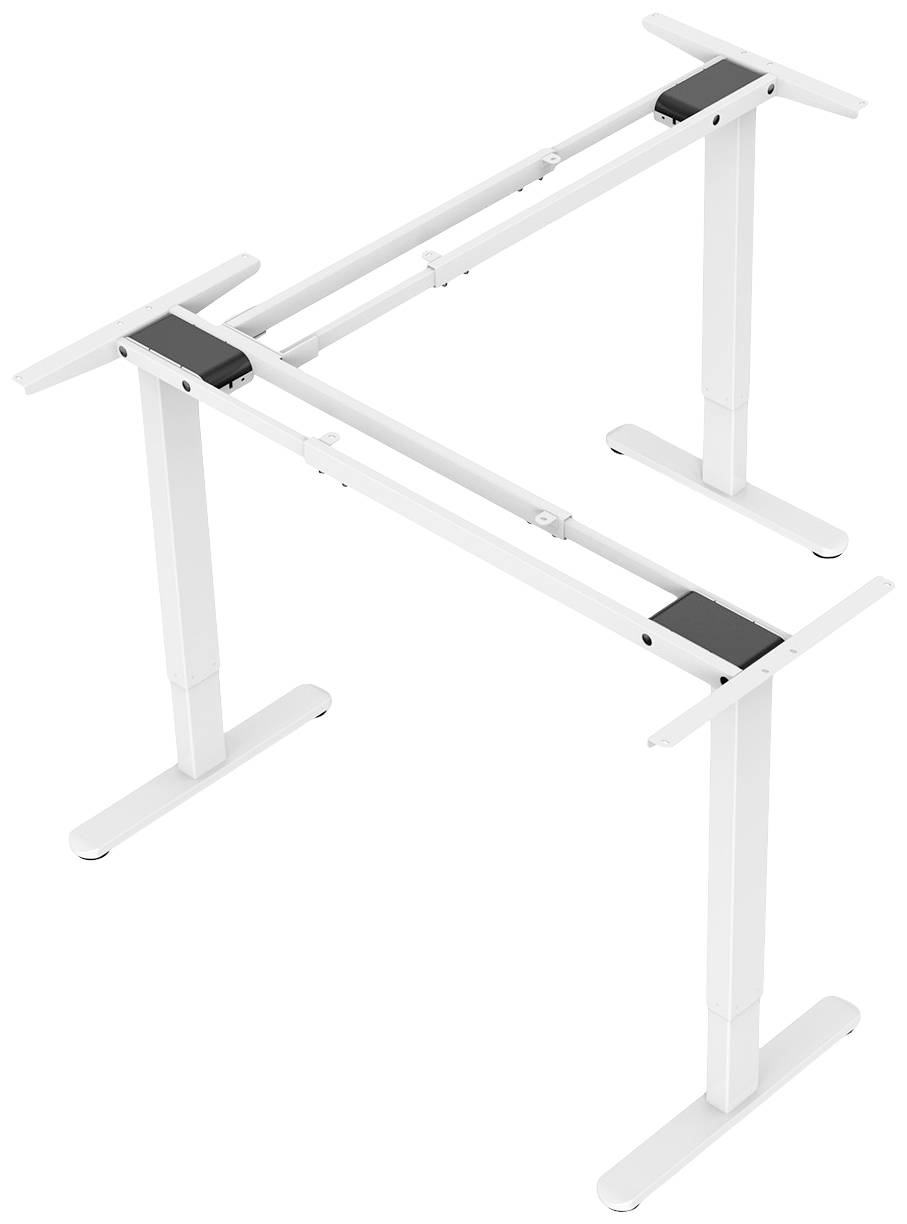

Digitus Electric height-adjustable table frame, 90° L-shape, triple-motor, 2-steps, white
- Maximum load capacity of up to 120 kg

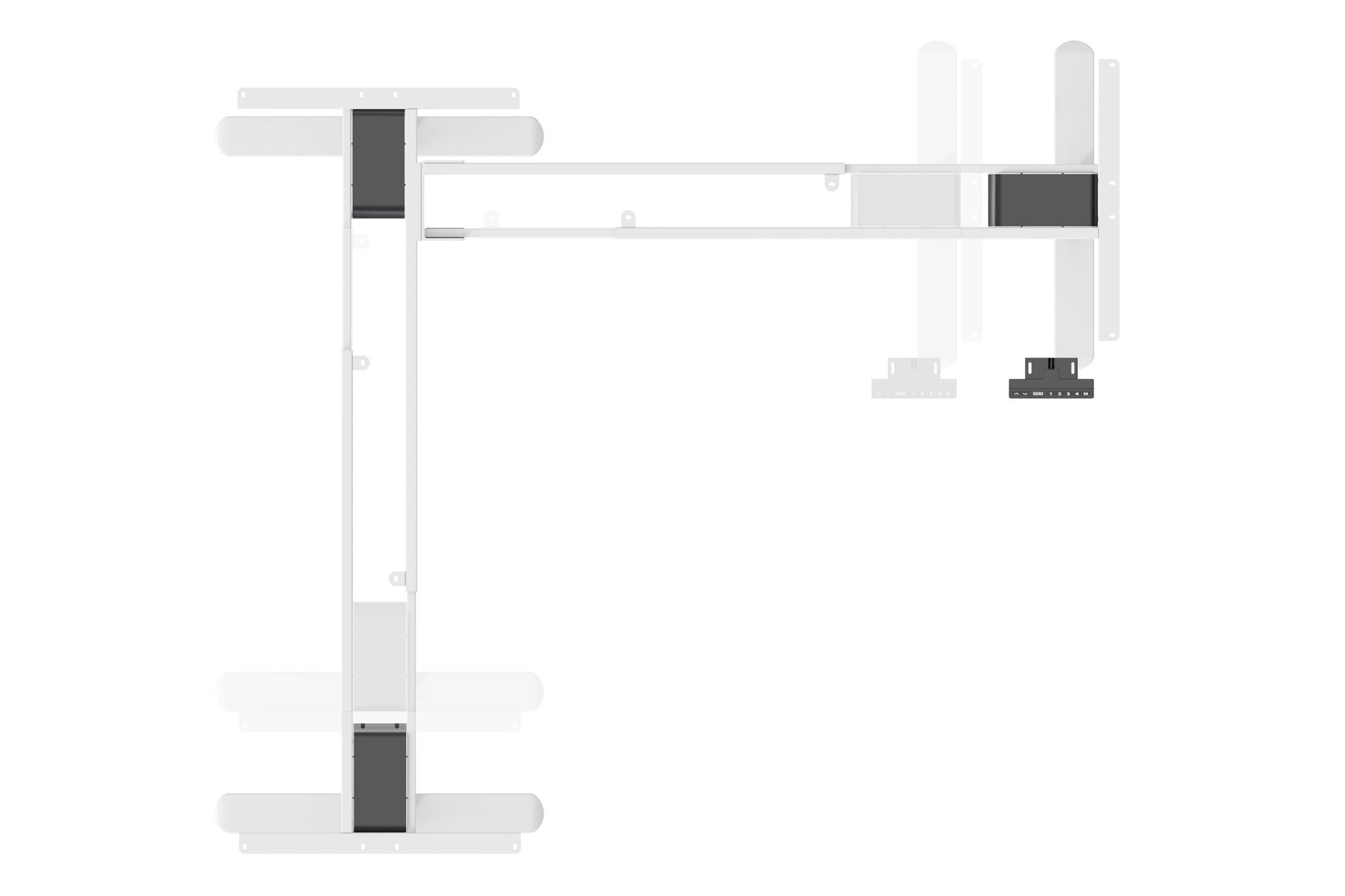

- Flexible adjustable frame: Cross brace (112 - 165 cm) x longitudinal brace (130 - 180 cm)
- Suitable for table tops 120 - 180 cm x 140 - 200 cm and a depth of 55 - 100 cm
- The longitudinal brace (3. Leg) can be mounted flexibly to the left or right
- Easy and electric height adjustment (without table top): 72 - 120 cm

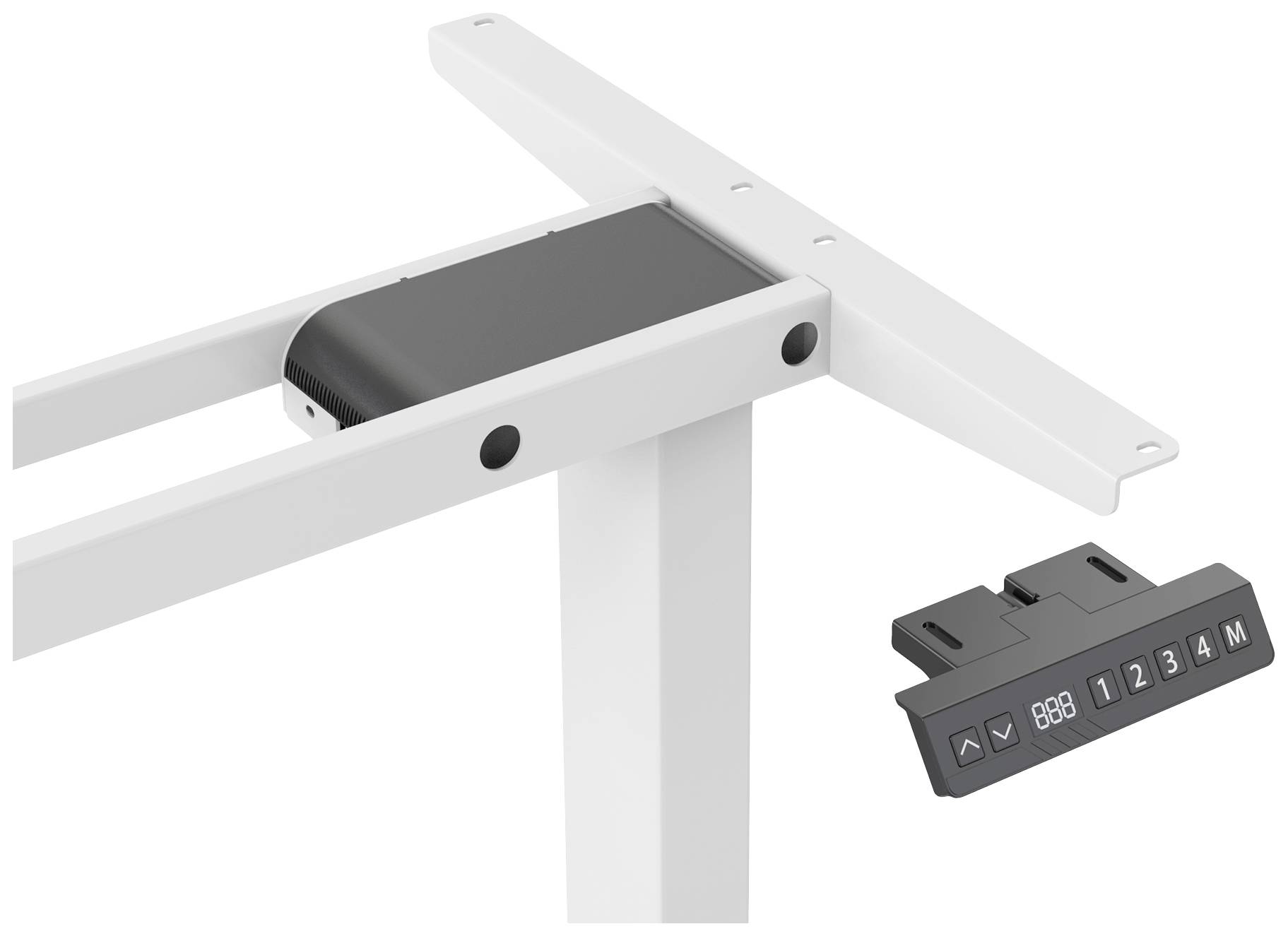

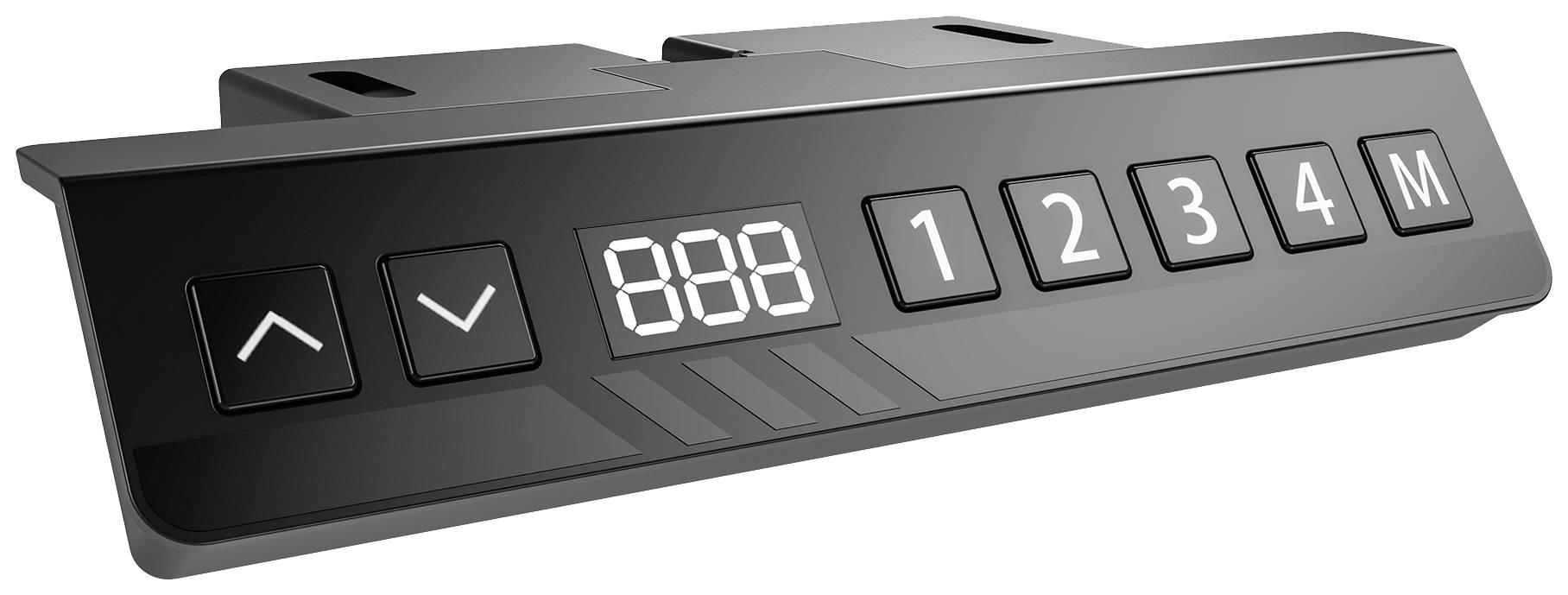

- Control unit for height adjustment with LED display (3 brightness settings) and memory function for 4 height settings
- Collision protection function (G-sensor) with 3 sensitivity levels - detection of obstacles in upward and downward movement
- Auto-Stop System - Stops the engine in resistance and automatically retracts the rack slightly
- 3 motors for simple and quiet (< 50 dB) height adjustment - stroke speed 25 mm/sec.
- The 3 base stands (58.5 cm wide) with 2 foot pads each provide for stability in order to compensate for unevenness at the floor
Technical specifications
- Product type
Office desk frame (sitting/standing)
- Height-adjustable
Yes
- Height (min.)
720 mm
- Max. height
1200 mm
- Load capacity (max.)
120 kg
- Factory colour
White
- Features
Electric height adjustment
- Height
72 cm
- Frame cover colour
White
- Easel colour
White
- Monitor shelf
No
- Fastening method
Screws
- Base
Yes
- Frame shape
T base
- Base type
Base
- Packaging type
In parts
- Castors
No
- Sliding tray
No
- Wireless charging
No
- Height (min.)
72 cm
- Product type description
Sitz-Steh-Tischgestell
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997778 Digitus Office desk frame (sitting/standing) Electric height adjustment Height range: 720 up to 1200 mm White DA-90453 D
Description
The Digitus® power-adjustable table stand makes it easy to turn your desk into an ergonomic stand/seat space. Save time and money to find a height-adjustable desk and use our electrically adjustable upgrade kit instead. This model can be used for table tops of length 120-180 cm and 140-200 cm. Table panel depths of 55 to 100 cm are recommended. You can save 4 height positions via the control panel and adjust them at any time with the push of a button. The current altitude is shown on the LED display. The integrated collision protection prevents collisions with possible obstacles when the table is raised or lowered.
