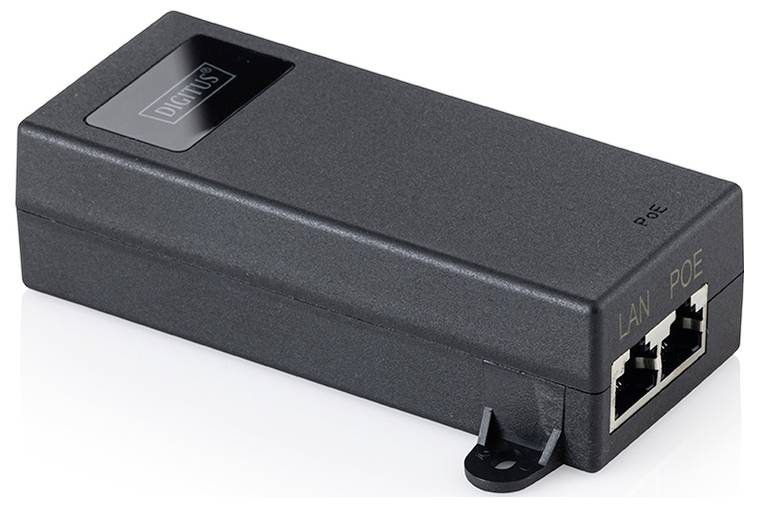

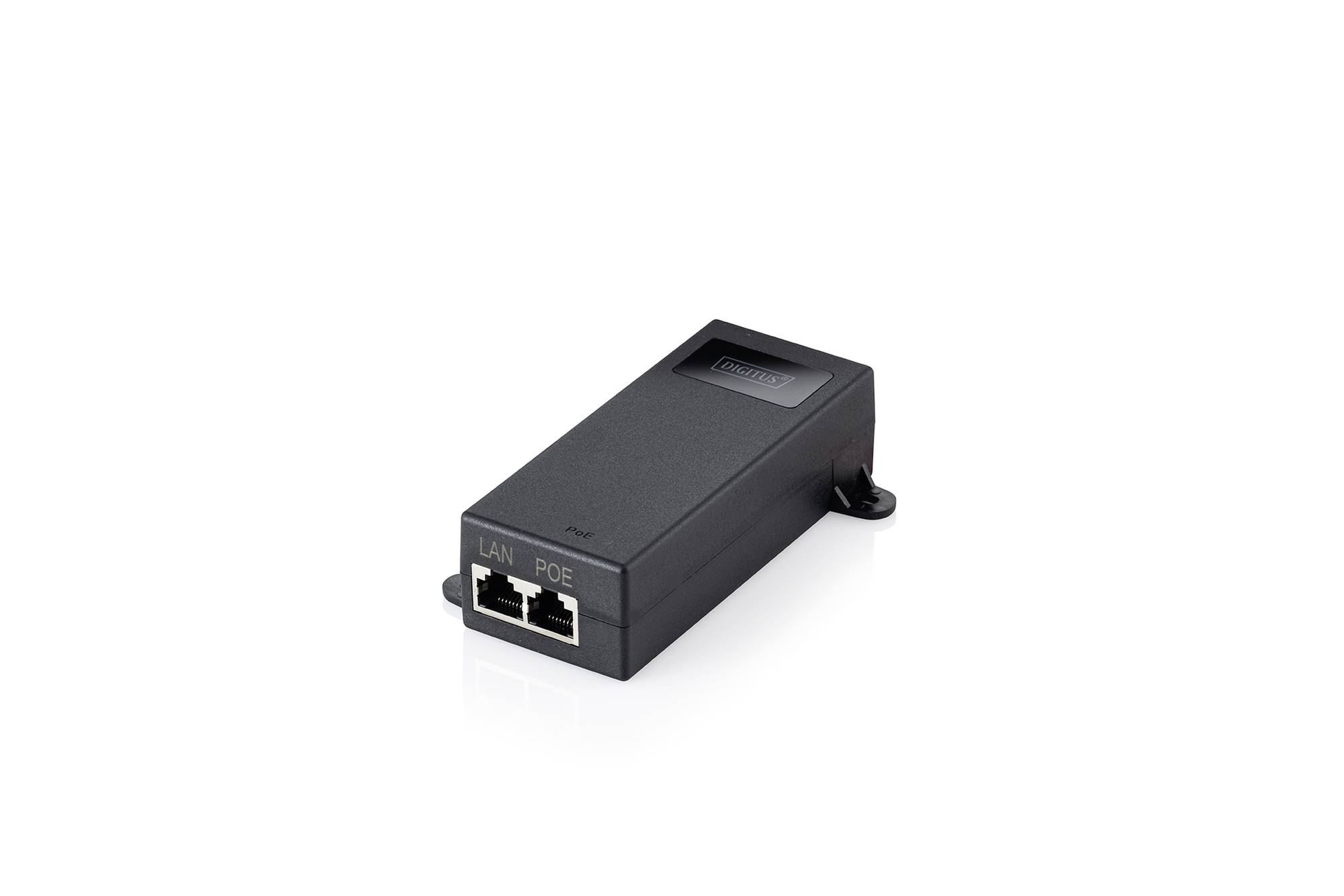

Digitus PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3bt
EAN:
Part number:
Item no:
Datasheet (PDF)

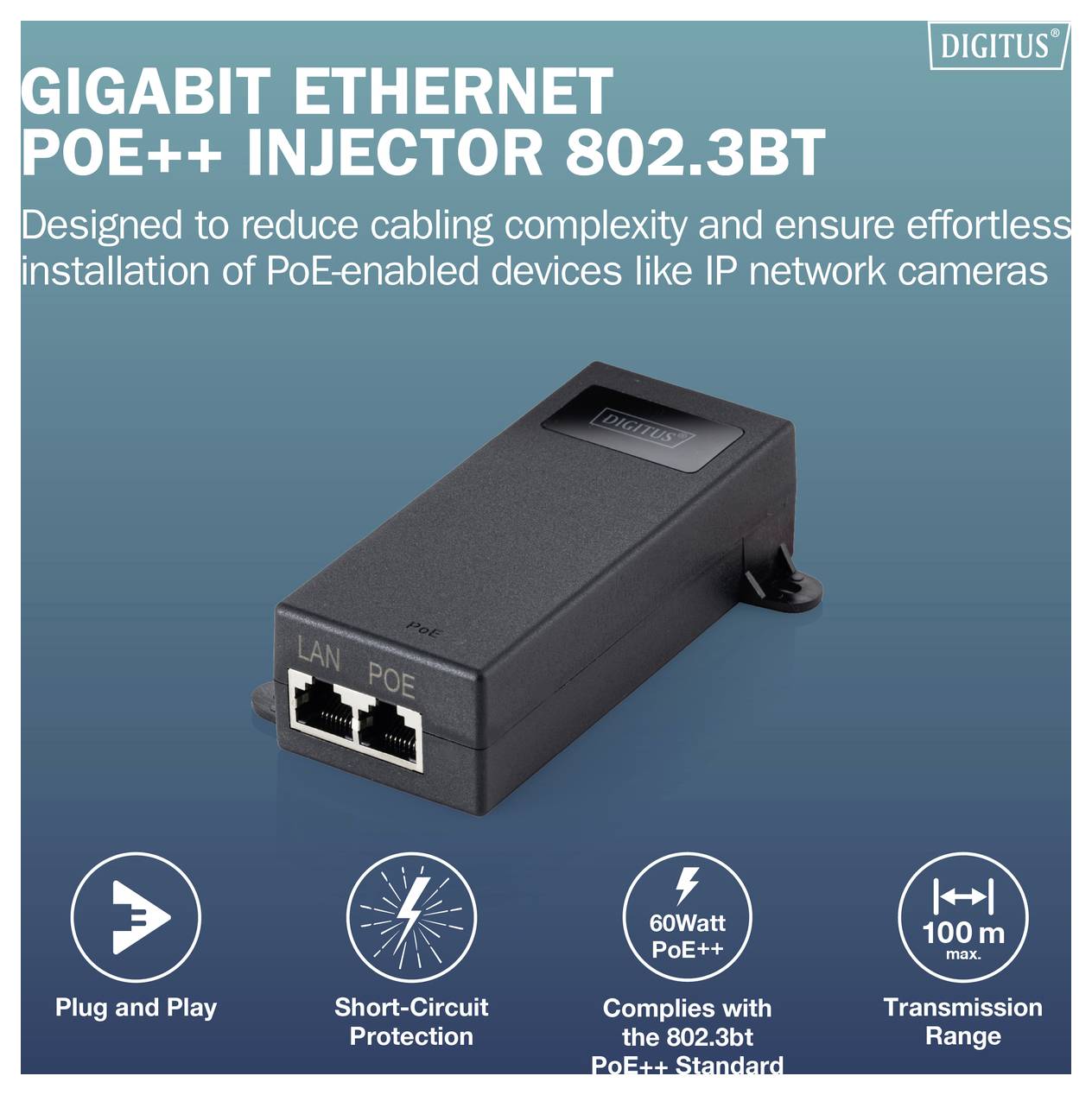

Digitus Gigabit Ethernet PoE+ injector, 802.3bt
Highlights & Details
- Meets the 802.3bt PoE++ standard
- Easy merging of power and data cables into one single cable
- Extend your network where no power cables or plug sockets are present
- No configuration required
- The output has a current limit, a short-circuit protection as well as automatic end device detection and classification
Technical specifications
- Meets the 802.3bt PoE++ standard
- Easy merging of power and data cables into one single cable
- Extend your network where no power cables or plug sockets are present
- No configuration required
- Supports all IEEE 802.3bt compliant PoE devices (e.g. access points, VoIP phones, and IP cameras)
- Transmission range up to 100 m
- Own power consumption: Max. 0.41W
- Power consumption (fully utilized): 65.49 W max.

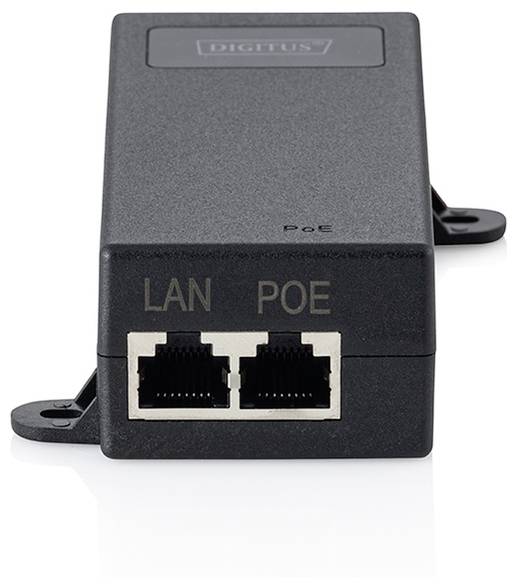

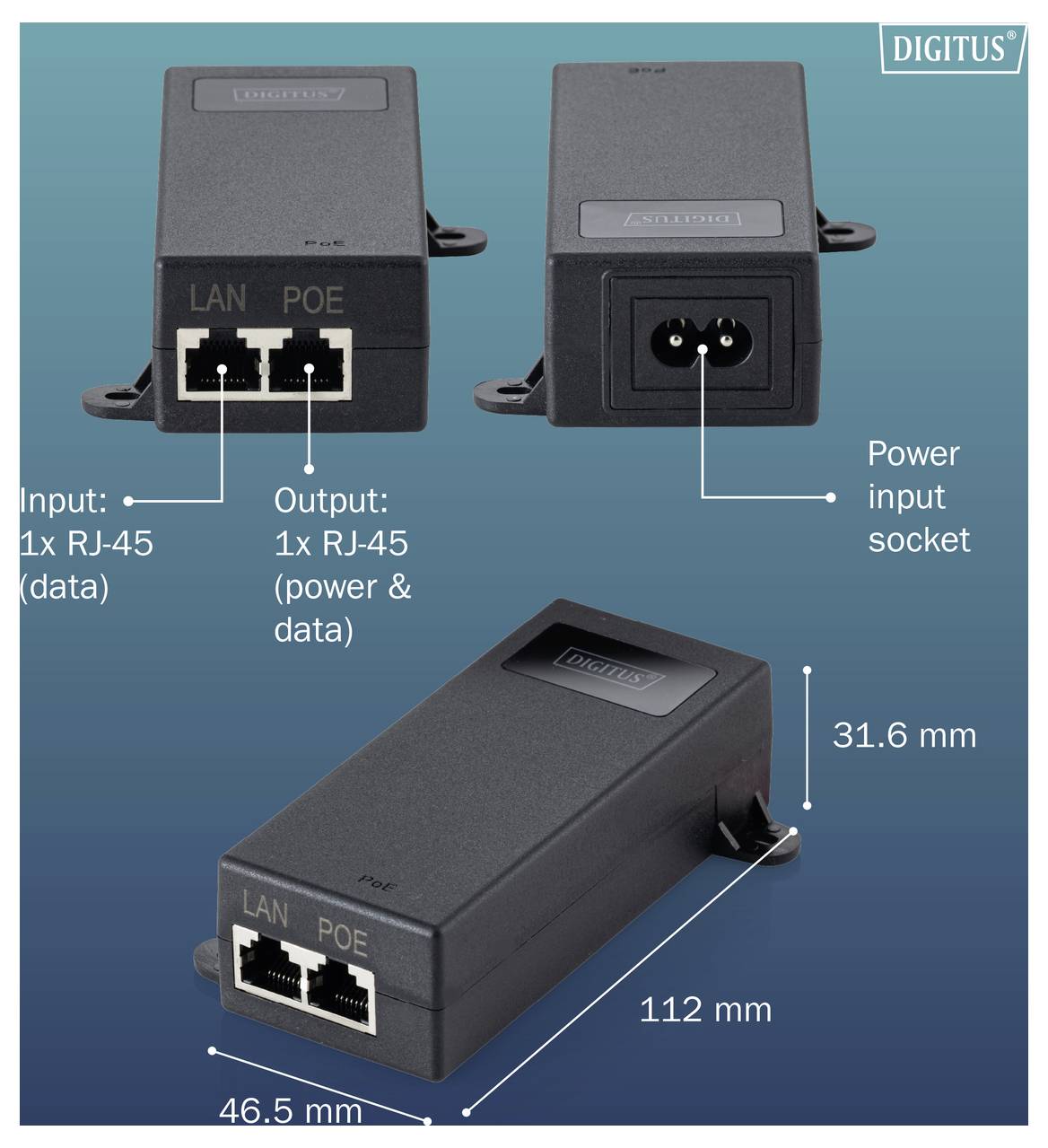

- 1x RJ-45 input (data)
- 1x RJ-45 (power & data) output

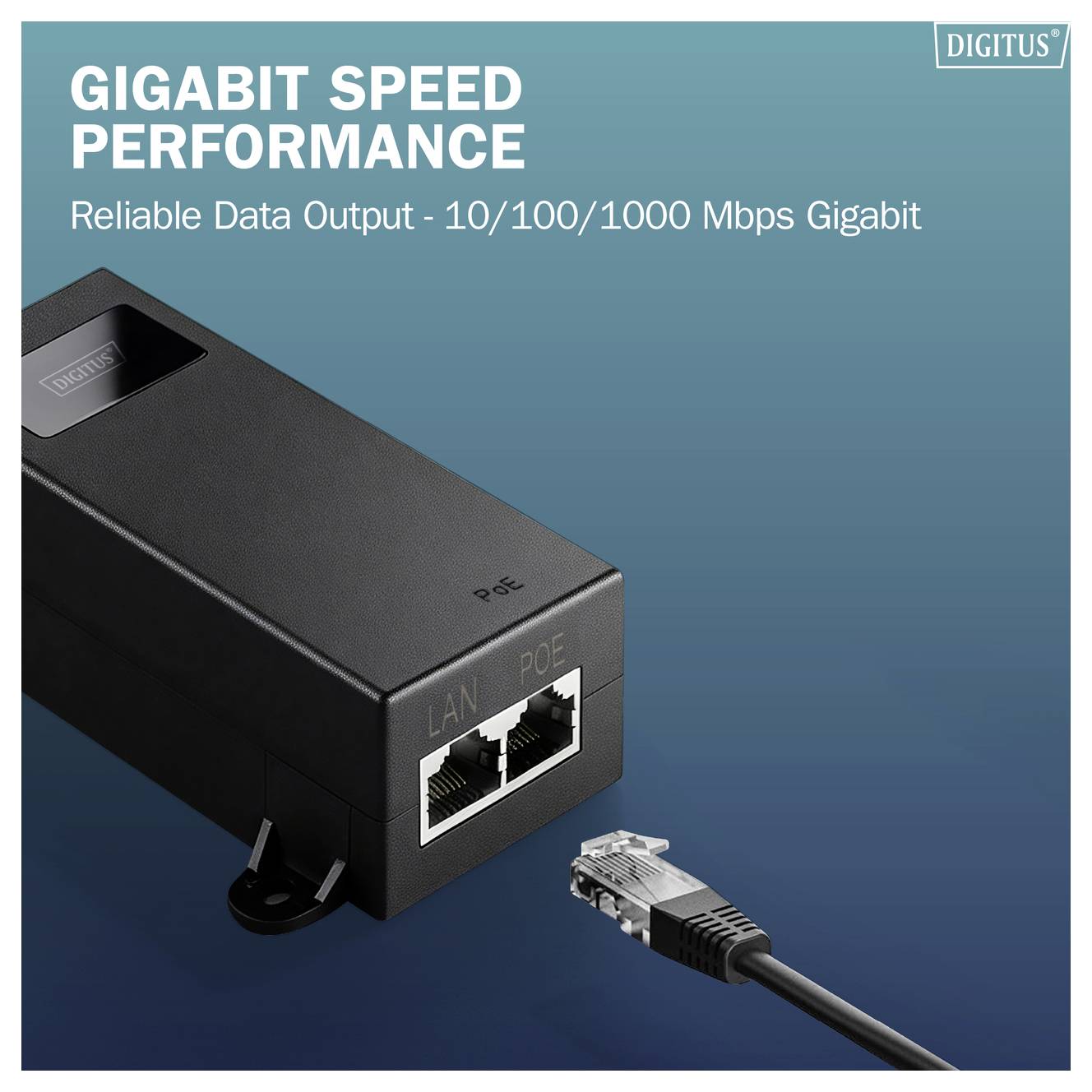

- Data output 10/100/1000 Mbps gigabit
- Output power 60 Watt
- Output voltage DC 54.02V
- Operating temperature range: 0 °C to 40 °C
- Dimensions: 112 mm x 46.5 mm x 31.6 mm
- Weight 164.7 g
- The output has a current limit, a short-circuit protection as well as automatic end device detection and classification
- Power consumption specification: 100 – 240 V, 50 Hz
- Product type
PoE injector
- PoE
IEEE 802.3bt
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763165 Digitus PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3bt
User & Safety Instructions
User & Safety Instructions 3763165 Digitus PoE injector 10 / 100 / 1000 MBit/s IEEE 802.3bt
Description
With the help of the Digitus PoE injector you can minimize your wiring in the installation of PoE-enabled devices like for instance, IP-network cameras. The data as well as the power supply for the devices is fed only via an Ethernet cable. This means that the laying a separate power line is unnecessary and you can also expand your network in those places, where no sockets or power lines are available. The injector is completely compatible with the IEEE 802.3bt Ultra PoE standard and provides an output power of 60 watt.
This text is machine translated.
This text is machine translated.

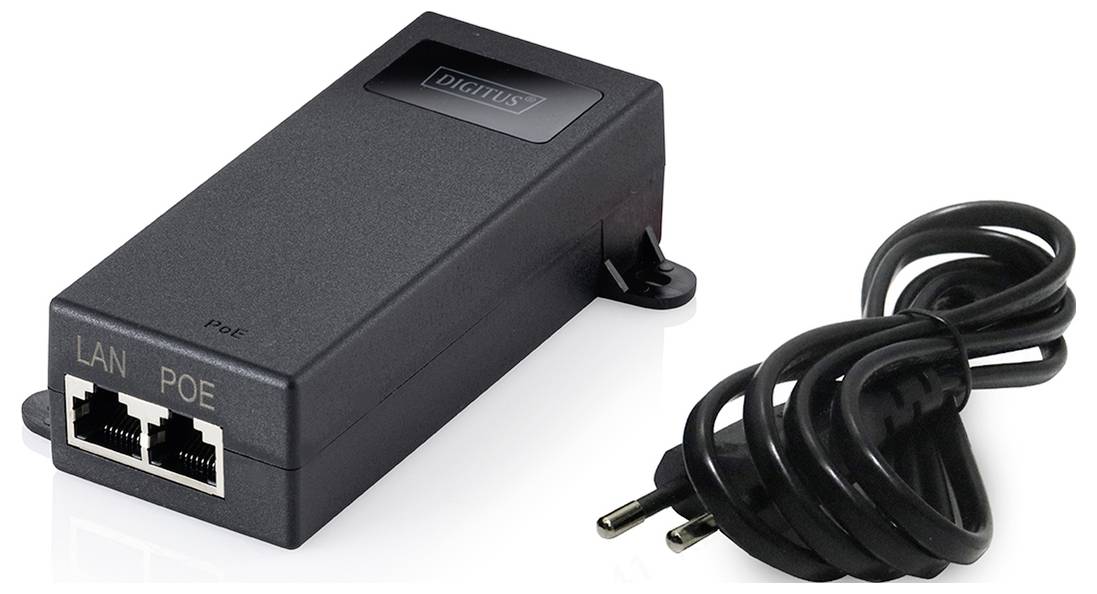

Scope of delivery
- PoE injector
- QIG (Quick Installation Guide)
- Power cable;
