Digitus USB 2.0, USB, RS232 Adapter cable [1x USB, USB 2.0, USB 2.0 connector A - 1x RS232, RS232 plug] 180 cm
EAN:
Part number:
Item no:

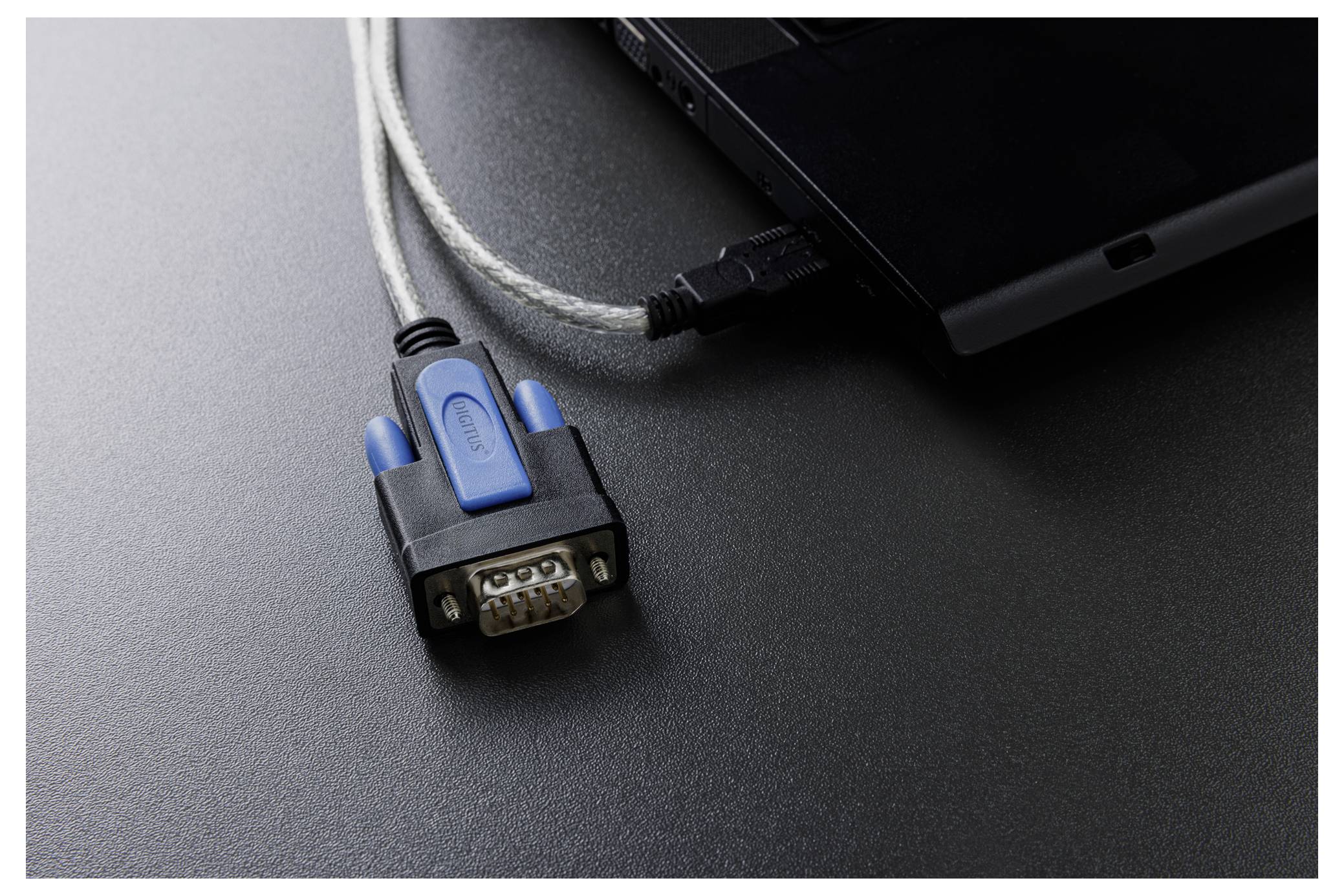

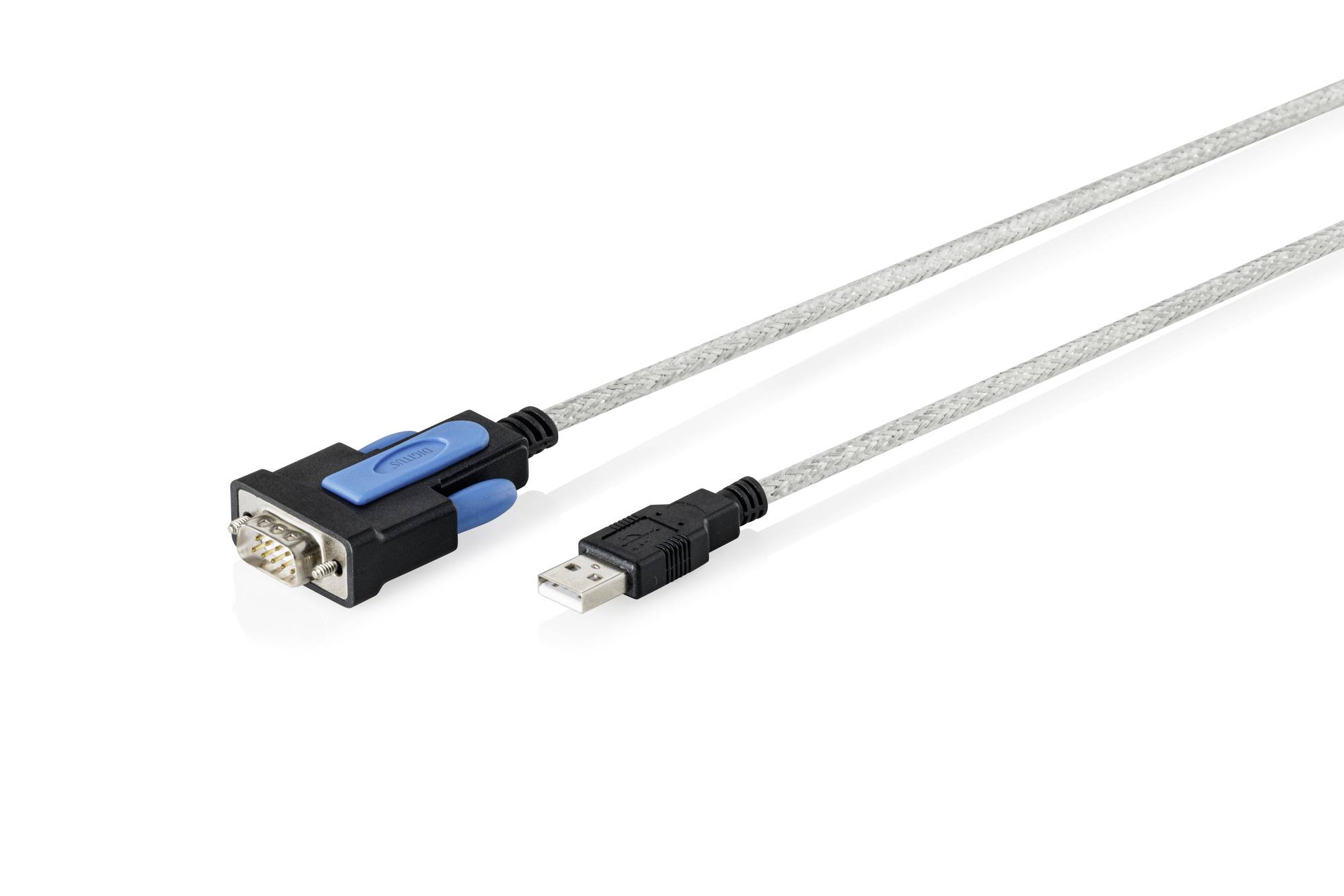

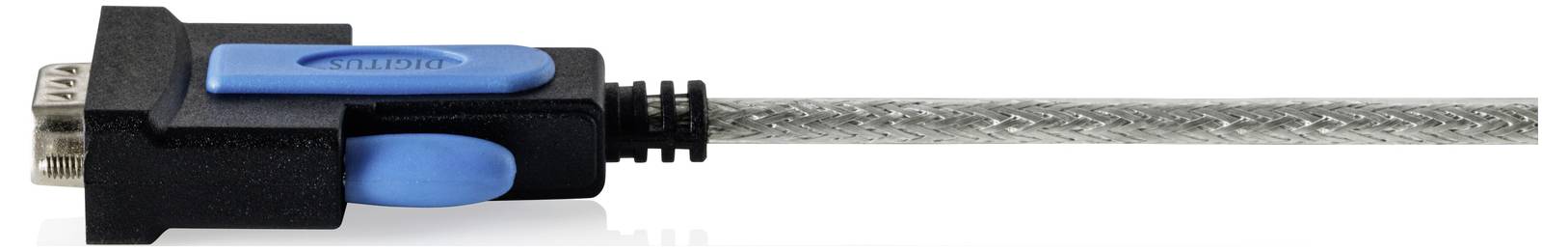

Digitus USB 2.0 to RS232 adapter cable, 1.8 m, integrated FTDI-chipset
Highlights & Details
- Cable with integrated adapter function - no separate hardware needed

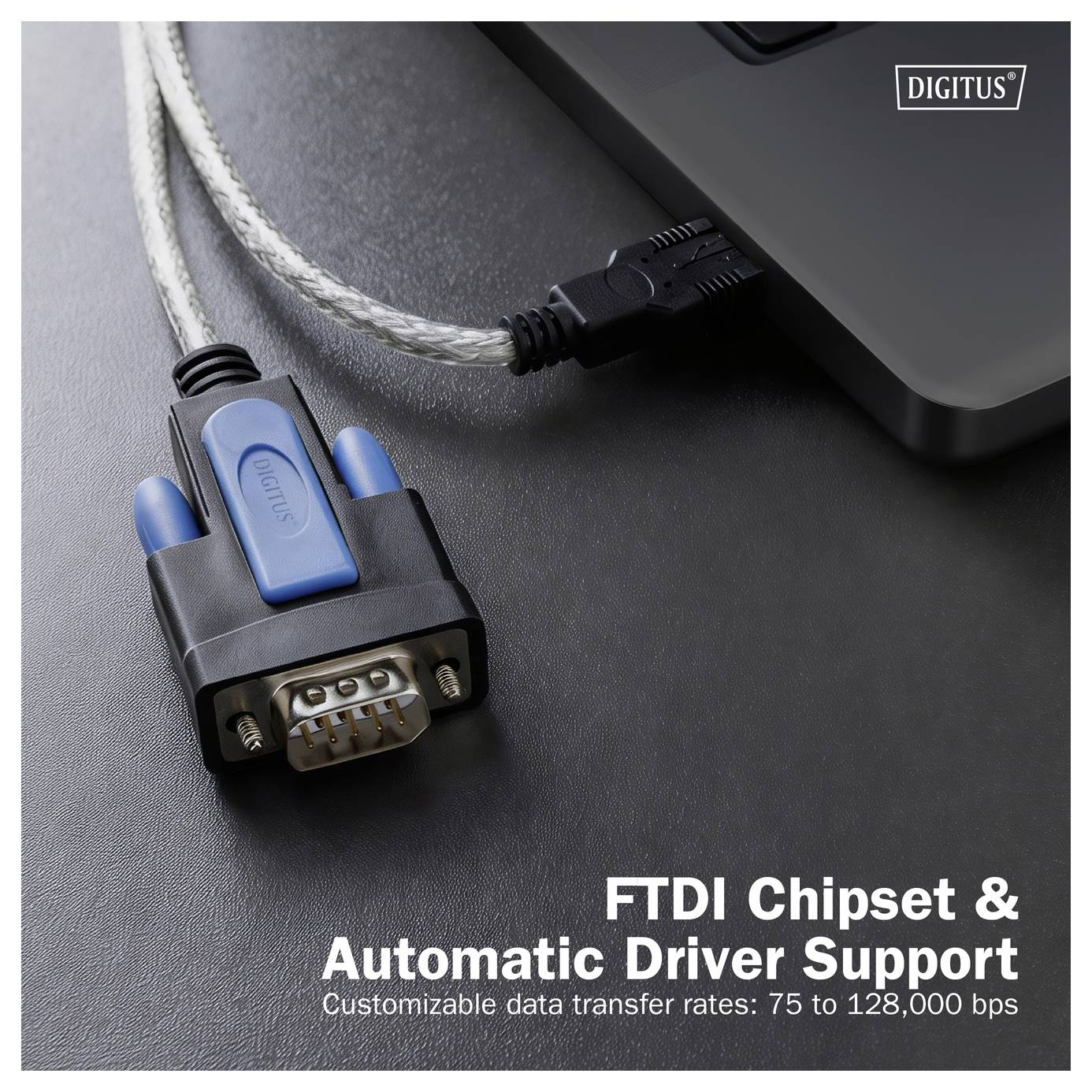

- Stable and seamless serial communication via modern USB ports – ready to use immediately thanks to reliable FTDI chipset and automatic driver support.

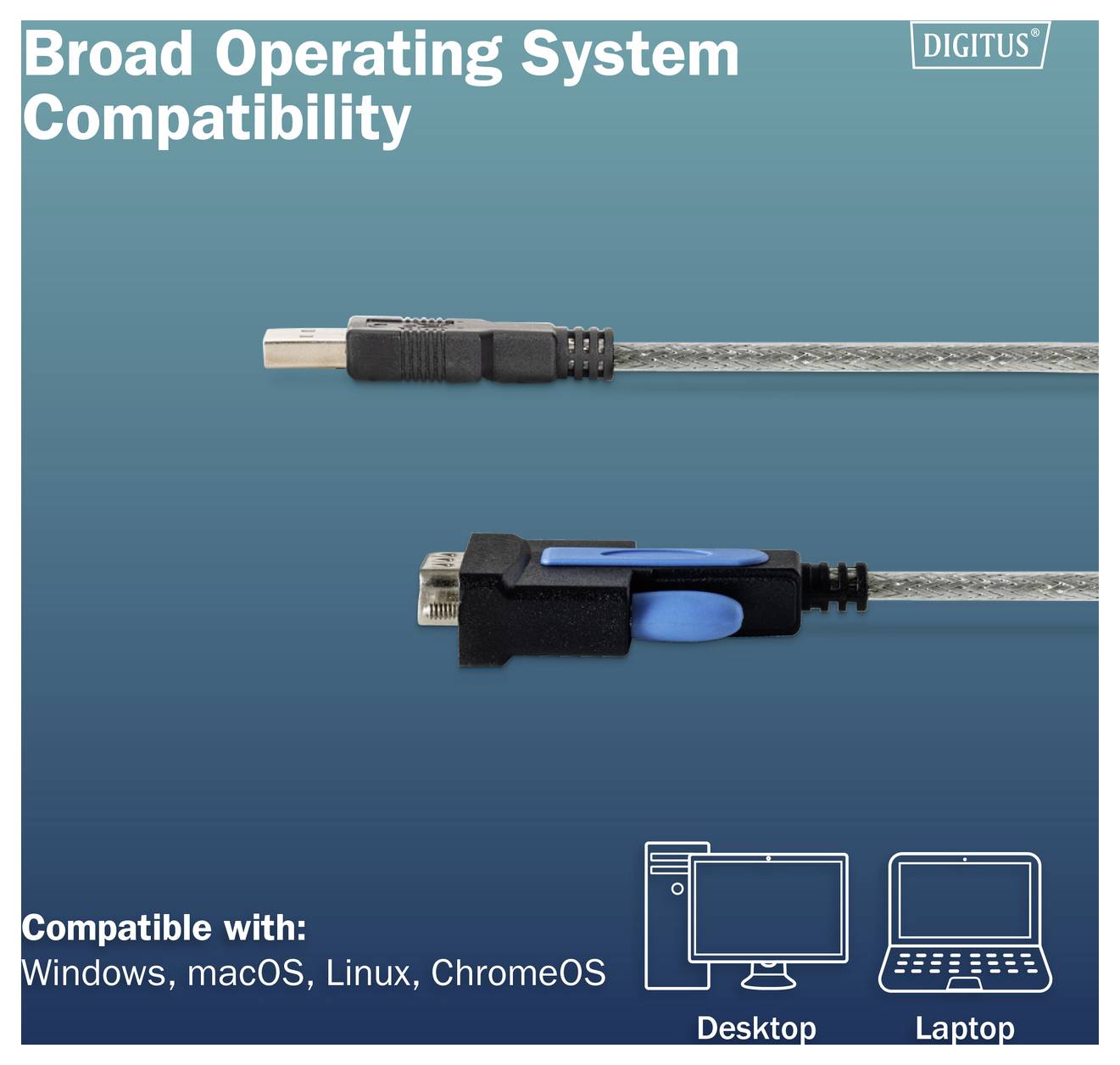

- Wide operating system compatibility: Windows, MacOS, Linux, ChromeOS
- USB 2.0 compliant, backward compatible with USB 1.1
- Adjustable data transfer rates from 75 to 128,000 bps
- RS232 interface via USB-A – simple integration in existing systems

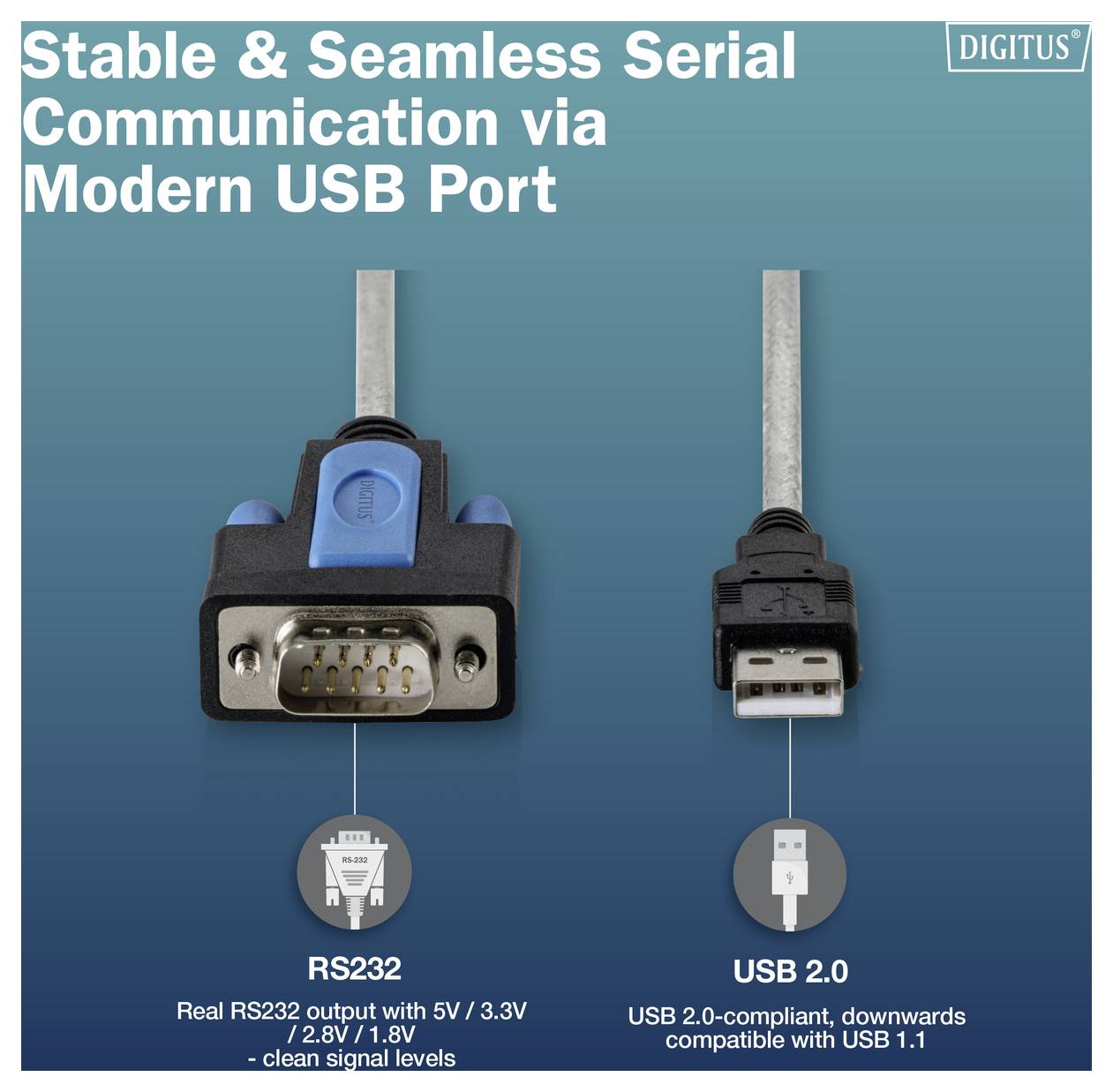

- Real RS232 output with 5V / 3.3V / 2.8V / 1.8V and TTL input - clean signal level
- Gold plated contacts – optimum conductivity and corrosion protection
- Full-duplex communication – send and receive data simultaneously
- COM-Port Retention – automatic port redetection upon restart or re-connection
- Secure screw connection – secure hold for serial devices and peripherals
Technical specifications
- Data transfer rates from 75 bps to 128,000 bps
- Real RS232 output 5 V / 3.3 V / 2.8 V / 1.8 V.

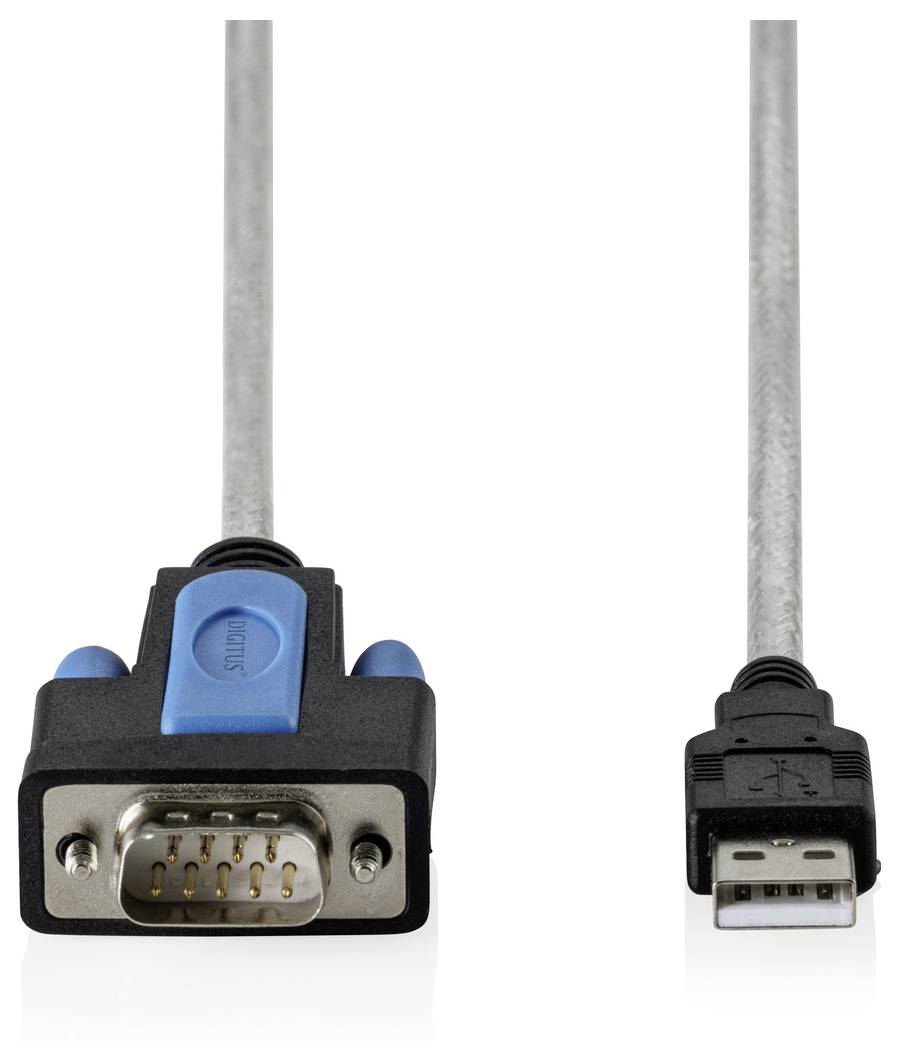

- 1× RS232 DB9 connector on 1× USB A connector
- Product type
USB 2.0
- Connection type
USB
USB 2.0
- No. of A connectors
1 x
- Type A
USB
USB 2.0
USB 2.0 connector A
- No. of B connections
1 x
- Type B
RS232
RS232 plug
- Cable length
180 cm
- Factory colour
Grey
Grey (metal housing)
Black
Light blue
- Connector version
straight
- Cable use
USB 2.0
USB
RS232
- Version
Adapter cable
- Range of use
USB adapters
Copper
- Cable design
Round
- Video transmission possible
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3744561 Digitus USB 2.0, USB, RS232 Adapter cable [1x USB, USB 2.0, USB 2.0 connector A - 1x RS232, RS232 plug] 180 cm
Description
The Digitus® USB 2.0 to RS232 adapter with high-quality FTDI chipset offers a simple and reliable way to connect USB interfaces to serial RS232 devices. Ideal for industrial applications, IT and service applications where serial communication is required – for example With modems, measuring equipment or control systems. The adapter supports a number of operating systems with driver installation and convinces through a robust design with gold-plated contacts. A USB extension of 180 cm is included in the delivery and provides for a flexible structure.
This text is machine translated.
This text is machine translated.
Features
- USB 2.0 to RS232 (DB9 plug) adapter cable

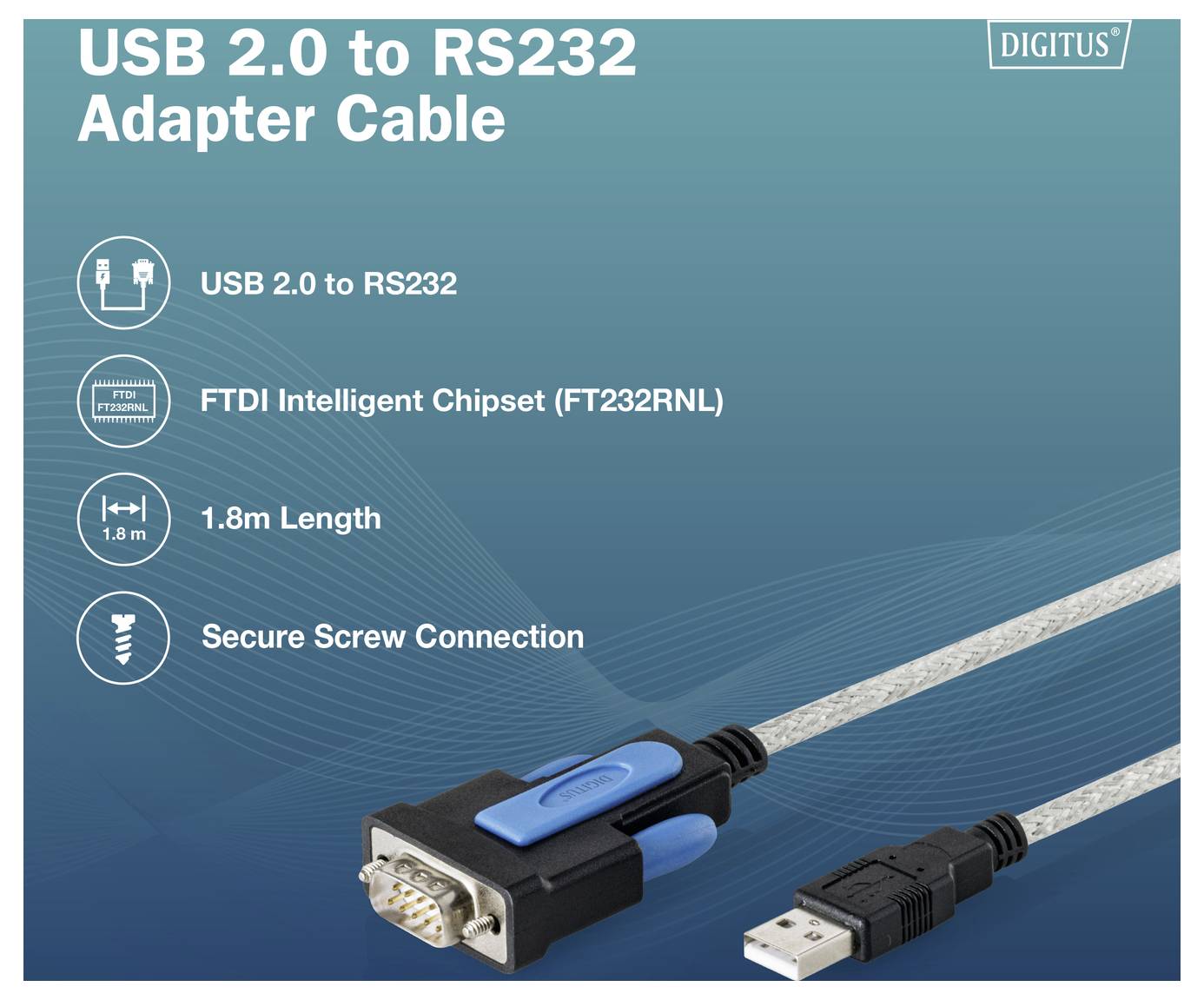

- Chipset: FTDI / FT232RNL.
- Full duplex interface
- Supports remote wake-up and power management
- Compatible operating systems: Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP, MacOS X, Linux, ChromeOS
- Automatic driver installation for Windows 7+, MacOS 10.15+ and Linux
- Mounting with pre-assembled screws or nuts
- COM-Port-Retention ensures constant port allocation
