Digitus USB 2.0, USB, RS232 Adapter cable [1x USB, USB 2.0, USB 2.0 connector A - 1x RS232, RS232 plug] 180 cm
EAN:
Part number:
Item no:

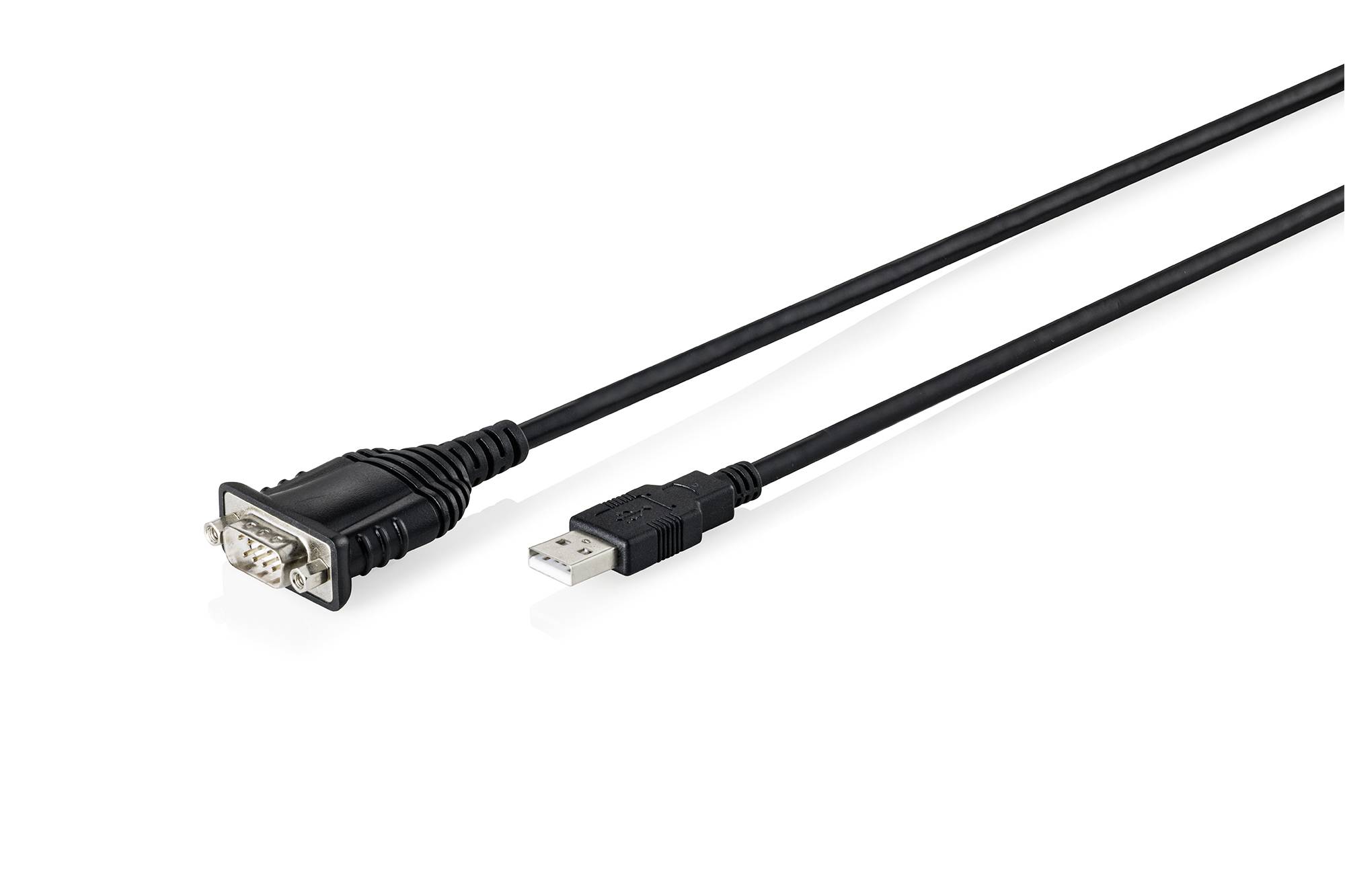

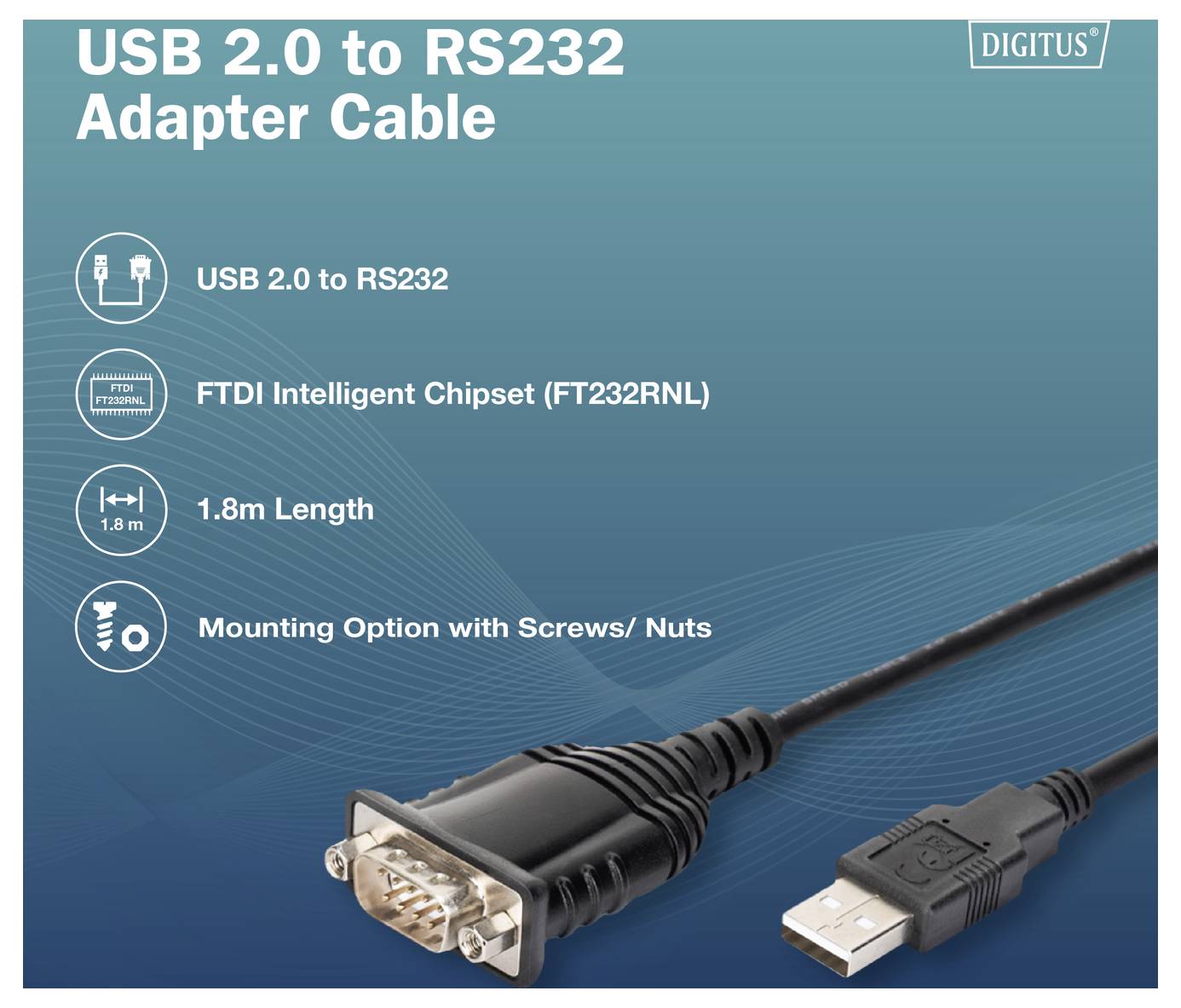

Digitus USB 2.0 to RS232 adapter cable, 1.8 m, integrated FTDI FT232RNL-chipset
Highlights & Details
- FTDI FT232RNL Chipset - Optimized for fast, industrial USB-to-serial conversion

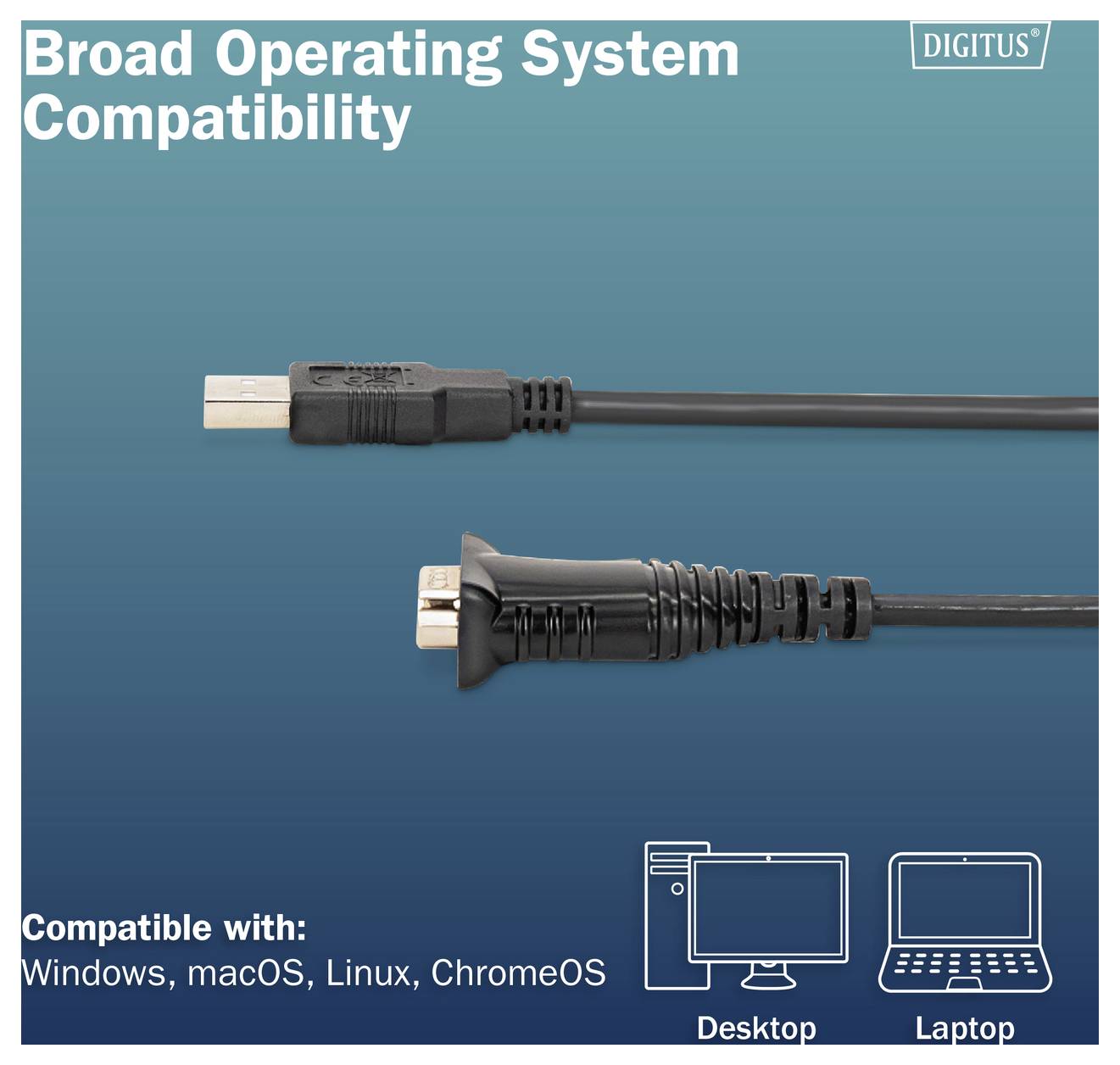

- Cross-platform support: Windows, MacOS, Linux, ChromeOS
- Automatic driver installation under Windows 7+, MacOS 10.15+ and Linux
- Supports USB 2.0, backward compatible with USB 1.1
- Flexible baud rates of 75 – 128,000 bps for individual configurations
- Real voltage level: RS232 output with 5V, 3.3V, 2.8V, 1.8V

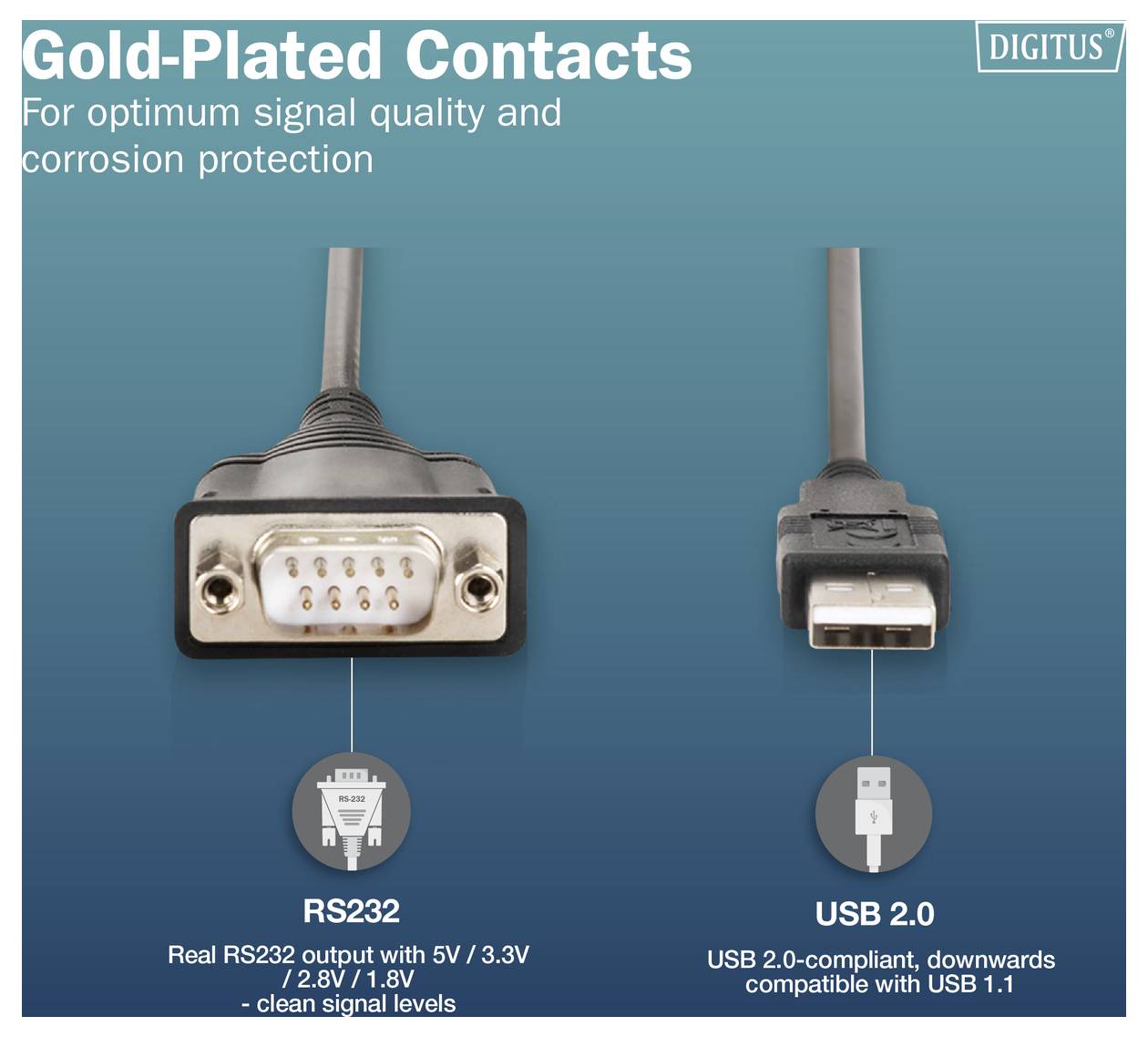

- Gold plated contacts – for optimal signal quality and corrosion protection
- Full-duplex communication – simultaneous sending and receiving

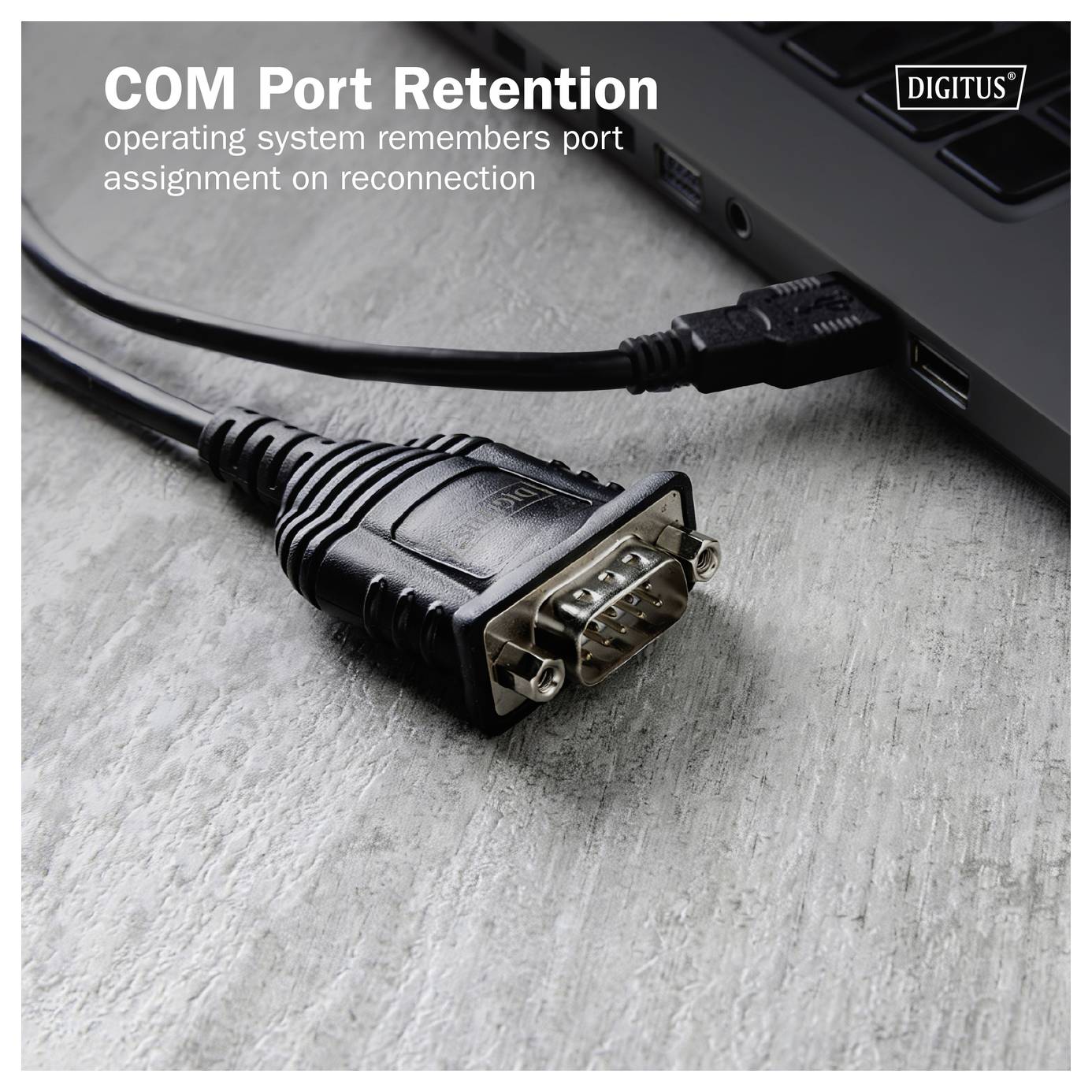

- COM Port Retention — OS remembers port allocation when reconnection occurs
- Mounting option with screws/nuts – for secure fastening on serial devices
Technical specifications
- Adjustable data rates from 75 to 128,000 bps
- Real RS232-output level 5 V / 3.3 V / 2.8 V / 1.8 V.

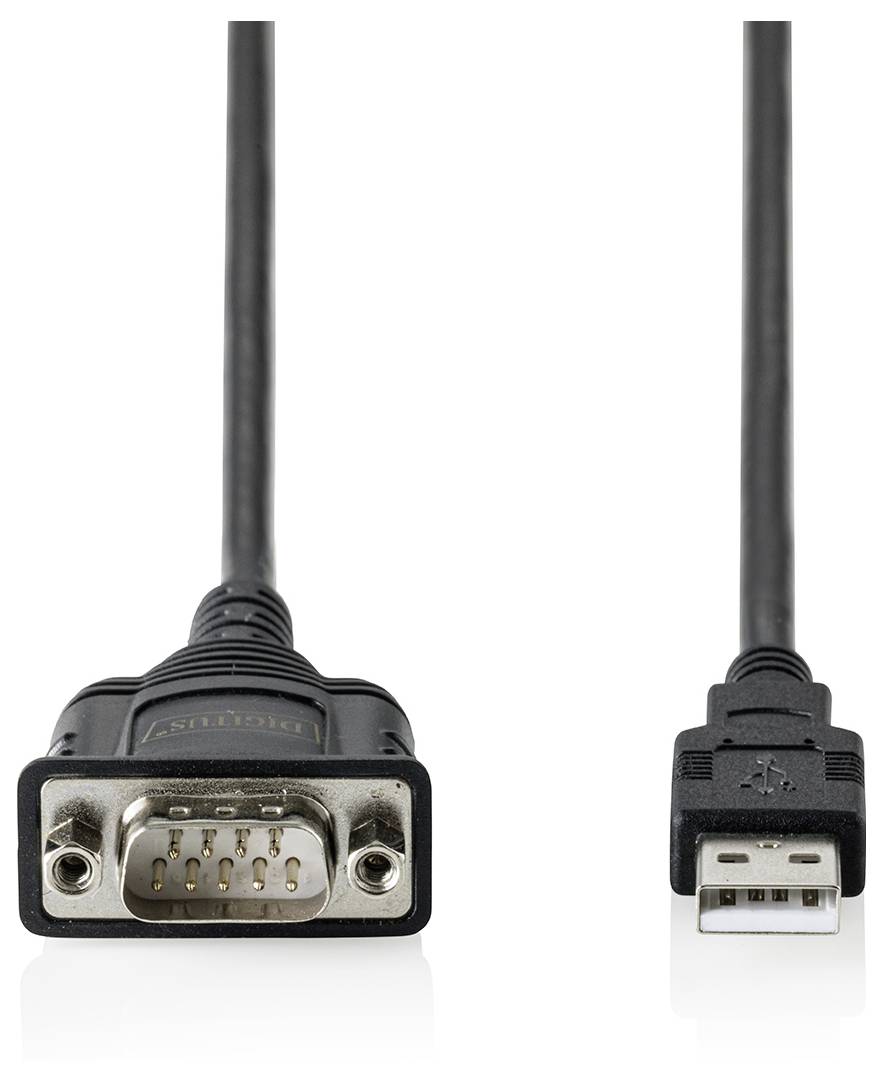

- 1x RS232 DB9 connector (9-pin sub-D)
- 1x USB-A plug
- Product type
USB 2.0
- Connection type
USB
USB 2.0
- No. of A connectors
1 x
- Type A
USB
USB 2.0
USB 2.0 connector A
- No. of B connections
1 x
- Type B
RS232
RS232 plug
- Cable length
180 cm
- Factory colour
Black
- Connector version
straight
- Cable use
USB 2.0
USB
RS232
- Version
Adapter cable
- Range of use
USB adapters
Copper
- Cable design
Round
- Video transmission possible
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3744563 Digitus USB 2.0, USB, RS232 Adapter cable [1x USB, USB 2.0, USB 2.0 connector A - 1x RS232, RS232 plug] 180 cm
Description
The Digitus® USB 2.0 to RS232 adapter cable with a powerful FTDI FT232RNL chipset offers a reliable solution for connecting older RS232 serial devices with modern computers via USB. It supports a variety of operating systems, including Windows, MacOS and Linux (with driver installation). Designed for industrial and IT applications, the adapter enables robust and full duplex-capable data transfer at variable speeds. Gold-plated contacts and LED status indicators ensure long life and clear signal transmission. A 180 cm long USB extension cable is included in delivery, which enables a flexible installation.
This text is machine translated.
This text is machine translated.
Features
- USB 2.0 to RS232 adapter cable (DB9 plug)
- FTDI FT232RNL chipset
- Full-duplex communication
- Supports remote wake-up and USB power management
- Compatible operating systems: Windows 11 / 10 / 8.1 / 8 / 7 / Vista / XP, MacOS X, Linux, ChromeOS
- Mounting: Screw/nut mechanism for stable mounting
- COM port retention function – constant COM port assignment
