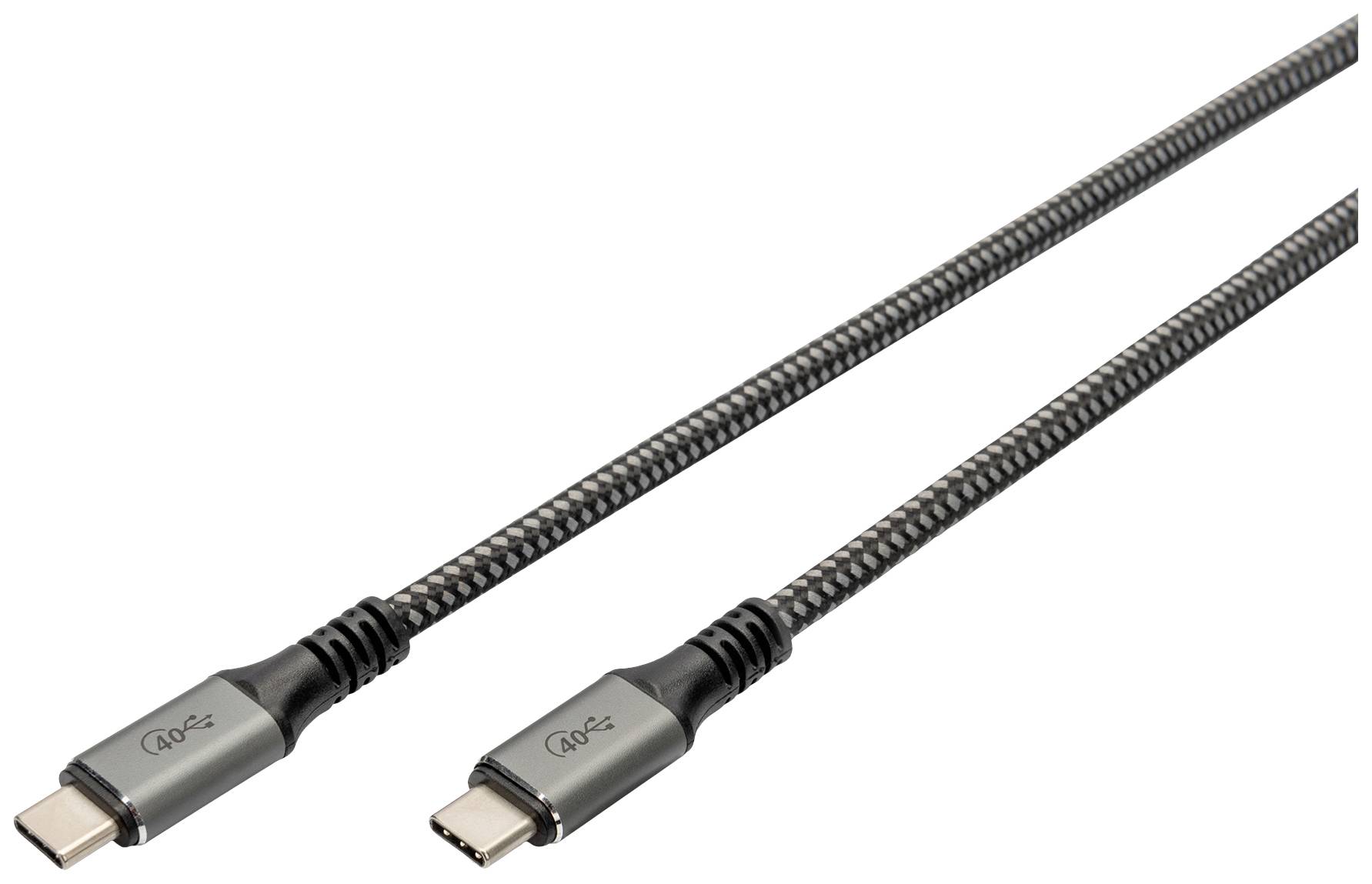

Digitus USB-C cable USB4™ USB-C® plug 3.00 m Black Braided shield, Shielded, tearproof, Round, 8K UHD DB-300443-030-S
EAN:
Part number:
Item no:
Product type
USB-C cable
Cable specs
USB4™
Version
Deluxe cable
Connection type
USB-C® to USB-C®
Connections
USB-C® plug
Digitus USB 4.0 type-C connection cable 3M
Highlights & Details
- Supports data transfer rates up to 40 Gbit/s.
- Supports USB Power delivery revision 3.0 (PD 3.0) with 20V, 5A and 100W
- Backward compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0
Technical specifications
- Supports 8K (7680x4320) @60Hz.
- Supports 5K (5120 x 2880) @60Hz.
- Supports 4K (3840 x 2160) @60Hz. (Dual possible)
- Supports data transfer rates up to 40 Gbit/s.
- Backward compatible with Thunderbolt 3, USB 3.2, USB 3.1 and USB 2.0
- Supports USB Power delivery revision 3.0 (PD 3.0) with 20V, 5A and 100W
- Wires: CU

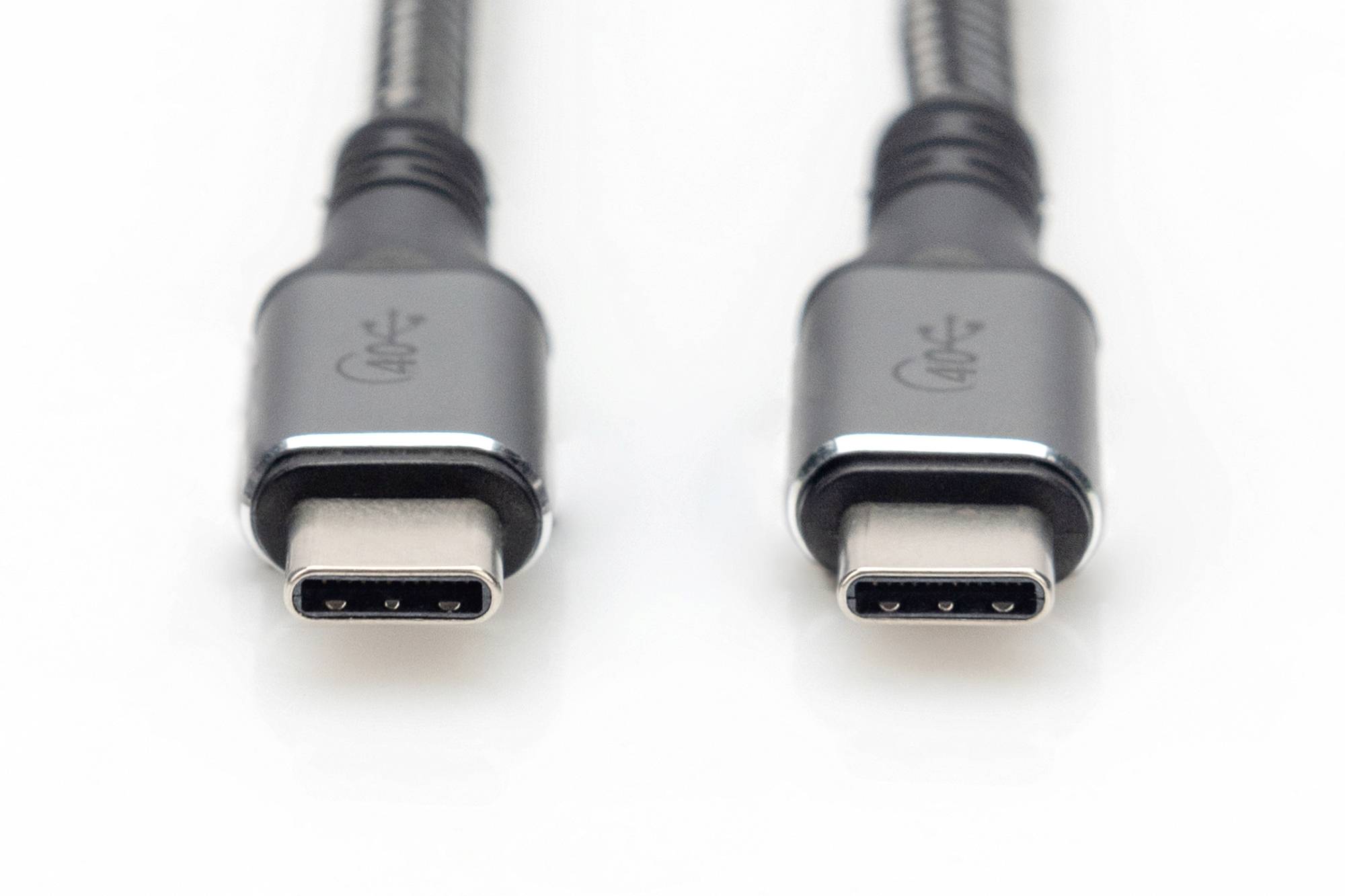

- Connection 1: USB Type C connector
- Connection 2: USB Type C connector
- Dimensions of plug 1: 6.65*2.4mm
- Dimensions of plug 2: 6.65*2.4mm
- Colour of connections: Black
- Contact surface: Gold-plated
- NUMBER of PINS: 22
- Hood: Cast
- Cable outer material: PP
- Connector housing: Aluminium
- Cable outside diameter 5.0 mm
- Tensile strength 4 kg/min
- AWG 30
- Bending radius 60
- Colour of cable: Black
- Shielding: Double shielded
- USB-C product: Yes
- Total weight: 45g
- Manufacturer information:
- If you are connecting a USB-C monitor/TV/projector to a PC equipped with USB type C, please ensure that your USB-C display supports DisplayPort signal output.
- The video output capability depends on your laptop's graphics card and the connected monitor. Some screens also limit the available resolution.
- To use a dual 4K output, the USB 4 device must support the PD3.0 protocol
- Connection 1: USB C, connector
- Connection 2: USB C, connector
- Colour of cable: Black
- Ferrite filter: None
- Contact surface: Gold-plated
- USB standard: USB Type-C
- Length: 3 m
- Shielding: Double shielded
- Product type
USB-C cable
- Cable specs
USB4™
- Version
Deluxe cable
- Connection type
USB-C® to USB-C®
- Connections
USB-C® plug
- Factory colour
Black
- Cable length
3.00 m
- Signal flow
Bidirectional (A↔B)
- Shielding
Braid shielding
- Cable features
Braided shield
Shielded
tearproof
Round
8K UHD
30
- Cable design
Round
- Connector version
straight
Copper
- Transfer rate (max.)
20 GBit/s
- Max. power
60 W @ 20 V / 3.0 A
- Connection type
USB-C®
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2997789 Digitus USB-C cable USB4™ USB-C® plug 3.00 m Black Braided shield, Shielded, tearproof, Round, 8K UHD DB-300443-030-S
Description
The Digitus® USB 4.0 cable of the 3. The all-rounder among the cables is the generation with aluminum housing Thanks to the Thunderbolt 3-protocol the PCI Express, DisplayPort and host-to-host transmissions can be realized. With this cable you can transmit audio / video signals, data as well as power. The data transfer rate is 40 Gbit/s, thus the transfer speed is 8x faster than USB 3.0 (5Gbit/s), 4x faster than USB 3.1 (10 Gbit/s) and 2x faster than USB 3.2 (20Gbit/s). In this way, you can transfer large data like films and music within seconds. The video signals are transferred in max. 8K with a refresh rate of 60 Hz. transferred. In addition, resolutions 5K (5120 x 2880) is listed at 60 Hz. And 4K (3840 x 2160) @60Hz. (Dual mode possible). The USB Power delivery version 3.0 ensures the fast charging function. With suitable charger, you can charge your smart devices with max. 100 W (5 A / 20 V) in a short time. The USB-C interface enables a broad compatibility to devices with this connection.
This text is machine translated.
This text is machine translated.
Features
- Supports DisplayPort (2.0) video/audio signals and PCI Express
- Video/audio support up to 8K (7680 × 4320 pixels at 60Hz)
- USB IF certified
Scope of delivery
- 1x USB 4.0 Type-C connection cable
