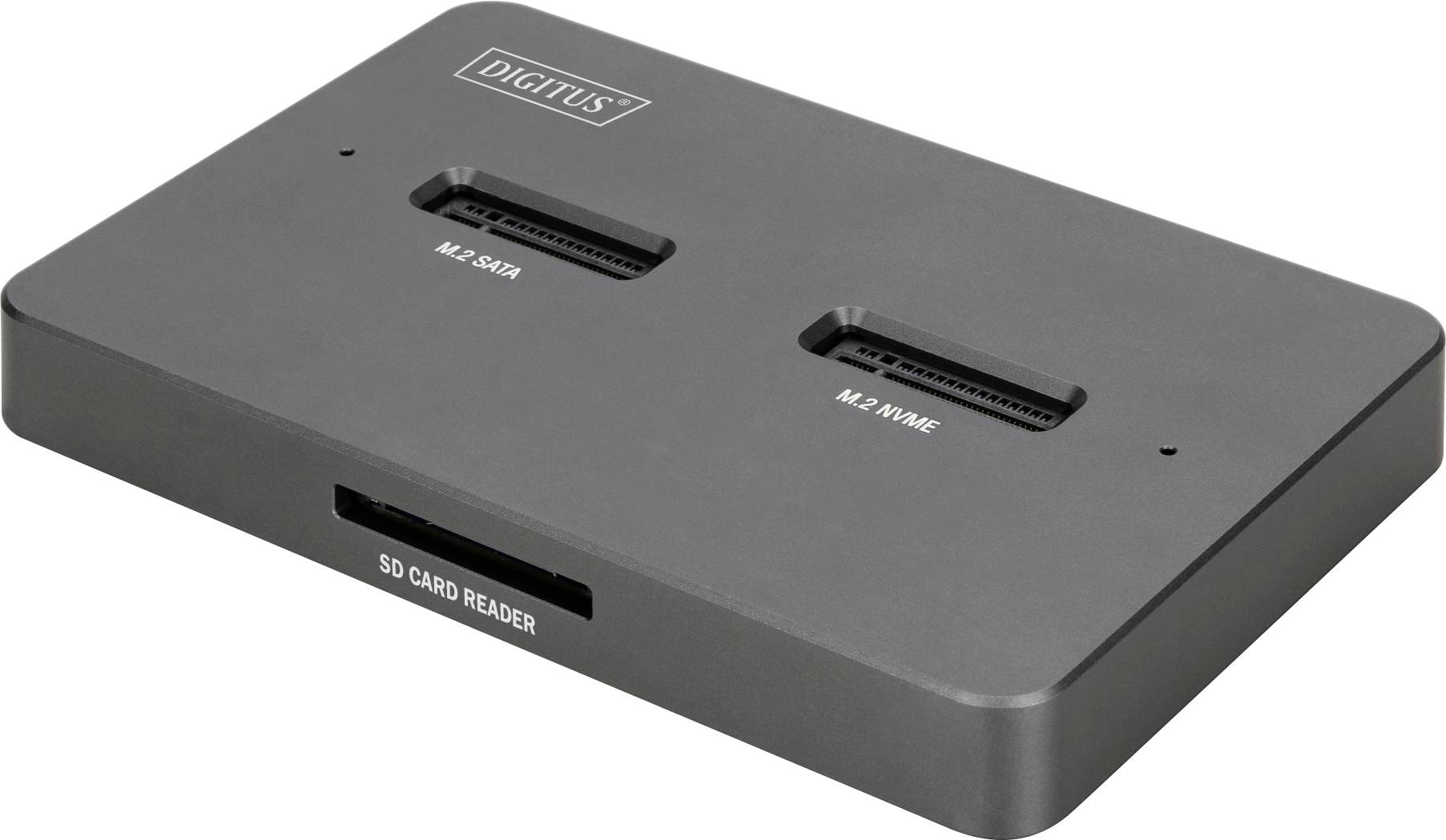

'M.2 SATA' and 'M.2 NVME' slots are visible on a black device labeled 'DIGITUS'. The front features an 'SD Card Reader' slot.

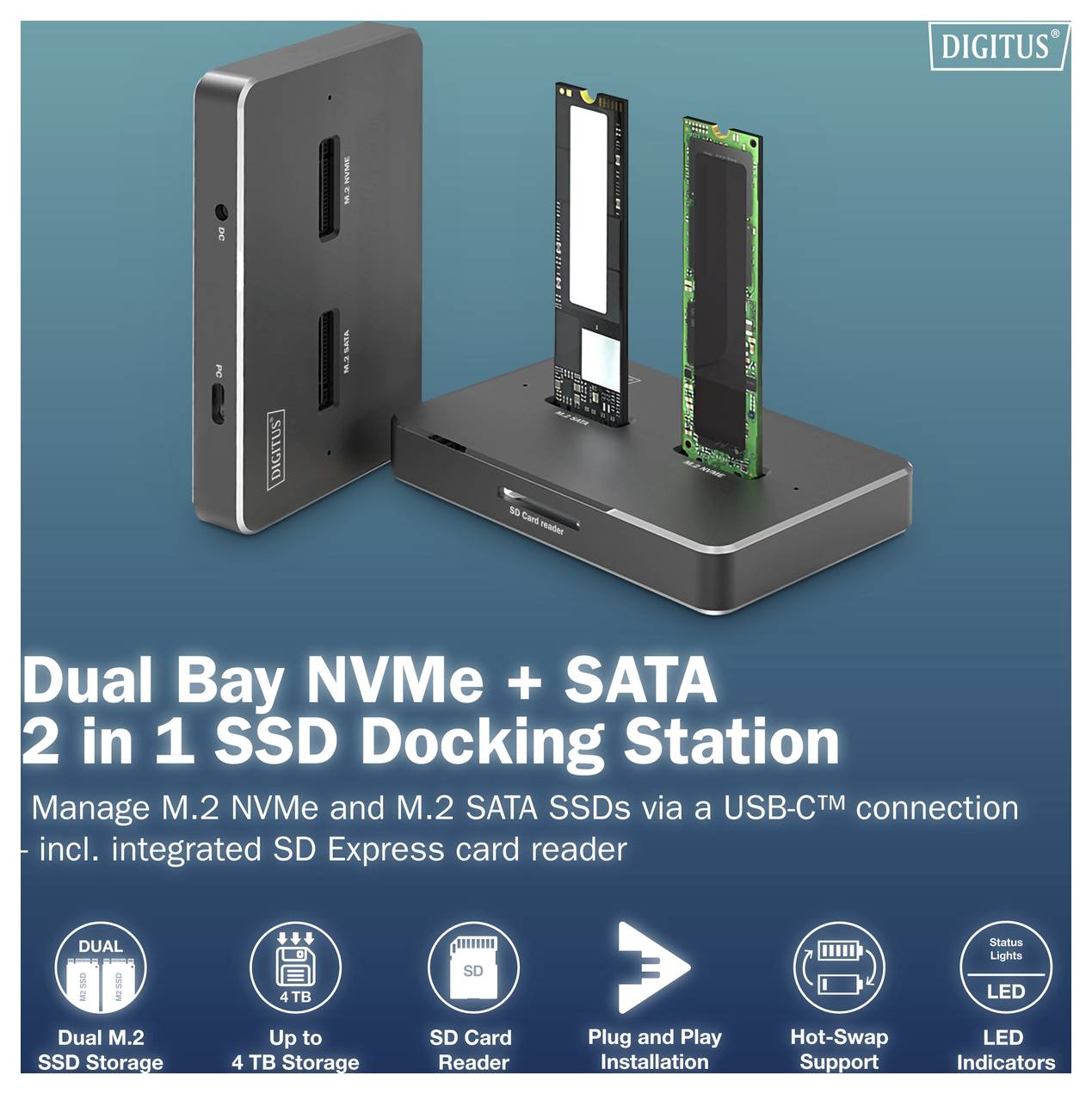

'Dual Bay NVMe + SATA 2 in 1 SSD Docking Station' with USB-C connection, supports dual M.2 SSDs, 4TB storage, SD card, and has LED indicators.

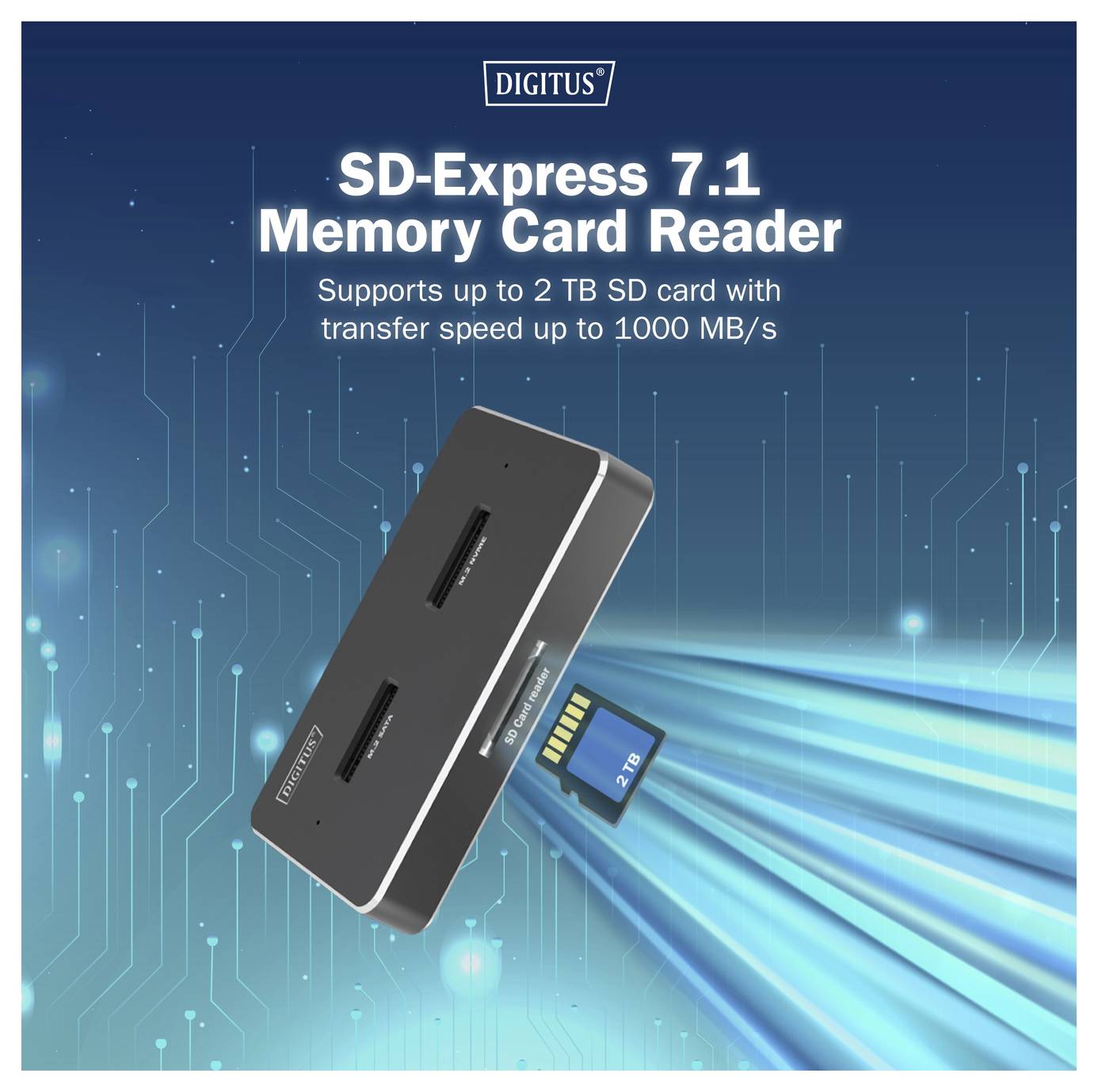

SD-Express 7.1 memory card reader with 2 TB capacity, offers transfer speed up to 1000 MB/s. Featured on blue tech-themed background.

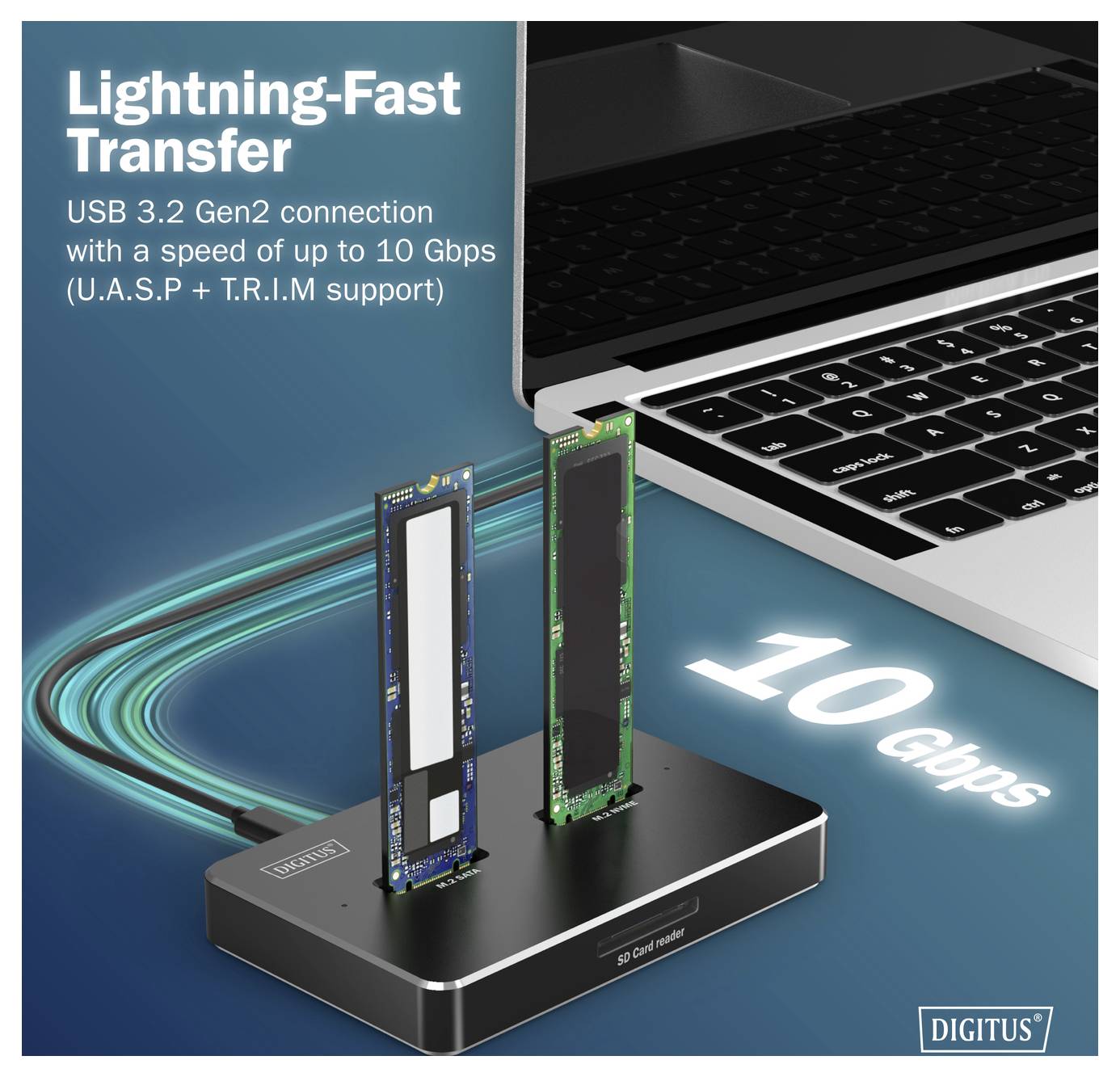

'Lightning-Fast Transfer' shows a USB 3.2 Gen2 10 Gbps connection with a laptop and SSD enclosure, highlighting speed and efficiency.

'Universal Usability' with Digitus storage connectors. Compatible with PCs, notebooks, NAS, smart TVs, gaming consoles, and routers with USB-C.

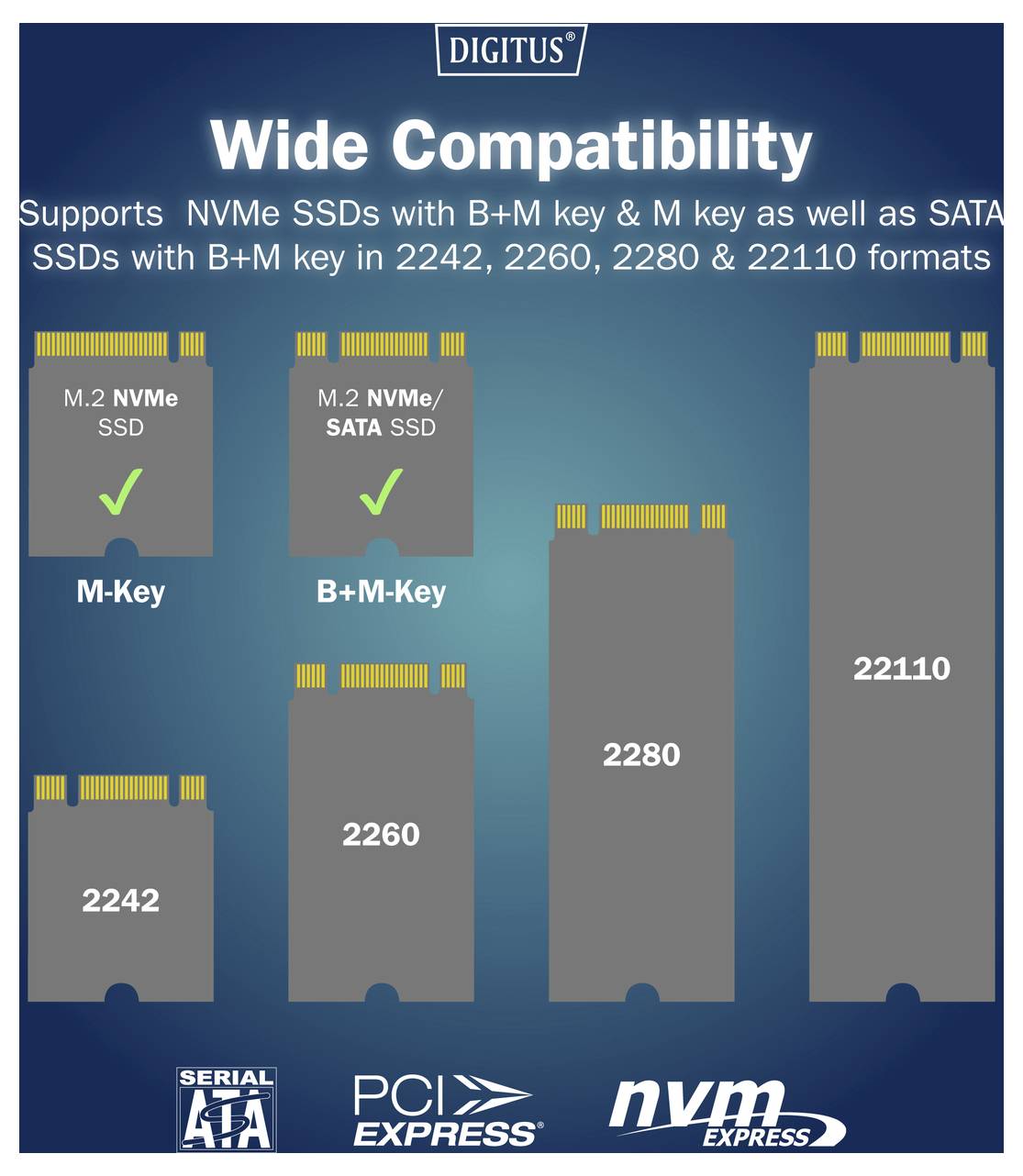

'Wide Compatibility' infographic showing SSD support for M and B+M key types in 2242, 2260, 2280, and 22110 formats.

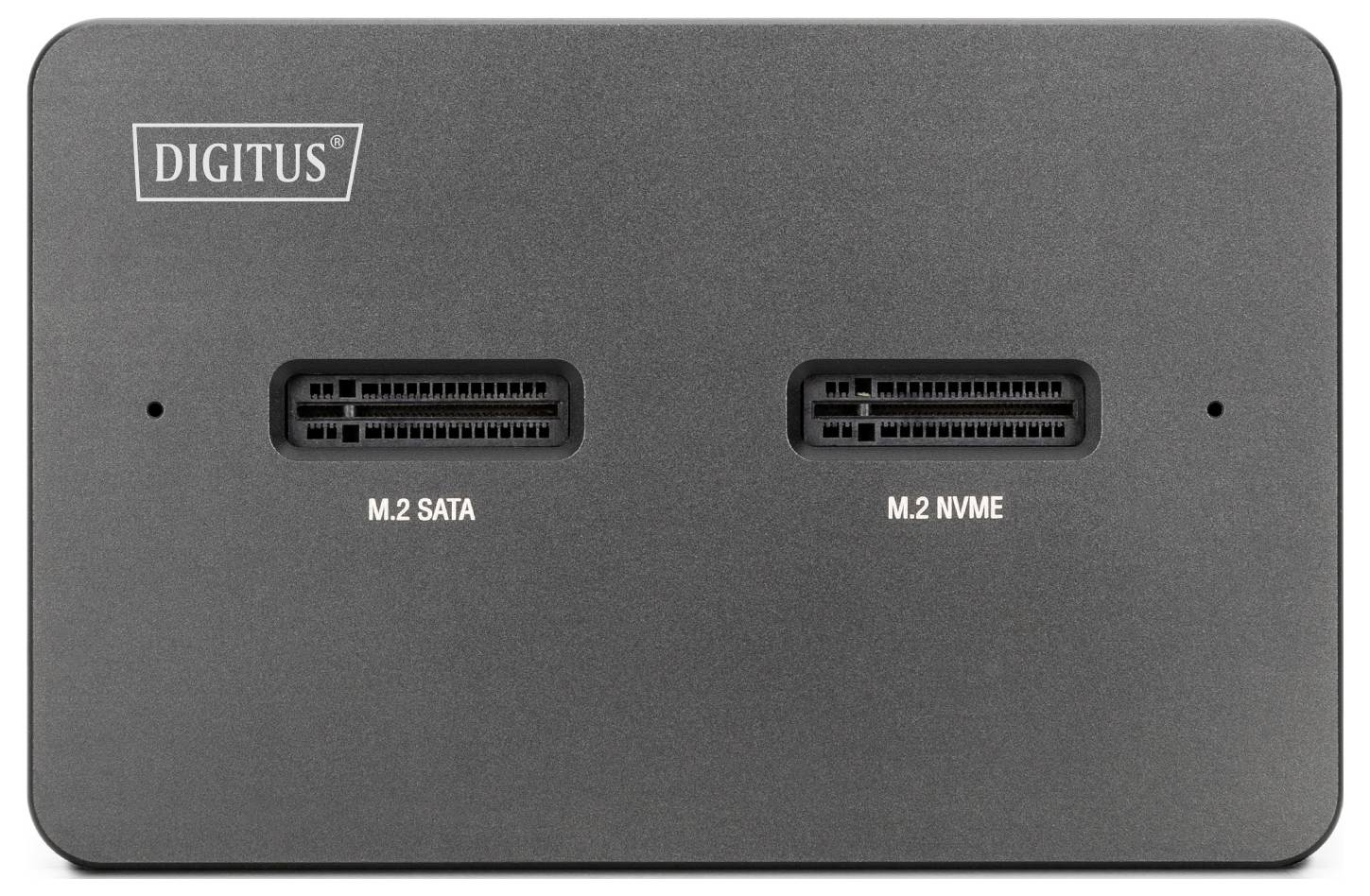

'Digitus' dual M.2 SSD docking station with ports labeled 'M.2 SATA' and 'M.2 NVME', designed for SSD data transfer and storage expansion.

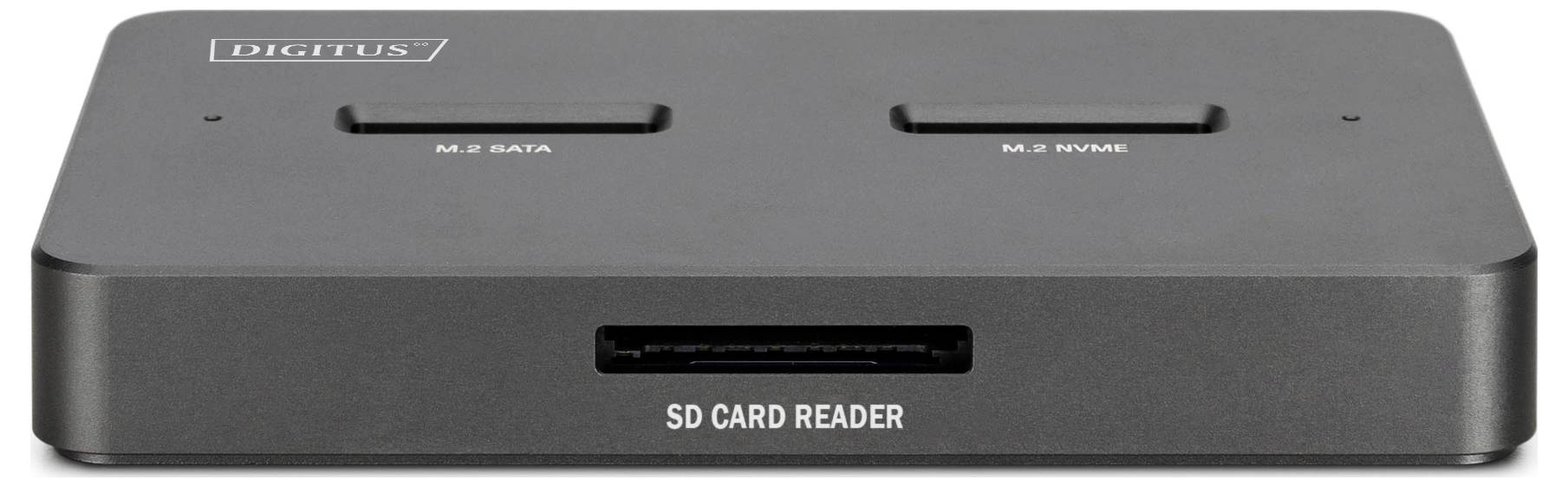

'Digitus' branded device with slots labeled 'M.2 SATA', 'M.2 NVME', and 'SD CARD READER', used for reading storage cards.

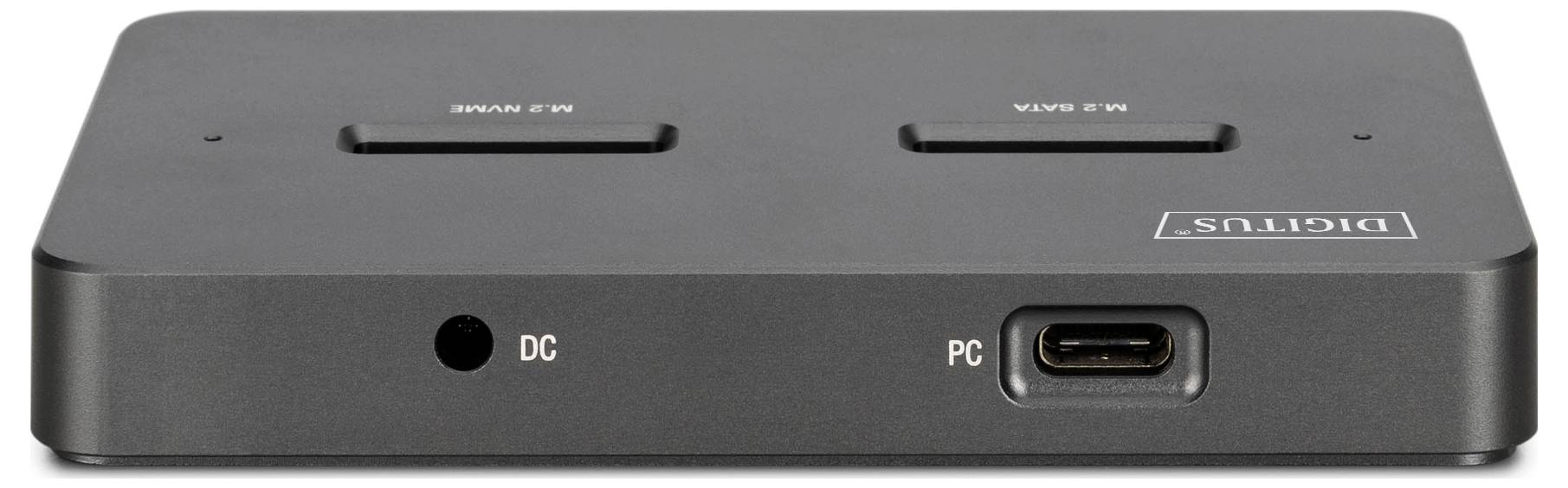

'Digitus' branded device with USB-C port labeled 'PC' and a power input labeled 'DC'.

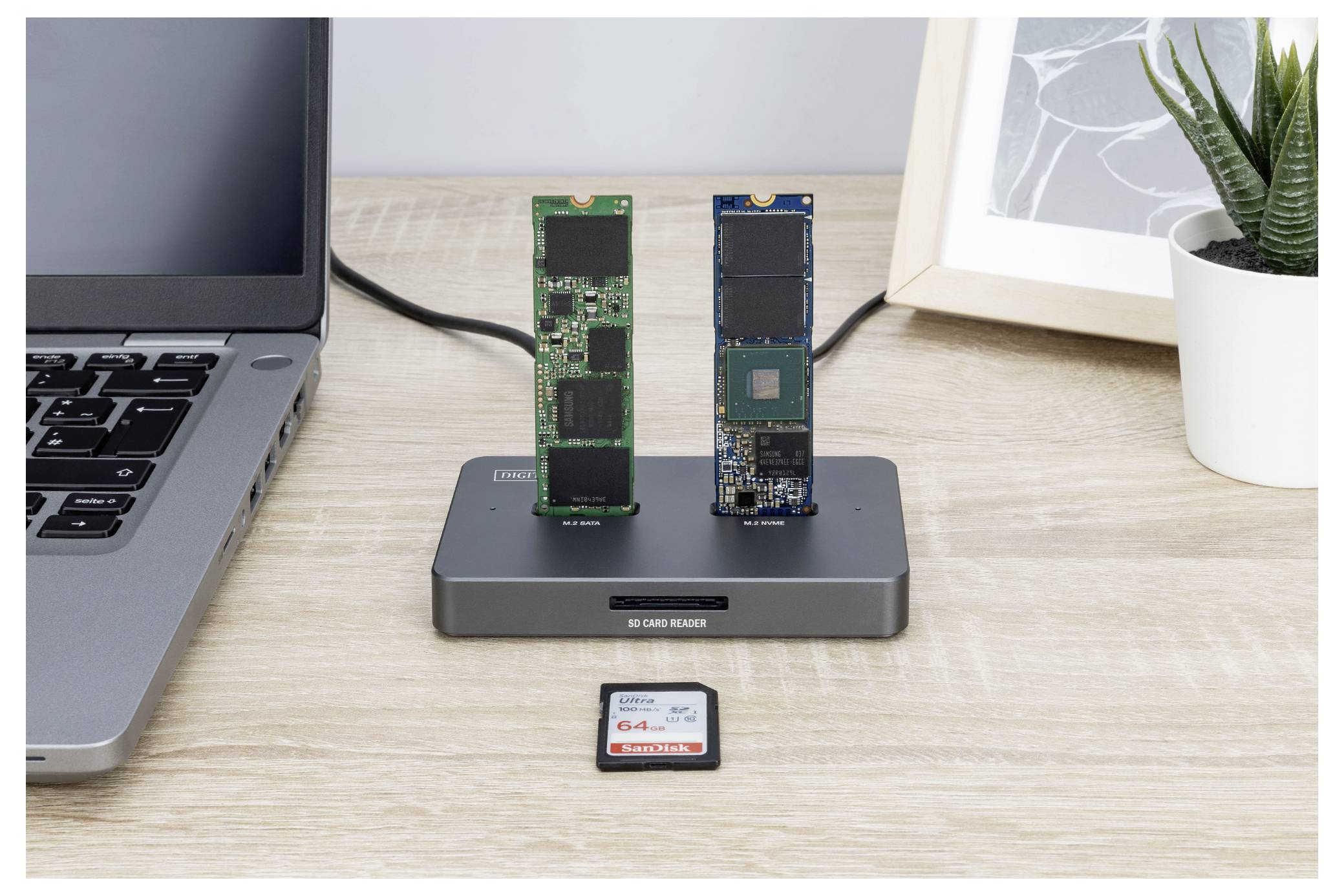

Laptop connected to a dual M.2 SSD docking station with two SSDs inserted, a framed picture, and a potted plant in the background.

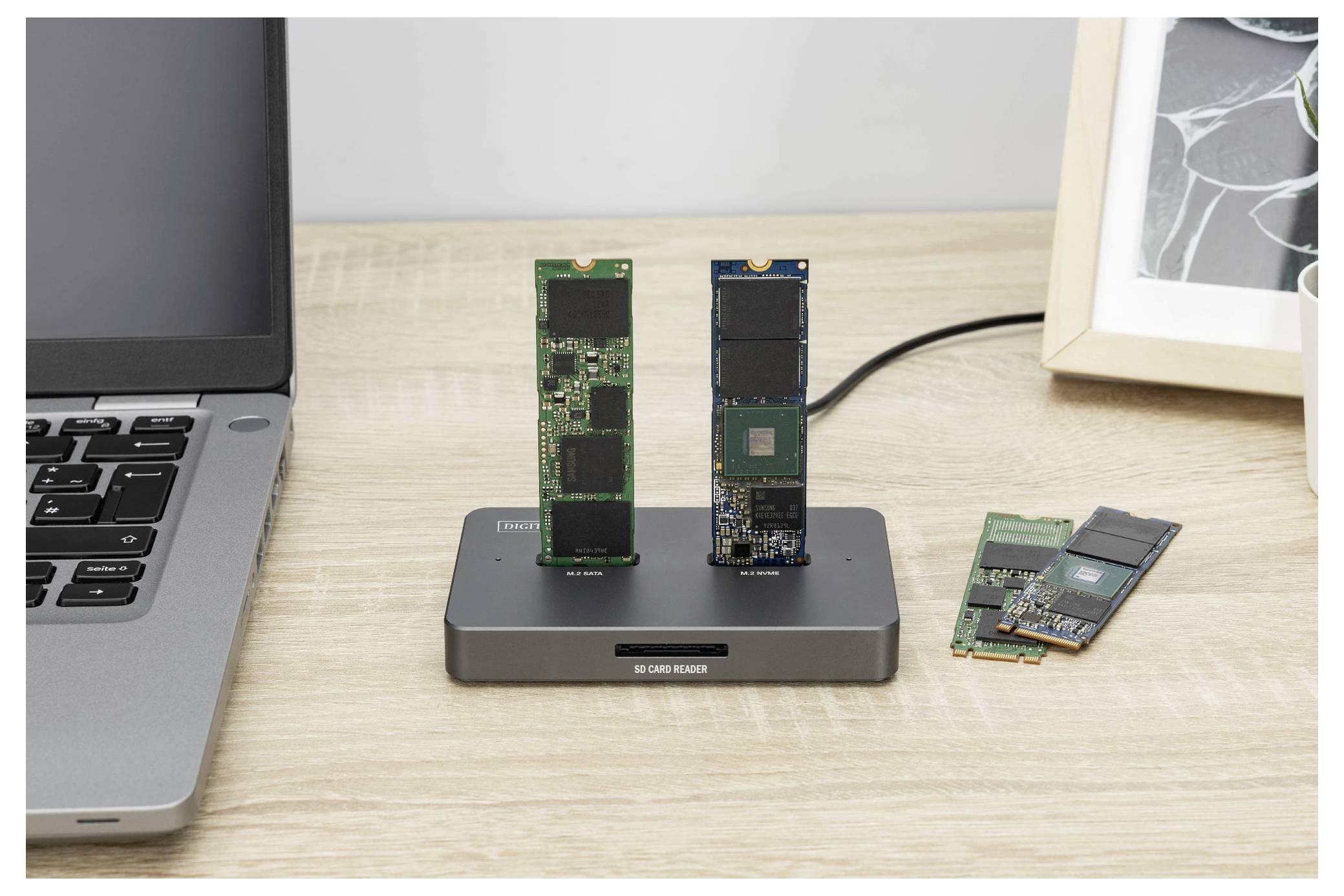

A docking station holds two NVMe SSDs upright; a laptop is on the left and a framed photo is partially visible on the right.

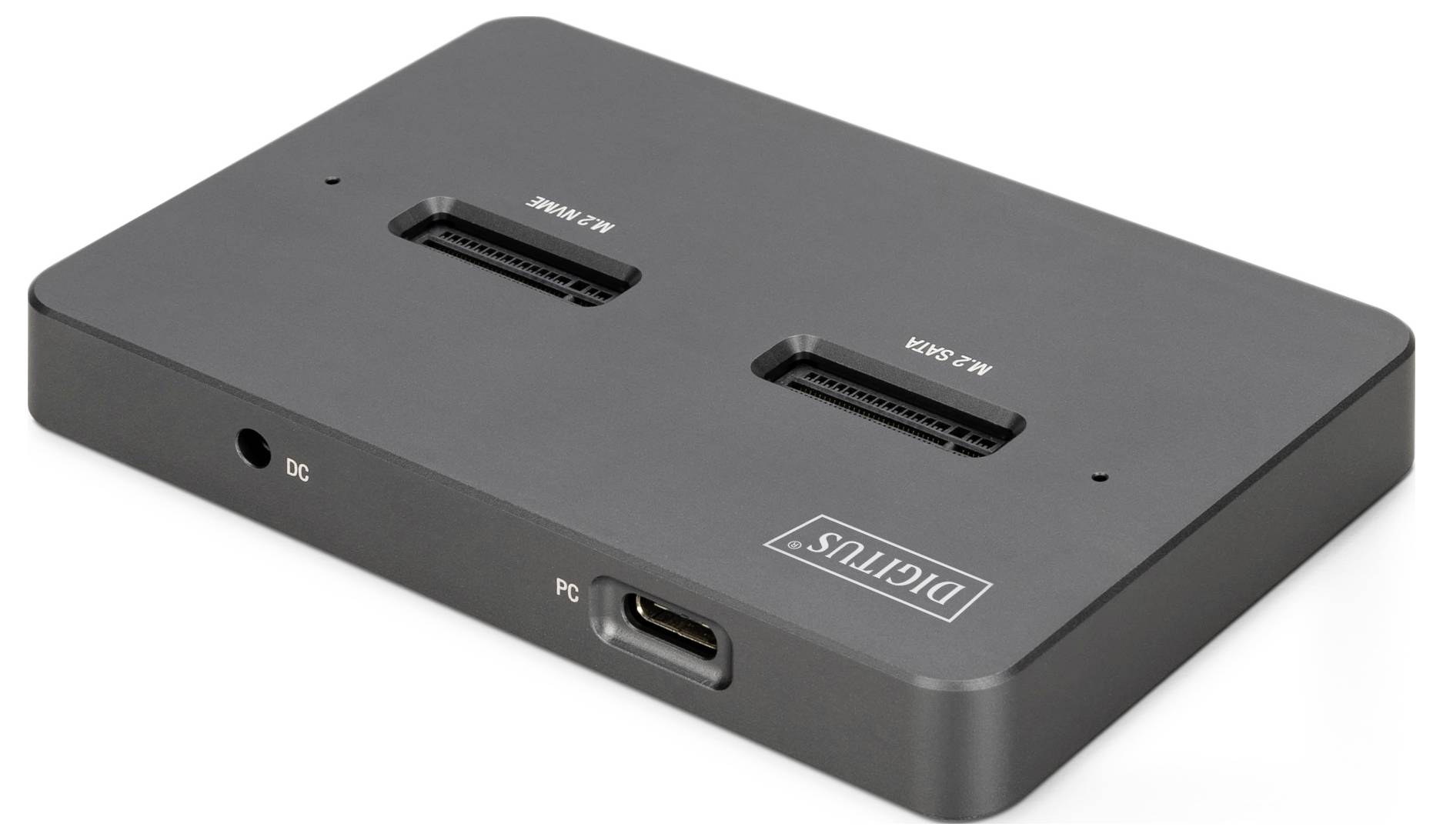

'M.2 SSD docking station with two slots labeled M2 NVME and M2 SATA, featuring USB-C and DC power ports, branded Digitus.'

1/12

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Digitus DA-71546-1 USB-C® docking station

Highlights & Details

Connection A (or inputs): SATA, SD, SD Card slot
Connecton B (or outputs): 1x USB-C®
No. of supported monitors:
Maximum resolution:
Key features:

Technical specifications

1 x M.2 slot for NVMe SSD (B+M-Key / M-Key)
1 x M.2 slot for SATA SSDs (B+M key)
Capacity: Max. 4 TB per bay
1 x SD-Express 7.1 memory card reader 2 TB max. / 1000 MB/s max.
Supported formats 2242, 2260, 2280 & 22110
USB-C™ connections: 1 x data USB-C™ 3.2 Gen2, 1 x power supply USB-C™ socket
Maximum transfer rate USB-C™: 10 Gbps
Input voltage USB power supply 100 -240 V AC 50/60 Hz

Product type: USB-C® docking station

Type A: SATA
SD
SD Card slot

Type B: 1x USB-C®

Factory colour: Black

Weight: 0.35 kg

Version: Cable

Keyboard layout: German, QWERTZ

Cable use: PC

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3629841 Digitus USB-C® docking station Stazione di docking USB-C 3.2 Gen2 per SSD M.2 Duo NVMe e SATA (max. 2x 4 TB) co

Description

The Digitus® 3-in-1 docking station can accommodate M.2 SSDs in NVMe or SATA technology, plus an SD-Express 7.1 card reader with the highest data transfer rates on board. Manage M.2 disk with up to 4 TB per slot and additional SD cards up to 2 TB. The support of the NVMe SSD with B+M key as well as SATA SSDs with B+M key is given in 2242, 2260, 2280 & 22110 formats. Easily expand the storage capacity of a wide range of USB-C™ devices such as PCs, laptops, TVs, games consoles, or routers.

This text is machine translated.

Features

USB 2.0 / 3.0 backwards compatibility
Supports U.A.S.P and T.R.I.M.
Supports hot swap (plug in and eject during operation)
LED indicators for hard disk transfer (white), SD transfer (blue) & Power (green)
Applications: PC, laptop, TV, router or game consoles (with USB-C™ connection)
STORAGE FORMATS NTFS, FAT, FAT32
