Digitus USB-C® screen cable USB 3.2 2nd Gen USB-C®, USB-C® plug 20.00 m Black Flexible, Shielded, incl. USB AK-330160-20
EAN:
Part number:
Item no:
Product type
USB-C® screen cable
Cable specs
USB 3.2 2nd Gen
Version
Cable
Connection type
USB-C® to USB-C®
Connections
USB-C®
USB-C® plug

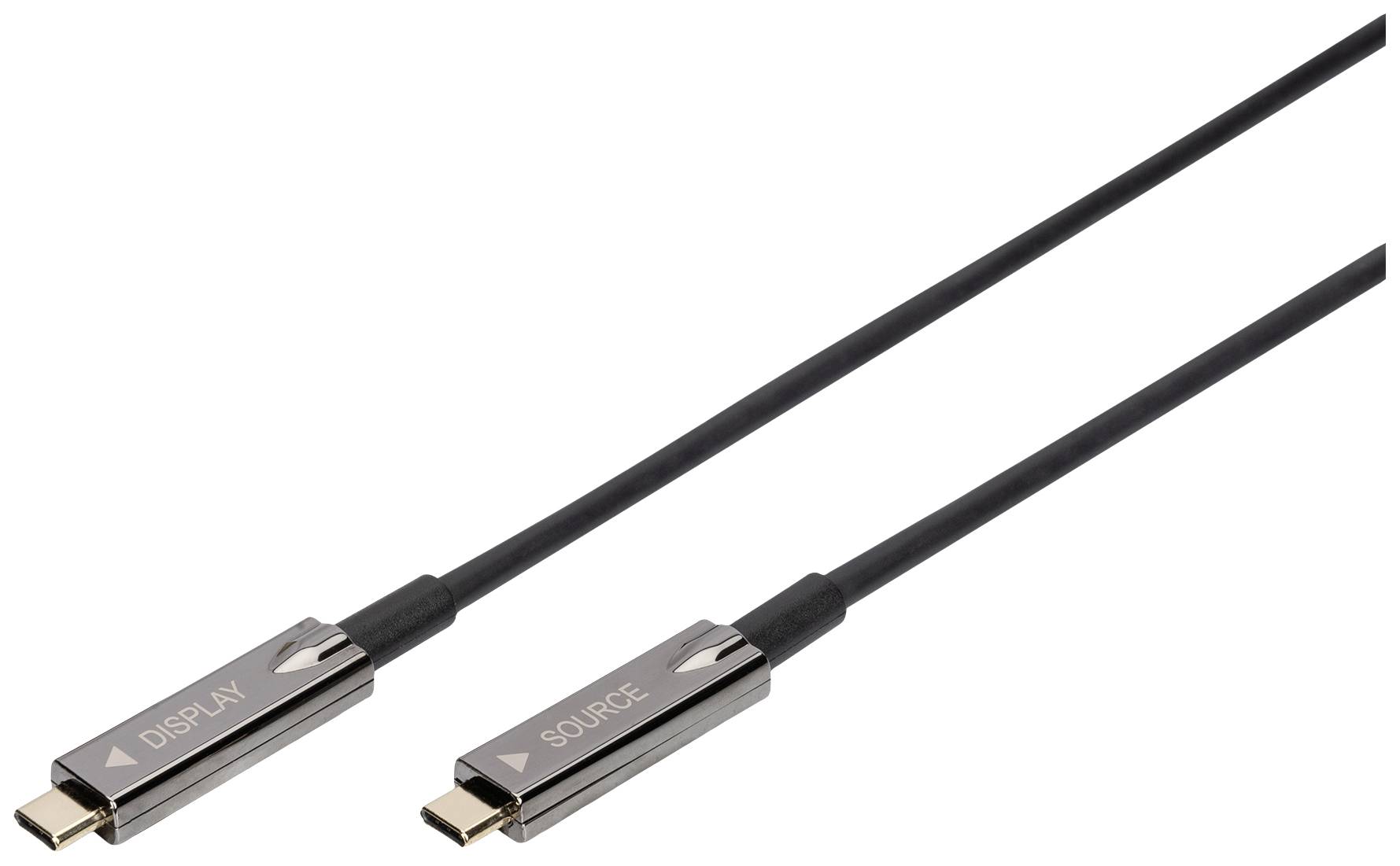

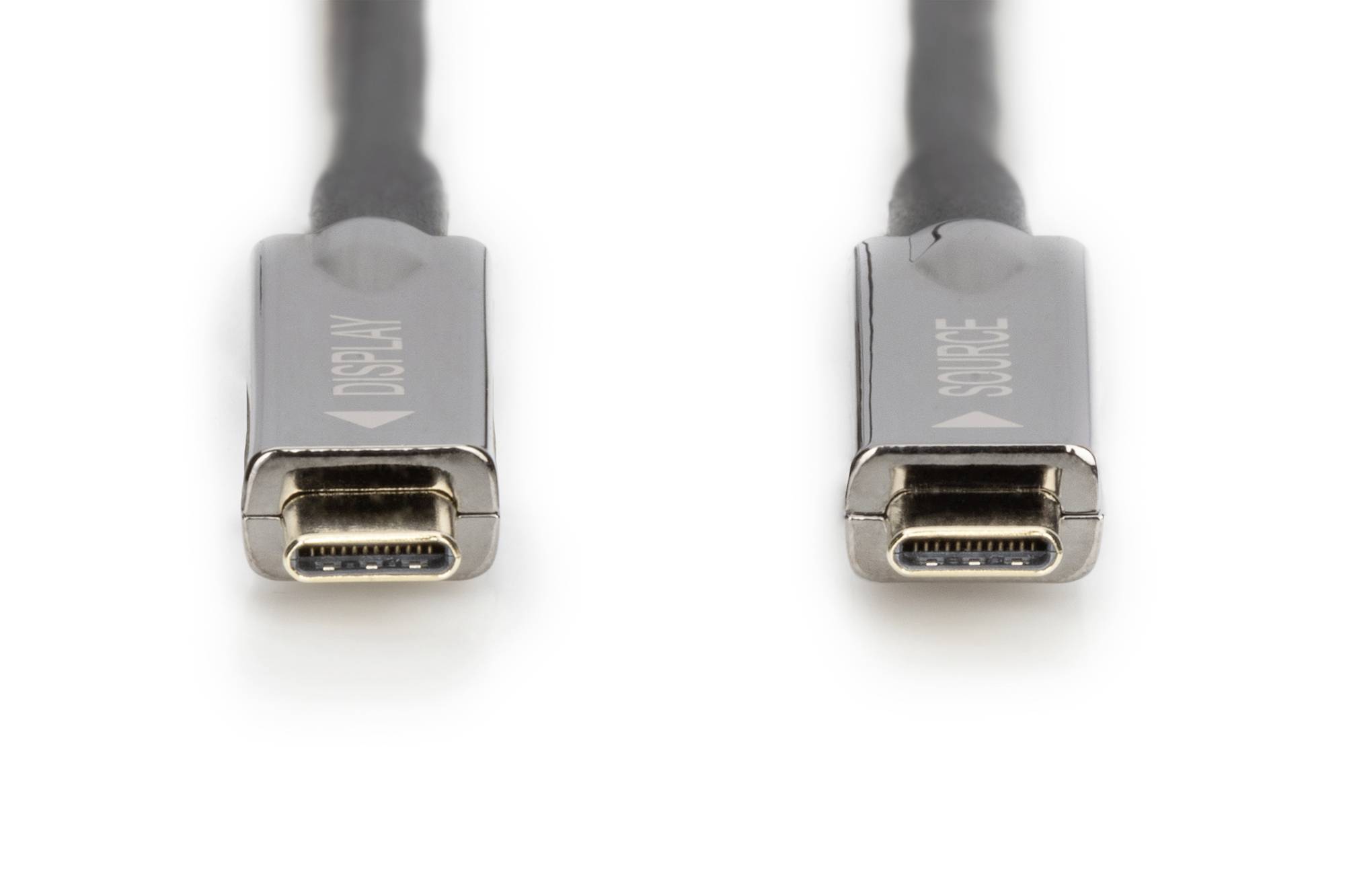

Digitus 4K USB type - C AOC AV connection cable
Highlights & Details
- The active USB type - C AOC AV connection cable is based on a hybrid design of copper & glass fiber lines and thus enables bandwidths of up to 21.6 GBit/s.The flexible and at the same time robust cable is characterized by low bending radii and a very good transmission of uncompressed audio and video content over longer distances.Further advantages of hybrid glass fiber cables are their very low bending radius and low empty weight, without suffering from the high image quality and installation via plug & play
Technical specifications
- Supports resolutions of up to 4K@60Hz.Supports resolutions of up to 2K@60Hz.Resolution supported up to 1920 x 1080 @ 120 Hz.Data transfer rate 21.6 GbpsSupports HDRSupports Dolby VisionSupports HDR10Supports 3Dcable diameter 4.8mmSupports lip-sync (audio/video synchronization)Supports YUV 4:4:4Supports EDID 2.0 (device recognition)Housing zincAOC - Active optical cable: YESOperating temperature 0°C - 45°C.Storage temperature: -10°C - 70°C.Operating humidity 5 - 90% RHBending radius: 10mmConnection 1: USB C, connectorConnection 2: USB C, connectorColour of cable: BlackFerrite filter: NoneContact surface: Gold-platedLength 20 m
- Product type
USB-C® screen cable
- Cable specs
USB 3.2 2nd Gen
- Version
Cable
- Connection type
USB-C® to USB-C®
- Connections
USB-C®
USB-C® plug
- Factory colour
Black
- Cable length
20.00 m
- Signal flow
Bidirectional (A↔B)
- Cable features
Flexible
Shielded
incl. USB
- Cable design
Round
- Connector version
straight
FO
- Connection type
USB
USB 3.2 Gen 1 (USB 3.0)
USB-C®
USB 3.2 Gen 2 (USB 3.1)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2751178 Digitus USB-C® screen cable USB 3.2 2nd Gen USB-C®, USB-C® plug 20.00 m Black Flexible, Shielded, incl. USB AK-330160-20
Description
This active USB type - C AOC AV - connection cable is suitable for Ideal in order to transfer uncompressed video and audio data with high bandwidth over longer distances. Hybrid design of copper and fiber optic cables eliminates electromagnetic influences, ensuring loss-free transmission over the entire cable length with UHD resolutions of up to 4K/60Hz and bandwidths of up to 21.6 Gbps. Due to the use of optical conductors (glass fiber), the diameter of this active cable is very small and is characterized by very small bending radii and a low net weight. The ideal employment for home, meeting or conference rooms as well as within buildings represent only a few of the application areas. Simply connect your laptop with a USB type C output to a monitor with a USB type C input. The user friendly installation takes place here by simple Plug and Play, plug in and immediately enjoy highest image quality. The adapter cable is unidirectional (USB type - C = input device, USB type C = output device).
This text is machine translated.
This text is machine translated.
Features
- Thanks to the latest chip technology and no susceptibility to electromagnetic influences, the cable Ideal is suitable for home cinema, meeting and conference rooms or other video cablesNo external power supply requiredCorresponds to the DisplayPort 1.2 specifications and is compatible with DP Alternate Mode on USB type C standard.Compatible with all USB type C video interface devices
