Digitus USB type A, USB A (USB 1.1), HDMI™, HDMI® input 100 m
EAN:
Part number:
Item no:
Highlights & Details

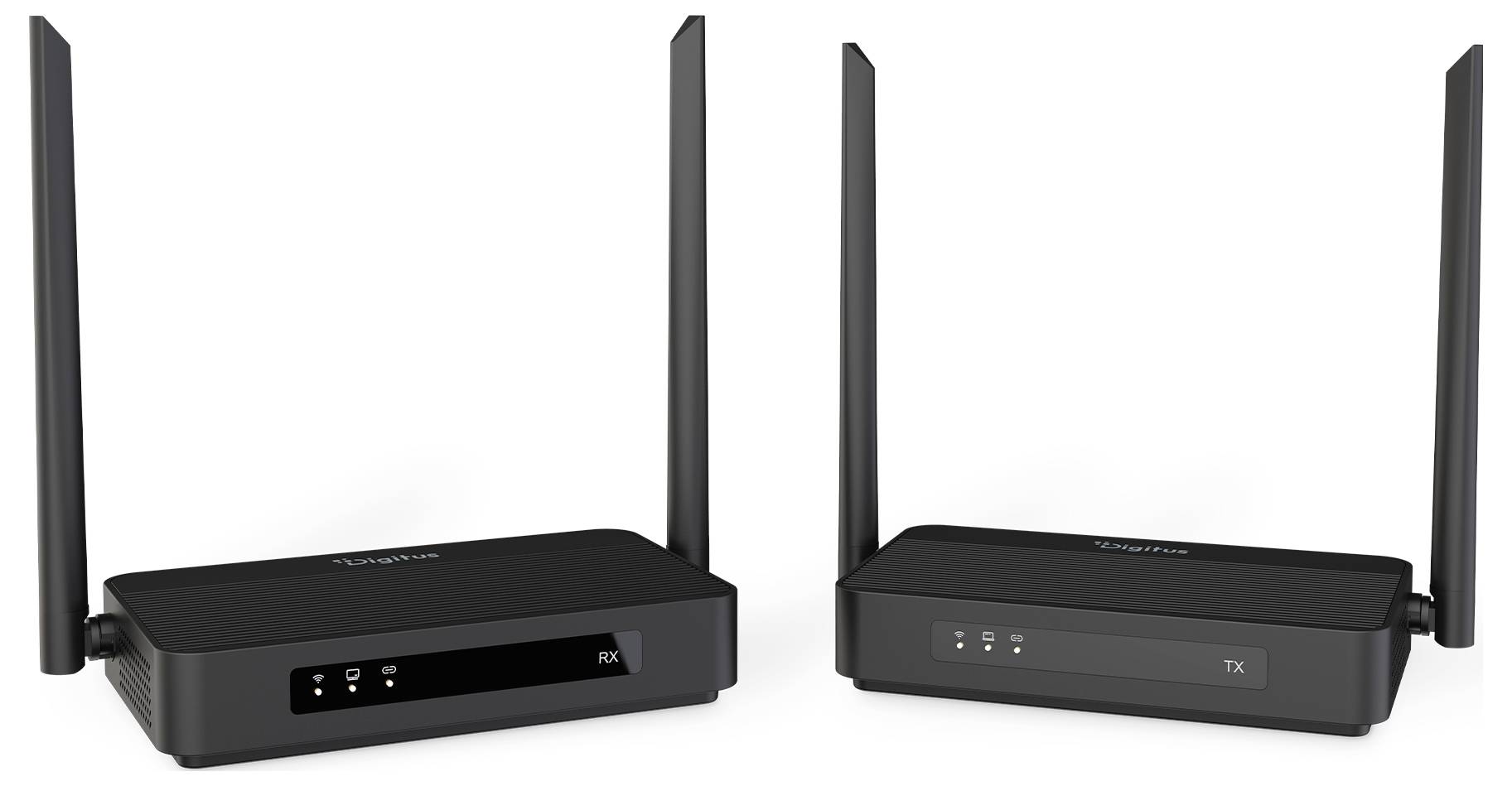

Digitus 4K wireless HDMI KVM extender set, 100 m, 4K/60Hz
- Wireless HDMI signal transmission in 4K/60Hz at up to 100 m (unrestricted view)
- Ultra-low latency: 16 ms (min.) - 48 ms (max) / Average: 32 ms (transmit transmitter to receiver)
- State-of-the-art codec chip design: The proprietary parallel processing architecture is optimized for video compression and decompression
- KVM Support: Connection of mouse & keyboard as well as touch-display at the receiver side

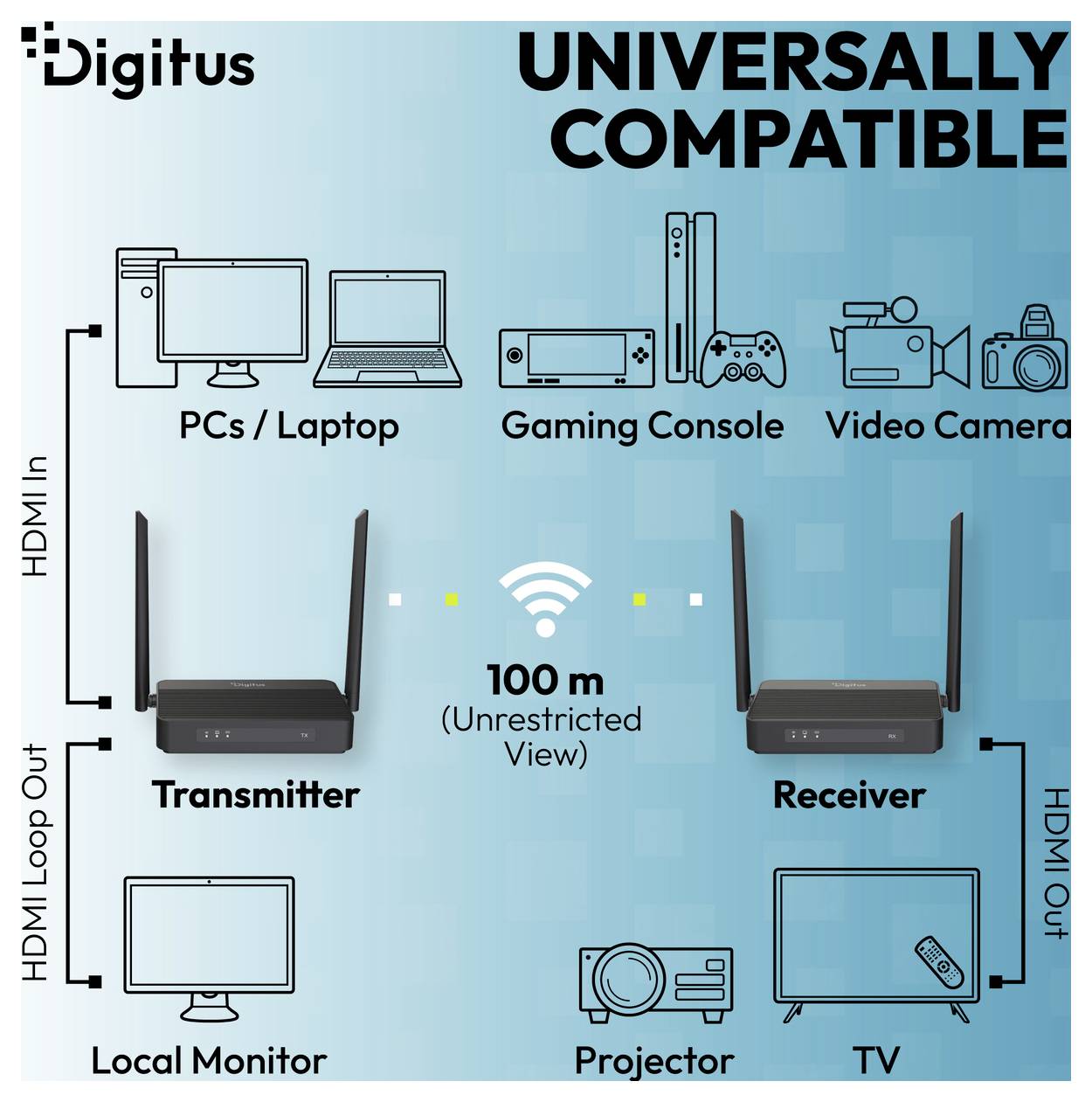

- HDMI loop out: Connect a local monitor to the transmitter (TX)
- Thanks to Plug & Play, it is easy to use and use – plug in and start, no driver or software required
- Automatic pairing & connection: Automatically establishes a connection via the most favorable WiFi channel HER, in order to ensure the best possible WLAN performance
- Bi-directional IR (infrared) extension for controlling the signal source or the display
- AES 128 bit encryption / WPA2 protocol
- HDMI 2.0 / HDCP 2.2
Technical specifications
- Wireless HDMI signal transmission in 4K/60Hz at up to 100 m (unrestricted view)
- Supports resolutions up to 4K UHD (4096 x 2160p, 60Hz)
- Ultra-low latency: 16 ms (min.) - 48 ms (max.) / Average: Approx. 32 ms (transmission of transmitter to receiver)
- Codec chip: The proprietary parallel processing architecture is optimized for video compression and decompression. Advanced codec algorithms minimize 4K video encoding/decoding time in the best possible way.

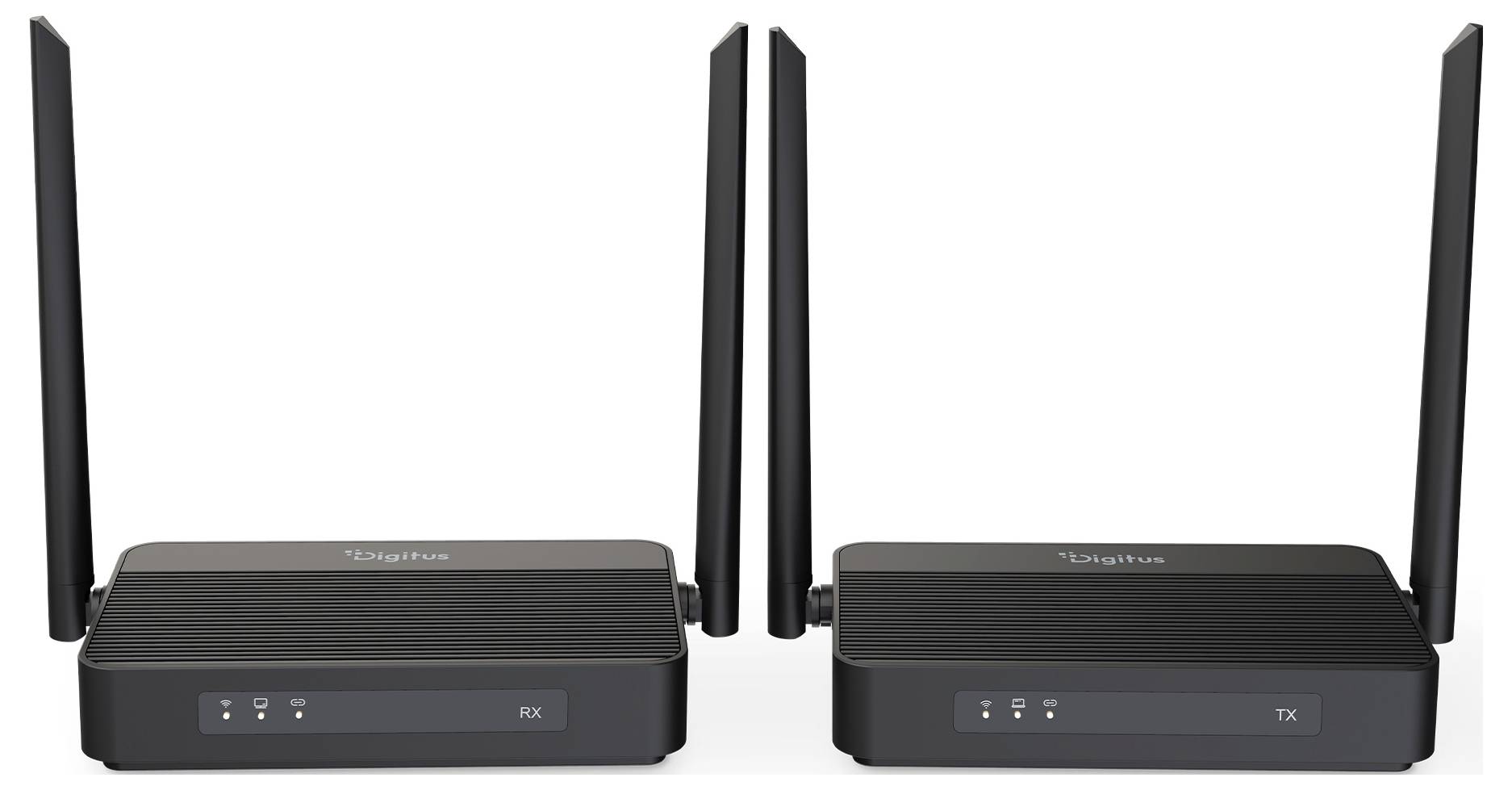

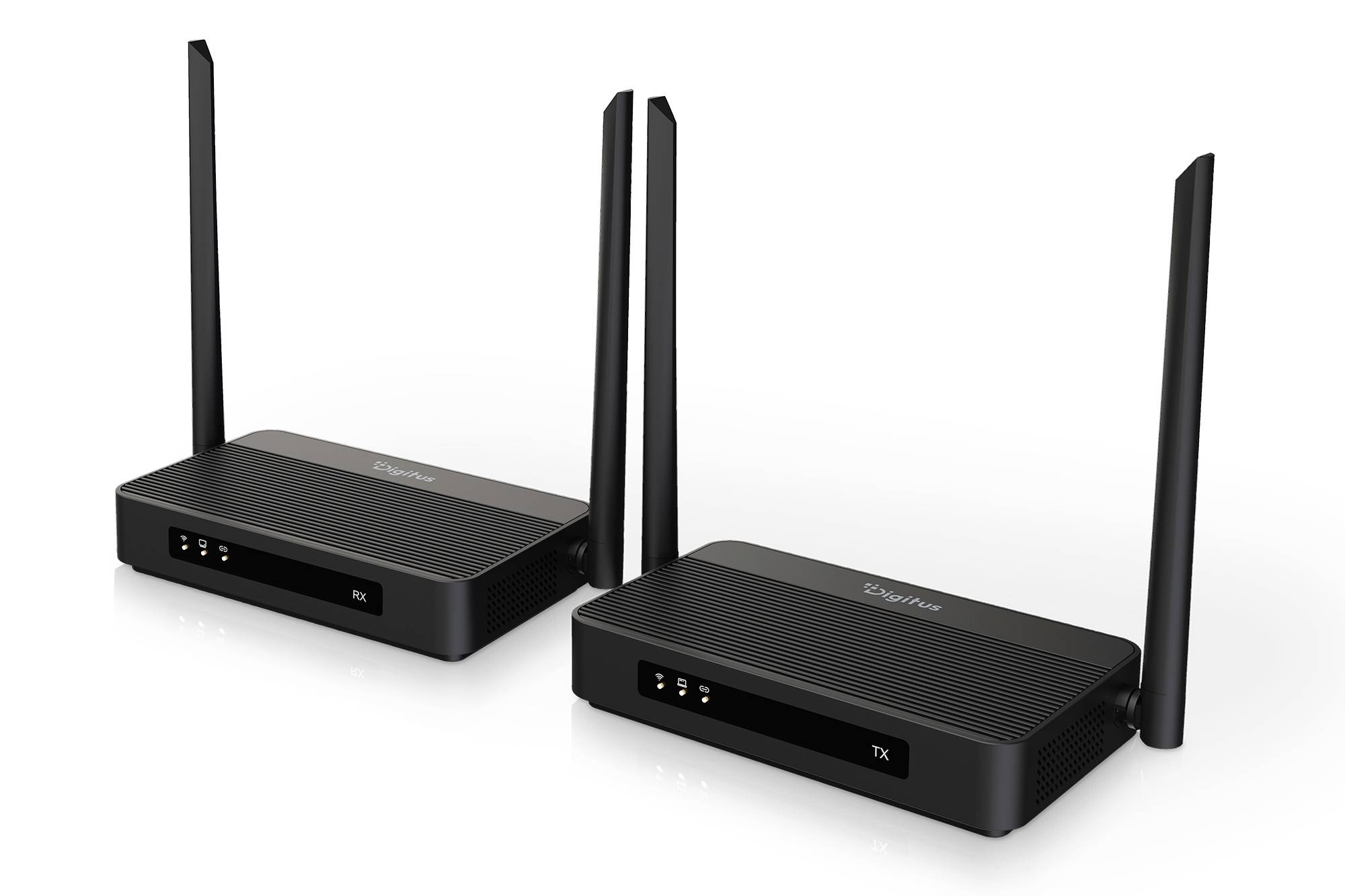

- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- AES 128 bit encryption
- WPA2 (WPA2-PSK / WPA2-Enterprise) authentication protocol
- HDMI 2.0 / HDCP 2.2 / HDR10
- Radio standard: IEEE 802.11.b/g/n/ac / Frequency band: 5G

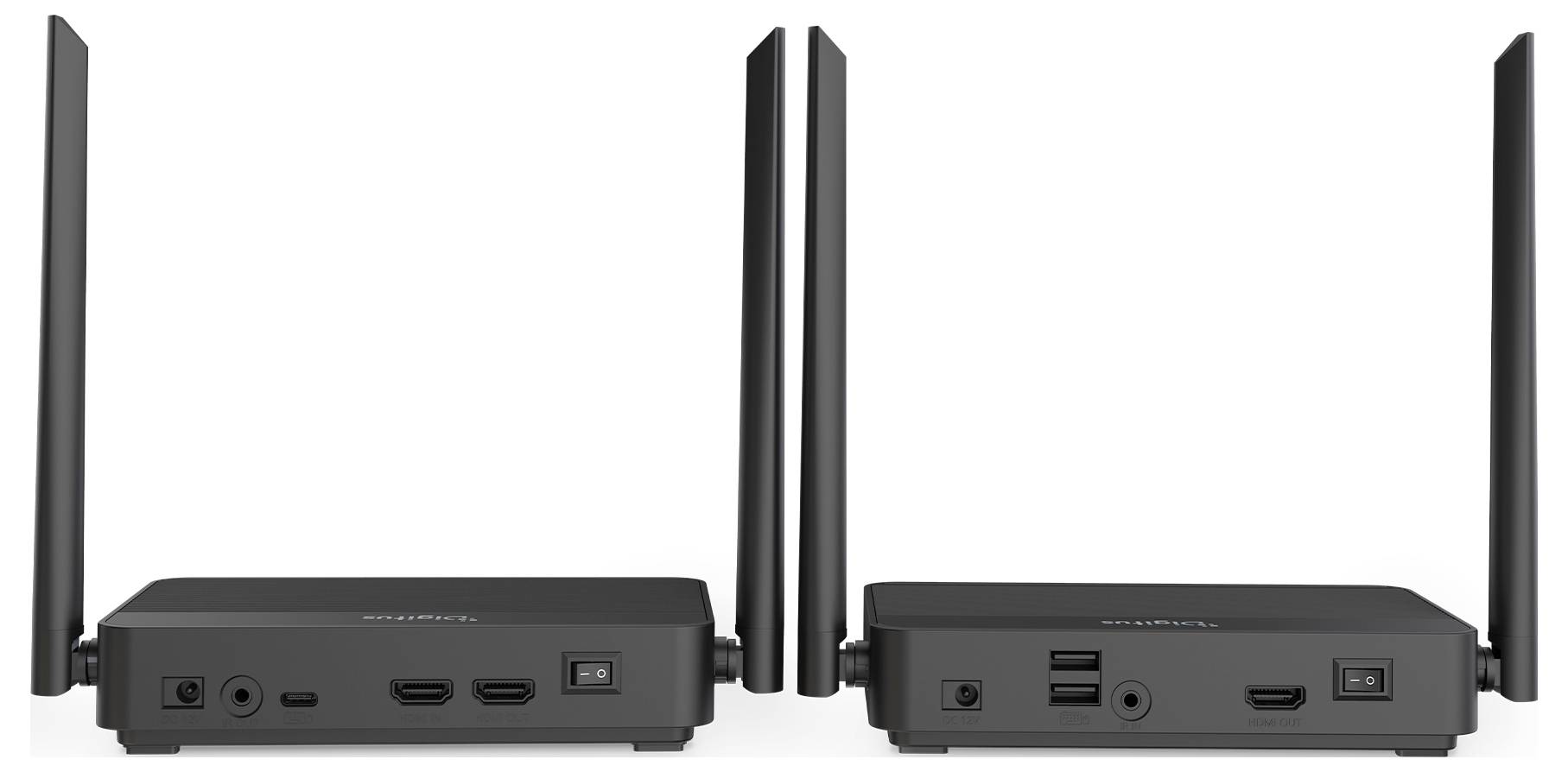

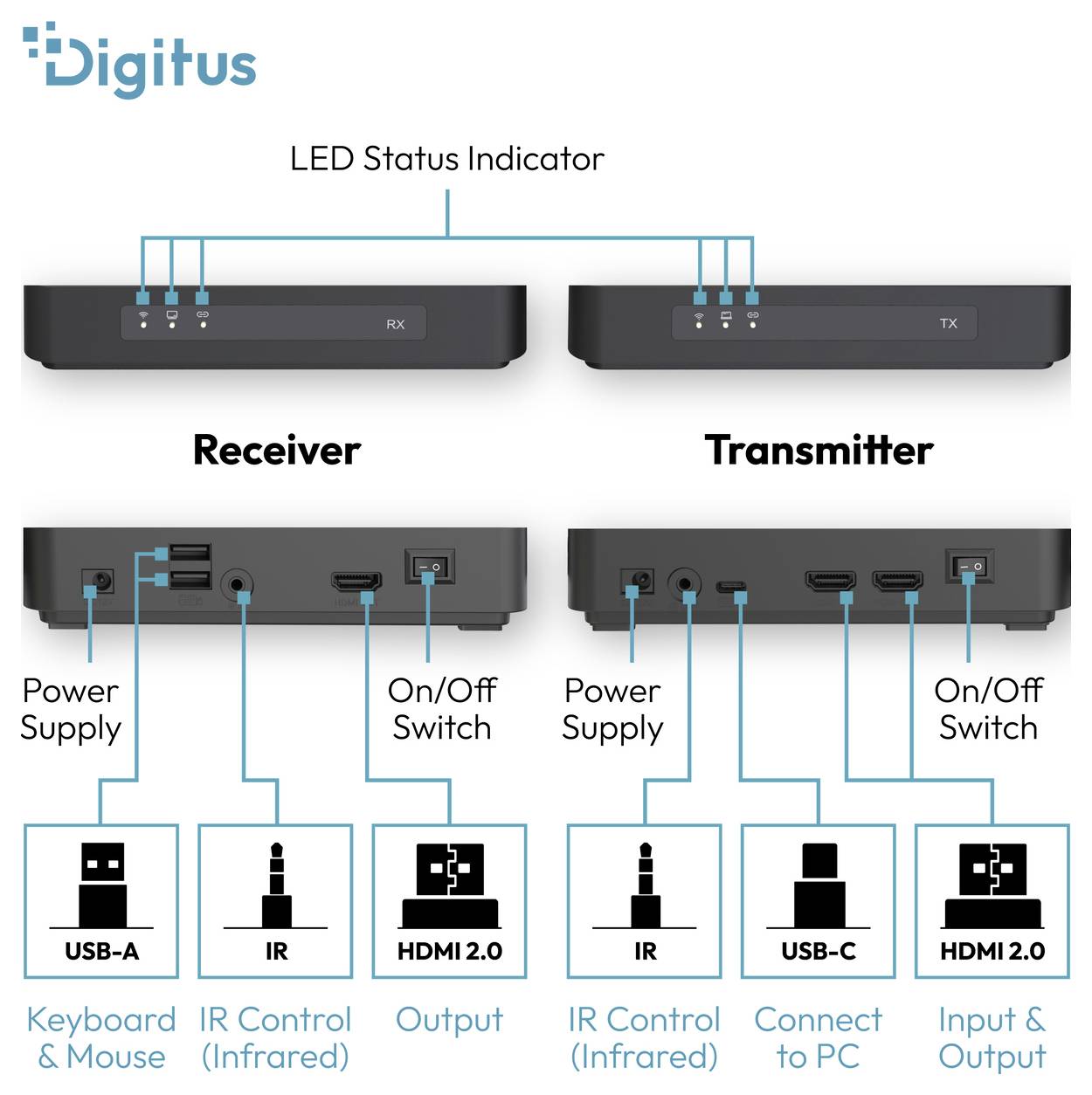

- Connections in the transmitter unit (TX):
- 1x HDMI input (4K/60Hz) - signal source connector
- 1x HDMI output (4K/60Hz) - connection local display
- 1x IR connection - sends/receives the IR signal
- 1x USB-C port signal source (PC) for KVM function / Touch Panel Back Control
- 1x power supply (DC 12V/1.5A) - connection of external power supply
- 1x on/off switch
- Receiver unit connections (RX):
- 1x HDMI output (4K/60Hz) - connection local display
- 1x IR connection - sends/receives the IR signal
- 2x USB-A (1.1) - Mouse & keyboard or touch display connection
- 1x power supply (DC 12V/1.5A) - connection of external power supply
- 1x on/off switch
- ABS casing/color: Black
- Power consumption per unit: Approx. 10W
- Operating temperature 0 °C - 40 °C
- Dimensions (1 unit): W 16.1 x D 9.4 x H 3.4 cm
- Weight (1 unit): 340 g
- Manufacturer information:
- The transmission range for restricted visibility cannot be determined on a flat-rate basis and depends on the local conditions
- Walls, glass, etc. reduce the signal cover or cause signal loss
- Interfaces (input)
USB type A
USB A (USB 1.1)
HDMI™
HDMI® input
- Interfaces (output)
USB type A
USB A (USB 1.1)
HDMI™
HDMI® output
- Resolution (max.)
4096 x 2160 p
- Range (max.)
100 m
- Factory colour
Black
- No. of outputs
1 x
- No. of inputs
2 x
- Supported monitors
1
- Power supply (LOV)
via PSU
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3763167 Digitus USB type A, USB A (USB 1.1), HDMI™, HDMI® input 100 m
Description
The 4K Wireless HDMI KVM Extender Set enables wireless transmission of HDMI video and audio signals in impressive ultra-HD resolution (4K/60Hz) over a distance of up to 100 meters - without cables and with clear sight. Thanks to the latest code chip design (proprietary parallel processing architecture) and an ultra-low latency of only 16 to 48 ms (average: Approx. 32 ms), content is transferred almost without delay – Ideal for presentations, streaming or gaming applications. The integrated KVM functionality (2x USB-A) enables the connection of a mouse and a keyboard at the receiver side, so that the connected source can be conveniently remote-controlled. A touch display can also be connected here, to enable control via touch (touch panel back control). Via the HDMI Loop Out on the transmitter, a local monitor can also be directly connected to monitor the signal simultaneously on the transmitter. Thanks to plug & play no additional software or driver installation is needed - simply connect and start. The automatic channel selection ensures a stable connection via the best available WiFi channel. The highest level of security during transmission is provided by AES 128-bit encryption and WPA2 authentication. The bi-directional IR extension offers additional comfort, with which both the signal source and the output device can be controlled comfortably via remote control. With support of HDMI 2.0, HDCP 2.2 and HDR10 the set is equipped future-ready and delivers brilliant picture quality in every application.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x transmitter unit
- 1x receiver unit
- 2x HDMI connection cable (1.5 m)
- 1x USB-A to USB-C cable (1.0 m)
- 2x IR extension cable (1.5 m)
- 2x Power supply 12V/1.5A (1.5 m)
- 1x user manual
