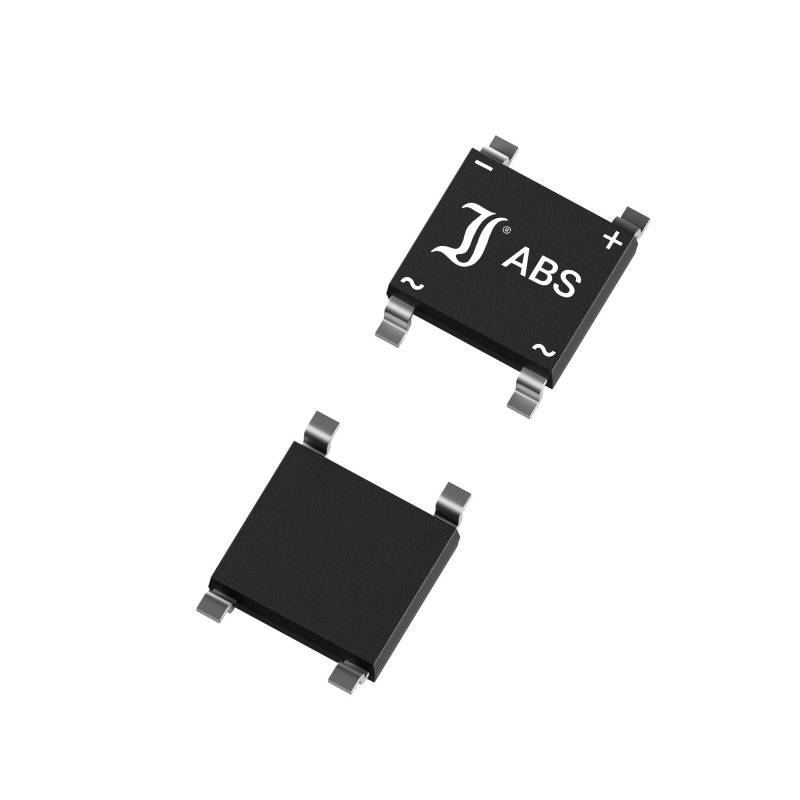

Diotec ABS15M Diode bridge SO-DIL ABS 4mm 1000 V 2 A
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
SO-DIL ABS 4mm
U(RRM)
1000 V
Forward current I(F)
2 A
Forward voltage U(F)
1.10 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.08992
300
9% = € 0.01
€ 0.08173
500
13% = € 0.01
€ 0.07846
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Total (€ 0.08992 / piece)
€ 8.99
plus VAT.
14-day return policy included
Technical specifications
- Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 1500 nsSurge current - IFSM 50.00 AForward voltage - VF 1.10 VIF 2.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ 15 pFVR 4 V
- Type
ABS15M
- Product type
Diode bridge
- Enclosure
SO-DIL ABS 4mm
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
1000 V
- Forward current I(F)
2 A
- Forward voltage U(F)
1.10 V
- Forward voltage reference
2.00 A
- I(FSM) 50Hz
50 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
1000 V
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2809058 Diotec ABS15M Diode bridge SO-DIL ABS 4mm 1000 V 2 A
User & Safety Instructions
User & Safety Instructions 2809058 Diotec ABS15M Diode bridge SO-DIL ABS 4mm 1000 V 2 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
