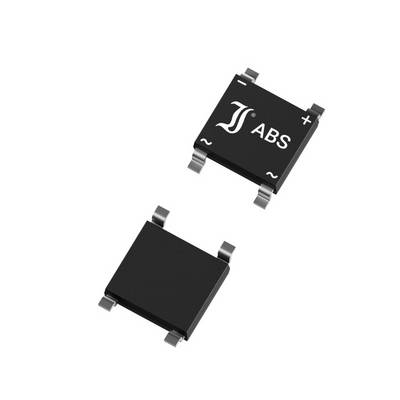

A black electronic component with the inscription 'ABS', flanked by metal connections, shows positive and negative markings.

Image similar

A black electronic component with the inscription 'ABS', flanked by metal connections, shows positive and negative markings.

Image similar

Product type

Diode bridge

Enclosure

SO-DIL ABS 4mm

Configuration (diode)

Array - 4 x 4

U(RRM)

400 V

Forward current I(F)

0.80 A

Datasheet (PDF)

English

Diotec

Fast track dispatch on Mon, 5 Oct

4638 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.03992 / piece)

€ 0.40

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type SMDHousing: SO-DIL ABS 4mmPeriodic Peak Reverse Voltage - VRRM 400 VContinuous current - IFAV 0.80 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 27.00 AForward voltage - VF 1.10 VIF 0.80 AReverse current - IR 5,000 µAVR 400 VLock layer capacity - CJ: PFVR V

Type: ABS4

Product type: Diode bridge

Enclosure: SO-DIL ABS 4mm

Manufacturer: Diotec

Manuf. code: DIO

Configuration (diode): Array - 4 x 4

U(RRM): 400 V

Forward current I(F): 0.80 A

Forward voltage U(F): 1.10 V

Forward voltage reference: 0.80 A

I(FSM) 50Hz: 27 A

I(FSM) 60Hz: 27.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 400 V

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

Height: 4 mm

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 2809066 Diotec ABS4 Diode bridge SO-DIL ABS 4mm 400 V 0.80 A Array - 4 x 4

User & Safety Instructions

User & Safety Instructions 2809066 Diotec ABS4 Diode bridge SO-DIL ABS 4mm 400 V 0.80 A Array - 4 x 4

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
