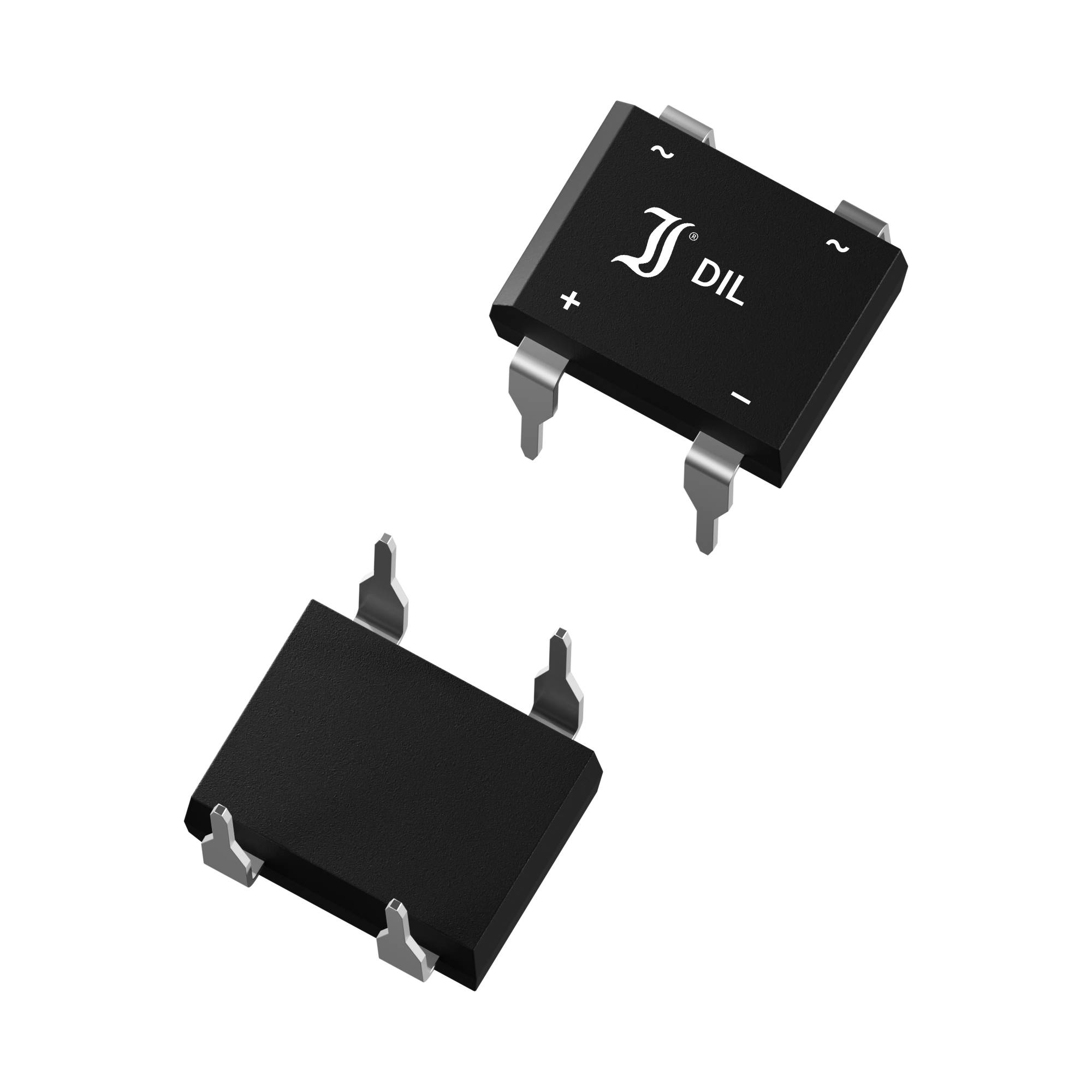

Diotec B125FD Diode bridge DIL 250 V 1 A
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
DIL
U(RRM)
250 V
Forward current I(F)
1 A
Forward voltage U(F)
1.30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
60
-
€ 0.34367
180
9% = € 0.03
€ 0.31236
300
13% = € 0.04
€ 0.29986
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 60
Total (€ 0.34367 / piece)
€ 20.62
plus VAT.
14-day return policy included
Highlights & Details
Diode bridge
Our service for you
Technical specifications
- Type DILDIL casingPeriodic Peak Reverse Voltage - VRRM 250 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 300 nsSurge current - IFSM 40.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 250 VLock layer capacity - CJ: PFVR V
- Type
B125FD
- Product type
Diode bridge
- Enclosure
DIL
- Manufacturer
Diotec
- U(RRM)
250 V
- Forward current I(F)
1 A
- Forward voltage U(F)
1.30 V
- Forward voltage reference
1.00 A
- I(FSM) 50Hz
40 A
- I(FSM) 60Hz
40.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
250 V
- Operating temperature (max.)
150 °C
- Mounting type
Push-fit
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2809075 Diotec B125FD Diode bridge DIL 250 V 1 A
User & Safety Instructions
User & Safety Instructions 2809075 Diotec B125FD Diode bridge DIL 250 V 1 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
