Diotec B250FD Diode bridge DIL 600 V 1 A
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
60
-
€ 0.34155
180
9% = € 0.03
€ 0.31043
300
13% = € 0.04
€ 0.29800
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 60
Total (€ 0.34155 / piece)
€
Technical specifications
- Type DILDIL casingPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 300 nsSurge current - IFSM 40.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V
- Type
B250FD
- Enclosure
DIL
- Manufacturer
Diotec
- U(RRM)
600 V
- Forward current I(F)
1 A
- Forward voltage U(F)
1.30 V
- I(FSM) 50Hz
40 A
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Push-fit
- RoHS-compliant
Yes
- Product type
Diode bridge
Variants(All information is without VAT, plus shipping costs)
Minimum order quantity: 60
Multiple: 1
€ 0.34155*

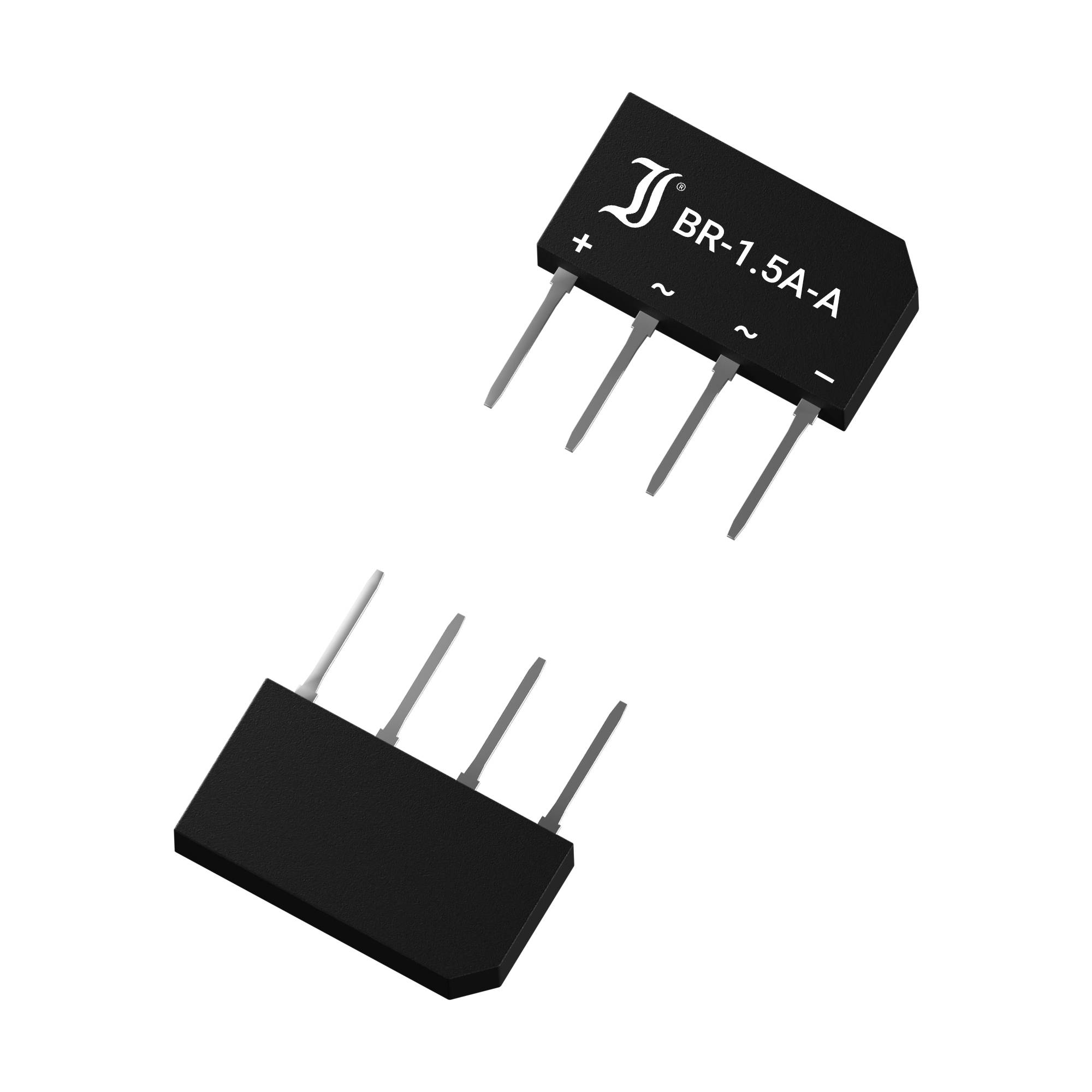

Diotec B250C1500A Diode bridge GBS_SIL-1.5-2.3 600 V
Minimum order quantity: 3
Multiple: 1
€ 0.99103*
Diotec B250C7000A Diode bridge GBI 600 V
Minimum order quantity: 20
Multiple: 1
€ 1.51181*
Diotec B250FS Diode bridge DIL 600 V 1 A
Minimum order quantity: 150
Multiple: 1
€ 0.15414*
Diotec B250S15A Diode bridge SO-DIL SLIM 600 V 1.50 A
Minimum order quantity: 200
Multiple: 1
€ 0.09999*

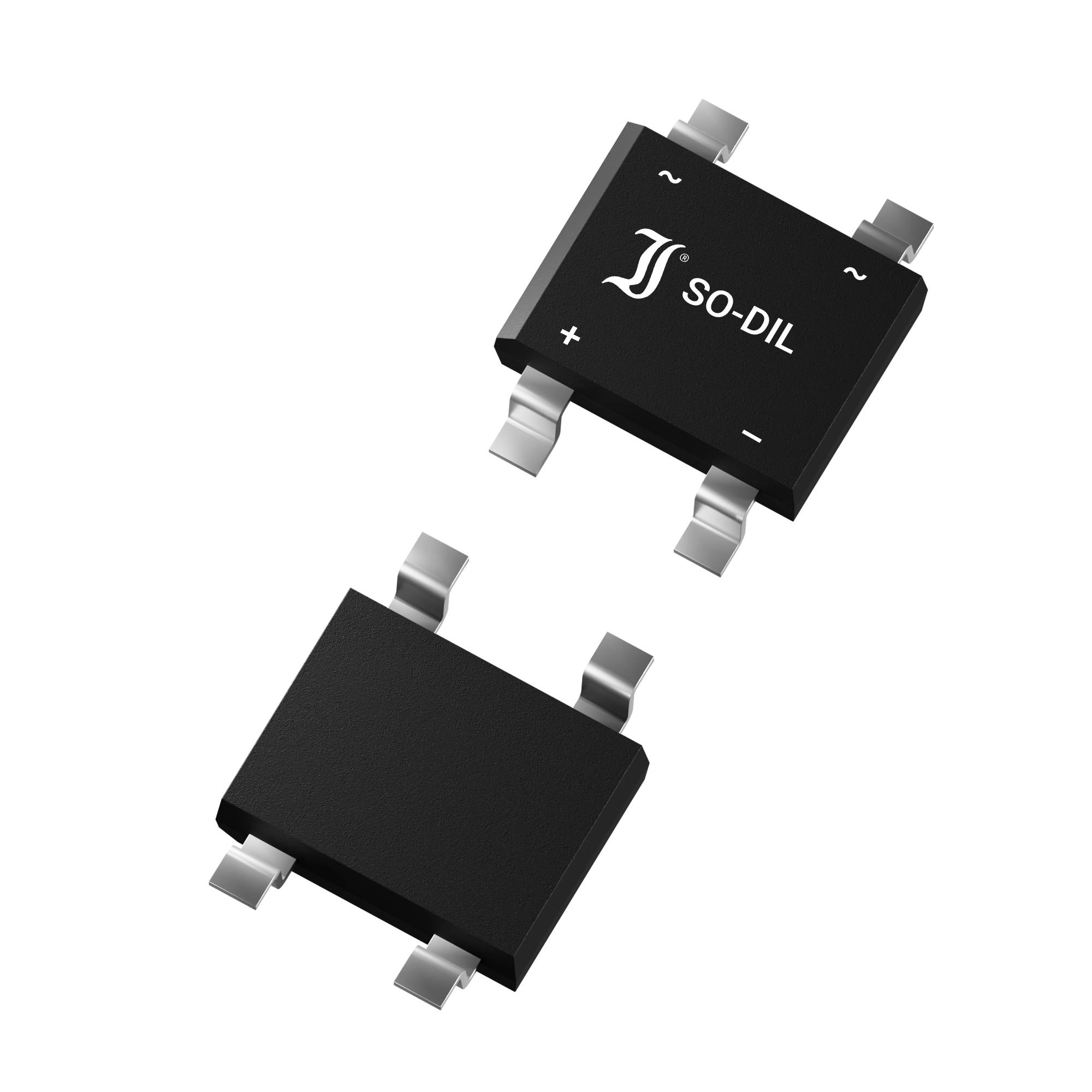

Diotec B250S2A-SLIM Diode bridge SO-DIL SLIM 600 V 2 A
Minimum order quantity: 15
Multiple: 1
€ 0.17691*
Documents & Downloads
Datasheet
Datasheet 2809083 Diotec B250FD Diode bridge DIL 600 V 1 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
