Buy Diotec B40C5000A Diode bridge SIL 4 80 V 5 A 1-phase

Rectifier IC with the inscription 'B 500 C7000-4000', shows four electrical connection pins, two with plus/minus symbols, two with wavy lines.

Image similar

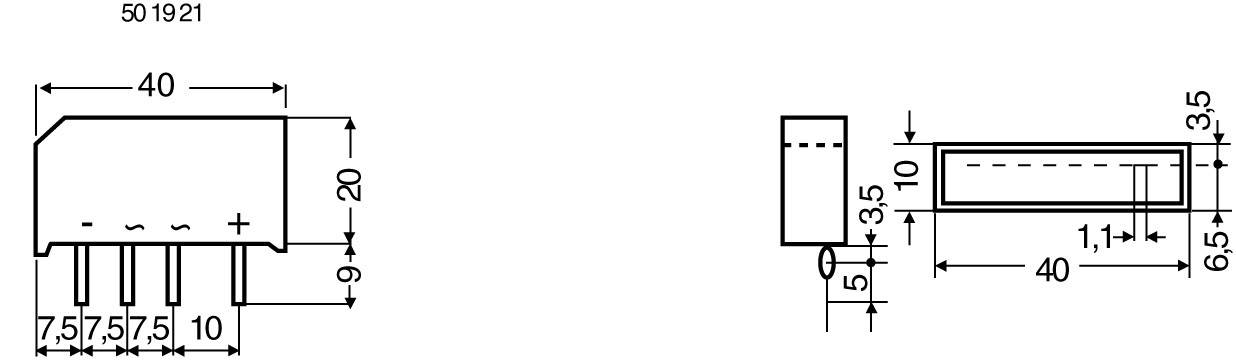

Circuit diagram for an electrical component with dimensions: Length 40 mm, Height 20 mm. Four pins at the bottom, with positive and negative connections marked.

1/2

Image similar

Product type

Diode bridge

Enclosure

SIL 4

Configuration (diode)

1-phase

U(RRM)

80 V

Forward current I(F)

5 A

Datasheet (PDF)

Fast track dispatch on Tue, 13 Oct

83 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 1.92 / piece)

€ 1.92

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type: B40C5000A

Product type: Diode bridge

Enclosure: SIL 4

Manufacturer: Diotec

Manuf. code: DIO

Configuration (diode): 1-phase

U(RRM): 80 V

Forward current I(F): 5 A

I(FSM) 50Hz: 150 A

I(FSM) 60Hz: 165 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 80 V

Operating temperature (min.): -50 °C

Operating temperature (max.): +150 °C

Mounting type: Through-hole

RoHS-compliant: Yes

Nominal current (details): 3.3 A (5 A)

Voltage: 40 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 501921 Diotec B40C5000A Diode bridge SIL 4 80 V 5 A 1-phase

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.

Hints

Rated current (free-standing) = 3.3 A/ rated current (chassis assembly) = 5 A
