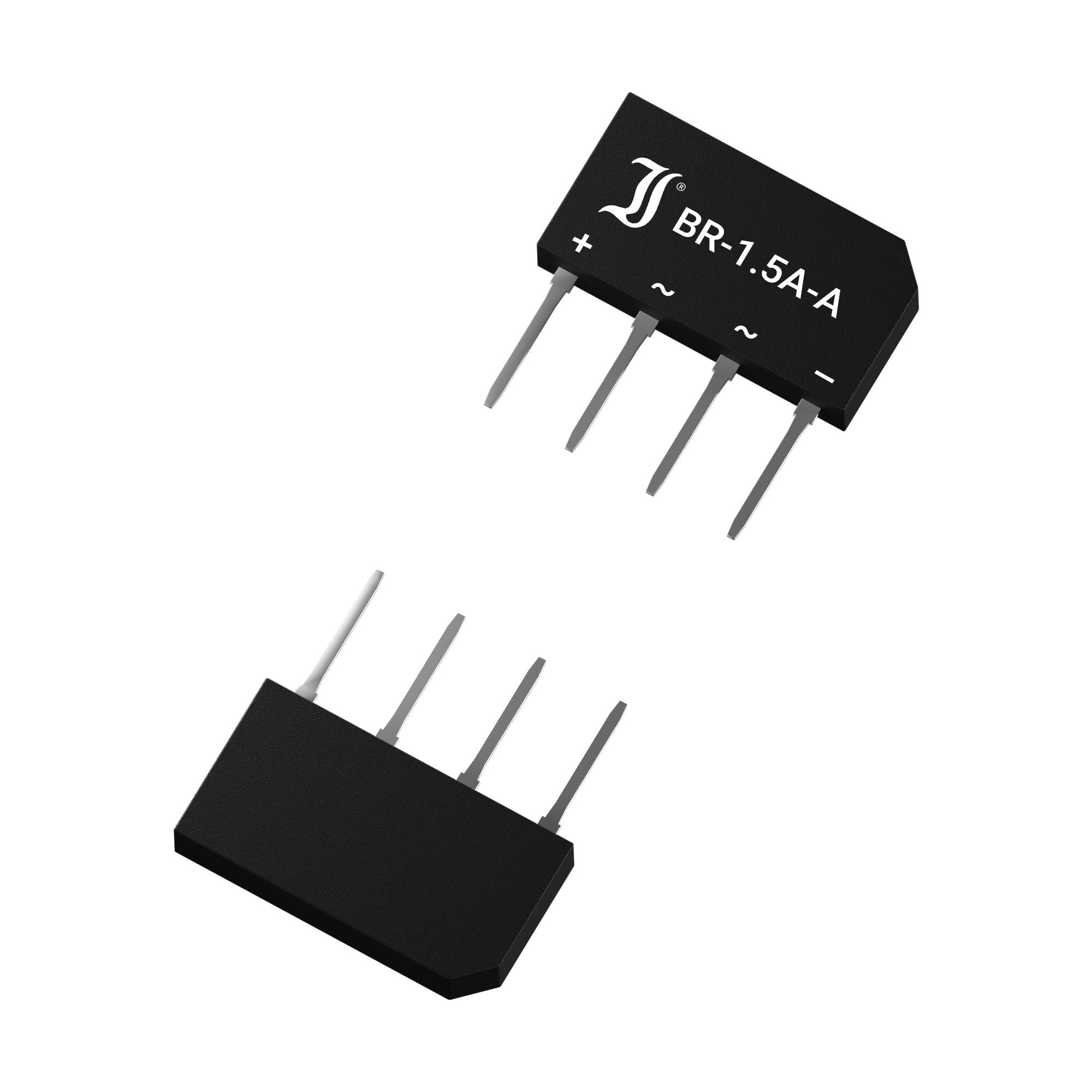

Image similar
Image similar
Diotec B500C1500A Diode bridge GBS_SIL-1.5-2.3 1000 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 1.06004
9
8% = € 0.09
€ 0.97471
15
11% = € 0.12
€ 0.94057
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 1.06004 / piece)
€ 3.18
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Type SILHousing: GBS_SIL-1.5-2.3Periodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 2.30 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 50.00 AForward voltage - VF: VIF AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V
- Type
B500C1500A
- Enclosure
GBS_SIL-1.5-2.3
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
1000 V
- I(FSM) 50Hz
50 A
- I(FSM) 60Hz
50.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
1000 V
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- UKCA
yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 2809102 Diotec B500C1500A Diode bridge GBS_SIL-1.5-2.3 1000 V
User & Safety Instructions
User & Safety Instructions 2809102 Diotec B500C1500A Diode bridge GBS_SIL-1.5-2.3 1000 V
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
