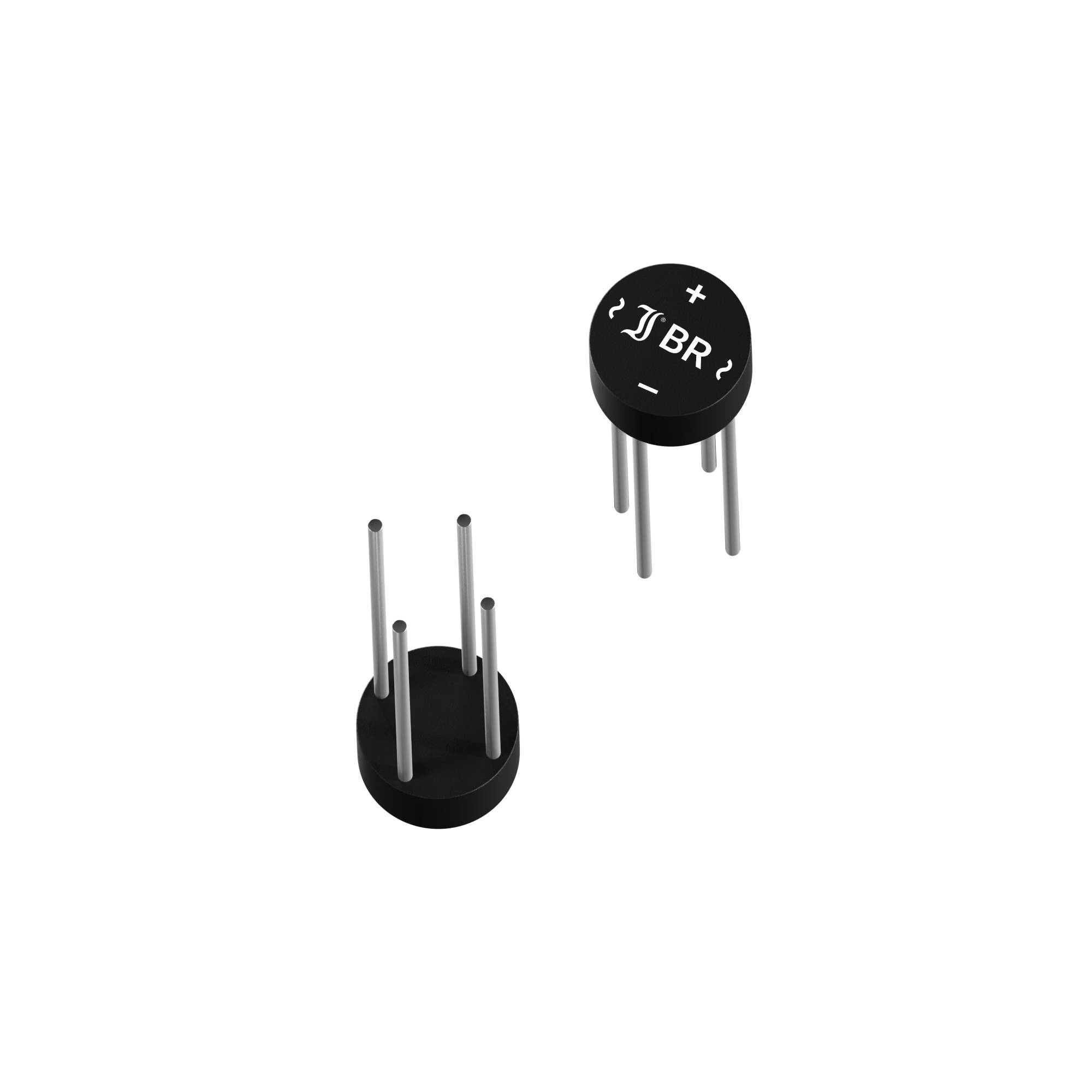

Two black electronic components with four pins and white markings. One shows '+' and '-', the other 'JBR'.

Image similar

Two black electronic components with four pins and white markings. One shows '+' and '-', the other 'JBR'.

Image similar

Diotec

Datasheet (PDF)

English

560 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 10

Total (€ 0.25743 / piece)

€

Report legal concerns

Technical specifications

Type: RoundCasing: D9x5Periodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 45.00 AForward voltage - VF 1.00 VIF 1.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: B500R

Enclosure: D9x5

Manufacturer: Diotec

U(RRM): 1000 V

Forward current I(F): 1 A

Forward voltage U(F): 1 V

I(FSM) 50Hz: 45 A

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: Diode bridge

Documents & Downloads

Datasheet

English

Datasheet 2809107 Diotec B500R Diode bridge D9x5 1000 V 1 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
