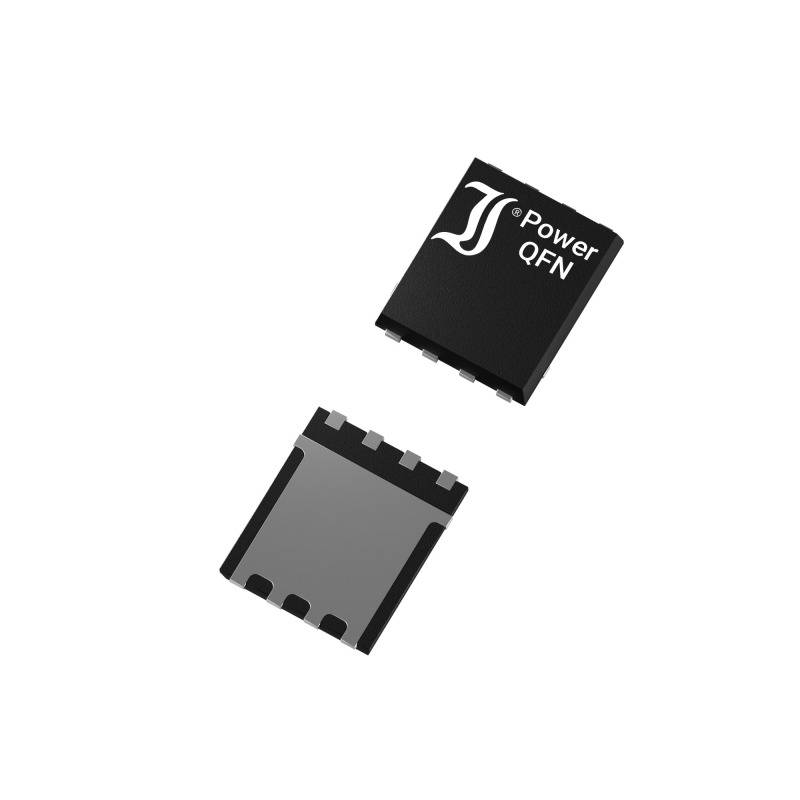

Diotec DI080N03PQ MOSFET N-channel 35 W PowerQFN 5x6
EAN:
Part number:
Item no:
Product type
MOSFET
Enclosure
PowerQFN 5x6
Type
N-channel
Power (max) P(TOT)
35 W
R(DS)(on) reference current
30 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5000
-
€ 0.96683
15000
8% = € 0.08
€ 0.88900
25000
11% = € 0.11
€ 0.85787
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5000
Multiple: 5000
Total (€ 0.96683 / piece)
€ 4,834.15
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Type
DI080N03PQ
- Product type
MOSFET
- Enclosure
PowerQFN 5x6
- Manufacturer
Diotec
- Type
N-channel
- I(d)
80 A
- Power (max) P(TOT)
35 W
- R(DS)(on) reference current
30 A
- R(DS)(on) reference voltage
10 V
- Mounting type
Surface-mount
- Operating temperature (max.)
150 °C
- U(DSS)
30 V
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2809599 Diotec DI080N03PQ MOSFET N-channel 35 W PowerQFN 5x6
User & Safety Instructions
User & Safety Instructions 2809599 Diotec DI080N03PQ MOSFET N-channel 35 W PowerQFN 5x6
