Buy Diotec Digital transistor BCR22PN-AQ SOT 363 NPN , PNP

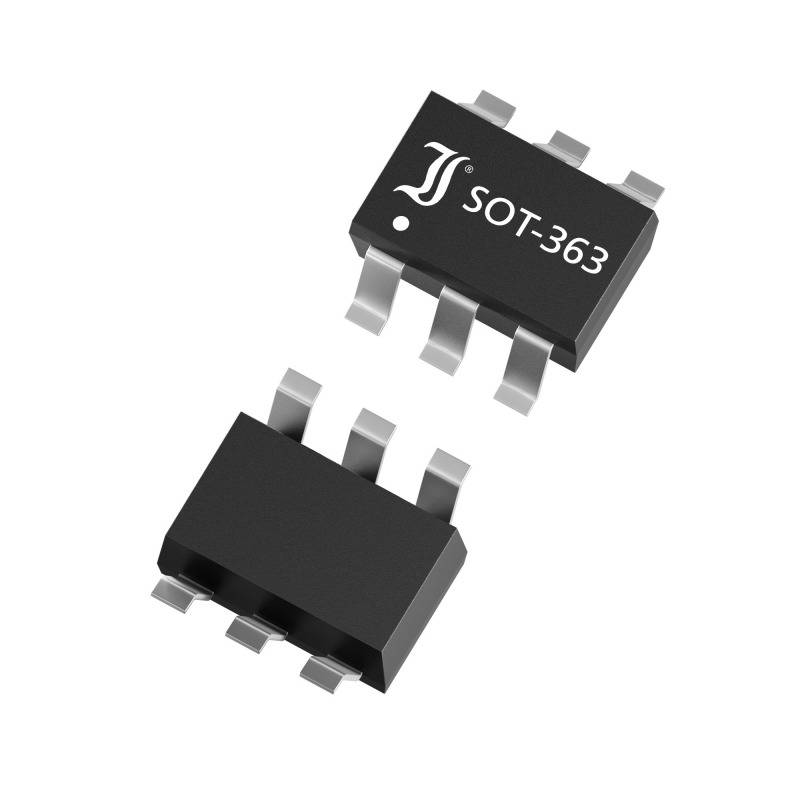

Two SMD chips in a SOT-363 package, each with six connections. The left image shows the chip from above, the right image from below.

Image similar

Enclosure

SOT 363

Type

NPN

PNP

Collector current

100 mA

Collector emitter voltage U(CEO)

60 V

Power (max) P(TOT)

0.2 W

Datasheet (PDF)

Dispatches on Wed, 30 Sep 2026

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 300

Total (€ 0.06394 / piece)

€ 19.18

plus VAT.

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Type: BCR22PN-AQ

Enclosure: SOT 363

Manufacturer: Diotec

Type: NPN
PNP

Collector current: 100 mA

Collector emitter voltage U(CEO): 60 V

Power (max) P(TOT): 0.2 W

Resistance R1: 22000 Ω

Resistance R2: 22000 Ω

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)

Operating temperature (max.): 150 °C

Product type: Digital transistor

Documents & Downloads

Datasheet

Datasheet 2809321 Diotec Digital transistor BCR22PN-AQ SOT 363 NPN , PNP
