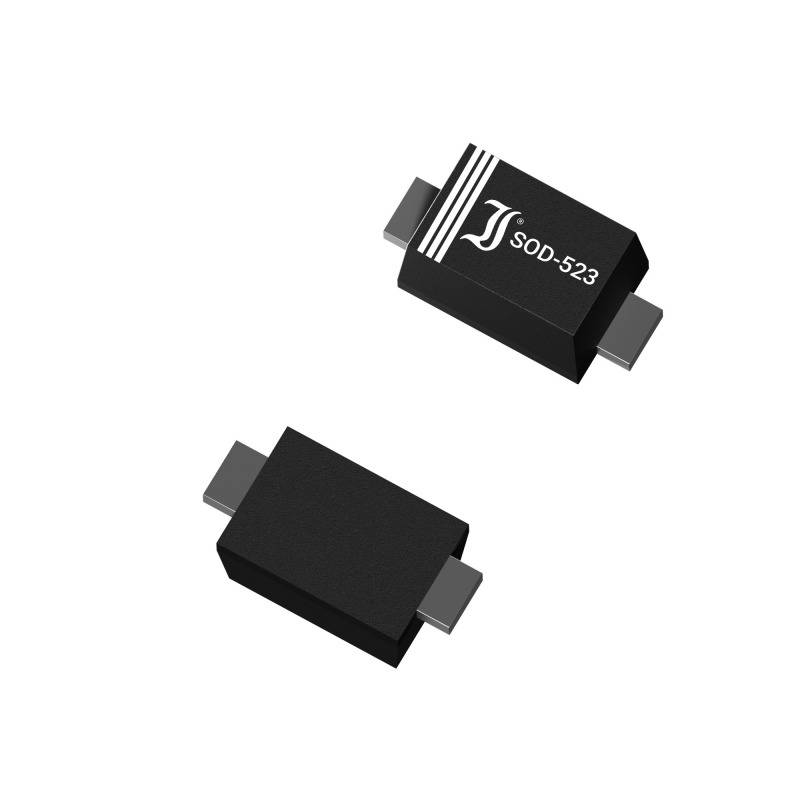

Diotec ESD ESD diode ESDB5V0WT SOD 523 9.5 V 20 W
EAN:
Part number:
Item no:
Enclosure
SOD 523
Reverse voltage U(R)
7 V
Terminal voltage U(CL)
10.00 V
Power (max) P(TOT)
20 W
Mounting type
Surface-mount
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
4000
-
€ 0.03165
12000
9% = € 0.00
€ 0.02876
20000
13% = € 0.00
€ 0.02761
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.03165 / piece)
€ 126.60
plus VAT.
Technical specifications
- Type
ESDB5V0WT
- Enclosure
SOD 523
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
7 V
- Breakdown voltage U(BR)
9.5 V
- Terminal voltage U(CL)
10.00 V
- Peak current I(pp)
2.00 A
- Power (max) P(TOT)
20 W
- Diode capacitance C(D)
4 pF
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Range of use
ESD
- Operating temperature (max.)
125 °C
- UKCA
yes
- Product type
ESD diode
