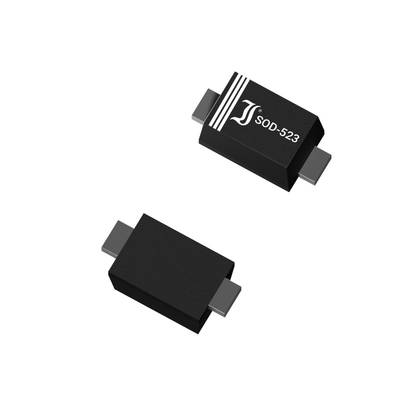

Image similar
Image similar
Diotec ESD ESD diode ESD5Z5V0 SOD 523 11.60 V 174 W #####Tape and Reel
EAN:
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
ESD diode
Enclosure
SOD 523
Reverse voltage U(R)
5 V
Terminal voltage U(CL)
11.6 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
750
-
€ 0.04341
2250
9% = € 0.00
€ 0.03945
3750
13% = € 0.01
€ 0.03787
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 750
Total (€ 0.04341 / piece)
€ 32.56
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
#####Tape and Reel
- Type
ESD5Z5V0
- Product type
ESD diode
- Enclosure
SOD 523
- Manufacturer
Diotec
- Reverse voltage U(R)
5 V
- Breakdown voltage U(BR)
11.60 V
- Terminal voltage U(CL)
11.6 V
- Peak current I(pp)
9.4 A
- Range of use
ESD
- Power (max) P(TOT)
174 W
- Polarity
Unidirectional
- Diode capacitance C(D)
80 pF
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
- Operating temperature (min.)
-50 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807749 Diotec ESD ESD diode ESD5Z5V0 SOD 523 11.60 V 174 W #####Tape and Reel
User & Safety Instructions
User & Safety Instructions 2807749 Diotec ESD ESD diode ESD5Z5V0 SOD 523 11.60 V 174 W #####Tape and Reel
