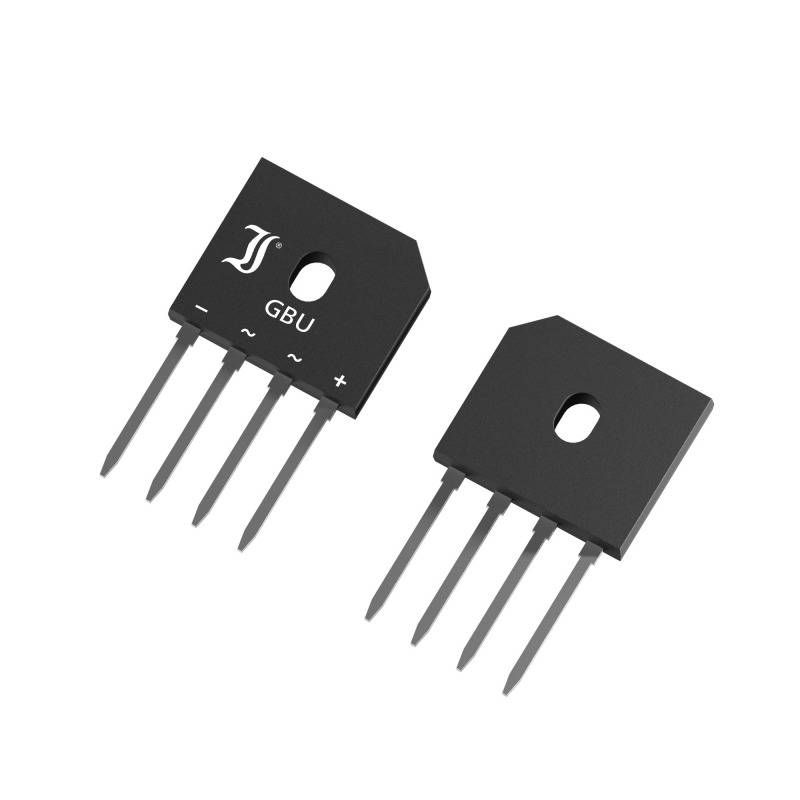

Diotec GBU6J-T Diode bridge GBU 600 V 6 A
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
70
-
€ 0.30391
210
9% = € 0.03
€ 0.27622
350
13% = € 0.04
€ 0.26516
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 70
Total (€ 0.30391 / piece)
€ 21.27
plus VAT.
Technical specifications
- Type SILHousing GBUPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 6.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 158.00 AForward voltage - VF 1.00 VIF 6.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ 50 pFVR 4 V
- Type
GBU6J-T
- Enclosure
GBU
- Manufacturer
Diotec
- U(RRM)
600 V
- Forward current I(F)
6 A
- Forward voltage U(F)
1 V
- I(FSM) 50Hz
158 A
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Product type
Diode bridge
Documents & Downloads
Datasheet
Datasheet 2809793 Diotec GBU6J-T Diode bridge GBU 600 V 6 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
