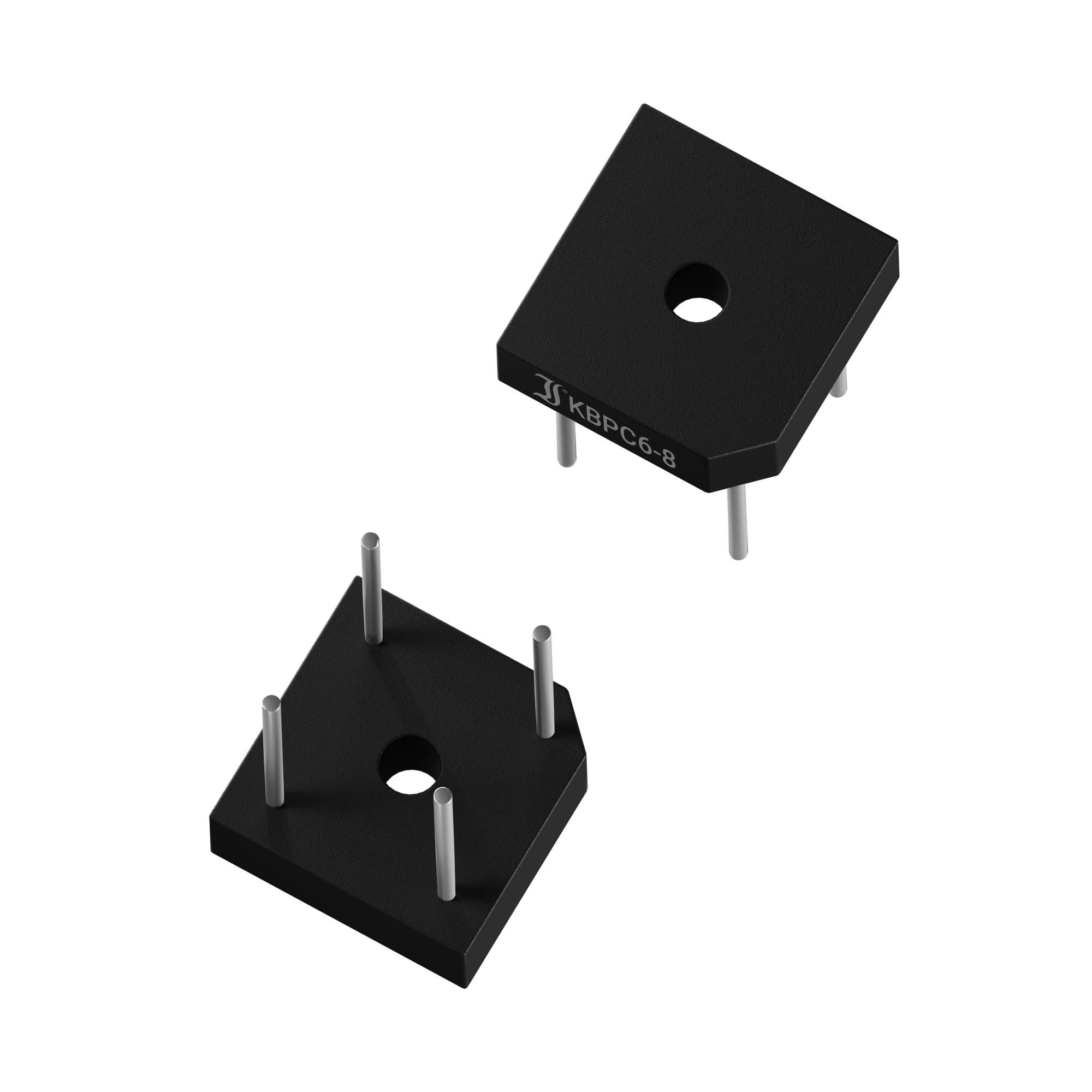

Two black, square bridge rectifiers, each with four connection pins, on a white background. Key component in electronic circuits.

Image similar

Two black, square bridge rectifiers, each with four connection pins, on a white background. Key component in electronic circuits.

Image similar

Product type

Diode bridge

Enclosure

KBPC6

U(RRM)

100 V

Forward current I(F)

3 A

Forward voltage U(F)

1.20 V

Datasheet (PDF)

English

Diotec

Fast track dispatch on Tue, 13 Oct

68 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.92666 / piece)

€ 18.53

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadCasing: KBPC6Periodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 6.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 110.00 AForward voltage - VF 1.20 VIF 3.00 AReverse current - IR 5,000 µAVR 100 VLock layer capacity - CJ: PFVR V

Type: KBPC601

Product type: Diode bridge

Enclosure: KBPC6

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 100 V

Forward current I(F): 3 A

Forward voltage U(F): 1.20 V

Forward voltage reference: 3.00 A

I(FSM) 50Hz: 110 A

I(FSM) 60Hz: 110.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 100 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 2809869 Diotec KBPC601 Diode bridge KBPC6 100 V 3 A

User & Safety Instructions

User & Safety Instructions 2809869 Diotec KBPC601 Diode bridge KBPC6 100 V 3 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
