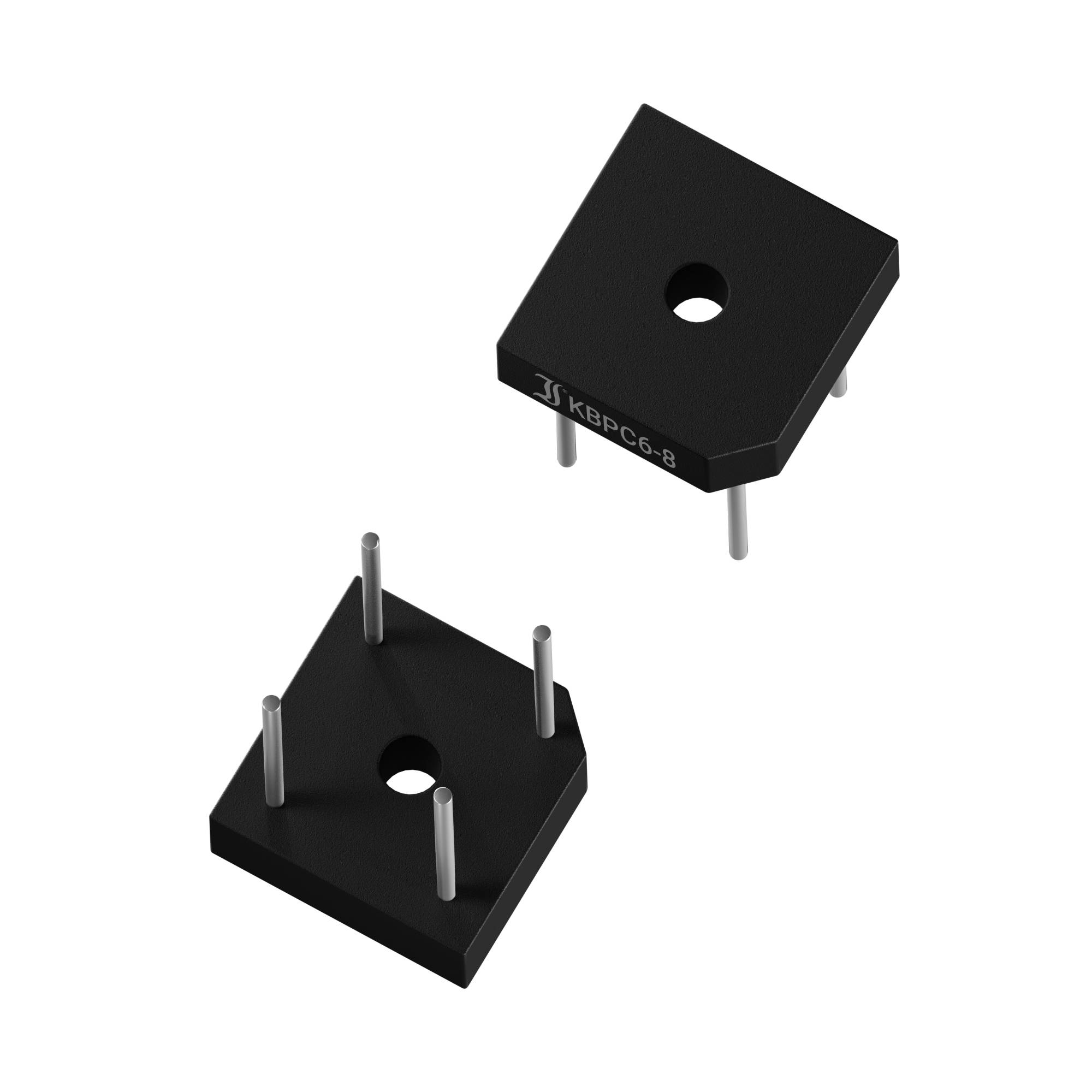

Two black rectifiers with a square shape and metal pins, on a white background. One is visible from above, the other from the side.

Image similar

Two black rectifiers with a square shape and metal pins, on a white background. One is visible from above, the other from the side.

Image similar

Product type

Diode bridge

Enclosure

KBPC8-PB10

U(RRM)

50 V

Forward current I(F)

4 A

Forward voltage U(F)

1.20 V

Datasheet (PDF)

English

Diotec

Fast track dispatch on Mon, 5 Oct

135 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 2

Total (€ 0.87891 / piece)

€ 1.76

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Type wire-leadHousing KBPC8-PB10Periodic Peak Reverse Voltage - VRRM 50 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 135.00 AForward voltage - VF 1.20 VIF 4.00 AReverse current - IR 5,000 µAVR 50 VLock layer capacity - CJ: PFVR V

Type: KBPC800

Product type: Diode bridge

Enclosure: KBPC8-PB10

Manufacturer: Diotec

Manuf. code: DIO

U(RRM): 50 V

Forward current I(F): 4 A

Forward voltage U(F): 1.20 V

Forward voltage reference: 4.00 A

I(FSM) 50Hz: 135 A

I(FSM) 60Hz: 135.00 A

Reverse leakage current I(r): 5 µA

Reverse leakage current I(r) reference: 50 V

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

English

Datasheet 2809874 Diotec KBPC800 Diode bridge KBPC8-PB10 50 V 4 A

User & Safety Instructions

User & Safety Instructions 2809874 Diotec KBPC800 Diode bridge KBPC8-PB10 50 V 4 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
