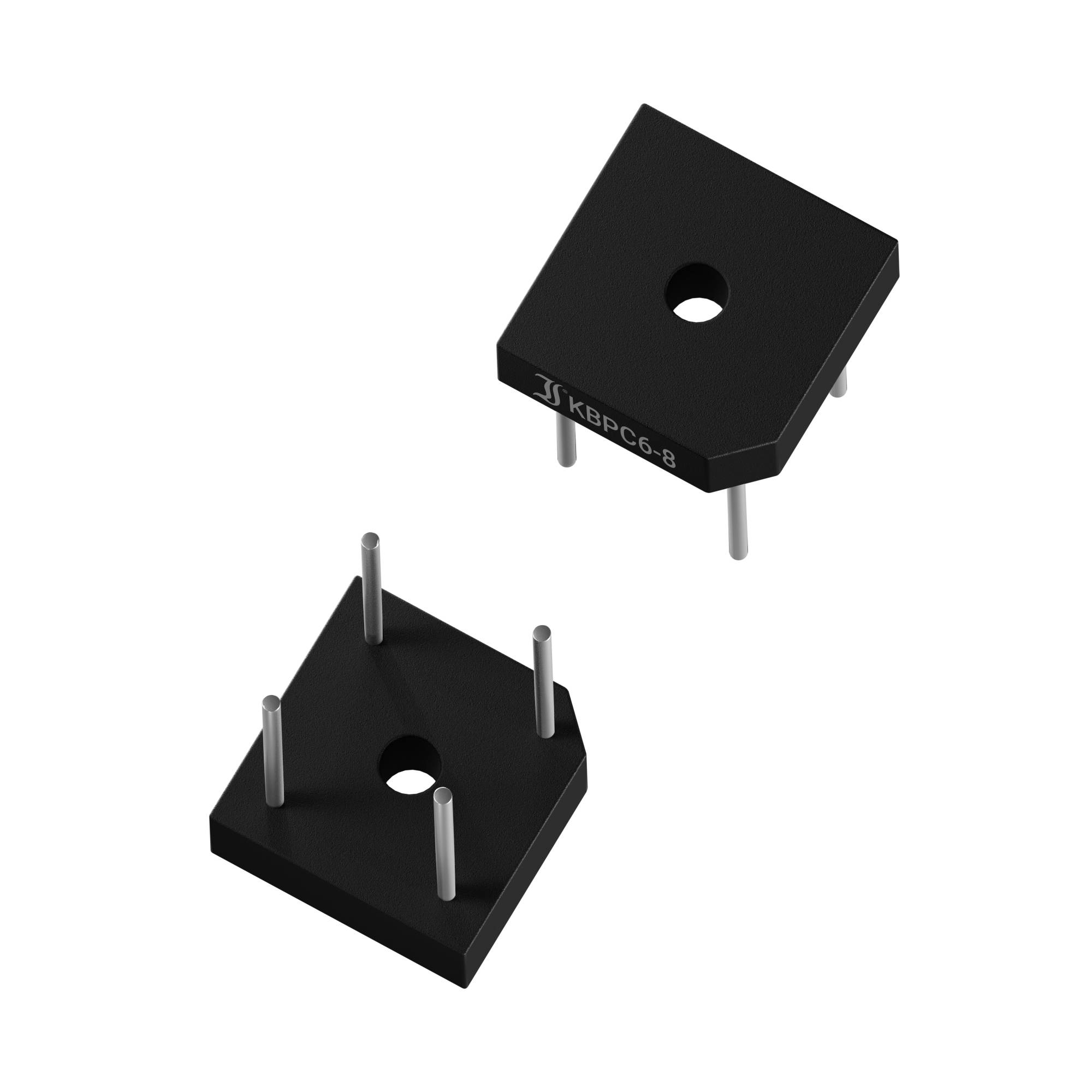

Two black, square electronic components with metallic pins, presumably rectifiers, on a white background.

Image similar

Two black, square electronic components with metallic pins, presumably rectifiers, on a white background.

Image similar

Diotec

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Fri, 17 Jul

308 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.96967 / piece)

€ 19.39

plus VAT.

Report legal concerns

Technical specifications

Type wire-leadHousing KBPC8-PB10Periodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 135.00 AForward voltage - VF 1.20 VIF 4.00 AReverse current - IR 5,000 µAVR 200 VLock layer capacity - CJ: PFVR V

Type: KBPC802

Enclosure: KBPC8-PB10

Manufacturer: Diotec

U(RRM): 200 V

Forward current I(F): 4 A

Forward voltage U(F): 1.20 V

I(FSM) 50Hz: 135 A

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

RoHS-compliant: Yes

Product type: Diode bridge

Documents & Downloads

Datasheet

English

Datasheet 2809876 Diotec KBPC802 Diode bridge KBPC8-PB10 200 V 4 A

Description

Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
