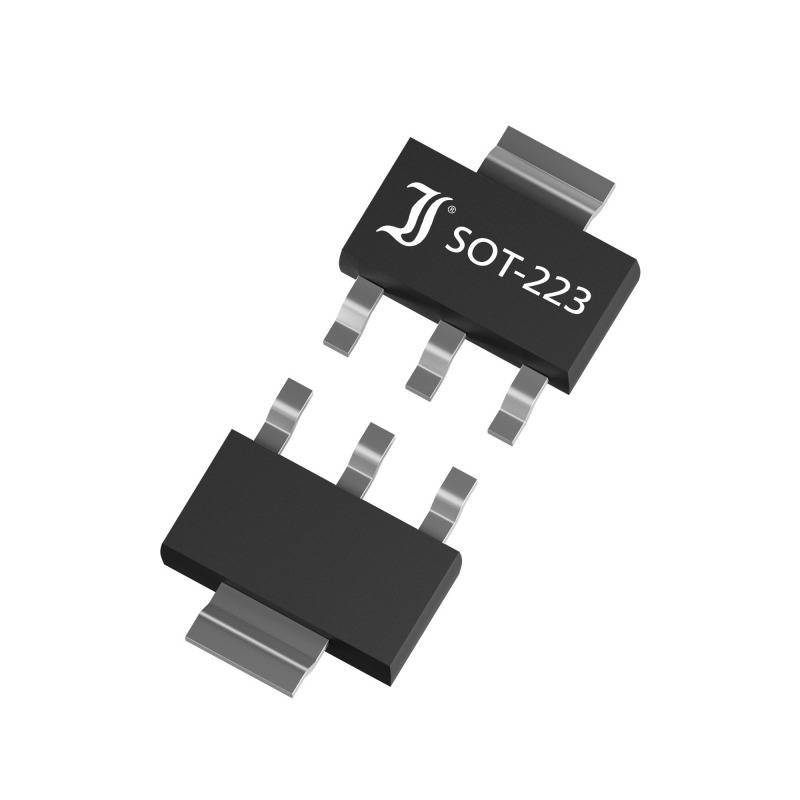

Diotec LDI1117-1.2H Voltage regulator - linear SOT 223 1 A
Part number:
Item no:
Enclosure
SOT 223
Output voltage (min.)
1.176 V
Power output
1 A
Mounting type
Surface-mount
Product type
Voltage regulator - linear
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.07655
90
9% = € 0.01
€ 0.06958
150
13% = € 0.01
€ 0.06679
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 30
Total (€ 0.07655 / piece)
€
Technical specifications
- Type SMDSOT-223 housingInput Voltage - Vin 20 VOutput voltage - VOUTmin 1,176 VVOUTmax 1,224 VJunction temperature - Tjmax 125 °CQuiescent current - IQ 5,000 mADropout voltage - VD 1.00 VOutput current IO 1.00 A
- Type
LDI1117-1.2H
- Enclosure
SOT 223
- Manufacturer
Diotec
- Input voltage (max.)
20 V
- Output voltage (min.)
1.176 V
- Power output
1 A
- Output voltage (max.)
1.224 V
- Drop-out voltage U(d)
1 V
- Operating temperature (max.)
125 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Product type
Voltage regulator - linear
Documents & Downloads
Datasheet
Datasheet 2809885 Diotec LDI1117-1.2H Voltage regulator - linear SOT 223 1 A
