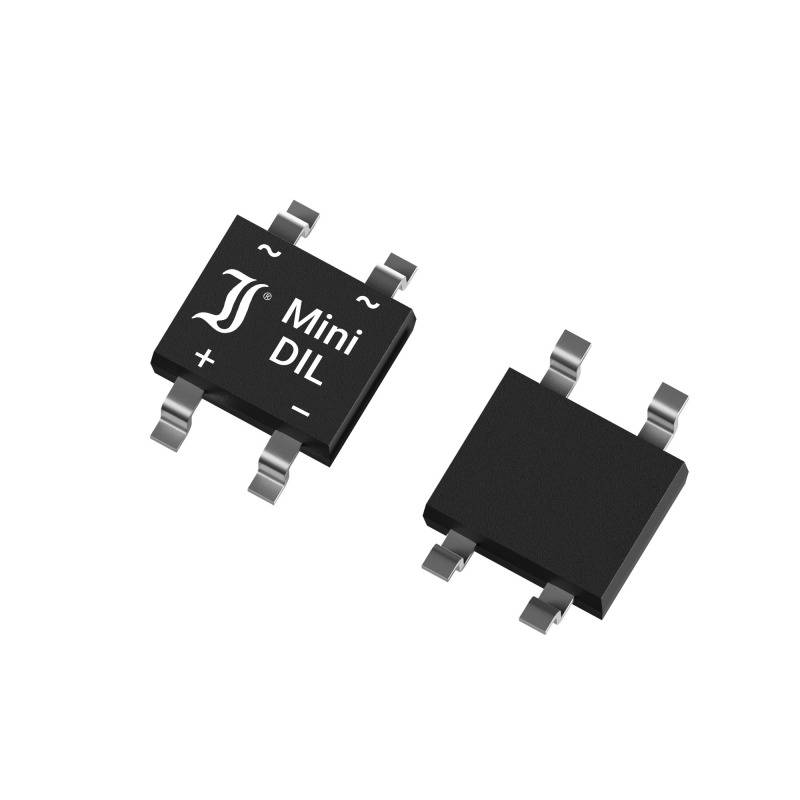

Diotec MB10S Diode bridge TO 269AA 1000 V 0.40 A
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
TO 269AA
U(RRM)
1000 V
Forward current I(F)
0.40 A
Forward voltage U(F)
1 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 0.15517
60
9% = € 0.01
€ 0.14103
100
13% = € 0.02
€ 0.13539
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 0.15517 / piece)
€ 3.10
plus VAT.
14-day return policy included
Highlights & Details
Diode bridge
Our service for you
Technical specifications
- Type SMDHousing TO-269AA/MiniDILPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 0.50 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 32.00 AForward voltage - VF 1.00 VIF 0.40 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V
- Type
MB10S
- Product type
Diode bridge
- Enclosure
TO 269AA
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
1000 V
- Forward current I(F)
0.40 A
- Forward voltage U(F)
1 V
- Forward voltage reference
0.40 A
- I(FSM) 50Hz
32 A
- I(FSM) 60Hz
32.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
1000 V
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2809917 Diotec MB10S Diode bridge TO 269AA 1000 V 0.40 A
User & Safety Instructions
User & Safety Instructions 2809917 Diotec MB10S Diode bridge TO 269AA 1000 V 0.40 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
