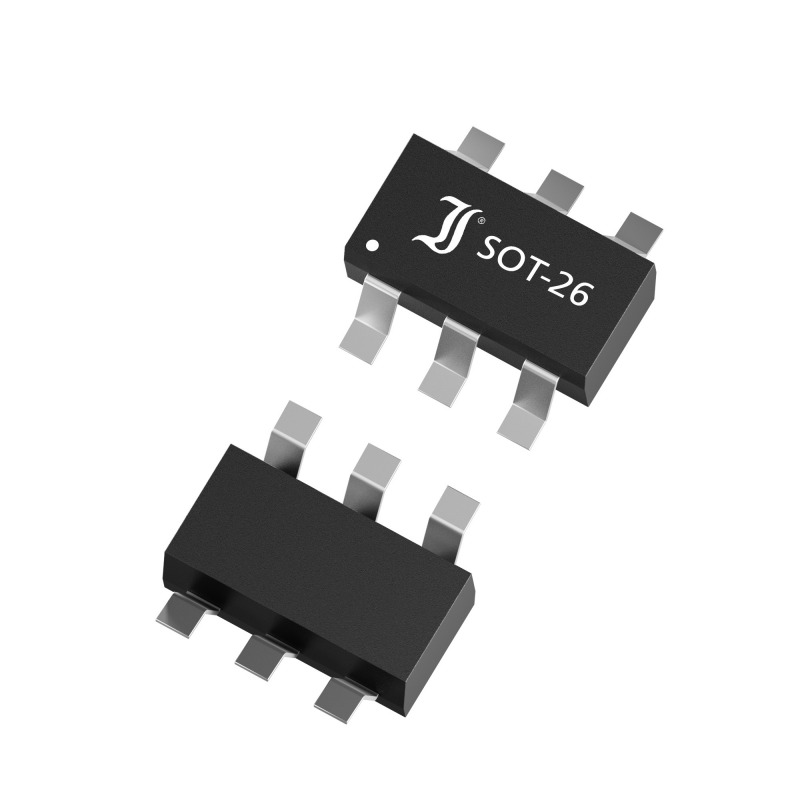

Image similar
Image similar
Diotec MD10P380 MOSFET P-channel 1 W SOT 26
EAN:
Part number:
Item no:
Product type
MOSFET
Enclosure
SOT 26
Type
P-channel
Power (max) P(TOT)
1 W
R(DS)(on) reference current
-1 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3000
-
€ 0.17772
9000
9% = € 0.02
€ 0.16153
15000
13% = € 0.02
€ 0.15507
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3000
Multiple: 3000
Total (€ 0.17772 / piece)
€ 533.16
plus VAT.
14-day return policy included
Highlights & Details
MOSFET, SOT-26, 100V, 1.6A, 150°C, P
Our service for you
Technical specifications
- Type SMDSOT-26 housingDrain source voltage – VDS -100 VDrain current ID -1,600 A.Junction temperature - Tjmax 150 °CPolarity - pin: PPower loss - Ptot 1,000 W.Peak drain current – IDM -9,000 AThreshold voltage - VGSth -2.3 VSwitch-on resistance - RDSON 0.3250 ΩID -1 AVGS -10 VSwitch on time - tone: 12 nsSwitch off time - toff: 16 ns
- Type
MD10P380
- Product type
MOSFET
- Enclosure
SOT 26
- Manufacturer
Diotec
- Manuf. code
DIO
- Type
P-channel
- I(d)
-1.6 A
- Power (max) P(TOT)
1 W
- R(DS)(on) reference current
-1 A
- R(DS)(on) reference voltage
-10 V
- U(GS)(th) max.
-2.3 V
- Mounting type
Surface-mount
- Operating temperature (max.)
150 °C
- U(DSS)
-100 V
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2809936 Diotec MD10P380 MOSFET P-channel 1 W SOT 26
User & Safety Instructions
User & Safety Instructions 2809936 Diotec MD10P380 MOSFET P-channel 1 W SOT 26
