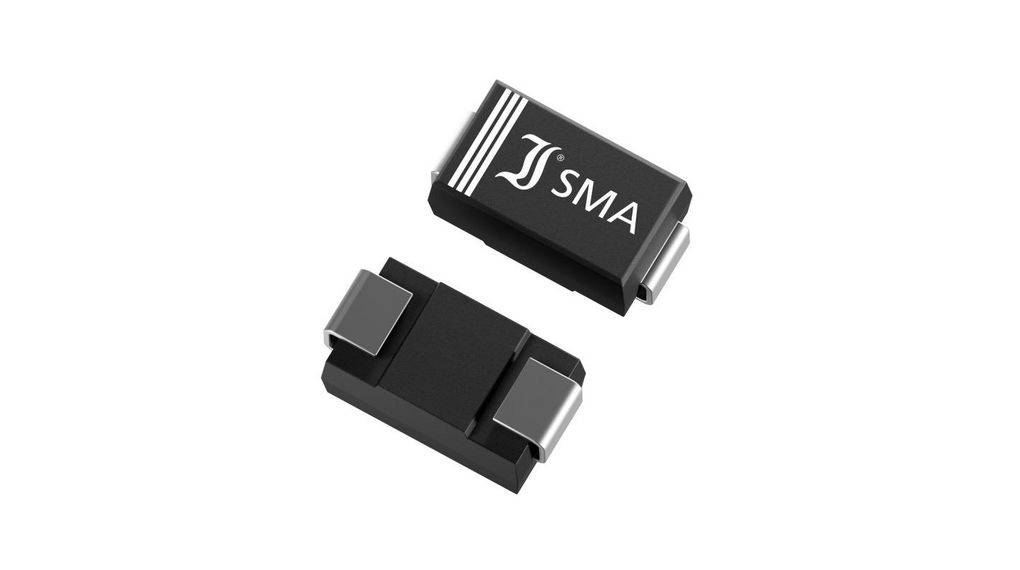

Diotec Rectifier FR2XSMA DO 214AC 1800 V 2 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 214AC
Forward current I(F)
2 A
Reverse voltage U(R)
1800 V
Forward voltage U(F)
1.80 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
150
-
€ 0.15377
450
9% = € 0.01
€ 0.13976
750
13% = € 0.02
€ 0.13417
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.15377 / piece)
€ 23.07
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDHOUSING: DO-214AC/SMAPeriodic Peak Reverse Voltage - VRRM 1800 VContinuous current - IFAV 2.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 500 nsSurge current - IFSM 45.00 AForward voltage - VF 1.80 VIF 2.00 AReverse current - IR 5,000 µAVR 1800 VLock layer capacity - CJ: PFVR V
- Type
FR2XSMA
- Product type
Rectifier
- Enclosure
DO 214AC
- Manufacturer
Diotec
- Forward current I(F)
2 A
- Reverse voltage U(R)
1800 V
- Forward voltage U(F)
1.80 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
45 A
- Reverse recovery time T(rr)
500 ns
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2807800 Diotec Rectifier FR2XSMA DO 214AC 1800 V 2 A
User & Safety Instructions
User & Safety Instructions 2807800 Diotec Rectifier FR2XSMA DO 214AC 1800 V 2 A
