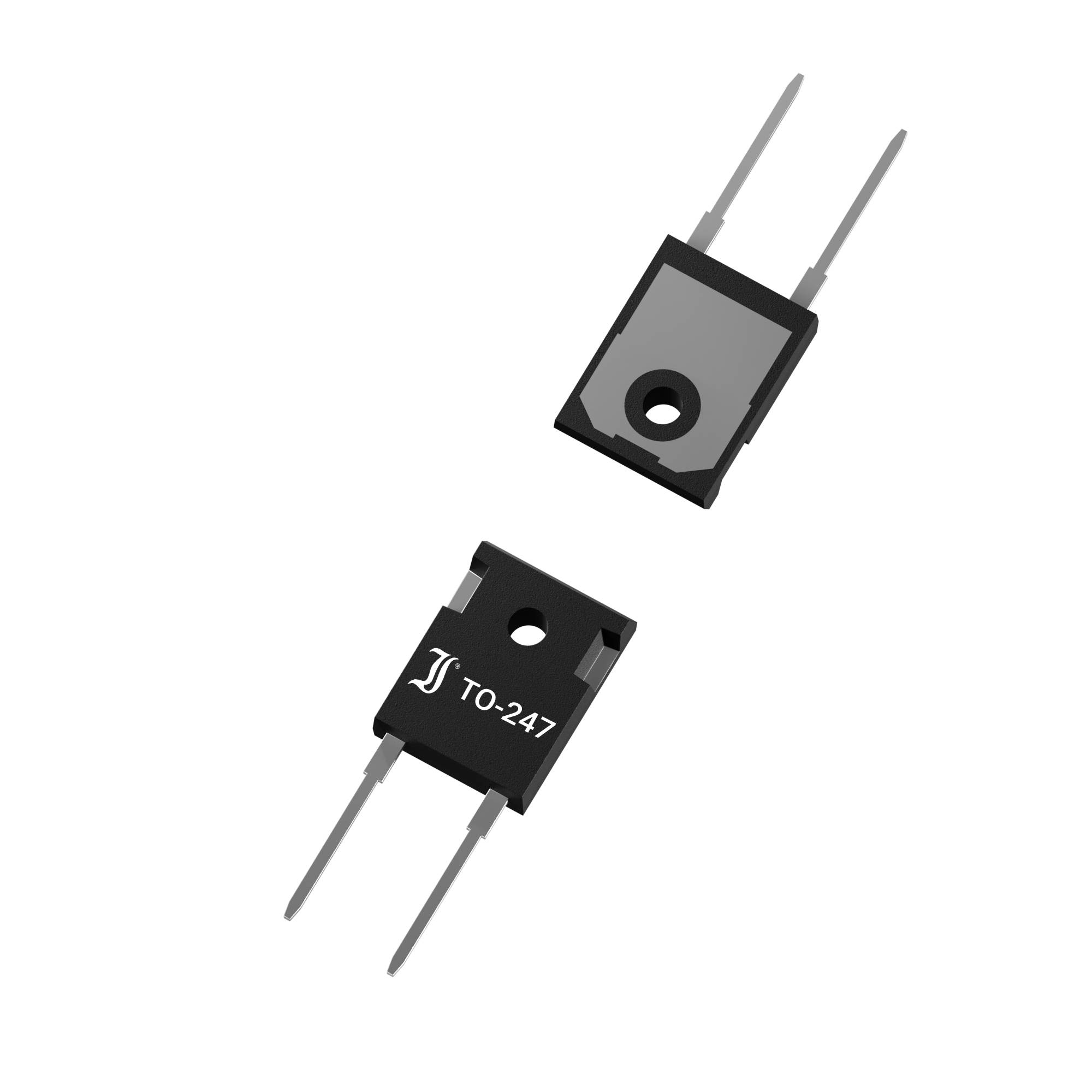

Diotec Rectifier PW4512 TO-247-2L 1200 V 45 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
TO-247-2L
Forward current I(F)
45 A
Reverse voltage U(R)
1200 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
20
-
€ 1.66006
60
8% = € 0.13
€ 1.52642
100
11% = € 0.19
€ 1.47297
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 20
Total (€ 1.66006 / piece)
€ 33.20
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type wire-leadCasing TO-247-2L.Periodic Peak Reverse Voltage - VRRM 1200 VContinuous current - IFAV 45.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.25 VIF 45.00 ASurge current - IFSM 450.00 AReverse current - IR 5,000 µAVR 1200 VLock layer capacity - CJ: PFVR V
- Type
PW4512
- Product type
Rectifier
- Enclosure
TO-247-2L
- Manufacturer
Diotec
- Forward current I(F)
45 A
- Reverse voltage U(R)
1200 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
450 A
- RoHS-compliant
Yes
