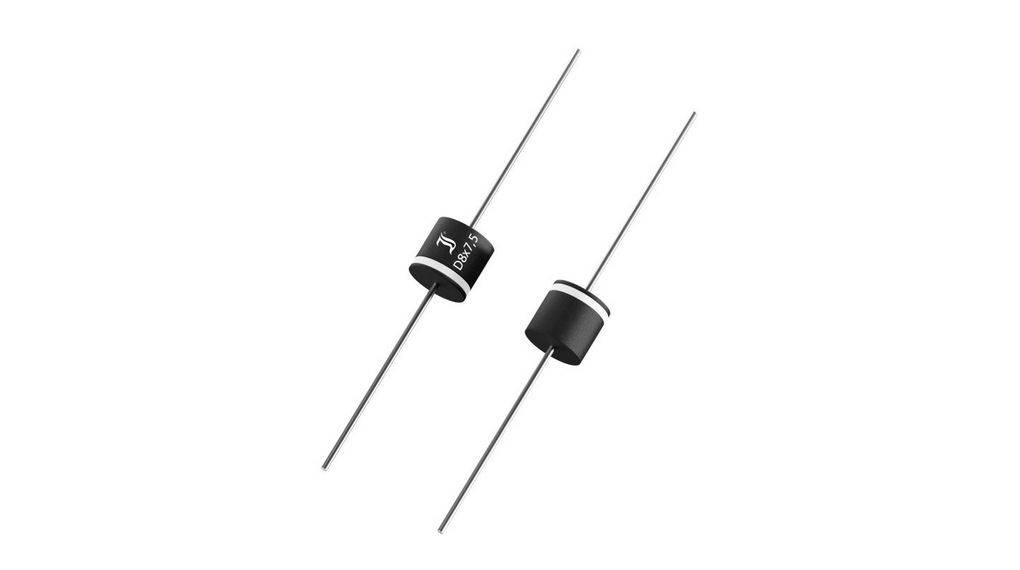

Image similar

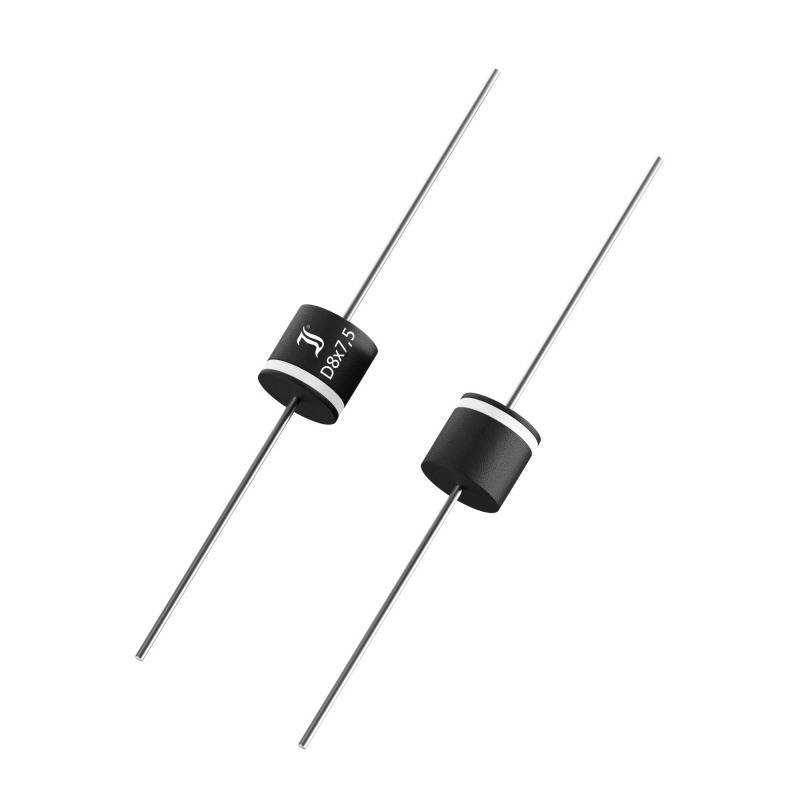

Image similar
Diotec Rectifier PX1500B D8x7.5 100 V 5 A
EAN:
Part number:
Item no:
Enclosure
D8x7.5
Forward current I(F)
5 A
Reverse voltage U(R)
100 V
Forward voltage U(F)
0.90 V
Mounting type
Through-hole mounting
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
40
-
€ 0.53209
120
8% = € 0.04
€ 0.48926
200
11% = € 0.06
€ 0.47213
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 40
Total (€ 0.53209 / piece)
€ 21.28
plus VAT.
Technical specifications
- Type AxialHousing: D8x7.5Periodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.90 VIF 5.00 ASurge current - IFSM 400.00 AReverse current - IR 10,000 µAVR 100 VLock layer capacity - CJ: PFVR V
- Type
PX1500B
- Enclosure
D8x7.5
- Manufacturer
Diotec
- Forward current I(F)
5 A
- Reverse voltage U(R)
100 V
- Forward voltage U(F)
0.90 V
- Reverse leakage current I(r)
10 µA
- Operating temperature (max.)
175 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
400 A
- RoHS-compliant
Yes
- Product type
Rectifier
Documents & Downloads
Datasheet
Datasheet 2808683 Diotec Rectifier PX1500B D8x7.5 100 V 5 A
