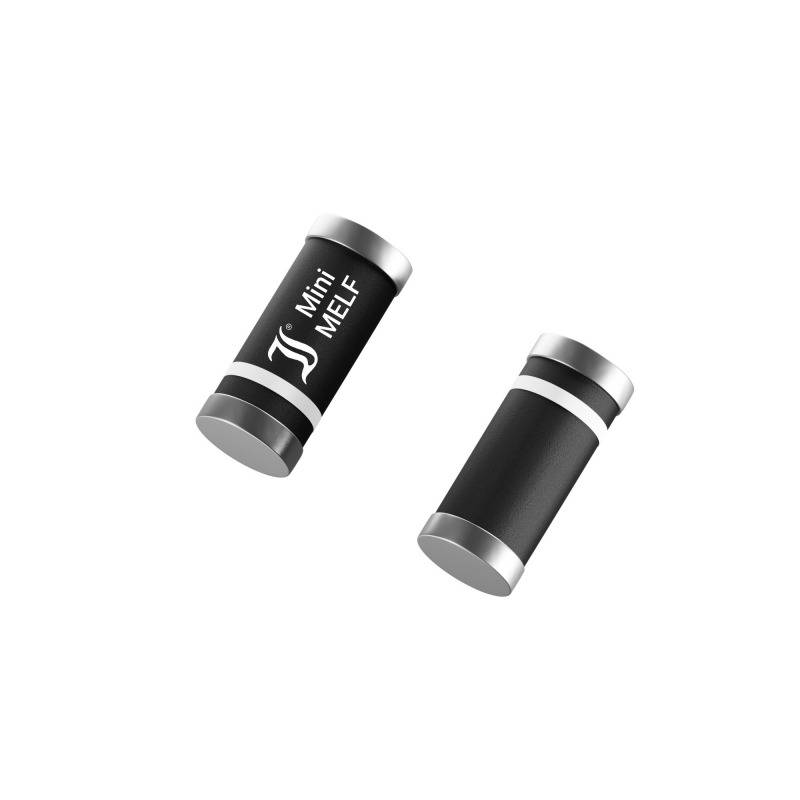

Diotec Rectifier RAL1K DO 213AA 800 V 1 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 213AA
Forward current I(F)
1 A
Reverse voltage U(R)
800 V
Forward voltage U(F)
1.30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
300
-
€ 0.07122
900
9% = € 0.01
€ 0.06473
1500
13% = € 0.01
€ 0.06213
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 300
Total (€ 0.07122 / piece)
€ 21.37
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDHousing DO-213AA/MiniMelfPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 500 nsSurge current - IFSM 22.00 AForward voltage - VF 1.30 VIF 1.00 AReverse current - IR 3,000 µAVR 800 VLock layer capacity - CJ: PFVR V
- Type
RAL1K
- Product type
Rectifier
- Enclosure
DO 213AA
- Manufacturer
Diotec
- Forward current I(F)
1 A
- Reverse voltage U(R)
800 V
- Forward voltage U(F)
1.30 V
- Reverse leakage current I(r)
3 µA
- Operating temperature (max.)
175 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
22 A
- Reverse recovery time T(rr)
500 ns
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2808694 Diotec Rectifier RAL1K DO 213AA 800 V 1 A
User & Safety Instructions
User & Safety Instructions 2808694 Diotec Rectifier RAL1K DO 213AA 800 V 1 A
