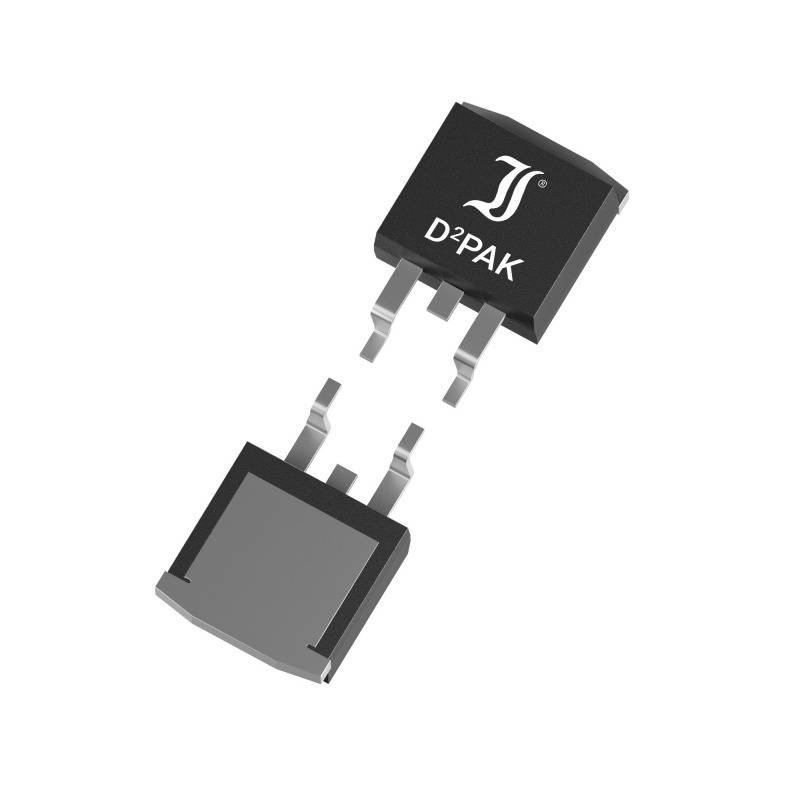

Diotec Rectifier S15MYD2 TO 263AB 1000 V 15 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
TO 263AB
Forward current I(F)
15 A
Reverse voltage U(R)
1000 V
Forward voltage U(F)
1.30 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
40
-
€ 0.60256
120
8% = € 0.05
€ 0.55406
200
11% = € 0.07
€ 0.53466
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 40
Total (€ 0.60256 / piece)
€ 24.10
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDHOUSING: TO-263AB/D2PAKPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.30 VIF 15.00 ASurge current - IFSM 250.00 AReverse current - IR 10,000 µAVR 1000 VLock layer capacity - CJ 120 pFVR 4 V
- Type
S15MYD2
- Product type
Rectifier
- Enclosure
TO 263AB
- Manufacturer
Diotec
- Forward current I(F)
15 A
- Reverse voltage U(R)
1000 V
- Forward voltage U(F)
1.30 V
- Reverse leakage current I(r)
10 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
250 A
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2808718 Diotec Rectifier S15MYD2 TO 263AB 1000 V 15 A
