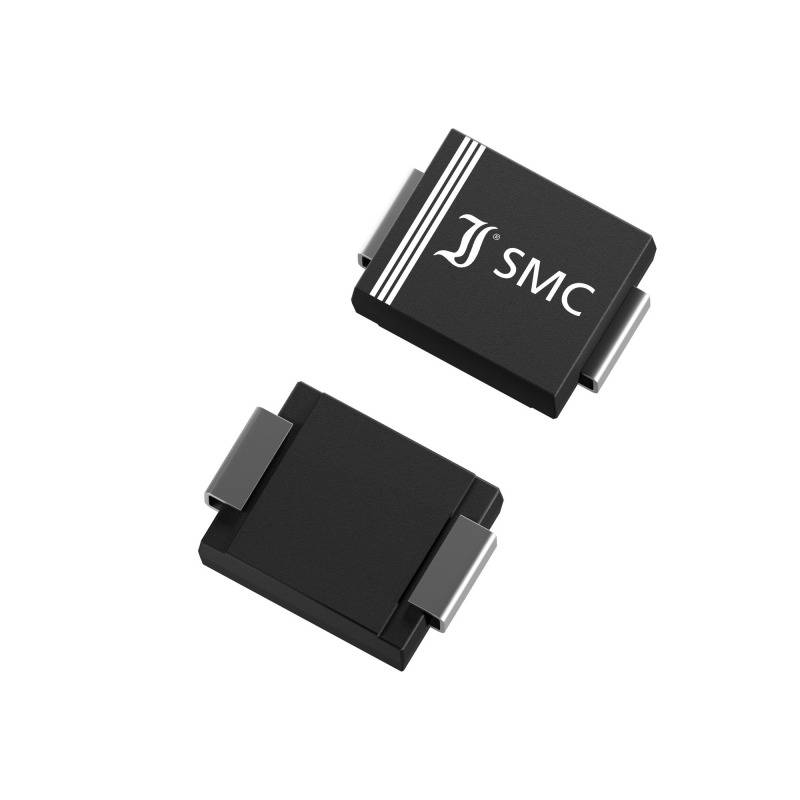

Diotec Rectifier S3M-AQ DO 214AB 1000 V 3 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 214AB
Forward current I(F)
3 A
Reverse voltage U(R)
1000 V
Forward voltage U(F)
1.15 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.19719
45
9% = € 0.02
€ 0.17923
75
13% = € 0.03
€ 0.17205
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.19719 / piece)
€ 2.96
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type SMDHOUSING DO-214AB/SMCPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.15 VIF 3.00 ASurge current - IFSM 100.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V
- Type
S3M-AQ
- Product type
Rectifier
- Enclosure
DO 214AB
- Manufacturer
Diotec
- Forward current I(F)
3 A
- Reverse voltage U(R)
1000 V
- Forward voltage U(F)
1.15 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
100 A
- RoHS-compliant
Yes
