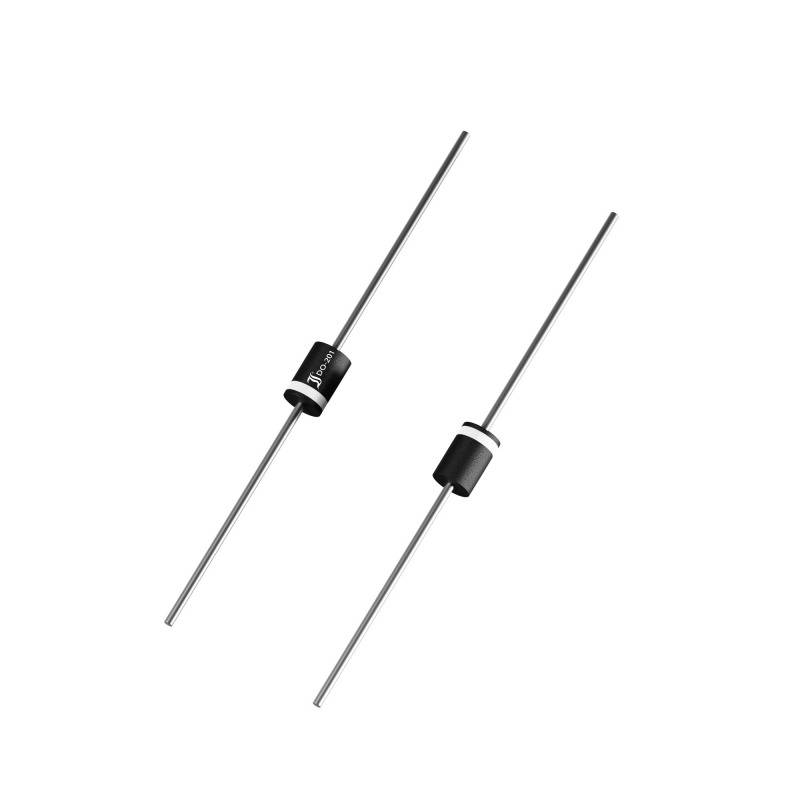

Diotec Rectifier UF5405 DO 201 500 V 3 A
EAN:
Part number:
Item no:
Product type
Rectifier
Enclosure
DO 201
Forward current I(F)
3 A
Reverse voltage U(R)
500 V
Forward voltage U(F)
1.70 V
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
200
-
€ 0.11655
600
9% = € 0.01
€ 0.10593
1000
13% = € 0.01
€ 0.10170
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 200
Total (€ 0.11655 / piece)
€ 23.31
plus VAT.
14-day return policy included
Highlights & Details
Rectifier
Our service for you
Technical specifications
- Type AxialDO-201 housingPeriodic Peak Reverse Voltage - VRRM 500 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 75 nsSurge current - IFSM 100.00 AForward voltage - VF 1.70 VIF 3.00 AReverse current - IR 5,000 µAVR 500 VLock layer capacity - CJ: PFVR V
- Type
UF5405
- Product type
Rectifier
- Enclosure
DO 201
- Manufacturer
Diotec
- Forward current I(F)
3 A
- Reverse voltage U(R)
500 V
- Forward voltage U(F)
1.70 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
175 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
100 A
- Reverse recovery time T(rr)
75 ns
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2808844 Diotec Rectifier UF5405 DO 201 500 V 3 A
User & Safety Instructions
User & Safety Instructions 2808844 Diotec Rectifier UF5405 DO 201 500 V 3 A
