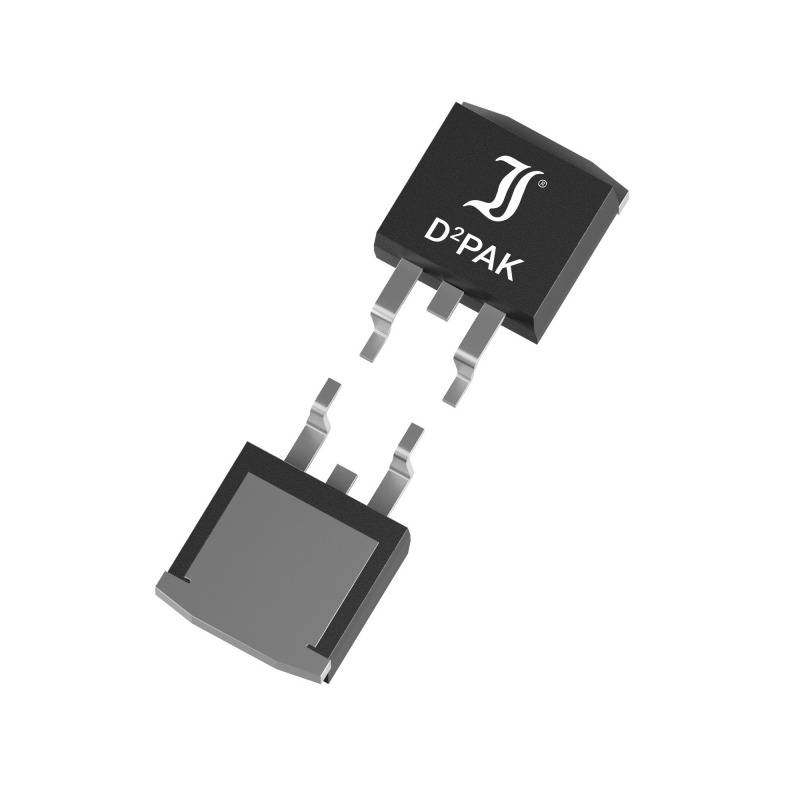

Image similar
Image similar
Diotec Rectifier UGB8JT TO 263AB 600 V 8 A
Part number:
Item no:
Enclosure
TO 263AB
Forward current I(F)
8 A
Reverse voltage U(R)
600 V
Forward voltage U(F)
1.75 V
Mounting type
Surface-mount
Datasheet (PDF)
960 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
40
-
€ 0.53280
120
8% = € 0.04
€ 0.48991
200
11% = € 0.06
€ 0.47275
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 40
Total (€ 0.5328 / piece)
€
Technical specifications
- Type SMDHOUSING: TO-263AB/D2PAKPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 8.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 35 nsSurge current - IFSM 112.00 AForward voltage - VF 1.75 VIF 8.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V
- Type
UGB8JT
- Enclosure
TO 263AB
- Manufacturer
Diotec
- Forward current I(F)
8 A
- Reverse voltage U(R)
600 V
- Forward voltage U(F)
1.75 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
112 A
- Reverse recovery time T(rr)
35 ns
- RoHS-compliant
Yes
- Product type
Rectifier
Documents & Downloads
Datasheet
Datasheet 2808865 Diotec Rectifier UGB8JT TO 263AB 600 V 8 A
